Bently Nevada 330851-02-000-230-50-01-05 3300 XL Spare

Bently Nevada 330851-02-000-230-50-01-05 3300 XL Spare: Precision Proximity Probe for Industrial Downtime Recovery

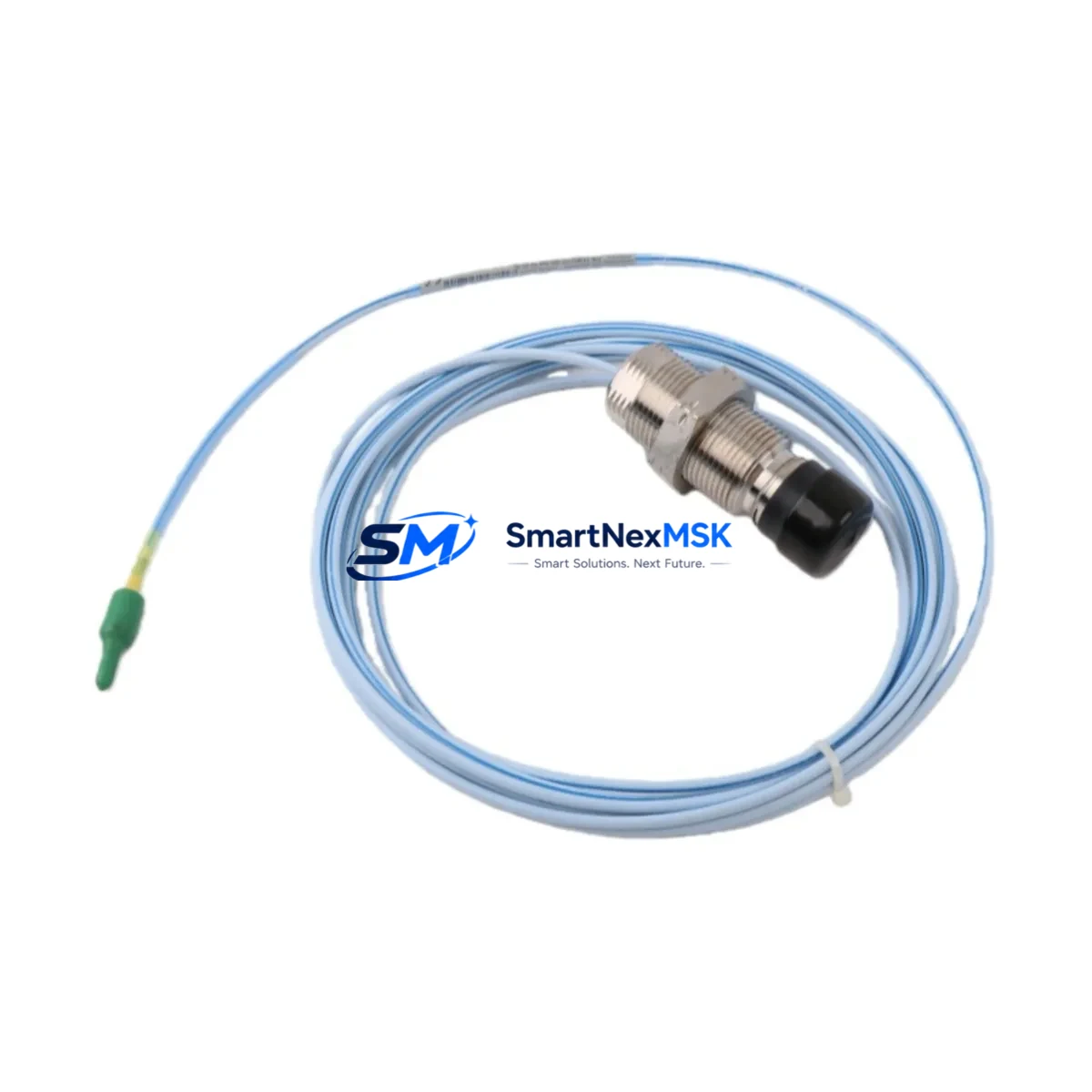

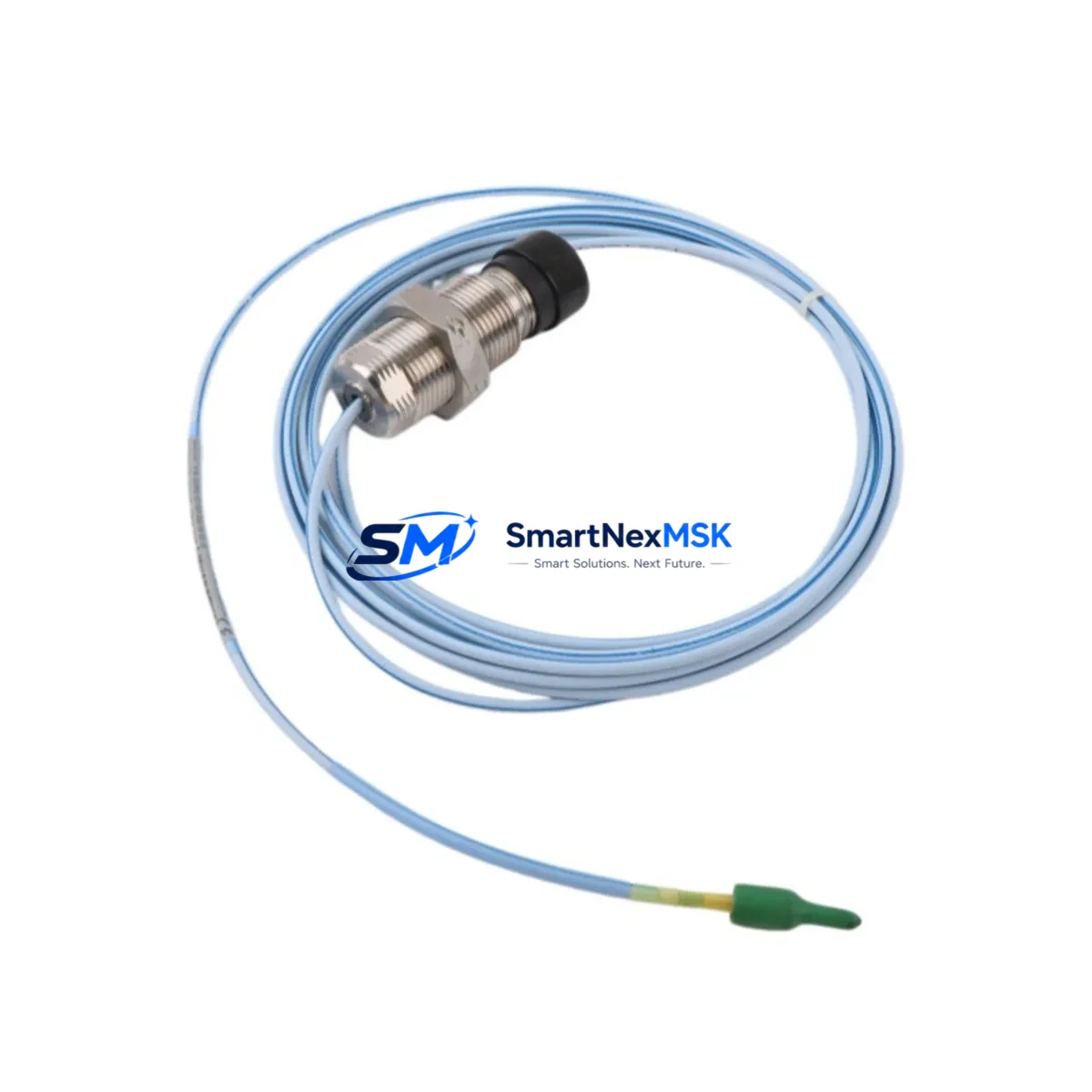

The Bently Nevada 330851-02-000-230-50-01-05 is a 5mm proximity probe assembly engineered for the 3300 XL Proximity Transducer System — one of the most widely deployed vibration monitoring platforms in rotating machinery protection worldwide. Whether you are managing a planned outage, responding to a vibration alarm, or building a critical-path spare parts inventory, this probe assembly delivers the dimensional accuracy, signal linearity, and environmental robustness required for continuous operation in turbines, compressors, pumps, and gearboxes.

Sourced as an original spare, each unit is inspected and function-tested prior to shipment. A 12-month warranty covers manufacturing defects and performance conformance, giving maintenance engineers and procurement teams confidence in both quality and long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330851-02-000-230-50-01-05 probe is flagged for replacement — whether due to a gap voltage drift, a broken cable jacket, or a connector contamination event — the replacement workflow should extend beyond the probe itself. A disciplined maintenance engineer will simultaneously inspect the paired 330130-080-00-05 extension cable for insulation damage and connector corrosion, and verify that the 330180-X1-05 proximitor / oscillator driver is outputting the correct bias voltage (typically −10.5 VDC ±0.5 VDC at the nominal gap). A driver that has drifted out of specification will cause a correctly installed new probe to report false vibration readings, leading to unnecessary trips or, worse, missed fault detection.

At the terminal cabinet level, inspect the 3300 XL barrier isolator or intrinsic safety barrier if the probe is installed in a hazardous area. Barrier degradation is a common root cause of intermittent signal loss that is misdiagnosed as probe failure. Check the 3500/42M Proximitor Monitor or equivalent rack card for alarm setpoint integrity and confirm that the OK relay output is functioning correctly before returning the loop to service.

For plants running the 3500 Series machinery protection rack, verify that the I/O module termination board connections are tight and free of oxidation. Loose terminations at the 3500/20 rack power supply input can introduce noise that mimics mechanical vibration. If the machine is also monitored for axial position or differential expansion, cross-check the companion 330851 series axial probe and its driver simultaneously — a single outage is the most cost-effective time to service the entire measurement chain.

Procurement engineers building a critical-path spare parts list for rotating machinery should consider stocking the probe assembly alongside the 330130 extension cable, a spare 330180 proximitor, and at minimum one set of 3500/42 monitor cards for each critical machine train. For older installations still running the 7200 Series transducer system, a migration assessment to the 3300 XL platform may reduce long-term spare parts complexity and improve signal quality.

All units are shipped with pre-shipment functional verification, original packaging where available, and a 12-month warranty. Long-term supply agreements are available for plants requiring guaranteed stock allocation across multiple maintenance cycles.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the proximitor driver supply (−24 VDC) at the rack power distribution terminal before disconnecting the probe cable.

Step 2 — Gap Measurement: Before removing the old probe, record the existing gap voltage and physical gap distance. This baseline confirms whether the probe tip or the target surface has worn, and determines whether the new probe requires a gap adjustment shim.

Step 3 — Probe Removal: Unthread the M8 probe body using the correct spanner. Inspect the mounting boss for thread damage and clean the bore. Do not use pipe wrenches — probe body deformation will affect gap linearity.

Step 4 — Installation: Thread the 330851-02-000-230-50-01-05 into the mounting boss by hand until snug, then set the gap to the system-specified value (typically 1.0 mm ± 0.1 mm for 5mm probes on AISI 4140 targets). Lock with the jam nut to the torque specified in the Bently Nevada installation manual.

Step 5 — Cable Routing & Connection: Route the integral cable and extension cable away from high-voltage conductors and rotating components. Connect to the proximitor driver and verify connector seating. Apply cable ties at the specified intervals to prevent vibration-induced connector fatigue.

Step 6 — Commissioning Check: Energize the driver supply and measure the gap voltage at the proximitor output. Confirm the value falls within the system OK band. Observe the vibration reading at slow-roll speed to verify a clean, low-noise signal before returning the machine to full speed.

Step 7 — Documentation: Record the new gap voltage, installation date, and probe serial number in the plant CMMS. Update the spare parts inventory to trigger a reorder for the consumed unit.

Spare Parts Support FAQ

Q1: Is the 330851-02-000-230-50-01-05 compatible with both the 3300 XL and 3500 Series systems?
The probe assembly is natively designed for the 3300 XL system. Compatibility with the 3500 Series depends on the specific driver card installed in the rack. Confirm the driver part number against the Bently Nevada compatibility matrix before installation. We can assist with compatibility verification prior to order confirmation.

Q2: What is included in the 12-month warranty?
The warranty covers manufacturing defects, dimensional non-conformance, and performance deviations from published specifications under normal operating conditions. It does not cover damage resulting from incorrect installation, target material incompatibility, or operation outside the rated temperature and voltage range. Warranty claims are processed with return shipment and replacement dispatch within 5 business days.

Q3: How do you verify the unit before shipment?
Each 330851-02-000-230-50-01-05 unit undergoes a pre-shipment inspection covering physical integrity, connector condition, cable jacket continuity, and where test equipment permits, output voltage verification against a reference target. Units that do not pass inspection are not shipped. A test report is available upon request for critical applications.

Q4: Can you support long-term or blanket purchase orders for ongoing maintenance programs?
Yes. Long-term supply agreements with reserved stock allocation are available for maintenance programs requiring guaranteed availability across multiple planned outage cycles. Contact our team to discuss lead time commitments, pricing tiers, and consignment options suited to your plant’s maintenance schedule.
