Bently Nevada 330851-08-000-064-10-01-05 3300 XL Spare

Bently Nevada 330851-08-000-064-10-01-05 3300 XL Maintenance-Ready Spare: Spare Parts Replacement & Industrial Downtime Risk Control

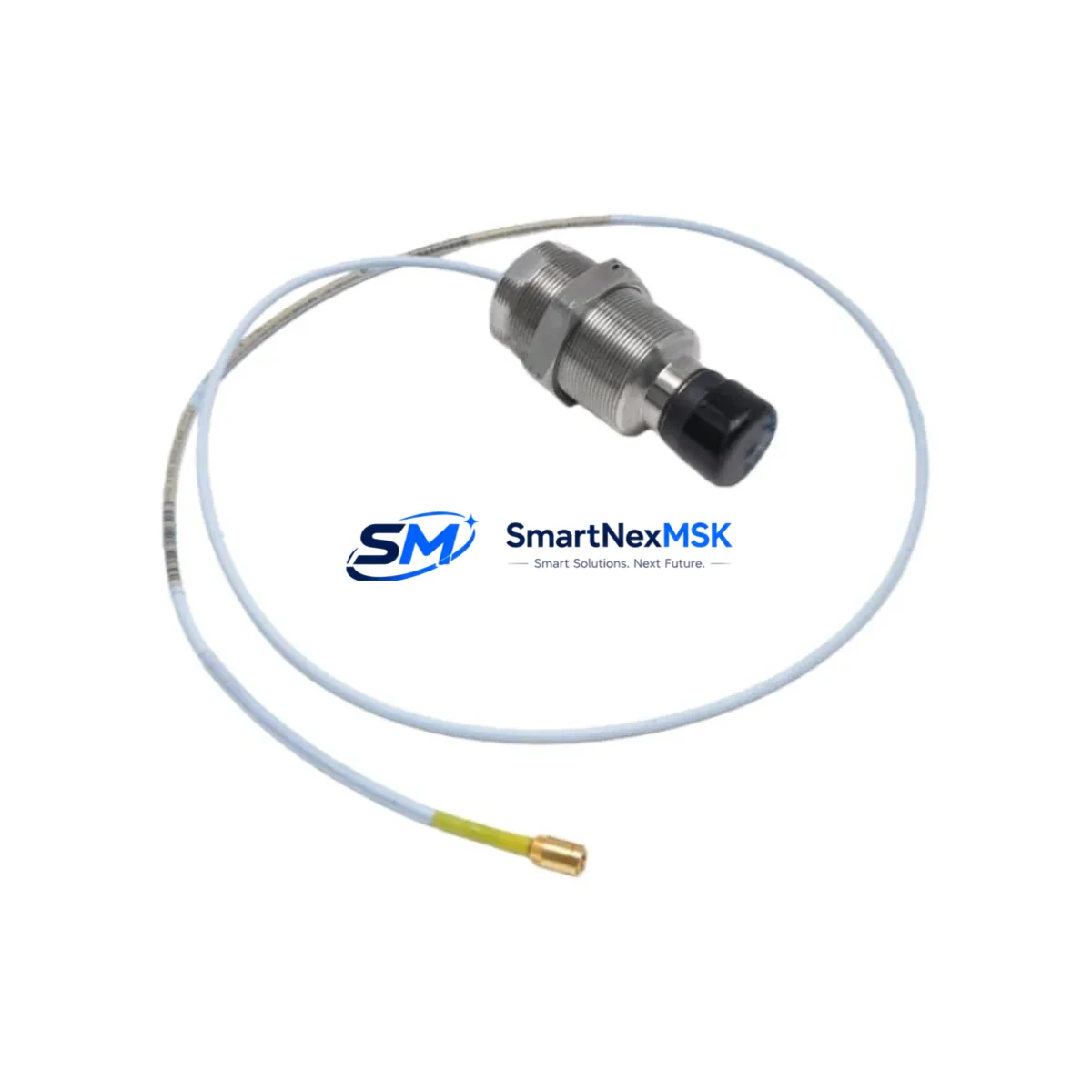

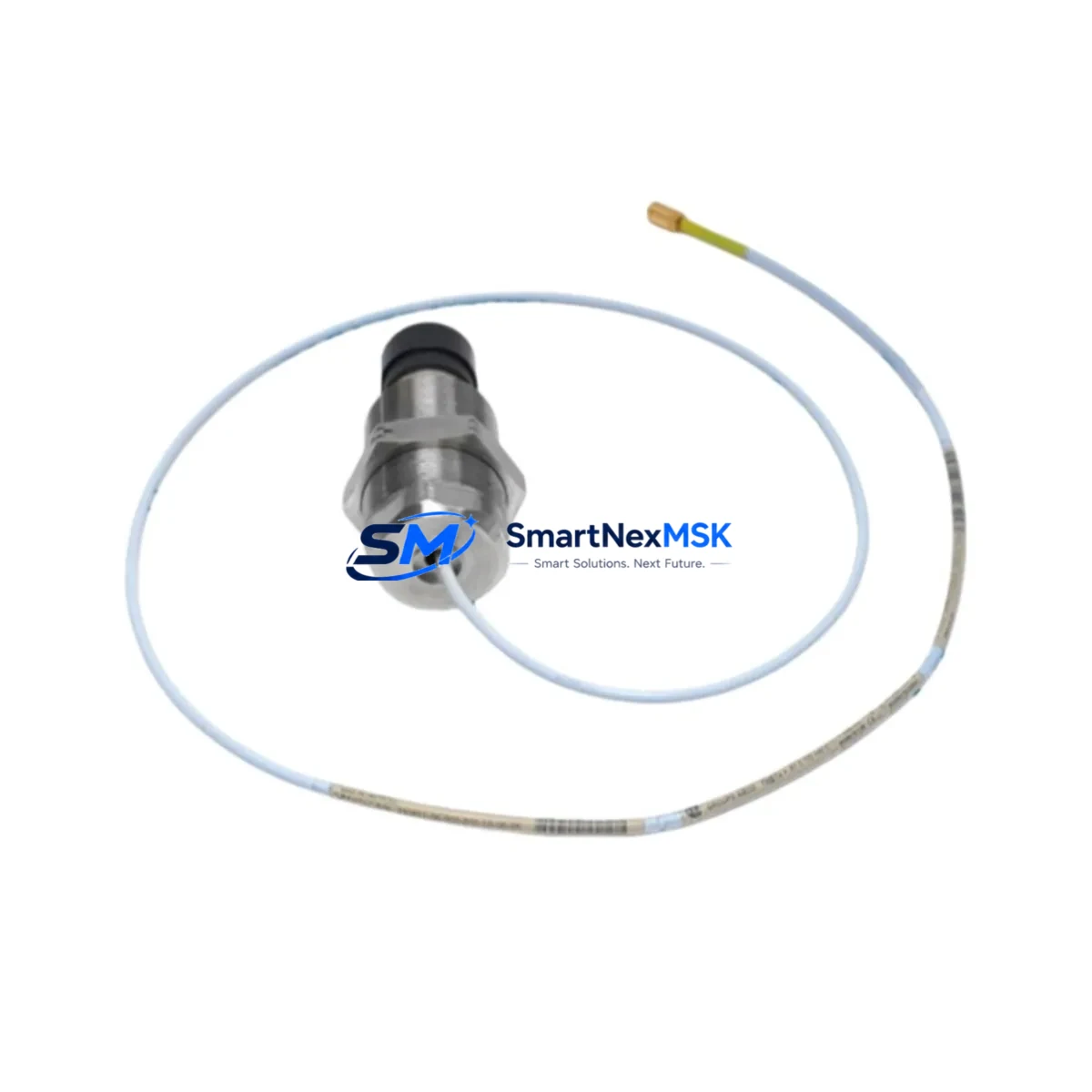

The Bently Nevada 330851-08-000-064-10-01-05 is an 8mm Eddy Current Proximity Probe engineered for the 3300 XL Series continuous vibration monitoring system. In rotating machinery protection — turbines, compressors, pumps, and gearboxes — this probe is a front-line sensor responsible for detecting shaft radial vibration, axial position, and differential expansion. When this component degrades or fails, the entire machinery protection loop is compromised, exposing critical assets to undetected mechanical faults and unplanned shutdowns.

Sourced as an original Bently Nevada spare, the 330851-08-000-064-10-01-05 is manufactured to OEM specifications and is fully compatible with the 3300 XL monitoring system architecture. Each unit is tested prior to shipment, backed by a 12-month warranty, and available for fast dispatch to support emergency replacement and planned maintenance schedules alike.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing rotating machinery protection systems, the 330851-08-000-064-10-01-05 proximity probe does not operate in isolation. A complete and reliable vibration monitoring loop depends on the integrity of every component in the signal chain. When scheduling replacement of this probe during planned outages or responding to a fault alarm, the following associated components should be inspected or replaced concurrently to prevent repeat failures and ensure measurement accuracy.

The 3300 XL Proximitor Sensor (driver/conditioner) paired with this probe must be verified for correct gap voltage output — typically –10.0 VDC at the calibrated gap. A drifting Proximitor can produce false vibration readings even with a new probe installed. Similarly, the 3300 XL Extension Cable connecting the probe to the Proximitor should be inspected for jacket damage, connector corrosion, and continuity, as cable degradation is a common source of signal noise in high-temperature environments.

At the monitor rack level, the 3300/16-24-01 or equivalent 3300 XL Monitor Module should be checked for alarm setpoint configuration and channel health. I/O terminal blocks and field wiring connections within the junction box or marshalling cabinet should be torqued to specification and inspected for oxidation. If the system uses a 3300/20 Rack Interface Module (RIM) for communication to the DCS or safety system, verify that the Modbus or 4–20 mA output signals are within expected range after probe replacement.

For facilities running older 3300 Series (non-XL) infrastructure alongside 3300 XL systems, it is advisable to audit 3300/05 Power Supplies and 3300/10 Keyphasor Modules during the same maintenance window. Keyphasor signal integrity directly affects phase-referenced vibration analysis, and a degraded Keyphasor probe or cable can mask real machinery faults. Barrier modules and Zener safety barriers used in hazardous area installations should also be tested for correct clamping voltage.

Where the 3300 XL system interfaces with a System 1 Evolution or System 1 Optimizer software platform, confirm that the channel configuration database reflects the new probe’s serial number and calibration data. Maintaining accurate asset records in the condition monitoring software is essential for trend analysis and predictive maintenance scheduling. Spare inventory for the 330851-08-000-064-10-01-05 probe, along with matched extension cables and a standby Proximitor, is recommended for any facility operating critical rotating machinery with continuous uptime requirements.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. De-energize the monitor channel associated with the probe being replaced. Note the existing gap voltage reading before removal as a baseline reference.

Step 2 — Probe Removal: Disconnect the integral cable from the extension cable at the junction box. Unthread the probe from the probe holder, taking care not to damage the probe tip or the mounting threads. Record the installed gap (distance from probe tip to shaft surface) using a feeler gauge or the existing gap voltage as reference.

Step 3 — New Probe Installation: Install the 330851-08-000-064-10-01-05 replacement probe into the probe holder. Set the gap to the OEM-specified distance (typically 1.0 mm / 40 mils for 8mm probes) and verify with a gap voltage measurement at the Proximitor output — target –10.0 VDC ±0.5 VDC. Reconnect the extension cable and inspect the connector seating.

Step 4 — Signal Verification: Re-energize the monitor channel. Confirm that the gap voltage, vibration reading (in µm or mils pk-pk), and alarm status are within expected parameters at the monitor display and at the DCS/control room. Compare readings against historical baseline data.

Step 5 — Documentation: Record the replacement in the maintenance management system (CMMS), including the new probe serial number, installation date, gap voltage, and technician sign-off. Update the System 1 asset database if applicable. This documentation supports warranty claims and future predictive maintenance analysis.

Using an original Bently Nevada 330851-08-000-064-10-01-05 spare ensures full compatibility with the 3300 XL signal chain, eliminates the risk of calibration mismatch associated with aftermarket alternatives, and maintains the integrity of the machinery protection system without requiring reconfiguration of monitor setpoints.

Spare Parts Support FAQ

Q1: Is the 330851-08-000-064-10-01-05 compatible with both 3300 and 3300 XL series monitors?
The 330851-08-000-064-10-01-05 is designed and calibrated for the 3300 XL system. While the physical connector may be similar to earlier 3300 Series probes, the calibration range and output characteristics are optimized for 3300 XL Proximitor Sensors. Cross-series use should be verified against the system documentation and gap voltage specifications before installation. For legacy 3300 (non-XL) systems, consult the compatible probe part number for that platform.

Q2: What is included in the 12-month warranty and what does pre-shipment testing cover?
Every 330851-08-000-064-10-01-05 unit is functionally tested prior to dispatch — including output signal verification and connector integrity checks. The 12-month warranty covers manufacturing defects and component failure under normal operating conditions. Warranty claims are supported with documentation of the installation environment and failure mode. Units showing physical damage from improper installation or out-of-specification gap settings are not covered under warranty.

Q3: How should I manage spare inventory for this probe in a critical rotating machinery environment?
For facilities with multiple 3300 XL monitoring points on critical assets (turbines, compressors, pumps), maintaining a minimum of two 330851-08-000-064-10-01-05 probes in the on-site spare parts store is recommended. Pair each probe spare with a matched extension cable and a standby Proximitor Sensor to enable a complete channel replacement without waiting for procurement. Probes should be stored in their original packaging in a dry, temperature-controlled environment and inspected annually for connector condition.

Q4: Can this probe be used as a direct drop-in replacement for a failed unit without recalibrating the monitor?
Yes — provided the replacement probe is an original Bently Nevada 330851-08-000-064-10-01-05 and the gap is set correctly to the OEM specification. Original spare probes are manufactured to the same calibration standard as the factory-installed unit, so monitor setpoints, alarm thresholds, and scale factors do not require adjustment. After installation, verify the gap voltage at the Proximitor output and confirm the vibration reading at the monitor display matches the expected baseline before returning the machine to service.
