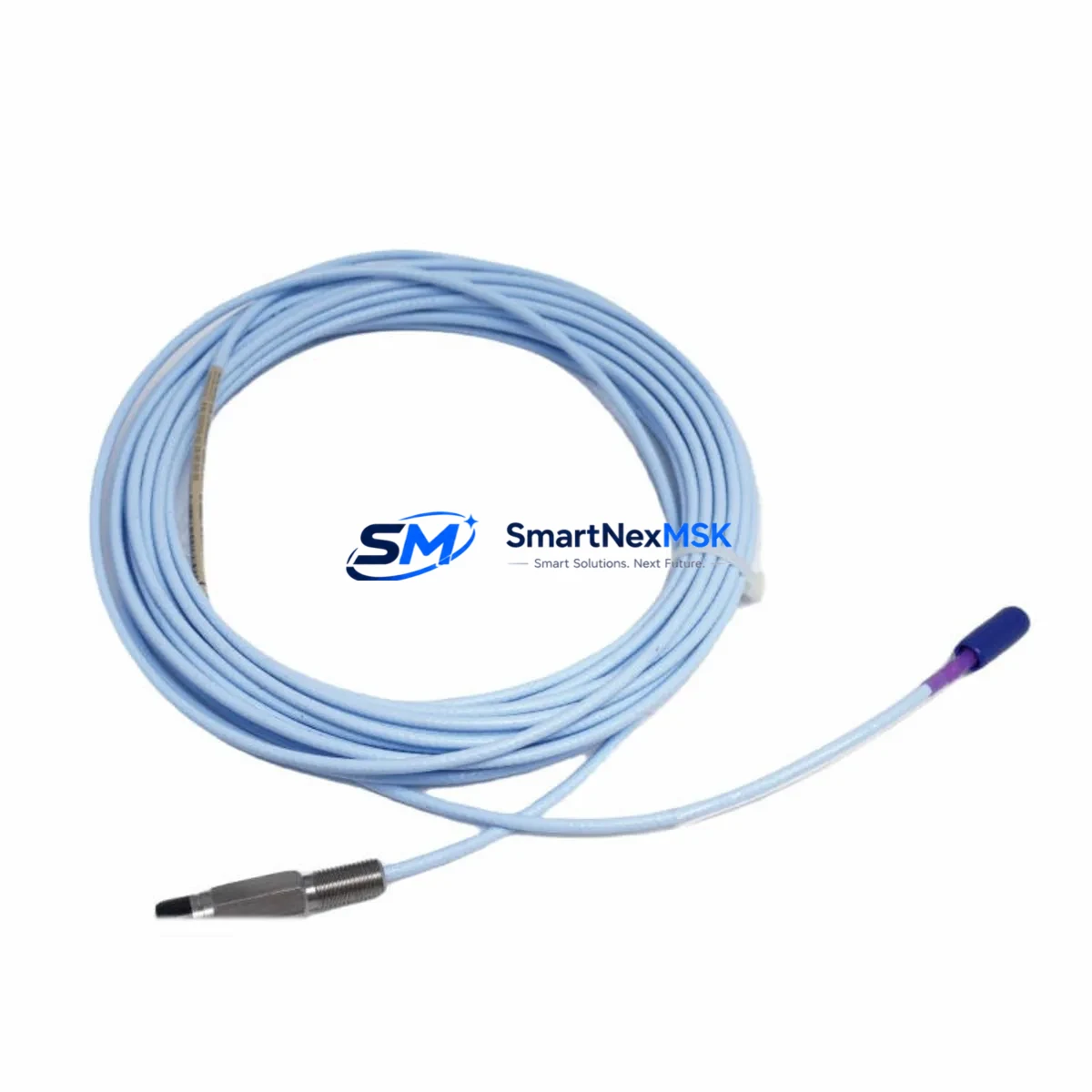

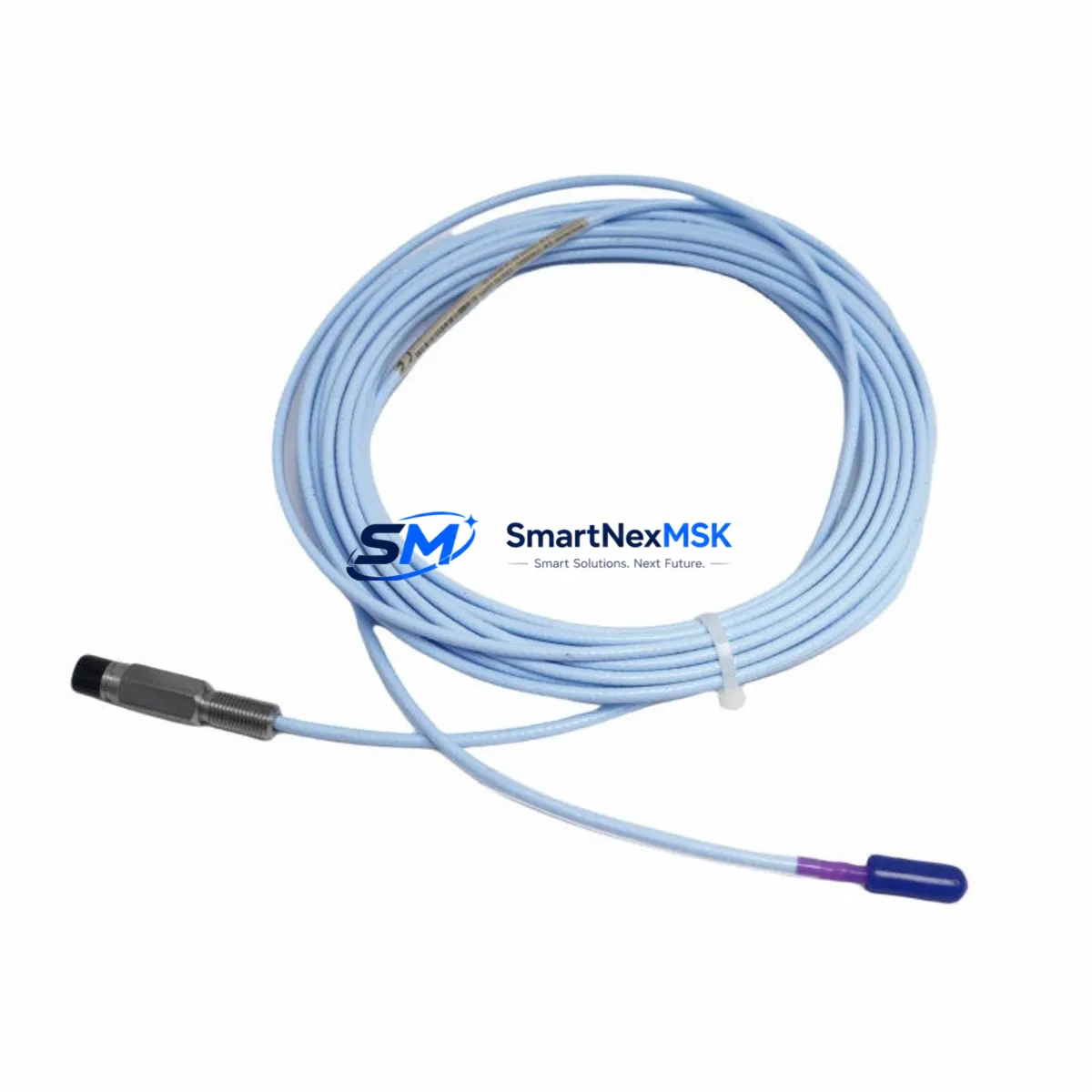

Bently Nevada 330854-40-24-00 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems
The Bently Nevada 330854-40-24-00 is a 25mm eddy current proximity transducer engineered for seamless integration into existing 3300 XL Series vibration monitoring systems. As legacy machinery protection platforms age and OEM support windows close, plant engineers and reliability teams increasingly rely on verified drop-in replacements to sustain continuous monitoring without triggering full system redesigns. This transducer delivers the same signal conditioning characteristics, gap voltage linearity, and cable length compatibility as the original factory unit, making it the preferred choice for brownfield retrofit projects, emergency spare replenishment, and planned control system upgrades.
Whether you are replacing a failed sensor on a critical rotating machine, upgrading an aging 3300 Series rack to the 3300 XL platform, or consolidating spare parts inventory across multiple plant sites, the 330854-40-24-00 provides a technically verified, immediately deployable solution backed by a 12-month warranty and pre-shipment functional testing.
Upgrade Compatibility Table
| Parameter | 330854-40-24-00 Specification | Retrofit Notes |
|---|---|---|
| Probe Tip Diameter | 25 mm | Matches standard 3300 XL mounting boss; no machining required |
| Cable Length | 5m (extension + driver) | Verify total system cable length does not exceed driver specification |
| Driver Compatibility | 3300 XL 8mm / 11mm / 25mm drivers | Confirm driver model before installation; 3300 XL 25mm driver required |
| Output Signal | -18 VDC nominal gap voltage | Compatible with 3500/40M and 3500/42M monitor inputs |
| Installation Interface | M10 x 1 threaded body | Standard 3300 XL probe holder; no adapter required |
| Communication / Protocol | Analog (4–20 mA / voltage) | No protocol migration needed; direct signal wiring to monitor rack |
| Replacement Path | Direct drop-in for 330854 series | Replaces 330854-40-24-00, 330854-40-24-05, and compatible variants |
| Pre-Shipment Testing | Functional gap/sensitivity test | Test report available upon request |
| Warranty | 12 Months | Covers manufacturing defects; field installation support available |
Retrofit Planning for Existing Automation Systems
Successful integration of the 330854-40-24-00 into a running plant environment requires careful pre-installation planning across several system layers. Begin by auditing the existing 3300 XL rack configuration. Most installations pair this transducer with a Bently Nevada 3300 XL 25mm Proximity Transducer Driver (such as the 330180-X1-05 or 330130-040-00-00 extension cable assembly). Confirm that the driver’s sensitivity setting matches the probe’s calibration curve — a mismatch here will produce erroneous gap voltage readings and may trigger false alarms on the connected Bently Nevada 3500/40M Proximitor Monitor or 3500/42M Proximitor/Seismic Monitor.
For plants running a Bently Nevada 3500 Rack with a 3500/20 Rack Interface Module, verify that the I/O module’s channel assignment and OK relay logic are correctly mapped before powering down the existing sensor. Export the current rack configuration from System 1 or the 3500 Rack Configuration Software before any hardware swap to preserve alarm setpoints, transducer OK limits, and full-scale range settings.
Terminal wiring should be documented against the existing 3500/40 I/O Module terminal block layout. The 330854-40-24-00 uses a standard coaxial connector at the driver end; ensure the field junction box and conduit entry are compatible with the replacement cable assembly. If the plant uses a Bently Nevada TK-3 Proximitor or an older 3300 RAM Rack as an intermediate signal conditioner, confirm that the new transducer’s sensitivity (200 mV/mil or 7.87 V/mm) aligns with the conditioner’s input range.
For sites migrating from the legacy Bently Nevada 7200 Series proximity system to the 3300 XL platform, additional attention is required at the HMI layer. Update the System 1 Evolution or System 1 Classic database to reflect the new transducer tag, gap reference voltage, and OK band limits. If the plant DCS — such as a Honeywell Experion PKS or Emerson DeltaV — receives vibration data via Modbus or OPC from the 3500 rack, verify that the data point mapping and engineering unit scaling remain consistent after the transducer swap. No firmware changes are required on the 3500 rack for a like-for-like 330854 series replacement.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity transducer replacement is achievable with disciplined pre-staging and a structured hot-swap protocol. Before scheduling the maintenance window, pre-configure the replacement 330854-40-24-00 on a bench test rig using a spare Bently Nevada 3500/40M monitor and a calibrated target disc. Verify the gap voltage at the nominal 25 mil (0.635 mm) air gap and confirm the OK relay energizes within specification. Document the bench test results as part of the work package.
During the maintenance window, place the affected 3500 rack channel in bypass mode using the rack’s front-panel keyswitch or System 1 software to suppress false trip signals while the transducer is disconnected. Swap the probe and extension cable assembly, reconnect the driver, and restore the channel from bypass. Perform a live gap check at the machine with the shaft stationary, then confirm dynamic signal quality during a slow-roll run before returning the machine to full speed. This sequence typically limits the active intervention window to under 30 minutes for a single-channel replacement, preserving overall plant control continuity and protecting the original PLC ladder logic and DCS control loops from any disturbance.
For multi-channel upgrades across an entire 3300 XL rack, stage the work channel by channel, maintaining at least 50% of the rack’s monitoring channels active at all times to satisfy machinery protection requirements. Keep a Bently Nevada 3500 Rack Interface Module and a spare 3500/15 Power Supply on-site during the upgrade window to address any incidental rack-level faults without extending the outage.
Retrofit Support FAQ
Q1: Is the 330854-40-24-00 a direct drop-in replacement for the original Bently Nevada unit?
Yes. The 330854-40-24-00 is manufactured to the same dimensional, electrical, and sensitivity specifications as the original factory part. It is compatible with the 3300 XL 25mm driver system and requires no modifications to the existing probe holder, conduit, or terminal wiring. A functional gap and sensitivity test is performed on every unit prior to shipment.
Q2: What commissioning steps are required after installation?
After mechanical installation, perform a static gap voltage check with the shaft stationary to confirm the probe is within the linear range (-18 VDC ± 2 VDC at nominal gap). Verify the OK relay status on the 3500/40M or 3500/42M monitor. Conduct a slow-roll dynamic check to confirm signal noise floor is within acceptable limits before returning the machine to service. No driver recalibration is required for a like-for-like replacement.
Q3: Can this transducer be used with legacy 3300 Series racks or only 3300 XL?
The 330854-40-24-00 is optimized for the 3300 XL 25mm driver system. Compatibility with legacy 3300 Series (non-XL) racks depends on the specific driver model installed. Contact our technical team with your existing driver part number for a compatibility confirmation before ordering.
Q4: What does the 12-month warranty cover, and what documentation is provided?
The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Each unit ships with a pre-shipment functional test report. A certificate of conformance is available upon request. Warranty claims are processed within 5 business days, with advance replacement available for critical applications to minimize plant downtime.
