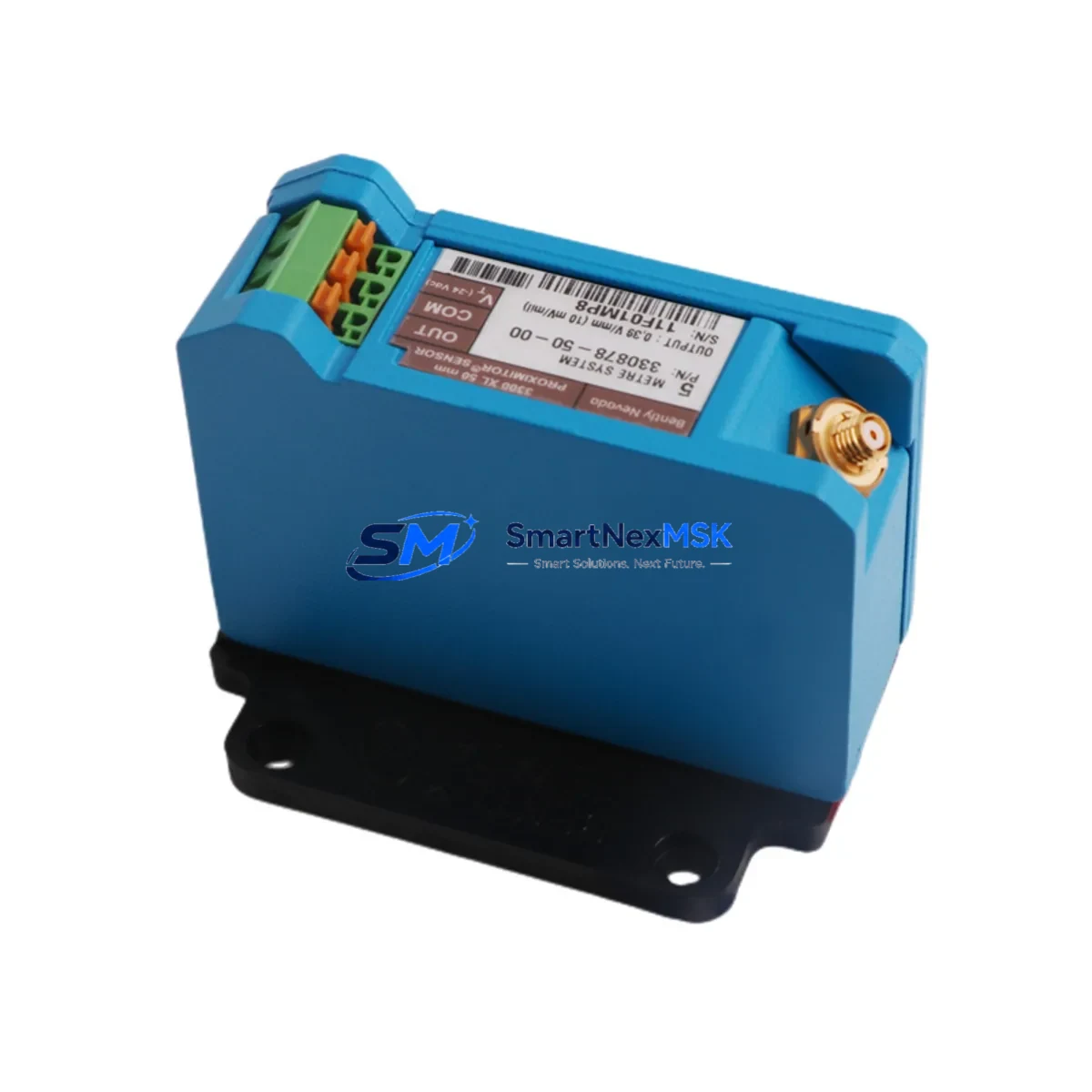

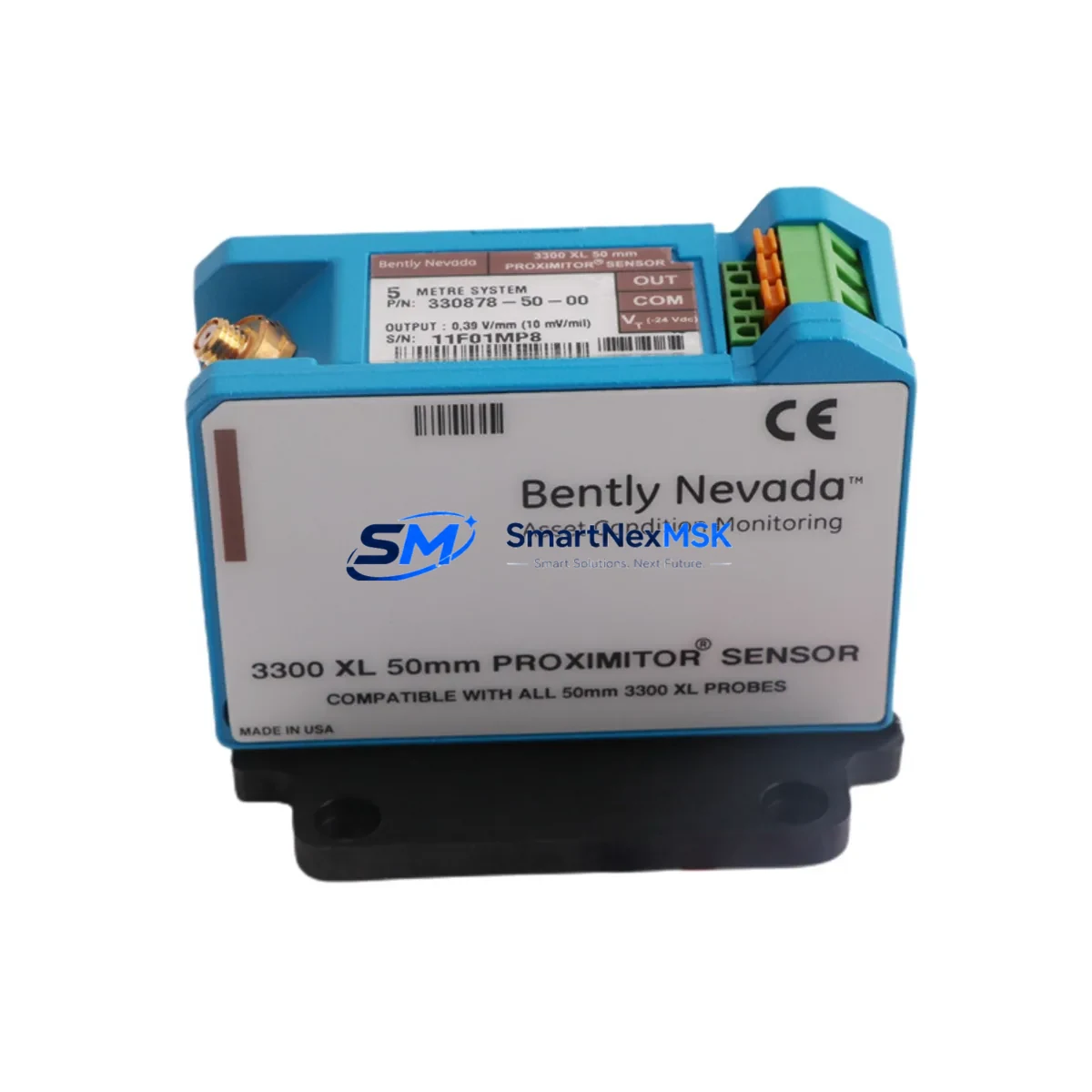

Bently Nevada 330878-50-00 Safety-Enhanced Proximitor Sensor

Bently Nevada 330878-50-00 Safety-Enhanced Proximitor Sensor: Reliable Control in Harsh Industrial Sites

The Bently Nevada 330878-50-00 is a precision eddy-current Proximitor Sensor from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, wide temperature swings, aggressive chemical exposure, and mechanical shock, this sensor is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgy, water treatment, and heavy manufacturing facilities worldwide.

In high-stakes control architectures — where a single point of signal failure can trigger unplanned shutdowns, equipment damage, or personnel safety incidents — the 330878-50-00 delivers the measurement stability and response speed that safety engineers and reliability teams depend on. Its eddy-current operating principle ensures non-contact, wear-free sensing of shaft radial vibration, axial position, and differential expansion, making it ideal for turbines, compressors, pumps, fans, and gearboxes operating under continuous load.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection cabinet, the Bently Nevada 330878-50-00 Proximitor Sensor does not operate in isolation — it is the front-end sensing element of a tightly integrated safety chain. The sensor feeds its analog voltage signal directly into the Bently Nevada 3300/16-02-01-01-00-00 dual-channel vibration monitor, which processes the signal and triggers relay outputs when vibration thresholds are exceeded. For axial position monitoring on steam turbines or compressors, it is commonly paired with the Bently Nevada 3300/20-11-01-00-00 thrust position monitor to provide complete shaft protection coverage.

Signal integrity from the 330878-50-00 depends critically on the quality of the extension cable run. The Bently Nevada 330130-080-00-00 armored extension cable is the recommended companion, providing shielded, low-capacitance signal transmission from the probe tip to the Proximitor driver — even across long cable runs in high-noise environments. The driver itself, typically the Bently Nevada 330180-X1-05 Proximitor driver, conditions the raw eddy-current signal into the calibrated voltage output consumed by the monitor rack.

Within the control cabinet, the 3300 XL monitor rack is powered by a dedicated Bently Nevada 3300/05-01-01-00-00 power supply module, which provides isolated, regulated -24 VDC to all sensor channels. Redundant power supply configurations are standard practice in critical machinery protection systems to eliminate single-point power failure risk. Surge protection devices — such as DIN-rail mounted transient voltage suppressors — are installed at the cabinet entry points to protect the sensor signal lines from lightning-induced surges and switching transients common in heavy industrial switchgear environments.

For facilities running Bently Nevada System 1 condition monitoring software, the 330878-50-00 integrates seamlessly into the data acquisition architecture via the Bently Nevada 3500/22M transient data interface module, enabling real-time waveform capture, trend analysis, and alarm event logging. In safety instrumented systems (SIS) designed to IEC 61511, the vibration trip signal from the 3300 XL monitor is wired into a Triconex Tricon or Rockwell Allen-Bradley GuardLogix safety PLC, forming a complete SIL-rated machinery protection interlock loop. The combination of the 330878-50-00 sensor, its associated driver, monitor card, and safety PLC creates a layered protection architecture that minimizes the risk of undetected shaft failure, catastrophic bearing damage, or uncontrolled process release.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In fluid catalytic cracking (FCC) units, ethylene compressor trains, and centrifugal pump systems, the 330878-50-00 provides continuous shaft vibration monitoring that enables early detection of bearing wear, rotor imbalance, and misalignment — conditions that, if undetected, can lead to seal failures, hydrocarbon releases, and fire hazards. API 670 compliance mandates eddy-current proximity sensors of this specification for all critical rotating equipment in hazardous areas.

Power Generation: Steam turbine-generator sets in coal, gas, and nuclear power plants rely on the 3300 XL Proximitor system for both radial vibration and axial thrust monitoring. The 330878-50-00 is installed at each bearing journal to provide the real-time shaft position data required by the turbine control system (TCS) to execute safe runup, load control, and emergency trip sequences. A sensor failure or signal drift in this application can result in turbine overspeed or thrust bearing failure — both catastrophic outcomes.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject their drive trains to extreme shock loads, dust ingress, and wide ambient temperature variation. The IP67-rated probe assembly of the 330878-50-00 and its high EMI tolerance make it well-suited for these environments, where conventional sensors frequently fail prematurely. Continuous vibration monitoring on mill pinion bearings and gearboxes enables condition-based maintenance scheduling, reducing unplanned downtime in continuous production circuits.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blower units in water treatment facilities operate continuously, often in unmanned or remotely monitored configurations. The 330878-50-00, integrated with a 3300 XL monitor and SCADA system, provides automated vibration alarming and trip capability that protects pump mechanical seals and bearings without requiring constant on-site operator attention.

Metallurgy & Steel Production: Rolling mill drives, continuous caster pinch rolls, and large induction furnace cooling pumps operate in environments with intense electromagnetic fields from high-current bus bars and induction heating equipment. The eddy-current sensing principle of the 330878-50-00 is inherently immune to these magnetic field disturbances, maintaining accurate shaft position measurement where Hall-effect or optical sensors would be compromised.

Safety and Quality FAQ

Q1: What warranty does the Bently Nevada 330878-50-00 carry?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty support includes replacement or repair, with technical documentation provided upon request.

Q2: How is the 330878-50-00 tested before shipment?
Every unit undergoes a full functional test prior to dispatch, including output voltage linearity verification, insulation resistance check, and cable continuity test. Units are shipped with test records available on request, ensuring you receive a sensor that meets Bently Nevada’s original performance specification.

Q3: Is the 330878-50-00 compatible with existing 3300 XL monitor racks and System 1 software?
Yes. The 330878-50-00 is a direct form-fit-function replacement for all 3300 XL Series installations. It is fully compatible with 3300 XL monitor cards, 3300 XL extension cables, Proximitor drivers, and Bently Nevada System 1 condition monitoring software without requiring recalibration of the monitor rack, provided the existing scale factor settings match the 7.87 V/mm (200 mV/mil) output of this sensor.

Q4: Can SMARTNEXMSK support long-term or repeat supply of the 330878-50-00?
Yes. SMARTNEXMSK maintains standing inventory of the 330878-50-00 and related 3300 XL Series components to support both emergency replacement and planned maintenance programs. We offer volume pricing for MRO contracts and can provide advance shipment scheduling to align with your planned outage windows. Contact our technical sales team to discuss long-term supply agreements.
