Bently Nevada 330880-28-35-017-00-02 Safety Proximity Module

Bently Nevada 330880-28-35-017-00-02 Safety Proximity Module: Reliable Control in Harsh Industrial Sites

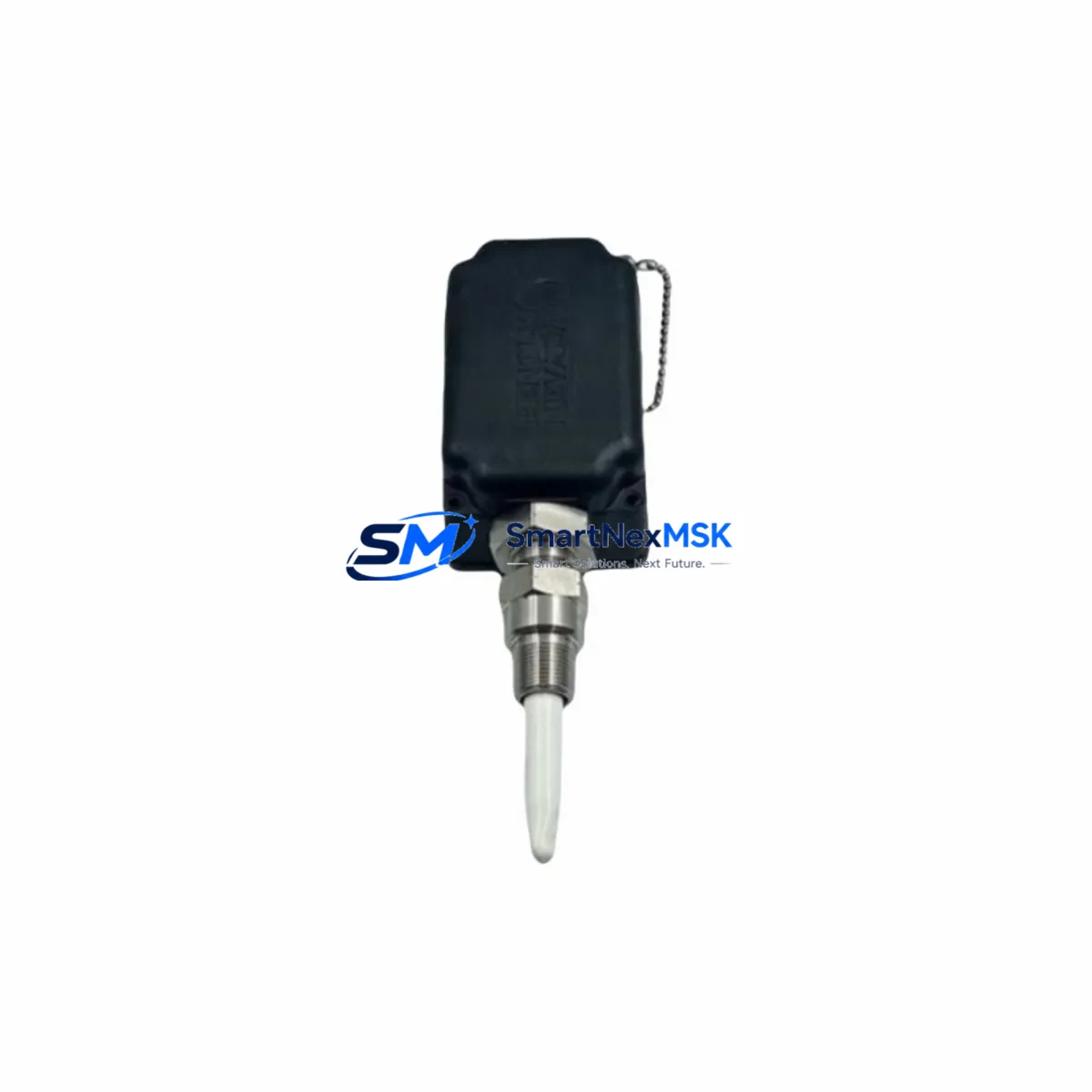

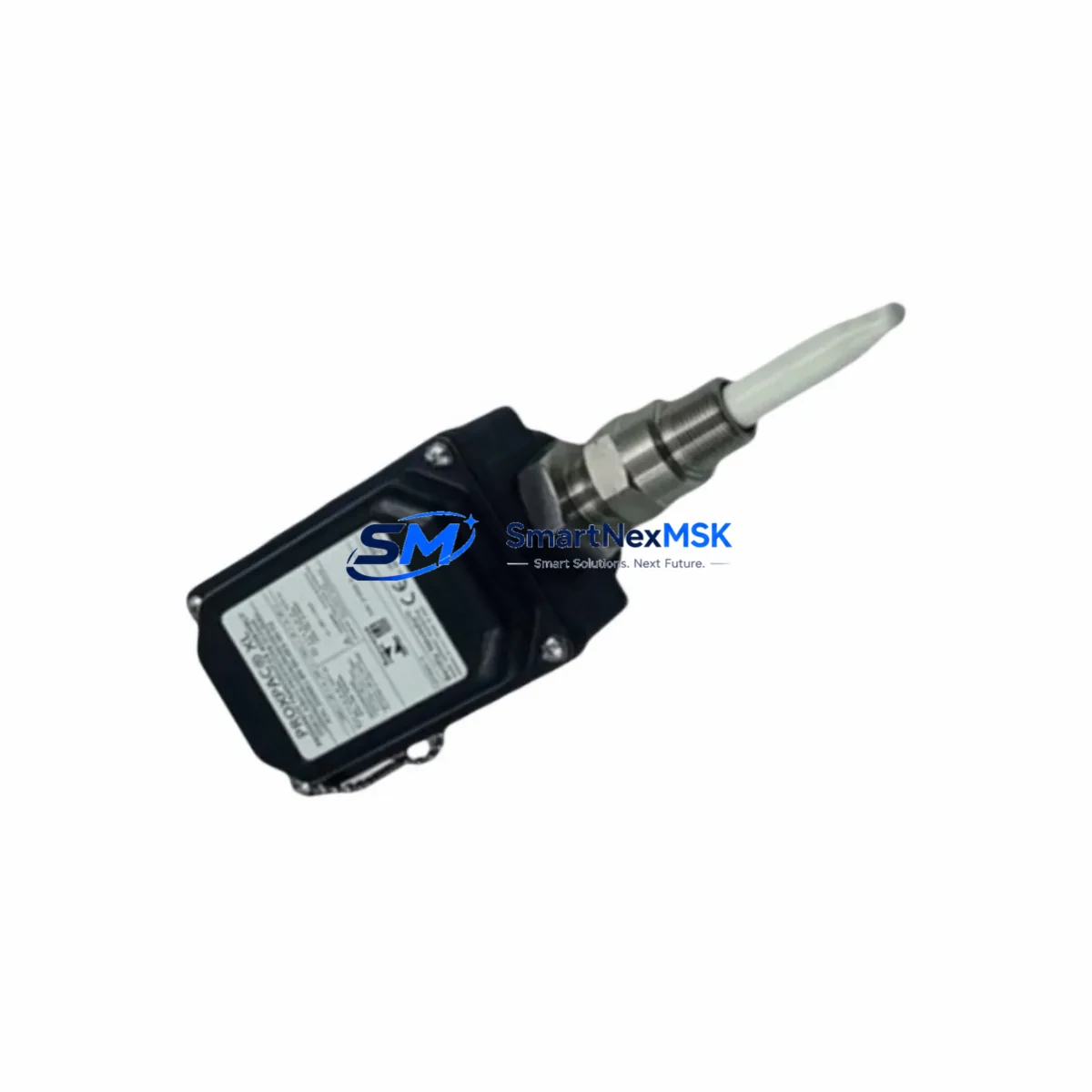

The Bently Nevada 330880-28-35-017-00-02 is a PROXPAC XL ruggedized proximity transducer assembly engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical shock, wide temperature swings, and corrosive atmospheres, this module is a cornerstone component in rotating machinery protection systems across heavy industry. Whether deployed in a critical interlock loop, a turbine protection panel, or a compressor control cabinet, the 330880-28-35-017-00-02 delivers the signal integrity and mechanical durability that safety engineers and reliability teams depend on.

Built on Bently Nevada’s proven eddy-current sensing technology, this proximity transducer assembly provides non-contact measurement of shaft radial vibration, axial position, and differential expansion — parameters that are essential for early fault detection and safe machinery shutdown. Its ruggedized construction resists signal drift caused by temperature cycling, moisture ingress, and high-frequency electrical noise, making it the preferred choice for installations where control interruption or measurement error could trigger unplanned downtime or, worse, a safety incident.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330880-28-35-017-00-02 proximity transducer assembly does not operate in isolation. It feeds critical vibration and position data into a Bently Nevada 3500/42M Proximitor I/O Module, which conditions the raw eddy-current signal and passes it to the Bently Nevada 3500/22M Transient Data Interface for high-resolution event capture during startup and coast-down. The rack-level power supply — typically a Bently Nevada 3500/15 Power Supply Module — must deliver clean, regulated DC to prevent baseline drift that could mask early fault signatures or trigger nuisance trips.

For installations in hazardous areas or where surge events are a concern, pairing this transducer with a Bently Nevada 3500/05 System Rack and appropriate Zener barrier or galvanic isolator (such as a P+F KFD2-series isolator) ensures intrinsic safety compliance and protects the signal chain from voltage spikes. In high-vibration compressor or turbine applications, the Bently Nevada 330130-080-00-00 Proximitor Sensor is often deployed alongside the PROXPAC XL assembly to provide redundant radial vibration channels — a common requirement in API 670 dual-channel voting logic for emergency shutdown.

Communication to the plant DCS or safety PLC is typically handled through a Bently Nevada 3500/92 Communication Gateway Module, which supports Modbus, Profibus, or OPC-DA protocols. This ensures that vibration alarm states and trip signals are visible in the plant-wide SCADA system without introducing additional latency into the safety loop. Complementary components such as the Bently Nevada 330100-series extension cables and 330500-series Proximitor sensors complete the signal chain from shaft surface to control room display, maintaining measurement accuracy across the full cable run specified in the 330880-28-35-017-00-02 assembly.

Critical Industrial Safety Applications

The Bently Nevada 330880-28-35-017-00-02 is deployed across a wide range of heavy industrial sectors where rotating machinery failure carries severe safety and financial consequences.

In petrochemical and refinery facilities, this proximity transducer monitors centrifugal compressors and process gas turbines in continuous service. Shaft radial vibration data from the 330880-28-35-017-00-02 feeds directly into the safety instrumented system (SIS), enabling automatic shutdown before bearing failure or rotor rub can escalate into a fire or explosion hazard. In power generation plants — both thermal and combined-cycle — the module is installed on steam turbine shafts and generator rotors, where axial position monitoring is critical for preventing blade-to-casing contact during load transients.

In mining and mineral processing operations, where equipment runs continuously under heavy load and high ambient dust, the ruggedized PROXPAC XL construction resists contamination that would compromise standard proximity probes. Water and wastewater treatment facilities rely on this assembly for pump and blower shaft monitoring, where undetected imbalance or misalignment can cause catastrophic seal failure and environmental release. In metallurgical and steel mill environments, the module’s wide operating temperature range and EMI resistance make it suitable for monitoring rolling mill drives and furnace ID fans operating near high-current bus bars and induction heating equipment.

Port and bulk material handling operations use the 330880-28-35-017-00-02 on large conveyor drive gearboxes and ship unloader slewing drives, where early vibration detection prevents structural damage to critical infrastructure. Across all these applications, the common requirement is the same: a proximity transducer that will not drift, will not fail silently, and will deliver a reliable trip signal when machinery health deteriorates to an unsafe level.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330880-28-35-017-00-02?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the unit fails to perform to Bently Nevada PROXPAC XL specifications within the warranty period, we will provide a replacement or full refund. The warranty period begins from the date of shipment and applies to both new surplus and tested refurbished units.

Q2: What pre-shipment testing is performed before dispatch?
Every 330880-28-35-017-00-02 unit undergoes a full functional test prior to shipment. This includes verification of eddy-current output linearity, cable continuity and shielding integrity, connector condition, and compatibility check against Bently Nevada 3500 series monitor input specifications. A test report is available upon request for critical safety applications.

Q3: Is the 330880-28-35-017-00-02 compatible with existing Bently Nevada 3300 and 3500 series systems?
Yes. The PROXPAC XL assembly is designed for direct compatibility with Bently Nevada 3300 XL and 3500 series Proximitor I/O modules. The output signal characteristics, cable impedance, and connector pinout conform to Bently Nevada’s standard proximity system architecture, allowing drop-in replacement without recalibration of the monitor rack in most installations. Always verify the gap voltage and scale factor settings in the monitor module after installation.

Q4: Can long-term supply and spare parts support be guaranteed?
We maintain standing inventory of the 330880-28-35-017-00-02 and related PROXPAC XL series components to support planned maintenance shutdowns, emergency replacements, and long-term spare parts programs. For facilities requiring guaranteed availability under a service agreement, please contact our sales team to discuss consignment stock or priority supply arrangements. Our goal is to ensure that a critical safety component is never the reason for an unplanned production outage.
