Bently Nevada 330881-16-00-180-03-02 PROXPAC XL Spare: Precision Replacement for Vibration Monitoring Systems

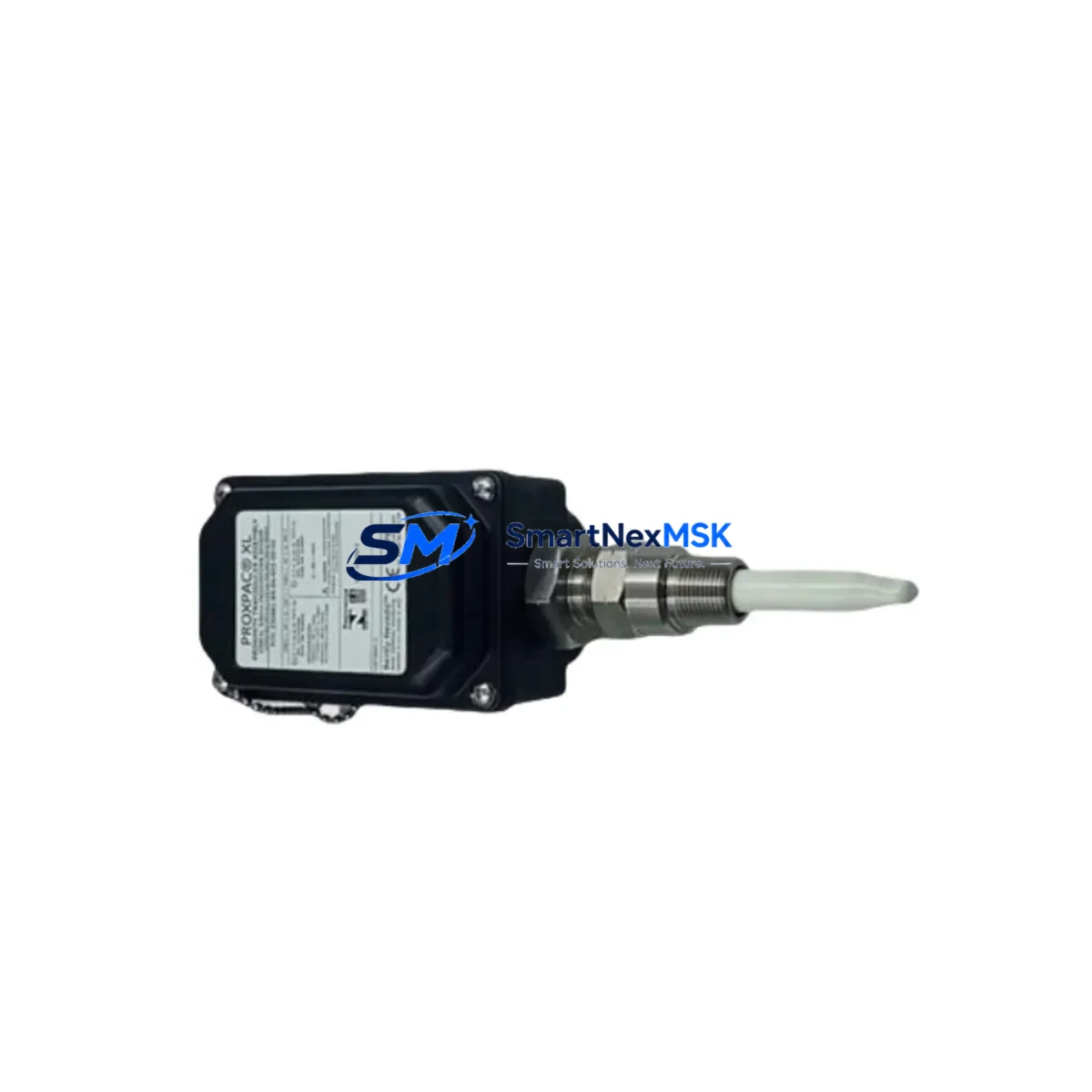

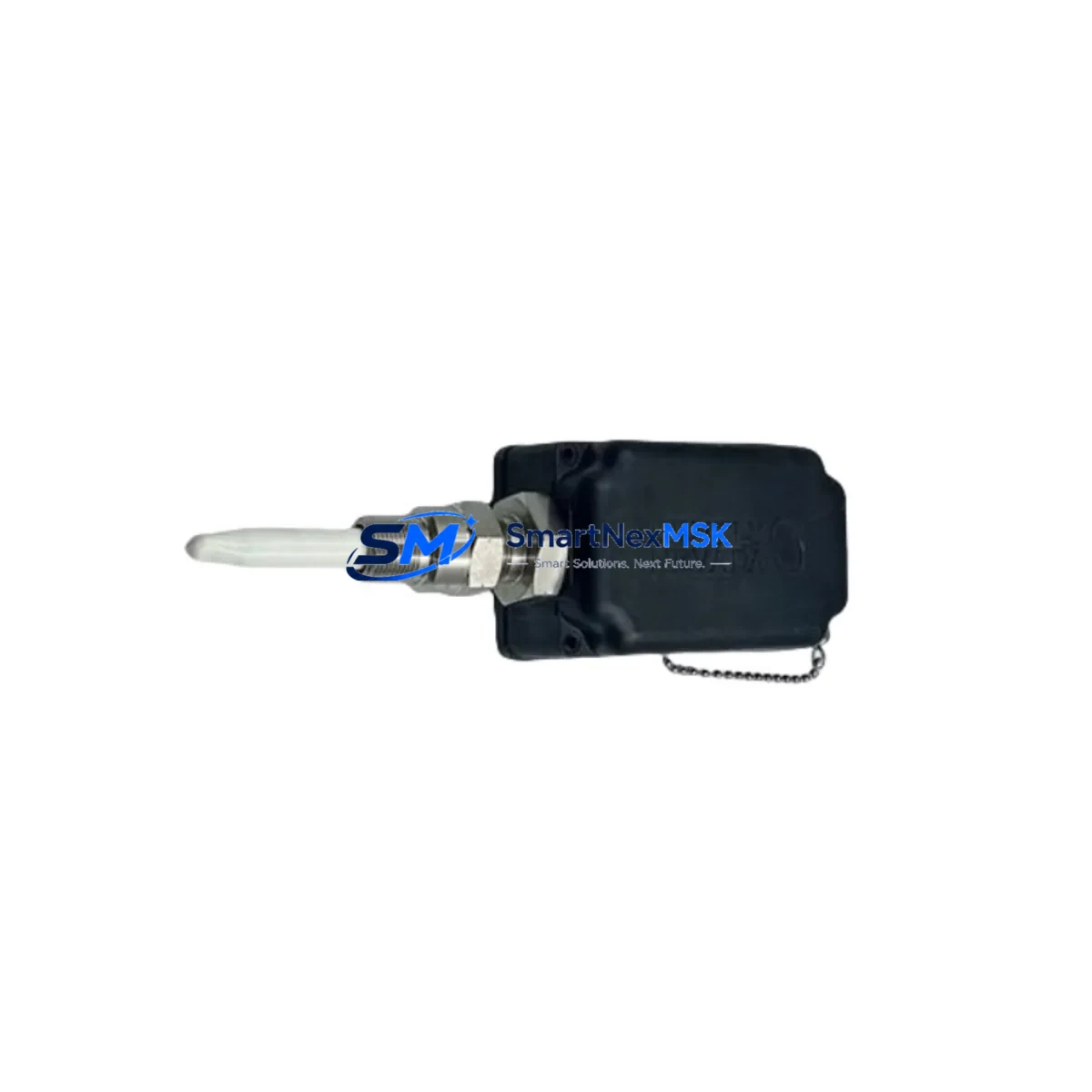

The Bently Nevada 330881-16-00-180-03-02 is an original PROXPAC XL Proximity Transducer Assembly engineered for continuous vibration monitoring in rotating machinery and critical industrial automation systems. Designed as a maintenance-ready spare, this unit supports rapid field replacement to minimize unplanned downtime and restore system integrity in turbine, compressor, pump, and motor protection circuits. Whether you are executing a planned outage, responding to a fault alarm, or building a strategic spare parts inventory, the 330881-16-00-180-03-02 delivers the dimensional accuracy, signal fidelity, and system compatibility required for mission-critical installations.

Maintenance engineers working with Bently Nevada 3300 Series monitoring systems rely on the PROXPAC XL assembly for eddy-current proximity sensing, providing non-contact measurement of shaft radial vibration, axial position, and differential expansion. The integrated cable and extension cable design of the PROXPAC XL simplifies installation and reduces field calibration time compared to discrete transducer assemblies. When replacing this unit, it is essential to verify the full signal chain — including the companion Bently Nevada 3300 XL 8mm Proximity Transducer, the 3300 RAM Extension Cable, and the 3300 Series Proximitor Sensor — to ensure end-to-end measurement accuracy and avoid nuisance trips.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured spare parts strategy around the 330881-16-00-180-03-02 should account for the full measurement loop and the control cabinet environment in which it operates. During scheduled outages or control cabinet inspections, maintenance teams should simultaneously assess the condition of the Bently Nevada 3300 Series Proximitor Sensor (typically mounted in the junction box or monitor rack), the 3300 RAM Extension Cable connecting the probe to the Proximitor, and the 3500/42M Proximitor Monitor card that processes the transducer signal. A degraded extension cable or a Proximitor with drift can produce false vibration readings even when the probe itself is serviceable.

Beyond the transducer loop, the 3500 Series rack housing the vibration monitors should be inspected for power supply health — the Bently Nevada 3500/15 Power Supply Module is a common wear item that, if failing, can introduce noise across all channels simultaneously. I/O terminal blocks and field wiring connectors within the rack should be checked for corrosion, loose terminations, and insulation breakdown, particularly in high-humidity or high-vibration environments. Where the 3500 rack interfaces with a DCS or safety system, the 4–20 mA output signals and relay contacts should be verified for correct scaling and trip setpoints.

For plants running older Bently Nevada 7200 Series or 9000 Series systems, the 330881-16-00-180-03-02 may serve as a cross-compatible upgrade path when combined with appropriate Proximitor adapters. In these legacy system extension scenarios, it is advisable to also stock the Bently Nevada 330130 Proximitor Sensor and relevant 3300 RAM cables to support a complete system refresh without full rack replacement. Signal isolators between the Bently Nevada output and the DCS analog input card are recommended to prevent ground loops that can corrupt vibration trend data.

For HMI-connected monitoring architectures, ensure that the System 1 Evolution software configuration reflects the correct transducer sensitivity and gap voltage parameters after replacement. Incorrect software configuration is a leading cause of post-maintenance alarm nuisance trips. Fuse protection on the -24 VDC supply rail feeding the Proximitor should also be inspected and replaced as part of any transducer swap procedure.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the measurement point. Note the existing gap voltage reading from the monitor before disconnecting the probe — this baseline is critical for post-installation verification.

Step 2 — Probe Removal: Loosen the locknut and carefully back out the 330881-16-00-180-03-02 probe from the bracket. Avoid bending the armored cable during extraction. Inspect the probe tip for mechanical damage or contamination.

Step 3 — New Unit Installation: Thread the replacement probe to the same depth as the original, using the recorded gap voltage as the target. Tighten the locknut to the manufacturer’s specified torque. Route the cable to avoid contact with hot surfaces or moving parts.

Step 4 — Signal Verification: Restore power to the Proximitor and confirm the gap voltage falls within the linear range (typically -10 VDC ± 2 VDC at nominal gap). Check the vibration channel reading at the 3500 monitor for a stable, noise-free baseline.

Step 5 — System Handback: Clear any latched alarms at the monitor and DCS. Document the replacement in the maintenance management system, including the new unit’s serial number and installation date. Update the spare parts inventory to trigger reorder of a replacement unit.

This workflow is compatible with both hot-standby and cold-standby replacement scenarios and supports system continuity without requiring full rack shutdown in most 3500 Series installations.

Spare Parts Support FAQ

Q1: Is the 330881-16-00-180-03-02 compatible with both the 3300 and 3500 Series Bently Nevada systems?
Yes. The PROXPAC XL transducer assembly is designed for use with Bently Nevada 3300 Series Proximitor Sensors and is also compatible with 3500 Series monitoring racks when used with the appropriate Proximitor module. Always confirm the Proximitor model and software configuration before installation to ensure correct sensitivity scaling.

Q2: What is included in the 12-month warranty, and does it cover field installation damage?
The 12-month warranty covers manufacturing defects and component failures under normal operating conditions from the date of shipment. Physical damage resulting from incorrect installation, over-torquing, or exposure to conditions outside the rated specification is not covered. All units are tested and inspected before shipment to confirm electrical performance.

Q3: How should I manage inventory levels for this spare to avoid emergency procurement delays?
For critical rotating machinery applications, a minimum of one on-site spare per monitored machine train is recommended. Plants with multiple turbines or compressors sharing the same Bently Nevada platform should maintain a pooled spare of 2–3 units. Lead times for original Bently Nevada spares can extend to 4–8 weeks during peak demand; maintaining a pre-qualified stock eliminates this risk.

Q4: Can this unit replace older discontinued Bently Nevada proximity transducer models?
In many cases, yes. The 330881 series PROXPAC XL assemblies are designed to replace earlier Bently Nevada 7200 and 3300 series probe-and-cable assemblies in upgraded installations. Compatibility depends on the Proximitor model, cable length, and target material. Contact our technical team with your existing part number and system configuration for a confirmed cross-reference before ordering.
