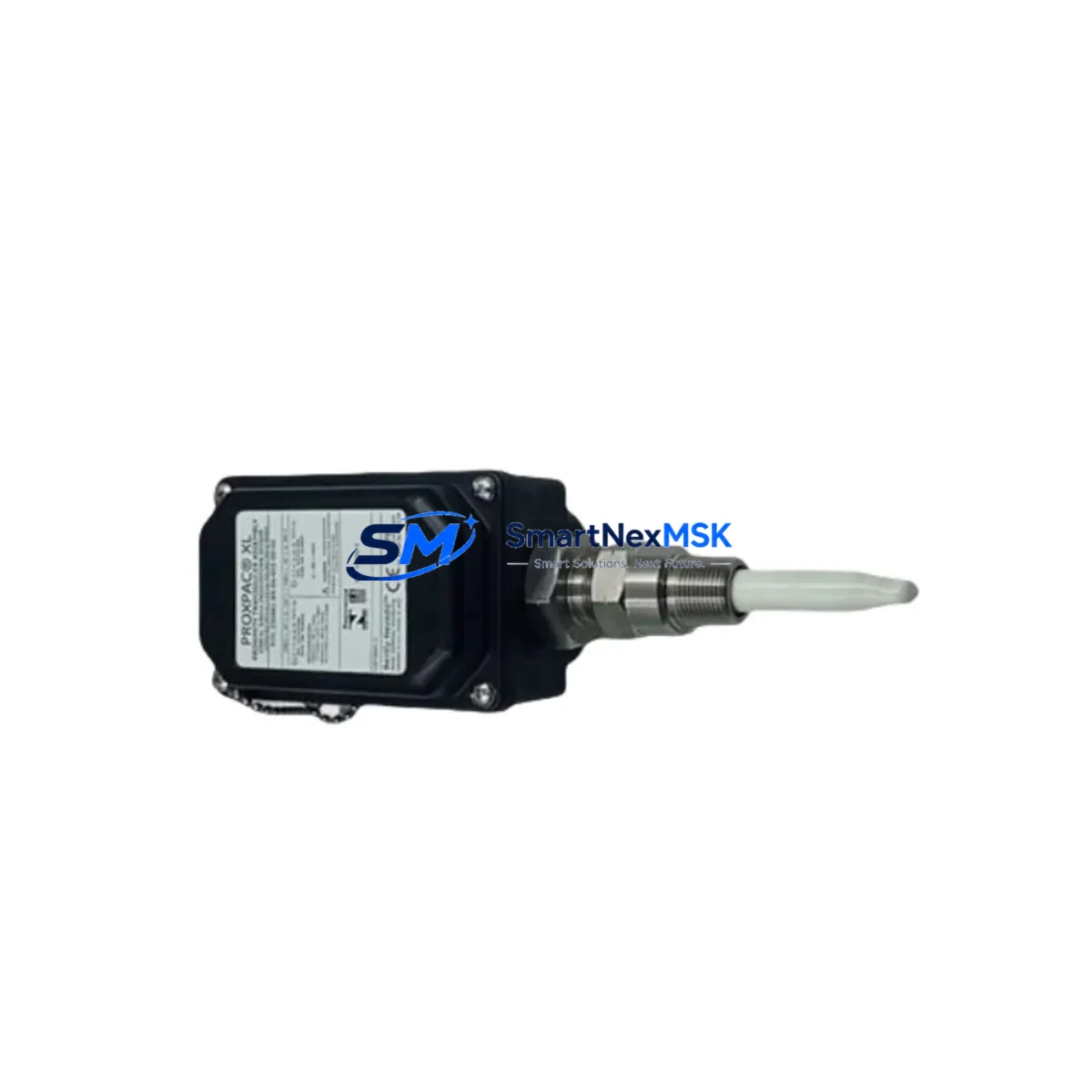

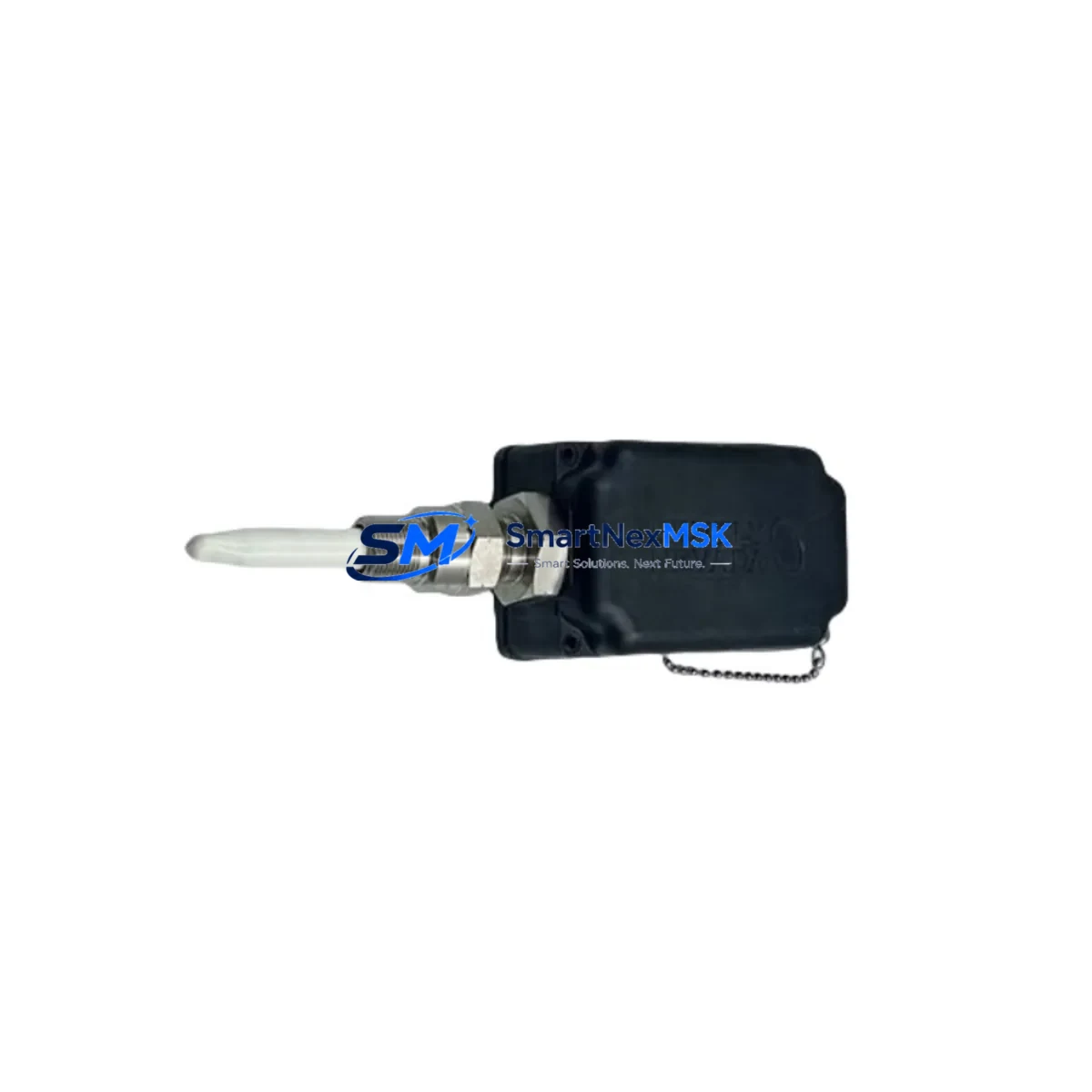

The Bently Nevada 330881-28-00-070-03-02 is a PROXPAC XL proximity transducer assembly engineered for the 3300 XL Series continuous machinery monitoring system. This original spare is purpose-built for rotating machinery protection applications — including turbines, compressors, pumps, and gearboxes — where radial vibration, axial position, and shaft eccentricity measurements are mission-critical. Holding a verified replacement unit in your spare parts inventory is the single most effective action a maintenance team can take to reduce unplanned downtime risk on any 3300 XL-equipped asset.

For maintenance engineers managing aging turbomachinery or compressor trains, the 330881-28-00-070-03-02 represents a complete, pre-matched transducer assembly: probe, extension cable, and proximitor/driver in a single verified package. This eliminates the calibration uncertainty that arises when individual components are sourced separately. Each unit shipped by SMARTNEXMSK undergoes pre-dispatch functional verification and is backed by a 12-month warranty covering manufacturing defects and performance conformance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330881-28-00-070-03-02 assembly is flagged for replacement during a planned outage or emergency shutdown, experienced maintenance engineers treat the event as a trigger for a broader inspection of the entire vibration monitoring loop. The proximitor driver output feeds directly into the 3300 XL monitor rack — typically a 3300/16 or 3300/20 monitor module — and any degradation in the transducer assembly can mask or mimic faults in adjacent channels. Before reinstating the loop, verify the 3300 XL I/O module terminal connections for corrosion, confirm the 3300 XL power supply module (commonly the 3300/05 or equivalent) is delivering stable –24 VDC, and inspect the 3300 XL rack backplane for moisture ingress or loose card seating.

The extension cable — a critical and often overlooked component — should be inspected for jacket abrasion, connector pin integrity, and shield continuity. A damaged 3300 XL extension cable (such as the 330130 series) can introduce noise that appears as a vibration alarm even after a new probe assembly is installed. Similarly, the 3300 XL proximitor housing mounting bracket and conduit seal should be checked to ensure the IP rating of the installation is maintained in wet or high-temperature zones.

For facilities running parallel protection on critical assets, it is best practice to also audit the 3500/42M proximitor I/O module if the 3300 XL system feeds into a 3500 Series rack for redundant monitoring. Confirm that the 3500 Series barrier isolator or galvanic isolator in the signal path is within calibration. On older installations, the 330180 proximity transducer (5 mm, 3300 NSv series) may be present on adjacent measurement points and should be cross-checked for consistent gap voltage readings during the same maintenance window.

Procurement engineers should note that the 330881 PROXPAC XL family includes multiple SKU variants differentiated by probe length, extension cable length, and driver type. Maintaining at least one spare of the exact matched assembly — rather than individual components — eliminates field calibration requirements and reduces mean time to repair (MTTR) significantly. A recommended minimum spare holding for a critical turbomachinery train is two matched PROXPAC XL assemblies per monitored shaft, stored in a climate-controlled cabinet with desiccant packs.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a hot-work or cold-work permit as applicable. Isolate the monitor channel at the 3300 XL rack; do not de-energize the entire rack unless required, as adjacent channels must remain active for continued protection on other measurement points.

Step 2 — Gap Voltage Baseline: Before removing the existing assembly, record the current gap voltage (typically –10 VDC ±0.5 VDC for a correctly gapped probe). This baseline confirms whether the fault is in the transducer assembly or elsewhere in the loop.

Step 3 — Assembly Removal: Disconnect the extension cable at the proximitor end first, then at the probe end. Remove the probe from the mounting bracket, noting the exact gap dimension (typically 1.0–1.5 mm for 8 mm probes on steel targets). Retain the locknut and bracket hardware.

Step 4 — New Assembly Installation: Install the 330881-28-00-070-03-02 replacement. Set the probe gap to the recorded baseline dimension. Reconnect the extension cable, ensuring connector threads are fully engaged and locking sleeves are secured. Verify the driver is seated correctly in its housing.

Step 5 — Loop Verification: Re-energize the channel. Confirm gap voltage is within the linear range (–10 VDC ±0.5 VDC). Check the 3300 XL monitor display for a valid OK status and confirm the vibration reading is consistent with the machine’s known baseline at current operating speed.

Step 6 — Documentation: Record the replacement in the CMMS with the new assembly serial number, installation date, and post-installation gap voltage. Update the spare parts inventory to trigger a replenishment order for the consumed unit.

This workflow is compatible with both planned outage replacements and emergency in-service swaps. The pre-matched PROXPAC XL design means no field calibration equipment is required beyond a standard digital multimeter for gap voltage verification.

Spare Parts Support FAQ

Q1: Is the 330881-28-00-070-03-02 a direct drop-in replacement for older 330881 variants?
The 330881-28-00-070-03-02 is part of the PROXPAC XL matched assembly family. The suffix encoding (-28 probe length, -00 connector, -070 extension, -03-02 driver) must match the original specification for a direct drop-in. If your existing installation uses a different suffix, contact our technical team to confirm compatibility before ordering. In most cases, the probe tip geometry and driver output are interchangeable within the 3300 XL monitor range, but extension cable length and connector type must be verified.

Q2: What pre-shipment testing does SMARTNEXMSK perform on this assembly?
Each 330881-28-00-070-03-02 unit undergoes functional verification prior to dispatch: gap voltage output is confirmed within the specified linear range, extension cable continuity and shield integrity are tested, and the driver housing is inspected for physical damage. Units are packed with ESD-protective foam and desiccant to maintain condition during transit. A test report is available on request.

Q3: How should this spare be stored to maintain its service life?
Store the assembly in its original packaging in a climate-controlled environment: temperature 15–30 °C, relative humidity below 60%, away from strong magnetic fields and vibration sources. Inspect the storage unit annually — check connector pins for oxidation and verify the extension cable jacket is intact. Properly stored PROXPAC XL assemblies maintain full performance for 5+ years before installation.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, component failures under normal operating conditions, and non-conformance to published Bently Nevada 3300 XL performance specifications. It does not cover damage from incorrect installation, overvoltage, mechanical impact, or use outside the specified environmental range. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement dispatch on the same timeline as standard orders.
