Bently Nevada 330881-28-00-265-00-02 Retrofit-Ready Proximity Transducer for 3300 Series

Bently Nevada 330881-28-00-265-00-02 Retrofit-Ready PROXPAC XL Proximity Transducer for 3300 Series Control Systems

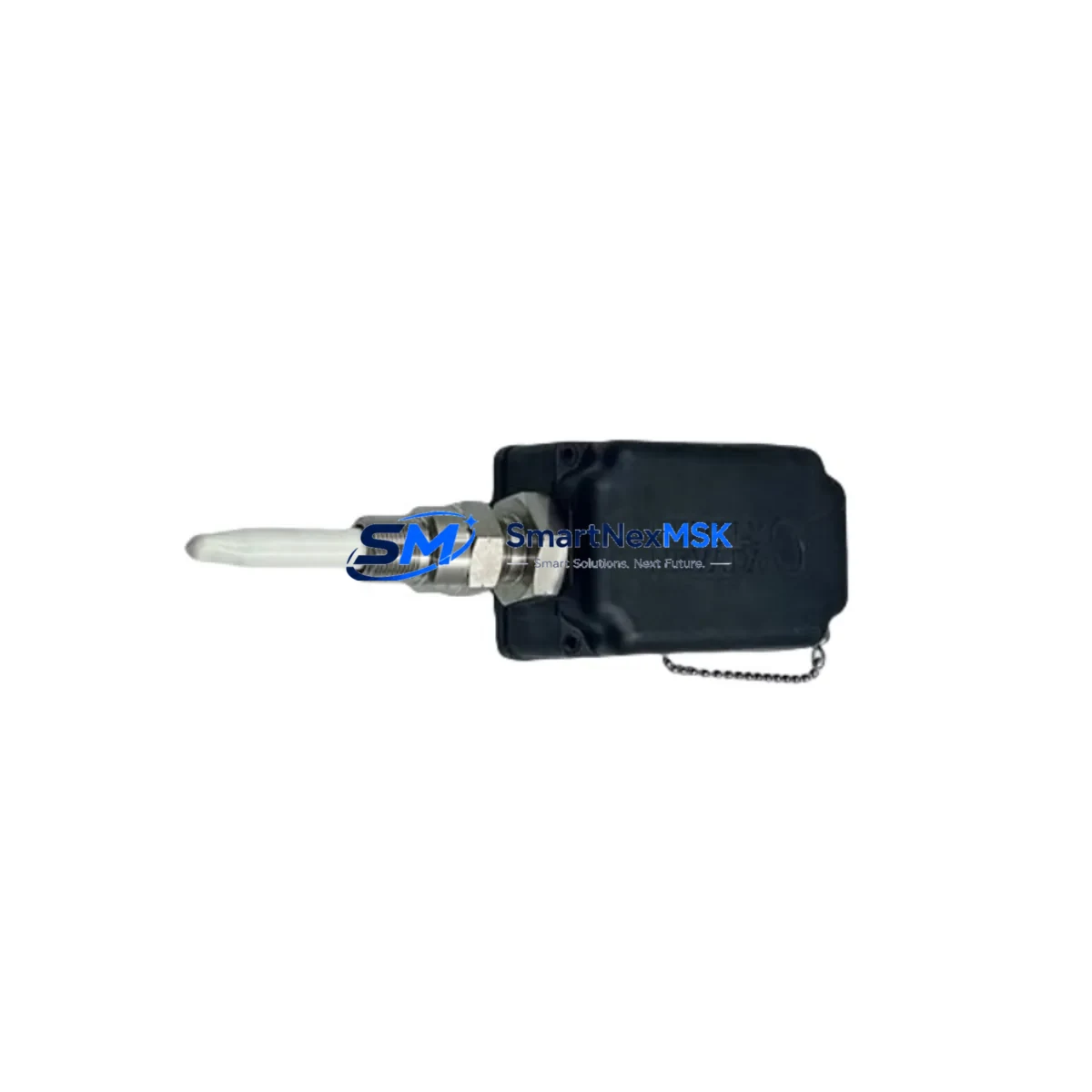

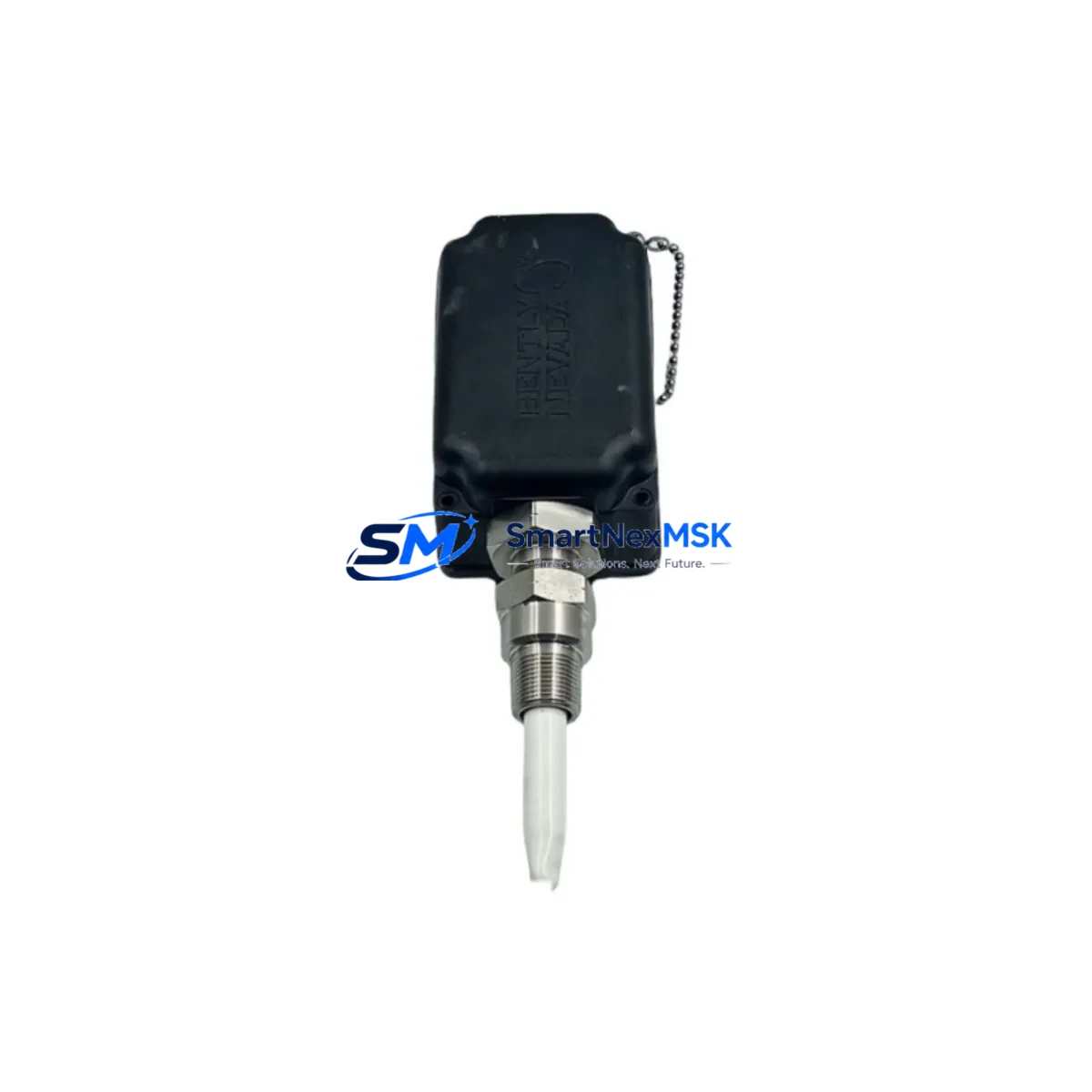

The Bently Nevada 330881-28-00-265-00-02 PROXPAC XL Proximity Transducer Assembly is a precision-engineered, retrofit-ready replacement designed for seamless integration into existing Bently Nevada 3300 Series machinery protection and vibration monitoring systems. Whether you are managing a planned upgrade, responding to an unexpected component failure, or executing a phased modernization of aging control infrastructure, this unit delivers verified compatibility, dimensional accuracy, and signal fidelity that legacy installations demand.

The 330881-28-00-265-00-02 is a complete proximity transducer package — comprising the probe, extension cable, and proximitor — pre-matched and factory-calibrated as a system. This eliminates the field-matching uncertainty that arises when sourcing individual components separately. The 28 mm probe tip diameter, 265 mm extension cable length, and 02 output configuration are precisely matched to the original Bently Nevada specification, ensuring that the replacement unit slots directly into the existing conduit routing, terminal block wiring, and rack-mounted proximitor housing without mechanical modification.

Engineers overseeing retrofit projects on turbines, compressors, pumps, and gearboxes will find this unit directly interchangeable with earlier PROXPAC assemblies used across the 3300 Series platform. The proximitor output signal — a DC voltage proportional to the gap between the probe tip and the rotating shaft — is fully compatible with the 3300/16 Dual Vibration Monitor, the 3300/20 Dual Thrust Position Monitor, and the 3300/25 Keyphasor Module. Signal conditioning parameters, including sensitivity (200 mV/mil, 7.87 V/mm), linear range, and bias voltage, conform to the original factory specification, meaning no recalibration of the monitoring rack is required after installation.

For sites still operating legacy Bently Nevada 7200 Series or 9000 Series monitors alongside newer 3300 Series hardware, the 330881-28-00-265-00-02 supports a clean migration path. The proximitor’s -24 VDC supply requirement and standard Bently Nevada connector pinout are consistent across generations, allowing the replacement unit to be wired into existing junction boxes and field terminal assemblies without rewiring the home-run cable. Technicians should verify the existing extension cable conduit fill and confirm that the 330881-28-00 probe body thread (M10 × 1.0) matches the installed probe holder before finalizing the retrofit plan.

During system migration, it is common to encounter associated components that also require attention. The 3300/05 Power Supply Module and 3300/10 System Monitor are frequently inspected and replaced as part of the same outage window. Similarly, the 3300/46 Dual Speed Monitor and 3300/55 Overspeed Detection System may be evaluated for firmware compatibility when the monitoring rack is opened for transducer replacement. Technicians should also confirm the status of the 3300 Series rack backplane connectors and verify that the TK-3E/T Extension Cable termination at the proximitor input is free of corrosion or mechanical damage before commissioning the new assembly.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the maintenance window opens. For installations where the 330881-28-00-265-00-02 is replacing a failed or end-of-life transducer assembly, the planning phase should include a full audit of the associated monitoring rack. This typically means inspecting the 3300/16 Dual Vibration Monitor card for alarm setpoint configuration, reviewing the 3300/05 Power Supply Module output voltage under load, and confirming that the 3300 Series rack backplane is free of corrosion on the edge connector contacts.

Extension cable routing is a frequent source of commissioning delays. The 265 mm extension cable supplied with the 330881-28-00-265-00-02 is designed to bridge the probe body to the proximitor input within a standard conduit run. If the existing conduit contains a longer TK-3E/T Extension Cable segment, technicians must verify that the total cable length — probe body plus extension — falls within the proximitor’s specified linear range. Exceeding the rated cable length degrades sensitivity and shifts the bias voltage outside the acceptable window, which will trigger a fault condition on the 3300/16 monitor card.

For sites upgrading from the older 330880 Series or 330850 Series PROXPAC assemblies, the probe holder thread and mounting bracket dimensions are typically identical, allowing a direct mechanical swap. However, if the installation previously used a 7200 Series proximitor, a 3300 Series proximitor module — such as the 330180-51-05 — must be installed in the rack before the new transducer assembly can be commissioned. The 3300/46 Dual Speed Monitor and any associated Keyphasor probes should also be inspected during the same outage to avoid a repeat shutdown for adjacent instrumentation.

Wiring adaptation is straightforward for most 3300 Series installations. The proximitor output connects to the monitor card via a standard shielded twisted-pair home-run cable terminated at the field terminal assembly. Technicians should confirm shield grounding practice — single-point grounding at the rack end is the OEM recommendation — and verify that the terminal block torque specification has been maintained on all connections. If the control cabinet also houses a Bently Nevada 3500 Series rack for newer machinery, the wiring conventions differ and should not be cross-referenced without consulting the respective system manual.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing proximity transducer assemblies on running machinery. For critical rotating equipment — turbines, compressors, and large pumps — the replacement of the 330881-28-00-265-00-02 should be planned as part of a scheduled maintenance window, with the replacement unit pre-staged, pre-inspected, and confirmed in stock before the outage begins.

The factory-matched PROXPAC XL assembly eliminates the most time-consuming field task: individual component matching and calibration. Because the probe, extension cable, and proximitor are pre-calibrated as a system, the technician’s on-site tasks are reduced to mechanical installation, gap setting, and bias voltage verification — a process that experienced instrumentation technicians can complete in under two hours on accessible machinery.

To protect existing program logic and alarm configurations during the replacement, no changes to the 3300 Series monitor card setpoints are required. The replacement unit’s signal output is electrically identical to the original, meaning the DCS or safety system receiving the vibration signal — whether a Honeywell DeltaV, an Emerson Ovation, or a legacy Bailey INFI 90 — will see no change in signal scaling or range. HMI displays configured for vibration trend monitoring will continue to function without tag remapping or screen modification.

For sites where the monitoring rack must remain energized during the swap (hot-swap scenarios), consult the 3300 Series system manual for the approved procedure. In most configurations, the monitor card can be placed in bypass mode to suppress spurious alarms during the transducer replacement, and the bypass status should be logged in the site’s permit-to-work system. Once the new assembly is installed and the gap is set, the bypass is released and the vibration reading is verified against the baseline trend before the work order is closed.

Retrofit Support FAQ

Q1: Is the 330881-28-00-265-00-02 a direct drop-in replacement for the 330880-28-00-265-00-02?
Yes. The 330881 series supersedes the 330880 series with identical mechanical dimensions, connector pinout, and signal output. No modifications to the probe holder, conduit, or monitor card are required. The replacement is mechanically and electrically interchangeable.

Q2: What gap setting and bias voltage should I verify after installation?
Set the probe-to-shaft air gap to the OEM-specified value, typically between 1.0 mm and 1.5 mm (40–60 mil), using a non-conductive feeler gauge or the proximitor’s DC output voltage as a reference. The bias voltage at the proximitor output should read within the linear range specified on the proximitor label — typically between -10 VDC and -18 VDC at the nominal gap. Values outside this range indicate an incorrect gap, a cable length issue, or a target material incompatibility.

Q3: Does this unit ship with an outgoing test report, and what does the 12-month warranty cover?
Yes. Each 330881-28-00-265-00-02 unit is function-tested prior to shipment and ships with a test record confirming sensitivity, bias voltage, and linear range performance. The 12-month warranty covers manufacturing defects and signal performance deviations from the published specification. It does not cover damage resulting from incorrect installation, gap setting errors, or operation outside the rated supply voltage range.

Q4: Can this transducer assembly be used with a Bently Nevada 3500 Series rack?
The 330881-28-00-265-00-02 is designed and calibrated for the 3300 Series proximitor power rail and monitor card interface. While the physical probe and extension cable are mechanically compatible with 3500 Series probe holders, the proximitor module is not interchangeable with 3500 Series proximitor cards. For 3500 Series applications, a 3500/42M or 3500/45 compatible transducer assembly with the appropriate proximitor part number should be specified.
