Bently Nevada 330881-28-04-080-03-02 Safety Proximity Transducer

Bently Nevada 330881-28-04-080-03-02 Safety Proximity Transducer: Reliable Control for Harsh Industrial Sites

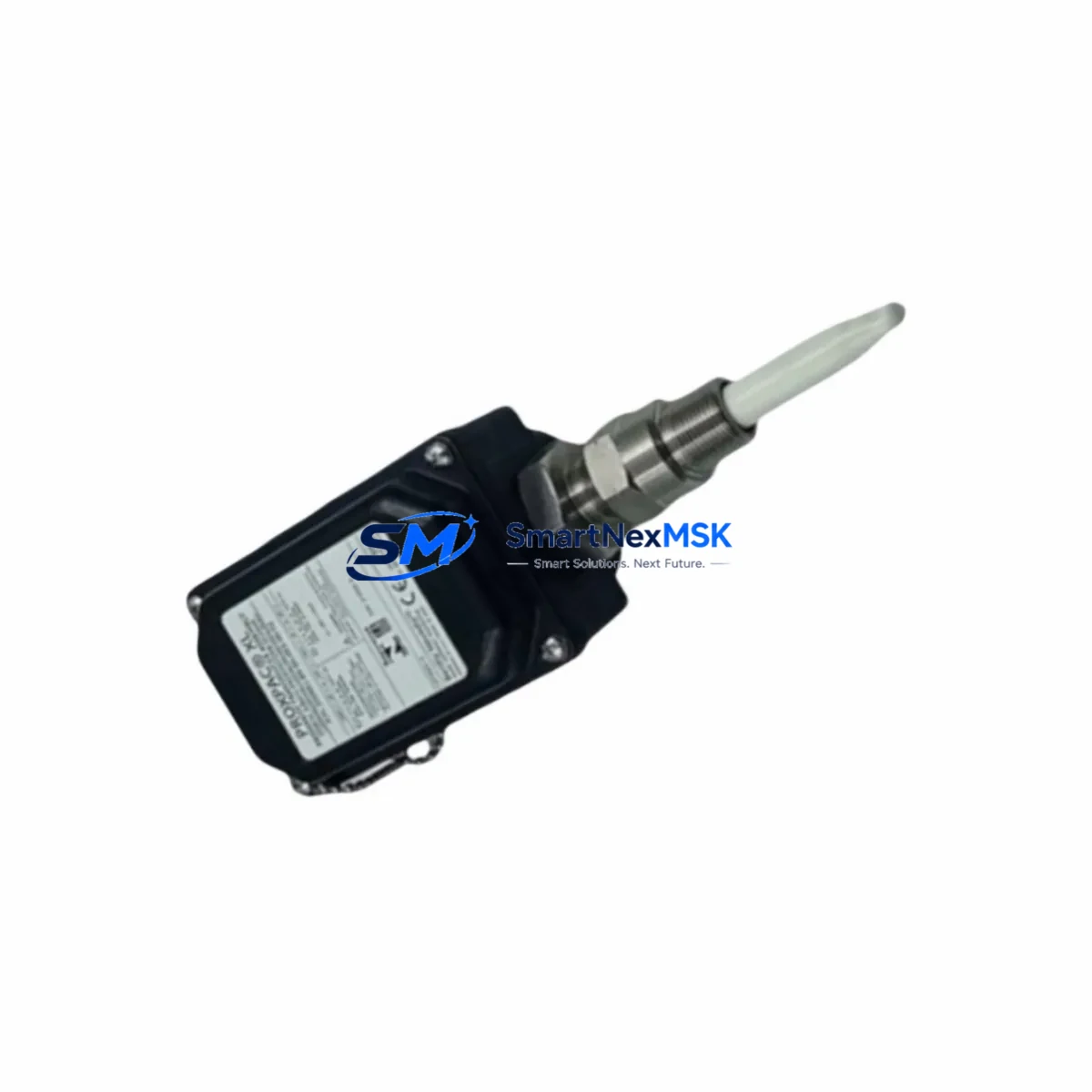

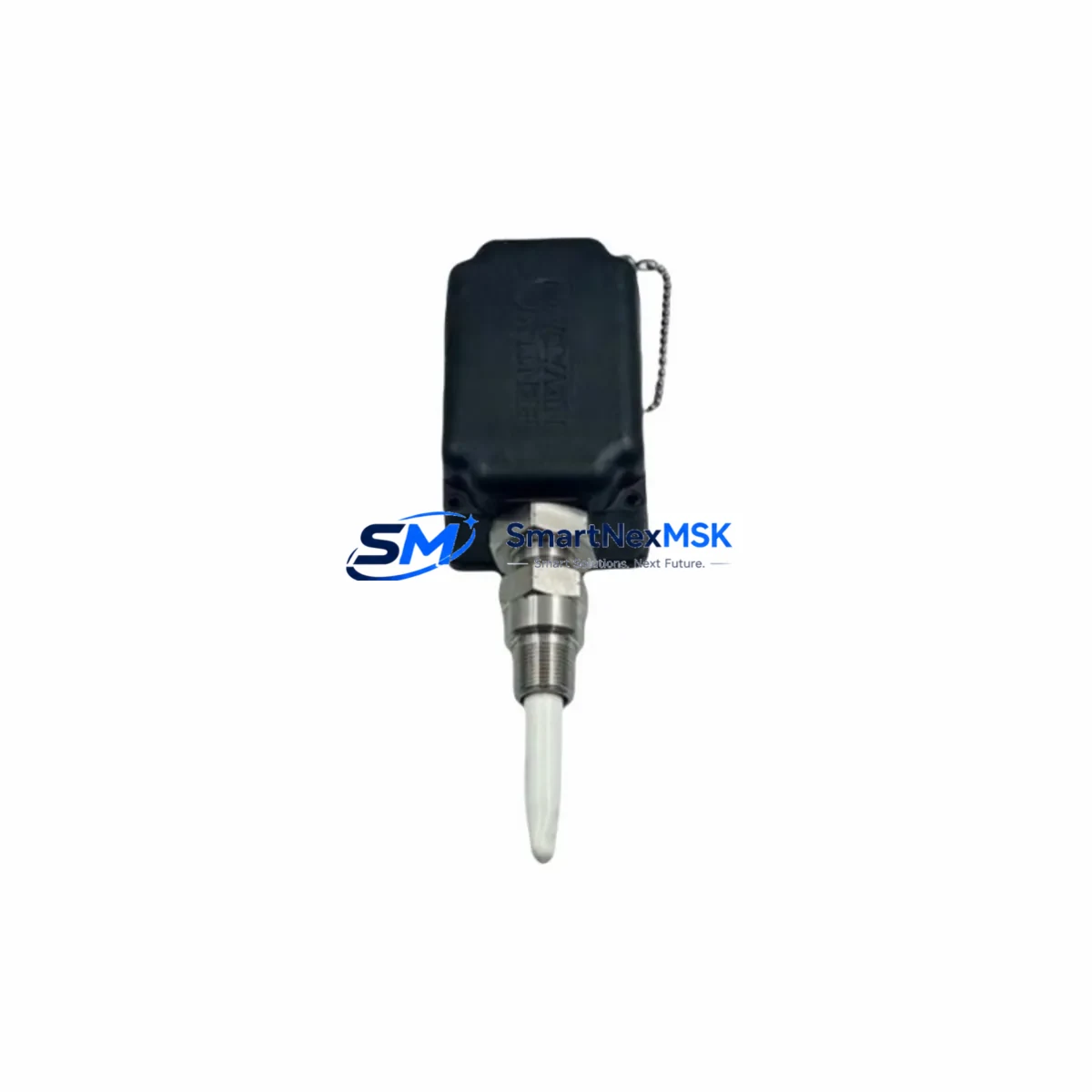

The Bently Nevada 330881-28-04-080-03-02 is a PROXPAC XL 28mm proximity transducer assembly engineered for safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate continuously in high-load, high-interference, and hazardous-area installations, this module delivers the signal integrity and mechanical robustness that rotating machinery protection systems demand. Whether deployed in a turbine protection loop, compressor monitoring rack, or critical interlock circuit, the 330881-28-04-080-03-02 is built to eliminate the risk of control interruption, signal drift, and unplanned field shutdowns.

As part of the Bently Nevada 3300 XL series ecosystem, this transducer assembly integrates seamlessly with the 3300 XL 8mm Extension Cable, 3300 XL Proximitor Sensor, and the 3500/42M Proximitor/Seismic Monitor module — forming a complete, validated measurement chain from shaft surface to the 3500 rack. The assembly’s ruggedized construction ensures stable eddy-current sensing even in the presence of strong electromagnetic interference, mechanical vibration, and aggressive process fluids, making it the preferred choice for engineers specifying protection systems in petrochemical, power generation, and heavy industrial facilities.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection cabinet, the 330881-28-04-080-03-02 transducer assembly is never an isolated component — it is the front-end sensor in a validated measurement chain that must remain stable under all operating conditions. The probe connects via the 3300 XL 5m Extension Cable (330130-080-00-00) to a 3300 XL Proximitor Sensor (330180-X1-05), which conditions the eddy-current signal and feeds it into the Bently Nevada 3500/42M Proximitor/Seismic Monitor housed in the 3500 rack. The 3500 rack itself relies on a redundant 3500/15 Power Supply Module to ensure that a single power event cannot interrupt the entire protection system.

To guard against surge events and ground loops that can corrupt proximity signals, engineers routinely install Phoenix Contact TRABTECH surge protection devices on the signal lines entering the cabinet, alongside Pepperl+Fuchs Zener barriers or galvanic isolators for intrinsically safe circuit separation in hazardous-area installations. The 3500/20 Rack Interface Module (RIM) provides the communication bridge between the protection rack and the plant DCS or safety PLC, ensuring that trip signals and diagnostic data reach the control room without latency or data loss. For facilities running Modbus or FOUNDATION Fieldbus architectures, the 3500/92 Communication Gateway extends this integration further, allowing the 3500 system to participate in plant-wide asset management and predictive maintenance programs.

Proper cable routing and grounding discipline are equally critical. The armored construction of the 330881-28-04-080-03-02 extension cable provides mechanical protection against abrasion and rodent damage in congested cable trays, while the shielded inner conductors suppress induced noise from adjacent VFD power cables and high-current bus bars. When combined with a correctly specified 3300 XL Proximitor junction box and terminal block assembly, the complete measurement chain achieves the signal-to-noise performance required for reliable trip setpoint discrimination — even in the presence of strong electromagnetic fields from nearby motors, transformers, or welding equipment.

Critical Industrial Safety Applications

The Bently Nevada 330881-28-04-080-03-02 is deployed across the full spectrum of heavy industrial and process-critical facilities where rotating machinery failure carries severe safety and financial consequences.

In petrochemical and refinery environments, this transducer monitors radial shaft vibration and axial position on centrifugal compressors, steam turbines, and boiler feed pumps. A single undetected bearing failure or rotor rub in these machines can trigger catastrophic releases of flammable or toxic process gas — making the reliability of the proximity measurement chain a direct safety-of-life concern. The 330881-28-04-080-03-02’s high-temperature probe rating and armored cable construction allow it to be installed close to hot process piping without signal degradation.

In power generation plants — both thermal and combined-cycle — the transducer is used in turbine supervisory instrumentation (TSI) systems to monitor shaft eccentricity, differential expansion, and thrust position. These measurements feed directly into the turbine protection system’s trip logic, and any signal interruption or drift can cause either a spurious trip (costly lost generation) or a missed trip (catastrophic rotor damage). The 330881-28-04-080-03-02’s validated interchangeability within the 3300 XL chain ensures that replacement during a planned outage does not require re-calibration of the entire measurement loop.

In mining and mineral processing operations, large grinding mills, conveyor drive motors, and slurry pumps operate in environments with extreme dust loading, vibration, and moisture. The IP67-rated probe tip and armored cable of the 330881-28-04-080-03-02 provide the environmental sealing needed to maintain reliable operation in these conditions, while the eddy-current measurement principle is immune to the contamination that would disable optical or capacitive sensors.

In water and wastewater treatment facilities, the transducer monitors large vertical turbine pumps and blower trains that must operate continuously to maintain treatment capacity. In metallurgical and steel plants, it is used on rolling mill drive trains and continuous caster pinch rolls, where the combination of high load, thermal cycling, and electromagnetic interference from induction furnaces creates one of the most challenging measurement environments in industry. In each of these applications, the 330881-28-04-080-03-02 delivers the measurement stability and long service life that plant engineers require to minimize unplanned downtime and protect both personnel and capital assets.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or full refund after verification. Claims are processed directly through our sales team at [email protected], typically within 3–5 business days of receiving the returned unit.

Q2: What pre-shipment testing is performed on the 330881-28-04-080-03-02?
Every unit undergoes full functional verification before dispatch, including sensitivity output measurement, bias voltage check, and cable continuity and insulation resistance testing. Units that do not meet Bently Nevada’s published specification tolerances are quarantined and not shipped. A test record is available upon request for critical installations.

Q3: Is the 330881-28-04-080-03-02 a direct drop-in replacement for other 3300 XL proximity transducer assemblies?
Yes, within the 3300 XL validated measurement chain, the 330881-28-04-080-03-02 is interchangeable with other PROXPAC XL assemblies of the same probe diameter and cable configuration, provided the Proximitor sensor is also a 3300 XL type. No re-calibration of the Proximitor is required when replacing like-for-like within the validated chain. For installations using older 3300 series (non-XL) components, compatibility should be confirmed against the Bently Nevada system documentation.

Q4: Can long-term supply and spare parts availability be guaranteed for ongoing maintenance programs?
Yes. We maintain standing inventory of the 330881-28-04-080-03-02 and related 3300 XL series components to support planned maintenance outages and emergency replacements. For facilities with annual or multi-year maintenance contracts, we offer reserved stock arrangements to ensure parts availability is not subject to market supply fluctuations. Contact our team to discuss a supply agreement tailored to your plant’s maintenance schedule.
