Bently Nevada 330881-28-04-145-03-02 Safety Proximity Transducer

Bently Nevada 330881-28-04-145-03-02 Safety-Enhanced Proximity Transducer for Harsh Industrial Sites

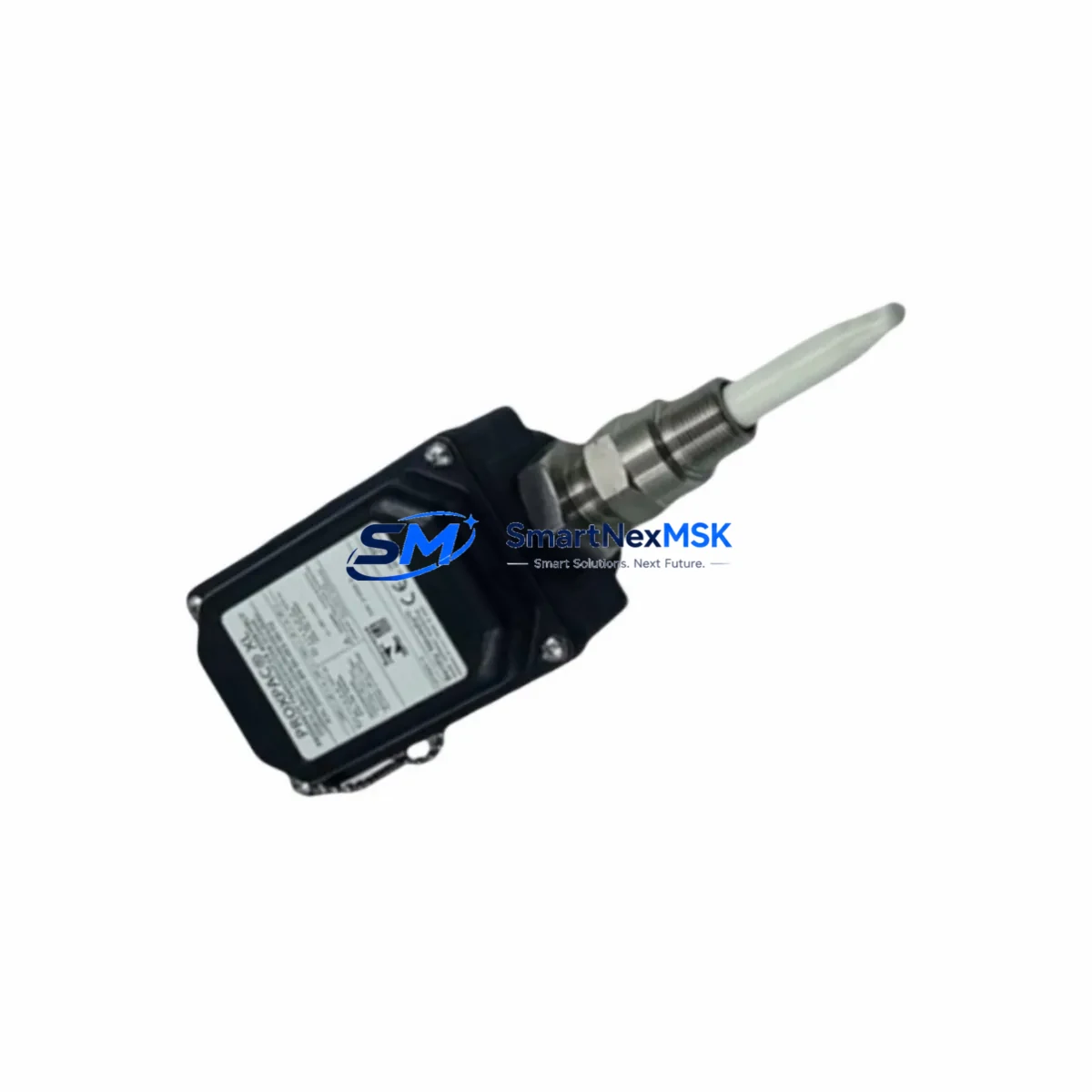

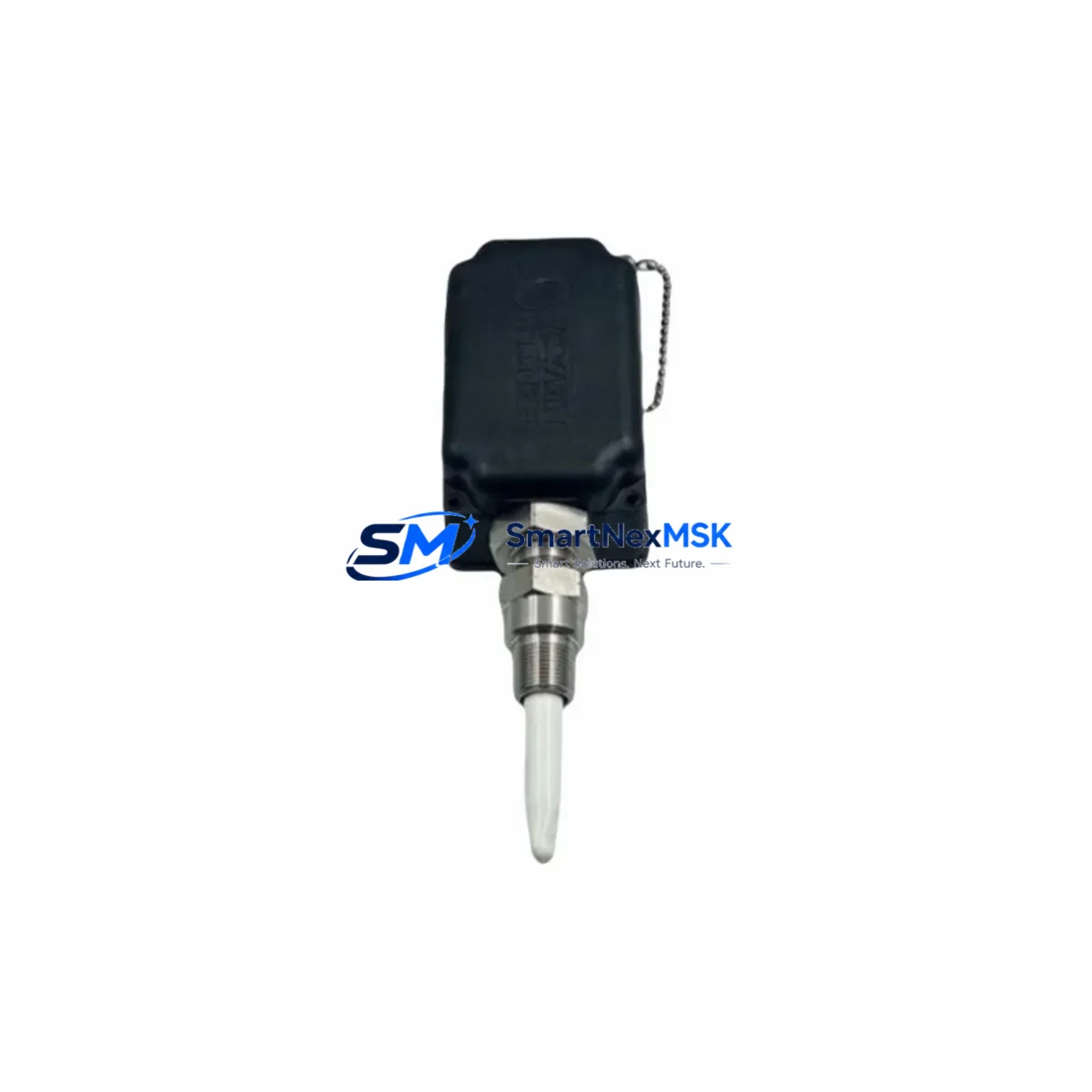

The Bently Nevada 330881-28-04-145-03-02 is a ruggedized PROXPAC XL Proximity Transducer Assembly engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, extreme temperature cycling, mechanical shock, and corrosive atmospheres, this transducer assembly is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and heavy process industries.

In high-stakes control architectures where a single point of failure can trigger unplanned shutdowns, signal drift, or catastrophic equipment damage, the 330881-28-04-145-03-02 delivers the measurement stability and loop integrity that safety engineers demand. Its eddy-current sensing principle provides non-contact, wear-free operation, eliminating the mechanical degradation that plagues contact-based sensors in continuous production environments. The assembly’s shielded coaxial cable construction and precision-machined probe tip suppress signal noise and maintain calibration accuracy even when installed adjacent to high-voltage switchgear, variable frequency drives, or large motor starters.

This transducer is fully compatible with the Bently Nevada 3300 XL Series signal conditioning system, including the 3300/16 Proximitor Sensor and the 3300/55 Proximitor modules, which are commonly deployed in the same control cabinet to provide real-time gap voltage, vibration amplitude, and phase reference outputs to the plant DCS or safety instrumented system. When paired with the Bently Nevada 3500/42M Proximitor/Seismic Monitor module within a 3500 Series Machinery Protection System rack, the 330881-28-04-145-03-02 forms part of a fully validated safety loop capable of meeting SIL 1 and SIL 2 functional safety requirements under IEC 61511.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the 330881-28-04-145-03-02 typically integrates multiple layers of signal conditioning, power management, and communication redundancy. The transducer feeds its gap voltage signal into a Bently Nevada 3300/16 Proximitor Sensor or 3300/55 Proximitor, which conditions the raw eddy-current output into calibrated vibration and position data. This conditioned signal is then routed to a Bently Nevada 3500/42M Proximitor/Seismic Monitor card seated within a 3500 Rack, where configurable alert and danger setpoints trigger relay outputs to the plant emergency shutdown system.

To protect the entire measurement chain from power-related disturbances, the cabinet typically incorporates a Bently Nevada 3500/15 Power Supply module with redundant input capability, ensuring that voltage sags, surges, or momentary outages on the plant bus do not interrupt the protection system. Surge protection devices and EMC filters installed at the cabinet entry point further shield the 3300 XL signal lines from transient overvoltages generated by nearby motor starts or capacitor bank switching.

For plants operating under IEC 61508 or IEC 61511 functional safety frameworks, the 330881-28-04-145-03-02 is often deployed alongside Bently Nevada 3500/33 16-Channel Relay Module outputs that interface directly with the plant’s Safety Instrumented System (SIS) logic solver — such as a Triconex Tricon or Honeywell Safety Manager controller — to execute automatic machine trip actions when vibration thresholds are exceeded. Communication to the plant DCS is typically handled via the Bently Nevada 3500/92 Communication Gateway, which supports Modbus TCP, OPC DA, and proprietary System 1 protocols, enabling real-time trending and alarm annunciation at the operator workstation without compromising the hardwired safety loop integrity.

In installations where shaft absolute motion must be measured, the proximity transducer data from the 330881-28-04-145-03-02 is combined with seismic velocity signals from a Bently Nevada 9200 Seismic Transducer or an Epro PR9268 velocity sensor, providing the complete shaft relative plus casing absolute vibration picture required by API 670 machinery protection standards.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In fluid catalytic cracking units, compressor trains, and centrifugal pump skids, the 330881-28-04-145-03-02 monitors shaft radial vibration and axial position continuously. Any exceedance of API 670-defined danger levels triggers an automatic shutdown before bearing failure or seal damage can escalate to a process safety event. The transducer’s resistance to hydrocarbon vapors and high-temperature environments makes it suitable for installation in Zone 1 and Zone 2 classified areas when used with appropriate Zener barrier or galvanic isolator assemblies.

Power Generation: Steam turbine and gas turbine protection systems rely on arrays of proximity transducers to detect rotor instability, oil whirl, and thrust bearing wear. The 330881-28-04-145-03-02, installed at the turbine bearing journals, provides the sub-millisecond response time needed to protect multi-hundred-megawatt generating assets from catastrophic rotor-stator contact events.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject instrumentation to extreme vibration, dust ingress, and wide temperature swings. The ruggedized construction of the PROXPAC XL assembly ensures measurement continuity in these harsh conditions, supporting predictive maintenance programs that reduce unplanned downtime in continuous ore processing circuits.

Metallurgy & Steel Production: Rolling mill drive trains and blast furnace blower compressors demand proximity monitoring systems that can withstand intense electromagnetic fields from large DC drives and induction furnaces. The shielded cable design of the 330881-28-04-145-03-02 maintains signal integrity in these high-interference environments, preventing spurious trips that would disrupt continuous casting or hot rolling operations.

Water & Wastewater Treatment: Large centrifugal pumps and blowers in municipal water treatment facilities benefit from continuous vibration monitoring to detect impeller imbalance, cavitation, and bearing degradation before they cause service interruptions. The 330881-28-04-145-03-02 supports condition-based maintenance strategies that extend mean time between failures and reduce lifecycle operating costs.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330881-28-04-145-03-02?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority support, and replacement units are dispatched from stock to minimize your plant downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 330881-28-04-145-03-02 unit undergoes functional verification prior to dispatch, including gap voltage output linearity checks, cable continuity and insulation resistance testing, and visual inspection of the probe tip, connector, and cable jacket. Units that do not meet Bently Nevada OEM performance specifications are quarantined and not shipped.

Q3: Is this transducer compatible with existing Bently Nevada 3300 and 3500 Series systems?
Yes. The 330881-28-04-145-03-02 is a direct-fit PROXPAC XL assembly designed for use with the Bently Nevada 3300 XL Proximitor family and the 3500 Series Machinery Protection System. It is also compatible with the ADRE 408 DSPi portable data acquisition system for field balancing and diagnostic work. No additional adapters or recalibration of the Proximitor driver are required for standard installations.

Q4: Can SMARTNEXMSK support long-term supply and emergency replacement requirements?
Yes. SMARTNEXMSK maintains dedicated inventory of the 330881-28-04-145-03-02 and related PROXPAC XL assemblies to support both planned maintenance schedules and emergency breakdown situations. We offer global express shipping via DHL and FedEx Priority, with same-day dispatch available for in-stock orders placed before the daily cut-off. Long-term supply agreements and consignment stock arrangements are available for high-volume industrial customers.
