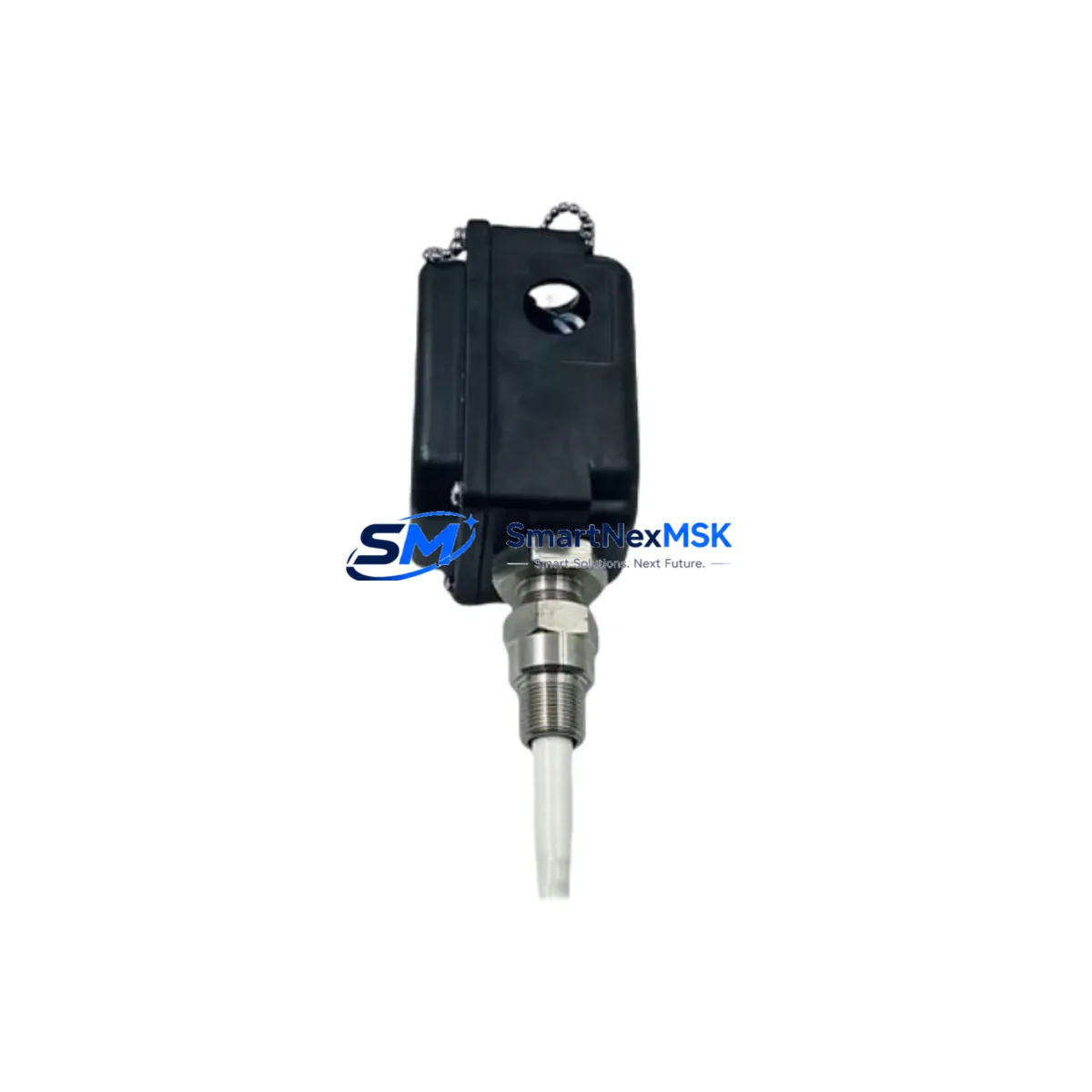

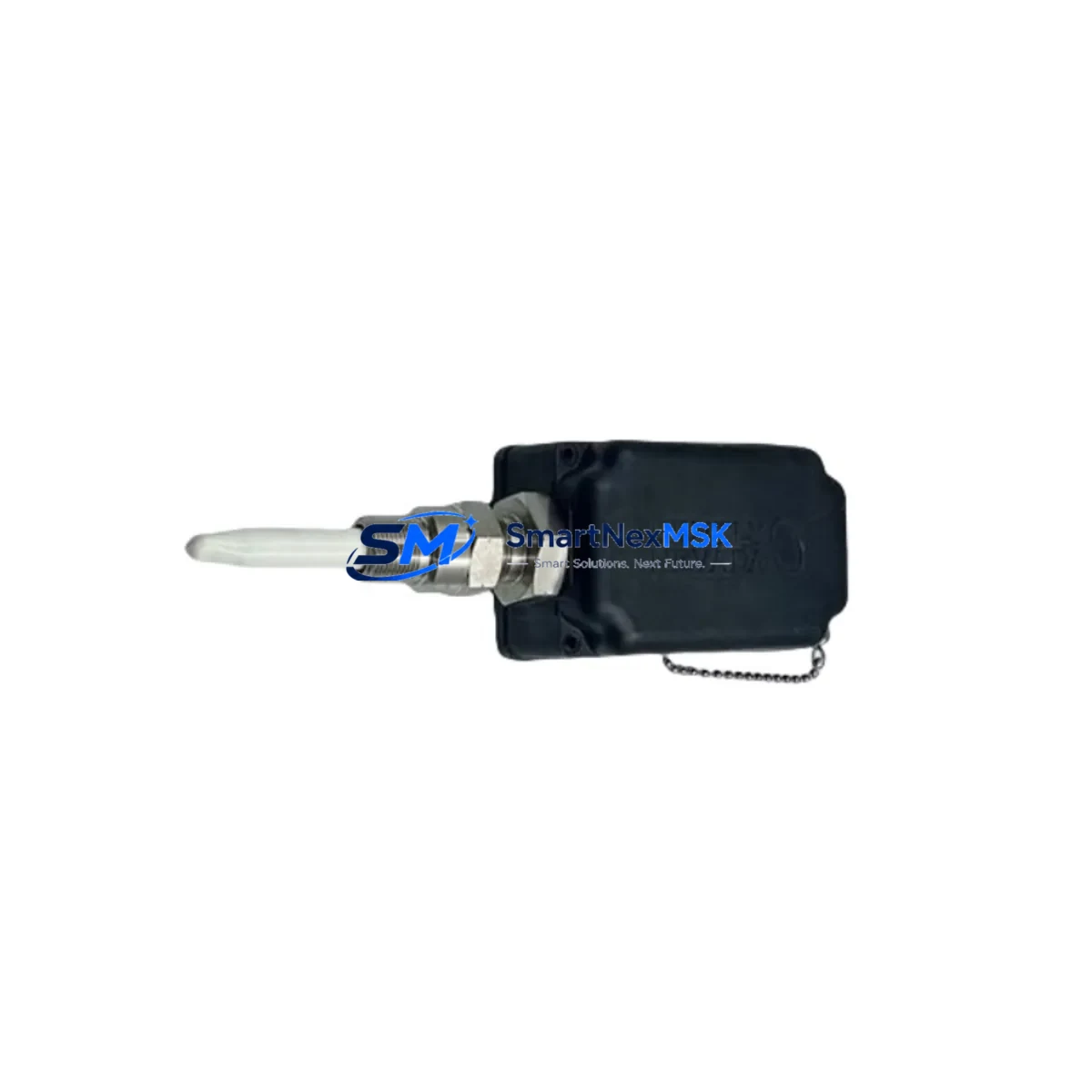

The Bently Nevada 330881-28-04-145-06-02 is an original PROXPAC XL proximity transducer assembly engineered for continuous vibration monitoring in rotating machinery protection systems. As a maintenance-ready spare, this unit is critical for facilities operating turbines, compressors, pumps, and motors under API 670-compliant condition monitoring programs. Unplanned downtime caused by a failed proximity transducer can cascade into extended outages, production loss, and safety incidents — having a verified spare on the shelf is the single most effective mitigation strategy available to maintenance and reliability engineers.

This assembly integrates the probe, extension cable, and proximitor into a pre-configured, factory-matched set. The PROXPAC XL format eliminates field-calibration variables and reduces replacement time significantly compared to individually sourced components. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification, and is backed by a 12-month warranty covering manufacturing defects and performance conformance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330881-28-04-145-06-02 PROXPAC XL assembly is flagged for replacement during a planned outage or emergency shutdown, maintenance engineers should treat the event as a trigger for a broader control-loop inspection. The proximity transducer is one node in a complete vibration monitoring chain, and adjacent components are subject to the same operational stress and aging cycles.

Begin by inspecting the 3500/42M Proximitor/Seismic Monitor or equivalent rack-mounted monitor card that processes the transducer signal. A degraded proximitor output can mask a failing monitor input, so both should be verified simultaneously. Check the 3500 Rack Power Supply (typically a 3500/15 or 3500/05 module) for output voltage stability — a sagging -24 VDC rail will shift the transducer’s operating point and produce false vibration readings before any hard fault appears.

Inspect all field junction boxes and terminal blocks along the signal path. Corroded or loose terminations on the coaxial extension cable connectors are a leading cause of intermittent proximity faults that are misdiagnosed as transducer failure. If the facility uses signal isolators or barriers (such as Zener barriers or galvanic isolators) between the field device and the monitor rack, verify their isolation resistance and output linearity — these components degrade silently over years of service.

For systems integrated with a Bently Nevada System 1 or 3500 Series rack, confirm that the replacement assembly’s gap voltage falls within the monitor’s configured OK limits before returning the machine to service. If the control system interfaces with a DCS or PLC via 4–20 mA output cards, verify the analog output scaling has not drifted. Check any associated relay output modules (such as the 3500/32 Relay Module) for correct trip setpoint configuration after the transducer swap.

In facilities running older machinery with legacy wiring, it is advisable to replace the armored extension cable at the same time as the PROXPAC XL assembly, particularly if the cable has been routed through high-vibration or high-temperature zones. Keeping a matched spare set — probe, extension cable, and proximitor — on the shelf as a single assembly eliminates the risk of impedance mismatch between individually sourced components.

Finally, update the CMMS (Computerized Maintenance Management System) record to log the replacement date, gap voltage reading, and OK status confirmation. This data supports future predictive maintenance intervals and spare parts replenishment planning.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. De-energize the monitor rack channel associated with the transducer being replaced. Do not remove the probe while the machine is running.

Step 2 — Gap Measurement (Before Removal): Record the existing gap voltage from the monitor display or System 1 software. This baseline confirms whether the outgoing assembly was within specification or had already drifted.

Step 3 — Assembly Removal: Disconnect the extension cable at the junction box. Unthread the probe from the bracket. Note the probe tip-to-shaft gap using a feeler gauge or dial indicator for reference.

Step 4 — Install 330881-28-04-145-06-02: Thread the replacement probe into the bracket. Set the gap to the manufacturer-specified value (typically 1.0 mm / 40 mil for standard steel targets). Reconnect the extension cable and proximitor. Ensure all connectors are fully seated and locking sleeves are engaged.

Step 5 — Energize and Verify: Re-energize the monitor channel. Confirm gap voltage reads within the OK band (typically -10.0 to -18.0 VDC for standard 200 mV/mil sensitivity). Verify the monitor channel clears any latched alarms.

Step 6 — Functional Test: Simulate shaft movement or use a calibration target to confirm the monitor responds correctly across the measurement range. Document the as-left gap voltage and OK status in the CMMS.

This workflow applies equally to planned maintenance windows and emergency replacements. The PROXPAC XL format’s pre-matched configuration means no field calibration of sensitivity is required, reducing replacement time to under 30 minutes for experienced technicians.

Spare Parts Support FAQ

Q1: Is the 330881-28-04-145-06-02 a direct drop-in replacement for older 330881-series assemblies?
Yes. The 330881-28-04-145-06-02 PROXPAC XL is designed as a direct replacement within the Bently Nevada 330881 series. The suffix digits encode probe length, extension cable length, and proximitor cable length — confirm these match your existing installation before ordering. The electrical interface and sensitivity specification are compatible with all standard Bently Nevada 3500 Series monitor racks.

Q2: What is included in the 12-month warranty?
The 12-month warranty covers manufacturing defects and performance non-conformance under normal operating conditions. Each unit is functionally tested before shipment. Warranty claims are supported by SMARTNEXMSK’s technical team — contact [email protected] with the order reference and a description of the observed fault.

Q3: How should this spare be stored if not immediately installed?
Store the assembly in its original packaging in a dry, temperature-controlled environment (0–50°C, <85% RH non-condensing). Avoid storing near strong magnetic fields or sources of mechanical vibration. The proximitor’s internal electronics are sensitive to electrostatic discharge — keep the unit in its anti-static packaging until installation. Recommended maximum shelf storage before installation verification: 3 years.

Q4: Can SMARTNEXMSK supply multiple units for a spare parts program?
Yes. SMARTNEXMSK supports long-term spare parts programs for industrial facilities, including blanket orders, scheduled delivery, and multi-unit pricing for the 330881-28-04-145-06-02 and related PROXPAC XL assemblies. Contact [email protected] or call +86 18259474341 to discuss inventory requirements and lead times.
