Bently Nevada 330881-28-04-70-03-02 Retrofit-Ready Proximity Transducer for 3300 Series

Bently Nevada 330881-28-04-70-03-02 Retrofit-Ready Proximity Transducer for 3300 Series Control Systems

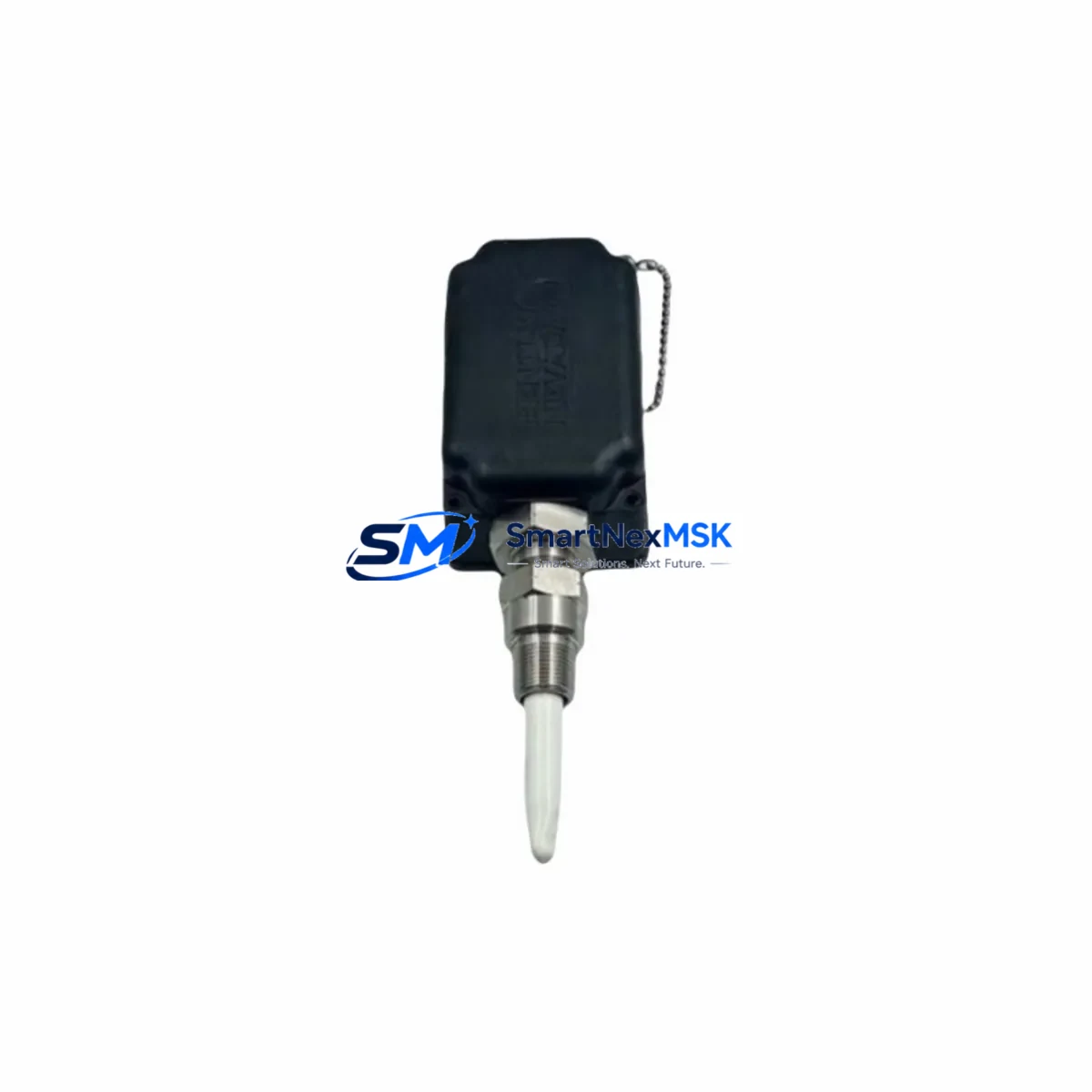

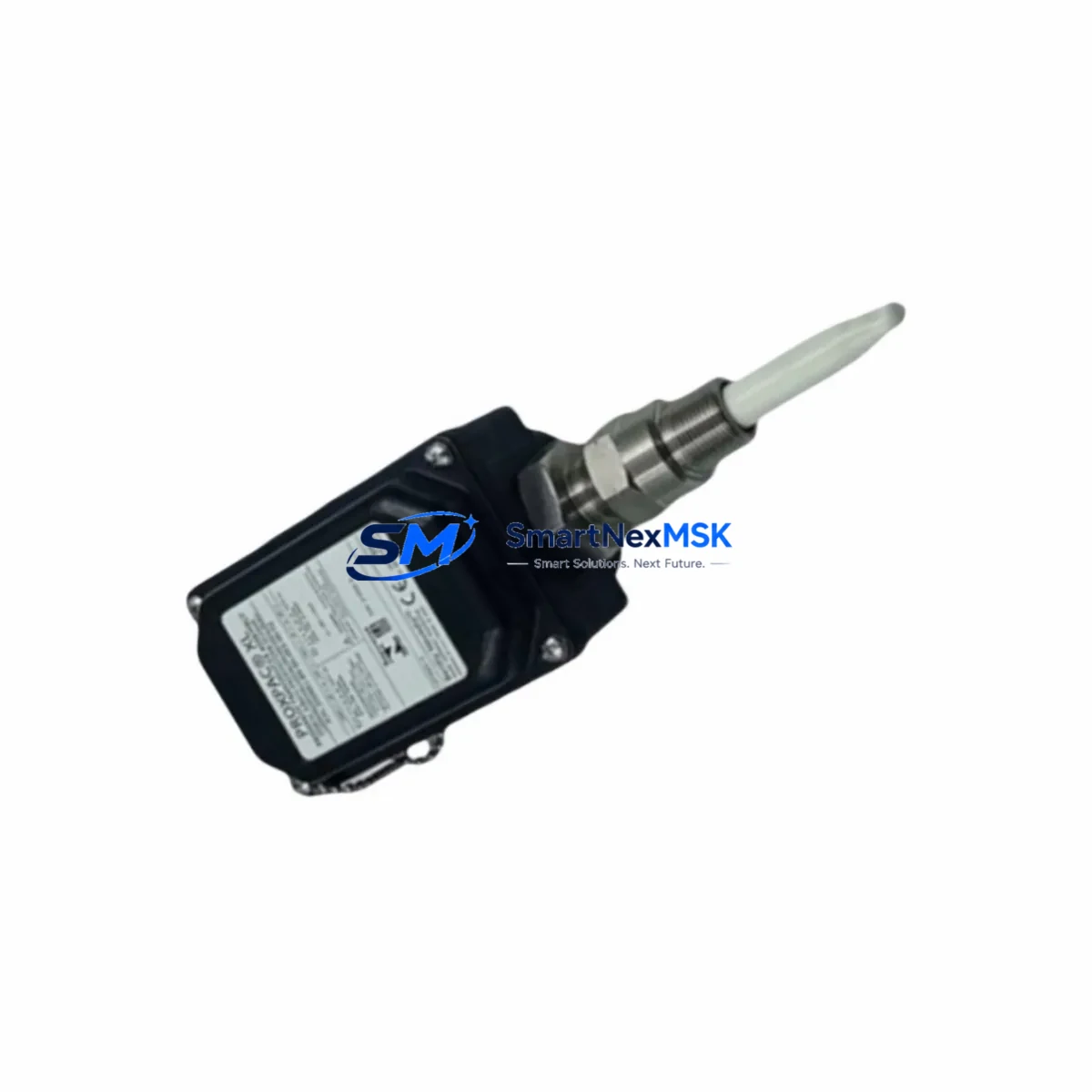

The Bently Nevada 330881-28-04-70-03-02 is a PROXPAC XL proximity transducer assembly engineered for seamless retrofit integration into existing 3300 Series vibration monitoring and machinery protection systems. As legacy installations age and original spare parts become increasingly difficult to source, this unit provides a verified drop-in replacement path that preserves signal integrity, maintains system calibration, and eliminates the need for full panel redesign. Whether you are managing a planned upgrade cycle or responding to an unplanned failure on a critical rotating machine, the 330881-28-04-70-03-02 is stocked and ready for immediate dispatch with full 12-month warranty coverage.

This transducer assembly is designed to interface directly with the Bently Nevada 3300 Series monitor rack, including the 3300/16 and 3300/20 proximity monitor cards. The output signal characteristics — sensitivity, bias voltage range, and frequency response — are fully compatible with the original specification, meaning no recalibration of the monitor card or adjustment of alarm setpoints is required after installation. Engineers performing a like-for-like swap can expect the replacement unit to be recognized immediately by the existing system without firmware changes or configuration uploads.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 330881-28-04-70-03-02 into an operating plant begins well before the physical swap. The first step is a thorough review of the existing wiring diagram to confirm terminal assignments on the 3300 Series monitor card. The transducer connects via a coaxial extension cable — typically a Bently Nevada 330130 series armored cable — to the monitor input. Verify that the existing cable is undamaged and that the connector type matches the PROXPAC XL termination standard before proceeding.

Power supply capacity is the next critical checkpoint. The 3300 Series rack draws its transducer bias from a dedicated −24 VDC supply rail. Confirm that the existing Bently Nevada 3300/05 power supply module or equivalent is delivering within specification before energizing the new transducer. An out-of-tolerance supply will produce a false OK relay state and may prevent the monitor from entering normal operation.

For plants running multiple measurement points on a single rack, the 3300/16 proximity monitor card supports up to two channels per card. If the retrofit scope includes replacing multiple transducers simultaneously, plan the channel-by-channel swap sequence to maintain at least one active measurement point per machine train throughout the process. This approach keeps the Bently Nevada 3500 Series or 3300 Series rack in a partially monitored state and avoids a full bypass condition that could trigger a plant safety interlock.

Where the control system integrates vibration data into a DCS or PLC — for example, via a Bently Nevada 3500/92 communication gateway or a Modbus TCP interface card — confirm that the data mapping for the replaced channel remains intact after the swap. The gateway configuration typically references channel number and rack slot address rather than transducer serial number, so a like-for-like physical replacement should not require a gateway reconfiguration. However, it is good practice to verify the live data value in the DCS historian or SCADA display immediately after commissioning to confirm the signal is being received correctly.

HMI screens that display vibration trend data should be reviewed to ensure the engineering unit scaling and alarm band display remain accurate. If the plant uses a GE iFIX, Wonderware InTouch, or Ignition SCADA platform, the tag associated with the replaced channel should be checked for correct EU range and alarm limit configuration. No changes are typically needed, but a visual confirmation during the post-installation walkthrough is recommended as part of the commissioning record.

Downtime Control During System Migration

Minimizing downtime during a proximity transducer replacement on a running machine train requires a structured pre-outage preparation plan. Before the maintenance window opens, stage all replacement components — including the 330881-28-04-70-03-02 transducer assembly, the appropriate Bently Nevada 330130 extension cable, and any required connector adapters — at the work site. Pre-test the replacement unit using a Bently Nevada 3300 Series portable calibrator or equivalent signal simulator to confirm the output sensitivity and bias voltage are within specification before the machine is taken offline.

During the outage, follow a documented swap sequence: isolate the monitor channel, remove the existing transducer, install the replacement, re-establish the cable connection, and restore monitor power. The entire physical swap on a standard PROXPAC XL installation can typically be completed in under 30 minutes by a trained technician. The commissioning verification — gap voltage measurement, OK relay confirmation, and alarm trip test — adds approximately 15 to 20 minutes. Total planned downtime for a single-channel replacement is therefore well under one hour, provided all materials are staged and the work permit is pre-approved.

For critical machines where even a brief outage is unacceptable, consider a hot-standby approach using a spare monitor card slot in the 3300 Series rack. Pre-wire the replacement transducer to the spare slot, verify the signal, then switch the active monitoring channel in the rack configuration before removing the original transducer. This technique keeps the machine in a continuously monitored state throughout the replacement process and is particularly valuable for compressors, turbines, and other machinery where a protection gap carries significant operational risk.

Retrofit Support FAQ

Q: Is the 330881-28-04-70-03-02 a direct replacement for my existing PROXPAC assembly?
A: Yes. The 330881-28-04-70-03-02 is a PROXPAC XL assembly with the same output sensitivity, bias voltage range, and housing dimensions as the original Bently Nevada specification. It installs directly into the existing mounting bracket and connects to the existing extension cable without modification, provided the cable type and length suffix match your installation.

Q: Do I need to recalibrate the 3300 Series monitor card after installing this replacement?
A: No recalibration is required for a like-for-like replacement. The monitor card alarm setpoints, OK relay thresholds, and gap voltage limits remain valid. After installation, perform a gap voltage verification and an OK relay functional test as part of the standard commissioning checklist to confirm the system is operating correctly.

Q: What pre-shipment testing is performed on this unit?
A: Each 330881-28-04-70-03-02 unit undergoes a functional output test prior to shipment, verifying sensitivity, bias voltage, and cable continuity. A test report is available upon request. The unit is covered by a 12-month warranty against manufacturing defects from the date of shipment.

Q: Can this transducer be used with a Bently Nevada 3500 Series rack?
A: The 330881-28-04-70-03-02 is specified for the 3300 Series platform. Compatibility with the 3500 Series depends on the specific monitor card installed. The 3500/40M and 3500/42M proximity monitor cards accept standard eddy-current transducer inputs, but sensitivity and gap voltage specifications should be verified against the 3500 Series monitor card datasheet before installation. Contact our technical team for a compatibility confirmation if you are integrating this unit into a 3500 Series rack.
