Bently Nevada 330881-28-04-85-03-02 Spare for PROXPAC XL Automation

Bently Nevada 330881-28-04-85-03-02 Spare for PROXPAC XL Automation: Spare Replacement & Industrial Downtime Risk Control

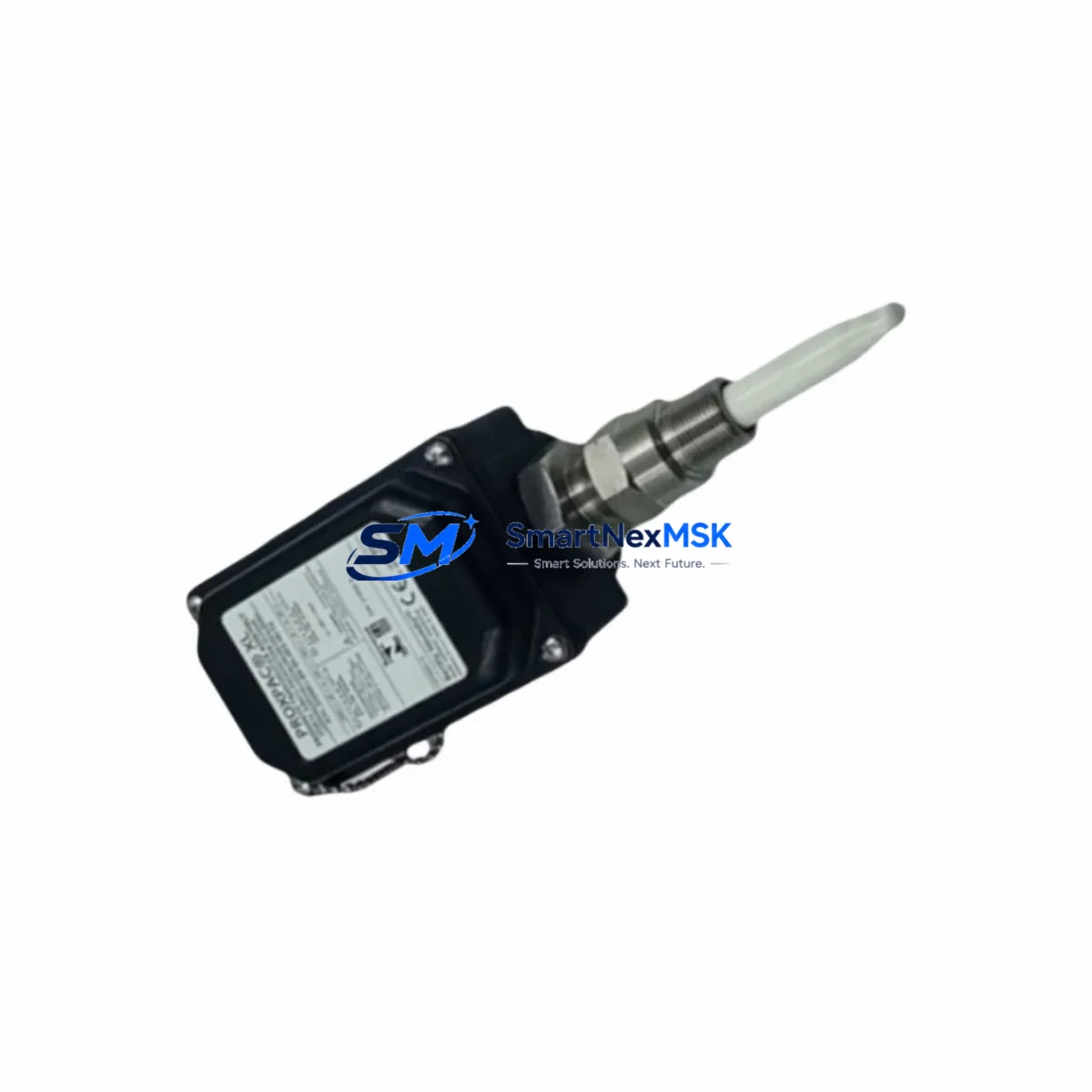

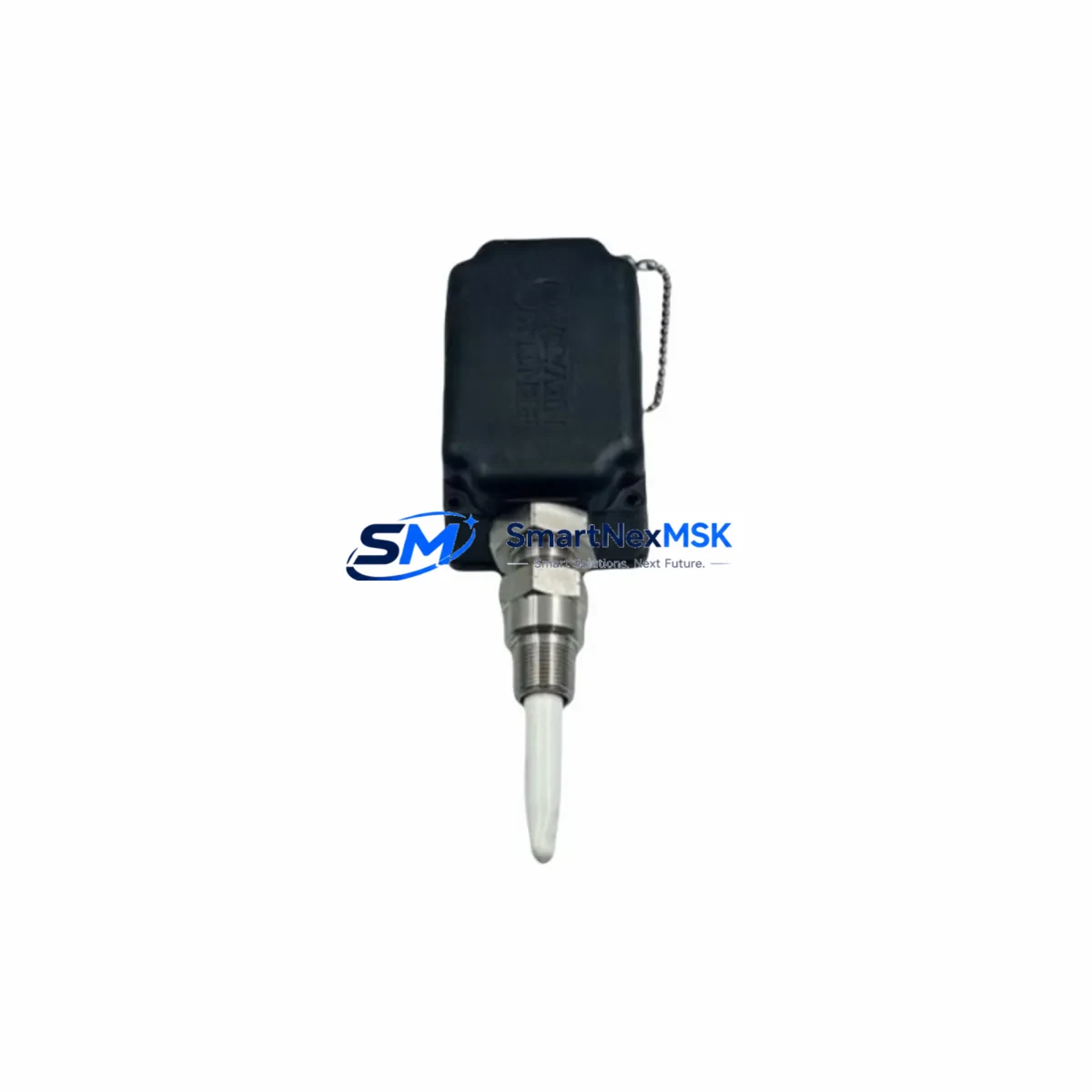

The Bently Nevada 330881-28-04-85-03-02 is an original PROXPAC XL proximity transducer assembly engineered for continuous vibration and position monitoring in rotating machinery protection systems. Designed for eddy-current sensing applications, this unit integrates directly into Bently Nevada 3300 and 3500 series monitoring racks, delivering reliable shaft displacement and radial vibration data critical to turbine, compressor, and pump protection circuits. For maintenance engineers managing aging machinery protection infrastructure, sourcing a verified original spare — not a substitute — is the first line of defense against unplanned downtime.

This listing covers the complete 330881-28-04-85-03-02 assembly: extension cable, proximitor, and probe tip matched to factory-specified gap voltage and sensitivity parameters. Each unit is tested prior to shipment and backed by a 12-month warranty covering manufacturing defects and functional performance. Fast dispatch from stocked inventory ensures your maintenance window stays on schedule.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330881-28-04-85-03-02 proximity transducer assembly is flagged for replacement during a planned outage or emergency shutdown, experienced maintenance engineers know that the transducer itself is rarely the only component requiring attention. A thorough inspection of the surrounding measurement loop is essential to restore full system integrity and prevent repeat failures.

Begin with the proximitor power supply — typically a dedicated -24 VDC rail feeding the 3300 or 3500 series monitor. Voltage ripple or supply instability is a common root cause of erratic gap voltage readings that are misdiagnosed as transducer failure. Verify the 3500/15 Power Supply module output under load before condemning the probe assembly.

Next, inspect the extension cable (part of the PROXPAC XL assembly) for jacket damage, connector corrosion, or continuity breaks — particularly at conduit entry points and junction boxes where mechanical stress concentrates. A damaged extension cable will produce the same symptoms as a failed probe tip. If the cable shows any sign of insulation breakdown, replace the full assembly rather than splicing.

The 3500/40M Proximitor I/O Module or equivalent monitor card should be checked for channel-specific alarm setpoints, OK relay status, and any latched fault conditions. Confirm that the replacement transducer’s sensitivity and gap voltage specifications match the monitor’s configured input range — a mismatch here will cause immediate OK relay dropout even with a perfectly functional new probe.

For systems using Bently Nevada 3500/22M Transient Data Interface or 3500/42M Proximitor/Seismic Monitor cards, verify that the channel configuration in System 1 or Rack Configuration Software reflects the correct transducer type and cable length. Incorrect software configuration is a frequent source of post-replacement commissioning delays.

While the control cabinet is open, this is also the right time to inspect terminal blocks and field wiring for oxidation, loose terminations, or incorrect shielding grounding. Proximity transducer circuits are sensitive to ground loops — ensure the shield is grounded at one end only, per Bently Nevada installation guidelines. Check adjacent signal isolators or barriers if the system feeds a DCS or safety instrumented system (SIS) input card.

If the machine is equipped with a Keyphasor transducer (such as the 330180 or 330130 series), verify its gap voltage and signal quality simultaneously — Keyphasor signal integrity directly affects phase reference accuracy for all vibration vectors in the monitoring system. A degraded Keyphasor will corrupt 1X and 2X amplitude readings even after a successful proximity probe replacement.

Finally, document the as-found and as-left gap voltage for the new 330881-28-04-85-03-02 assembly, and update your CMMS with the replacement date, probe serial number, and next recommended inspection interval. Proactive spare inventory of at least one matched PROXPAC XL assembly per critical machine train is strongly recommended to support rapid response during unplanned shutdowns.

Site Replacement Workflow

Step 1 — Identify and Isolate: Confirm the channel to be replaced using the 3500 rack front-panel display or System 1 software. Place the monitor channel in bypass mode to prevent spurious trips during replacement. Isolate the -24 VDC supply to the affected proximitor circuit.

Step 2 — Remove the Old Assembly: Disconnect the extension cable at the proximitor junction box. Unthread the probe from its mounting bracket, noting the as-found gap distance (typically measured with a feeler gauge or recorded from the monitor’s DC gap voltage). Retain the old assembly for failure analysis if required.

Step 3 — Install the 330881-28-04-85-03-02: Thread the new probe to the same depth as the original, using the recorded gap distance as a reference. Reconnect the extension cable, ensuring correct polarity and shield grounding. Restore the -24 VDC supply.

Step 4 — Commission and Verify: Confirm DC gap voltage is within the monitor’s OK window (typically -10 VDC ± 2 VDC for standard 8 mm probes at nominal gap). Release the channel from bypass. Observe vibration readings during machine run-up and confirm they are consistent with historical baseline data. Log the as-left gap voltage in the maintenance record.

Step 5 — Update Spare Inventory: Replenish the replaced unit immediately. For critical rotating equipment, a minimum of one spare PROXPAC XL assembly per machine train is the industry-standard recommendation. Long-term supply agreements ensure consistent availability without lead-time risk.

Spare Parts Support FAQ

Q1: Is the 330881-28-04-85-03-02 compatible with both 3300 and 3500 series Bently Nevada monitors?
Yes. The 330881 PROXPAC XL series is designed for use with Bently Nevada 3300 and 3500 series monitoring systems. Always verify the monitor channel’s configured input sensitivity and OK voltage window against the transducer’s output specification before installation to ensure compatibility.

Q2: What does the 12-month warranty cover, and how is it claimed?
The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. To initiate a warranty claim, contact our sales team with the order number, installation date, and a description of the fault. We will arrange return, inspection, and replacement or refund as appropriate.

Q3: How is each unit tested before shipment?
Every 330881-28-04-85-03-02 assembly undergoes functional verification prior to dispatch, including continuity testing of the extension cable, probe tip impedance check, and DC output voltage confirmation. A test report is available upon request for critical applications.

Q4: Can you support long-term or blanket orders for ongoing spare parts programs?
Yes. We support long-term supply agreements for maintenance programs requiring consistent availability of 330881 series transducers and related PROXPAC XL components. Contact our team to discuss stocking arrangements, lead times, and volume pricing for your spare parts inventory program.
