Bently Nevada 330881-28-05-114-03-02 Spare for PROXPAC XL

Bently Nevada 330881-28-05-114-03-02 Maintenance-Ready Spare for PROXPAC XL Automation

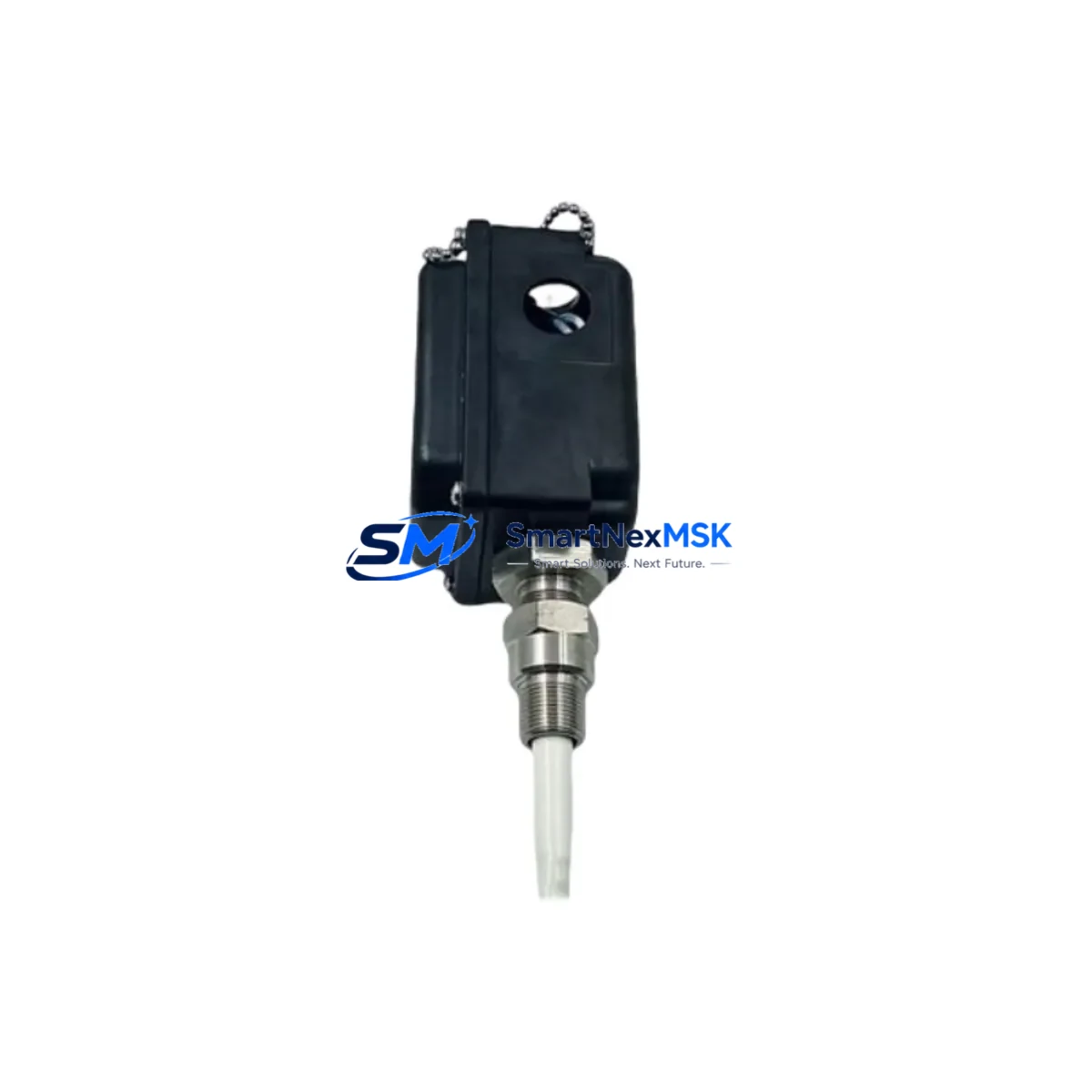

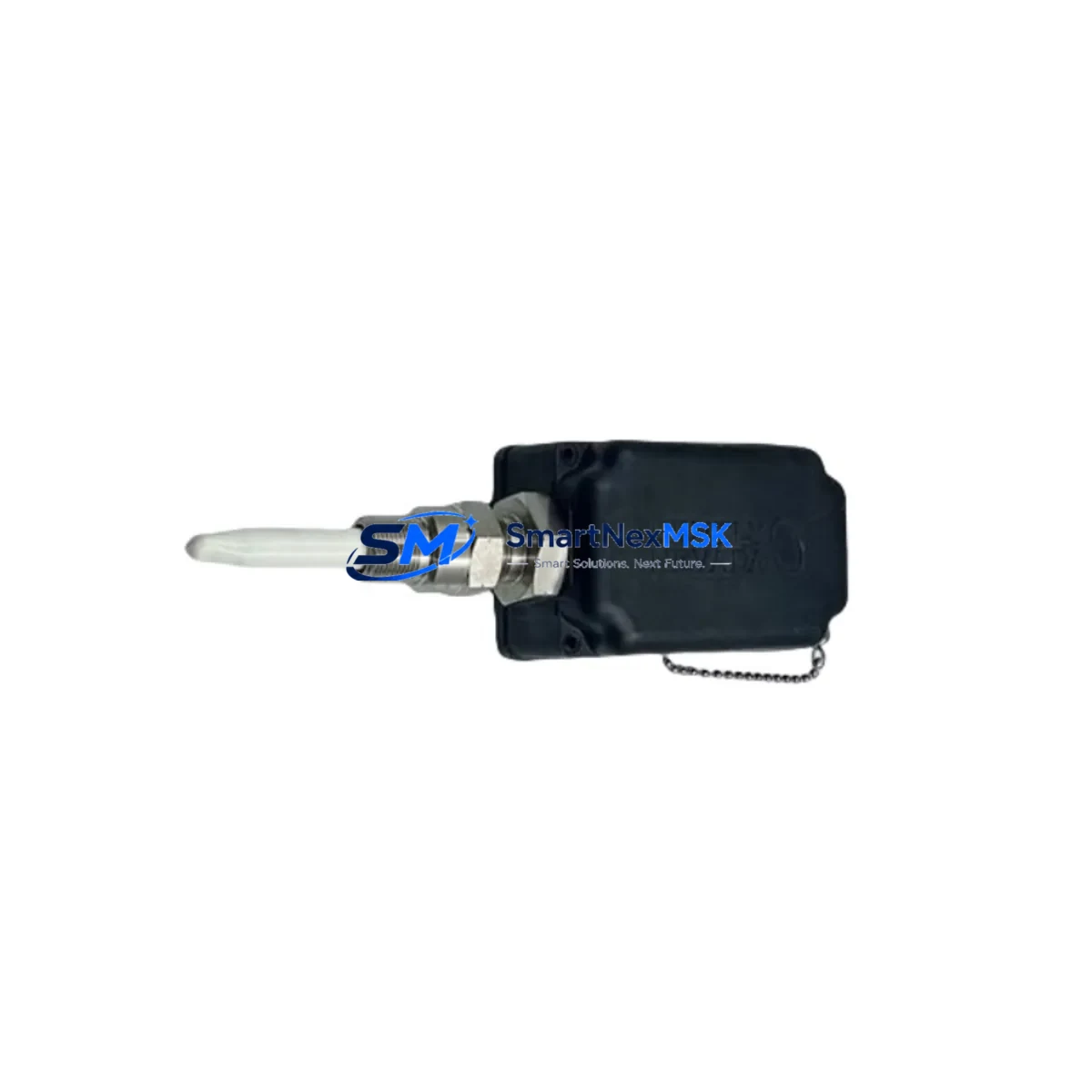

The Bently Nevada 330881-28-05-114-03-02 is an original PROXPAC XL proximity transducer assembly engineered for continuous vibration monitoring in rotating machinery and critical industrial automation systems. Designed for eddy-current non-contact displacement measurement, this unit is a direct maintenance spare for facilities operating Bently Nevada 3300 Series and System 1 condition monitoring platforms. Whether you are managing a planned outage, responding to an unplanned trip, or building a strategic spare parts inventory for a turbine, compressor, or pump train, this assembly delivers the dimensional accuracy, gap voltage linearity, and signal integrity required for reliable machinery protection.

At SMARTNEXMSK, every 330881-28-05-114-03-02 unit is sourced from verified supply channels, functionally tested prior to dispatch, and shipped with a 12-month warranty. We maintain long-term stock to support both emergency replacement and scheduled maintenance programs across global industrial sites.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330881-28-05-114-03-02 PROXPAC XL assembly is flagged for replacement — whether due to gap voltage drift, probe tip damage, cable insulation failure, or a machinery protection system alarm — maintenance engineers should treat the event as an opportunity to audit the entire vibration monitoring loop and adjacent control cabinet components.

Begin with the Bently Nevada 3300 XL proximitor/driver module (typically a 330180 or 330130 series driver) that pairs with this probe assembly. A degraded driver will produce erratic gap voltage even with a new probe installed, leading to false diagnostics. Simultaneously, inspect the 3300 rack power supply module — commonly a 3300/20 or equivalent — since undervoltage conditions accelerate probe driver failure and corrupt vibration readings.

Check the 330130 extension cable connecting the probe to the driver for continuity, shield integrity, and connector seating. Damaged extension cables are a frequent root cause of intermittent vibration channel faults that are misdiagnosed as probe failures. If the machine train includes a Keyphasor transducer (such as the 330980 or 3300 XL Keyphasor assembly), verify its gap voltage and signal quality simultaneously, as Keyphasor reference signals are critical for phase and 1X/2X vector analysis during post-maintenance run-up.

For facilities running Bently Nevada 3500 Series rack-based protection systems, confirm that the I/O module termination board — such as the 3500/42M or 3500/44M — is properly seated and that terminal block connections are torqued to specification. Loose terminations at the I/O module are a common source of channel noise after a probe replacement. If the system includes a 3500/22M transient data interface, verify that the module firmware is current and that the channel configuration matches the new probe’s sensitivity factor.

In control cabinets housing both vibration monitoring and process control equipment, also inspect signal isolators or signal conditioners on the 4–20 mA vibration output channels feeding the DCS or safety system. A failed isolator can cause the DCS to read a flat or saturated vibration signal, masking real machinery behavior. Fuse holders and terminal blocks on the 24 VDC supply rail to the proximitor should be checked for corrosion and proper contact pressure, particularly in humid or coastal environments.

Finally, if the machine is part of an older system approaching end-of-life, consider stocking a 330881-28-05-114-03-02 spare unit alongside a compatible 3300 XL 8mm driver and a set of 330130 extension cables as a matched replacement kit. This approach eliminates the risk of incompatible sensitivity factors between probe and driver during an emergency replacement and significantly reduces mean time to repair (MTTR).

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the existing probe SKU (330881-28-05-114-03-02) against the machine train documentation and the 3300/3500 rack channel configuration sheet. Verify that the replacement unit carries the same sensitivity specification (typically 200 mV/mil or 7.87 V/mm) to avoid recalibration of the monitor module.

Step 2 — Safe isolation: Follow site LOTO procedures. De-energize the proximitor driver supply at the rack power supply. Do not disconnect the probe while the driver is energized — this can damage the driver output stage.

Step 3 — Physical removal: Unscrew the probe tip from the bracket, disconnect the extension cable at the driver end, and remove the complete PROXPAC assembly. Inspect the probe mounting bracket for wear, corrosion, or misalignment that may have contributed to the original failure.

Step 4 — Installation and gap setting: Install the new 330881-28-05-114-03-02 assembly. Set the probe gap to the manufacturer-specified nominal gap (typically 50 mil / 1.27 mm for 8 mm probes) using a calibrated gap-setting tool. Verify gap voltage at the driver output with a calibrated multimeter — target -10.0 VDC ±0.5 VDC at nominal gap.

Step 5 — Functional test: Re-energize the rack and confirm that the monitor channel displays a valid gap voltage, that the vibration reading is within baseline, and that no alarms or danger trips are active. Document the as-left gap voltage in the maintenance record.

Step 6 — System compatibility confirmation: If replacing an older 330881 variant with the current 330881-28-05-114-03-02, confirm that the driver module firmware and monitor channel configuration are compatible with the updated probe sensitivity. No hardware modification is typically required for direct SKU-to-SKU replacement within the PROXPAC XL family.

Spare Parts Support FAQ

Q1: Is the 330881-28-05-114-03-02 a direct drop-in replacement for older 330881 series probes?
Yes. The 330881-28-05-114-03-02 is dimensionally and electrically compatible with other 330881 PROXPAC XL variants sharing the same probe diameter, cable length, and sensitivity specification. Always verify the sensitivity factor (mV/mil or V/mm) against your monitor channel configuration before installation to confirm no recalibration is required.

Q2: What does the 12-month warranty cover, and how is it validated?
The 12-month warranty covers manufacturing defects, functional failure under normal operating conditions, and out-of-specification gap voltage performance. Each unit is tested prior to shipment. Warranty claims are supported with the original invoice and a fault description. Units damaged by incorrect installation, overvoltage, or mechanical impact are not covered under warranty.

Q3: How should I manage spare inventory for the 330881-28-05-114-03-02 in a critical machinery protection program?
For API 670-compliant machinery protection systems, industry best practice recommends maintaining a minimum of one complete PROXPAC assembly per critical machine train, plus one additional unit per site as a floating spare. Given the long lead times historically associated with Bently Nevada OEM channels, maintaining pre-positioned stock at site significantly reduces MTTR during unplanned outages. SMARTNEXMSK supports blanket order and consignment stock arrangements for high-volume maintenance programs.

Q4: Can SMARTNEXMSK supply matched probe-and-driver kits for the 3300 XL system?
Yes. We can supply the 330881-28-05-114-03-02 probe assembly together with compatible 330130 extension cables and 3300 XL driver modules as a pre-matched kit, verified against the same sensitivity specification. This eliminates field calibration risk and ensures system compatibility from the moment of installation. Contact our technical sales team to configure a kit for your specific machine train and rack type.
