Bently Nevada 330881-28-08-090-00-02 PROXPAC XL Spare

Bently Nevada 330881-28-08-090-00-02 PROXPAC XL Maintenance-Ready Spare for 3300 Series Automation

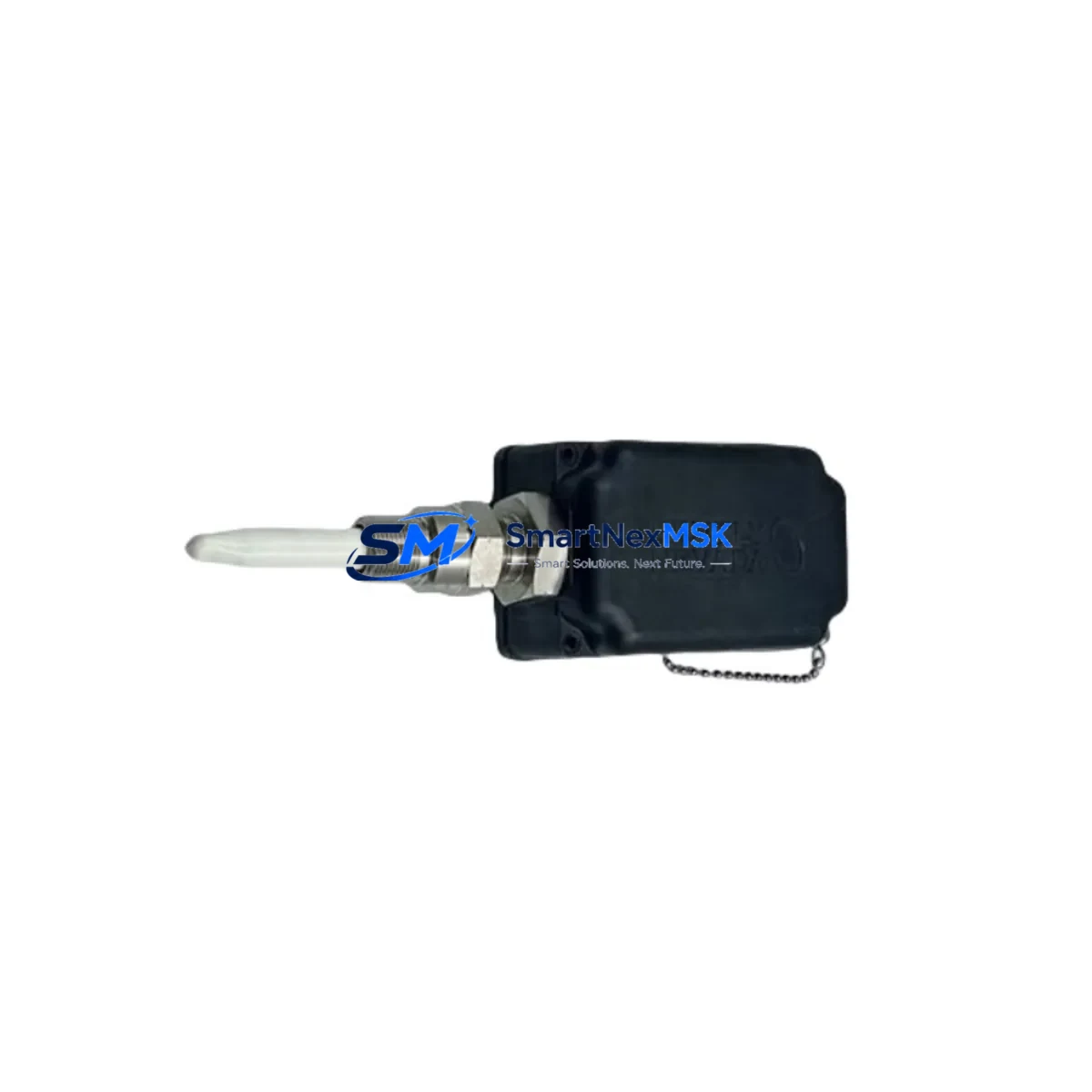

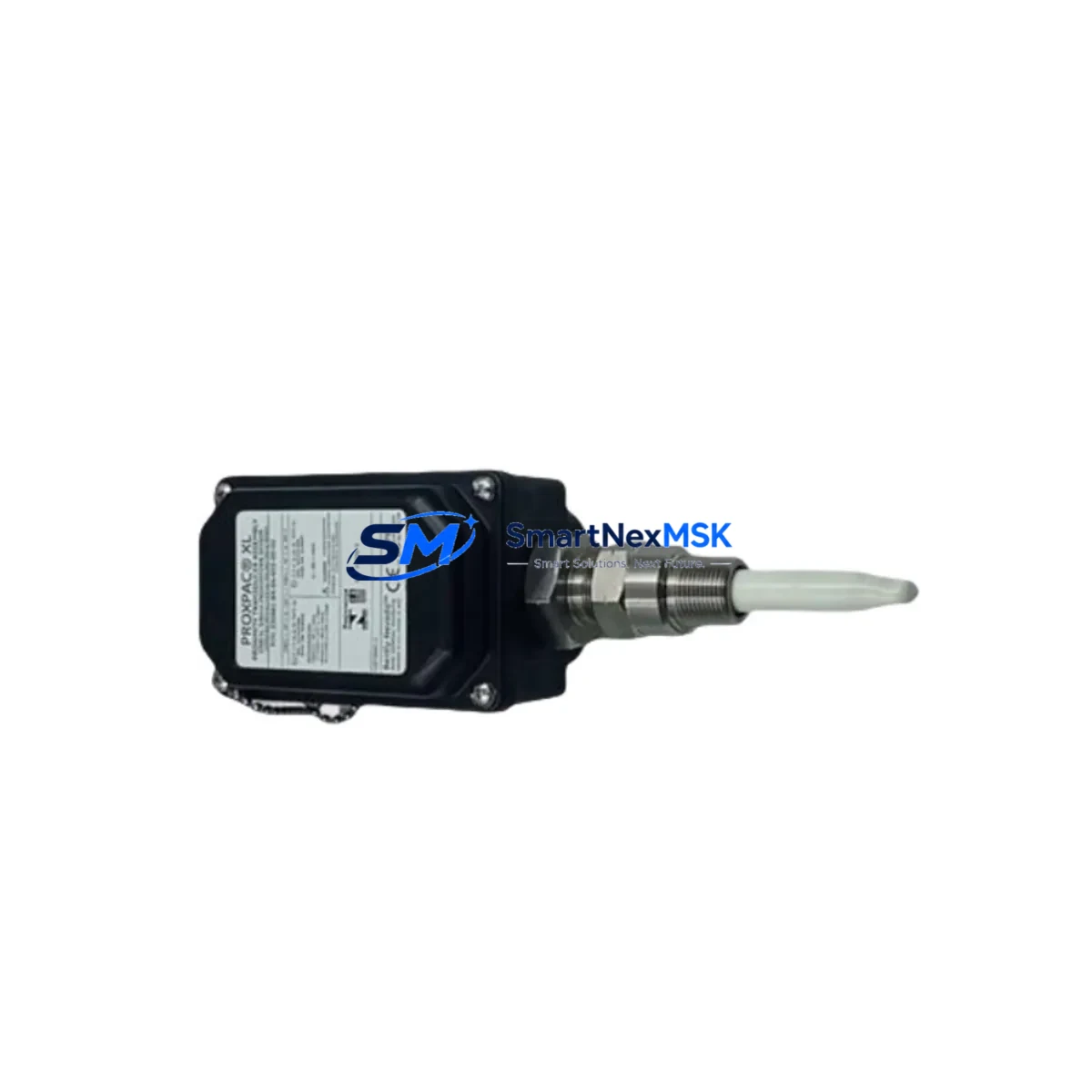

The Bently Nevada 330881-28-08-090-00-02 is an original PROXPAC XL Proximity Transducer Assembly engineered for continuous vibration monitoring in rotating machinery applications. Designed for use within the Bently Nevada 3300 Series monitoring infrastructure, this assembly integrates the probe, extension cable, and Proximitor sensor into a single pre-calibrated unit — eliminating field calibration errors and reducing mean time to repair (MTTR) during unplanned shutdowns.

For maintenance engineers managing turbines, compressors, pumps, and gearboxes in process-critical environments, having a verified spare of the 330881-28-08-090-00-02 on the shelf is a fundamental risk-control measure. Vibration transducer failures are among the leading causes of unplanned machinery trips. A single unplanned outage in a petrochemical, power generation, or heavy manufacturing facility can cost tens of thousands of dollars per hour. Stocking this PROXPAC XL assembly as a ready-to-install spare directly supports uptime targets and maintenance KPIs.

Each unit shipped from SMARTNEXMSK undergoes pre-shipment functional verification and is backed by a 12-month warranty. Fast dispatch and long-term supply availability make this an ideal choice for both emergency replacement and planned maintenance inventory programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330881-28-08-090-00-02 PROXPAC XL assembly in the field, a disciplined maintenance engineer will treat the replacement as an opportunity to inspect the entire vibration monitoring loop and adjacent control cabinet components. The Proximitor output feeds directly into the Bently Nevada 3300 Series monitor rack — so verifying the rack’s input card, typically a 3300/16 or 3300/20 series monitor module, is essential before declaring the loop healthy.

Check the -24 VDC power supply rail feeding the Proximitor. A degraded or noisy power supply is a common root cause of false vibration trips and should be tested with a calibrated multimeter. If the cabinet houses a Bently Nevada 3500/15 Power Supply module, inspect its output voltage and ripple under load. Simultaneously, verify the terminal strip and field wiring from the junction box to the rack — corroded terminals or loose connections on the signal pair (SIG and COM) will introduce noise that mimics real vibration events.

For systems using a 3500/42M Proximitor/Seismic Monitor or a 3500/40M Proximitor Monitor, confirm that the channel configuration in the rack matches the new PROXPAC XL’s sensitivity and gap voltage. A mismatch in the monitor’s configured scale factor will produce erroneous readings even with a perfectly functional transducer. Use the Bently Nevada System 1 software or a local rack display to verify the OK status and gap voltage (typically -10 VDC ± 1 VDC at the nominal air gap) after installation.

In multi-machine installations, it is good practice to cross-check the keyphasor probe (such as a 330180 or 330130 series keyphasor transducer) at the same time, as keyphasor signal integrity directly affects phase-referenced vibration analysis. If the machine train includes a gearbox or coupling, inspect the axial position probe on the thrust bearing — often a companion 330905 or 330980 series assembly — for gap drift or cable damage.

For older systems approaching end-of-life, consider auditing the 3300/55 Dual Voting Trip module or any relay output modules in the rack. Relay contacts that have accumulated switching cycles may exhibit increased contact resistance, leading to delayed or missed trip signals. Replacing the PROXPAC XL without addressing a marginal relay module leaves a latent failure risk in the protection chain.

Finally, document the as-found gap voltage and vibration baseline immediately after installation. This data becomes the reference for future condition monitoring trending and supports predictive maintenance decisions — reducing the likelihood of another unplanned outage from the same loop.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the monitoring channel at the rack. Do not de-energize the entire rack unless required — most 3300/3500 series racks support hot-swap of individual monitor modules, but the field wiring must be disconnected at the junction box before removing the probe assembly.

Step 2 — As-Found Documentation: Record the existing gap voltage, OK status, and any active alarms on the channel. Photograph the probe mounting orientation and cable routing before removal.

Step 3 — Remove Old Assembly: Unscrew the probe from the bracket, disconnect the extension cable at the junction box, and remove the Proximitor from its mounting location. Inspect the probe tip for wear, the extension cable for kinks or jacket damage, and the Proximitor housing for moisture ingress.

Step 4 — Install 330881-28-08-090-00-02: Mount the new PROXPAC XL probe in the same bracket, set the air gap to the manufacturer’s specified nominal gap (typically 1.0 mm / 40 mil for standard 8 mm probes — verify for this 28 mm configuration), and route the extension cable following the original path. Connect the Proximitor to the rack terminal strip, observing correct polarity on SIG, COM, and PWR terminals.

Step 5 — Verification: Re-energize the channel and confirm gap voltage is within the OK window (typically -9 VDC to -11 VDC). Verify the OK LED on the monitor module is illuminated. Run a brief operational check at low machine speed if possible before returning the machine to full load.

Step 6 — Close-Out: Update the maintenance management system (CMMS) with the new part number, installation date, and as-left gap voltage. Retain the removed assembly for failure analysis if the replacement was unplanned.

This workflow minimizes downtime, ensures system compatibility, and maintains the integrity of the machinery protection system — keeping the plant running safely and efficiently.

Spare Parts Support FAQ

Q1: Is the 330881-28-08-090-00-02 compatible with both the 3300 and 3500 Series Bently Nevada racks?
The 330881-28-08-090-00-02 PROXPAC XL is natively designed for the 3300 Series monitoring system. It is also compatible with 3500 Series racks when used with the appropriate input module configuration. Always verify the monitor module’s configured sensitivity (200 mV/mil) and gap voltage range match the PROXPAC XL specifications before installation. Contact our technical team if you need compatibility confirmation for a specific rack configuration.

Q2: What is included in the 12-month warranty and what does pre-shipment testing cover?
Every 330881-28-08-090-00-02 unit shipped by SMARTNEXMSK is functionally tested prior to dispatch. Testing covers output sensitivity verification, OK circuit continuity, cable integrity, and connector condition. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. Warranty claims are processed promptly with replacement or repair at no additional cost.

Q3: How should I manage spare inventory for PROXPAC XL assemblies in a multi-machine facility?
For facilities with 5 or more monitored machines using 3300/3500 Series systems, we recommend maintaining a minimum of 2 PROXPAC XL assemblies per critical machine train as on-shelf spares. Given the lead times associated with OEM procurement channels, having pre-verified spares from SMARTNEXMSK eliminates the risk of extended downtime waiting for parts. We offer long-term supply agreements and can reserve stock against your facility’s maintenance schedule.

Q4: Can I use the 330881-28-08-090-00-02 as a direct drop-in replacement for other 330881 variants?
The 330881 series uses a structured part numbering system where each segment encodes probe length, extension cable length, Proximitor cable length, and connector options. The -28-08-090-00-02 variant specifies a particular combination of these parameters. Substituting a different variant (e.g., -28-05-090-00-02 with a shorter extension cable) may require re-routing field cables or adjusting the gap setting. Always match the full part number for a direct drop-in replacement. Our team can advise on cross-reference options if the exact variant is required urgently.
