Bently Nevada 330881-BR-07-155-06-02 Spare PROXPAC XL

Bently Nevada 330881-BR-07-155-06-02 Maintenance-Ready Spare for 330881 Series Automation

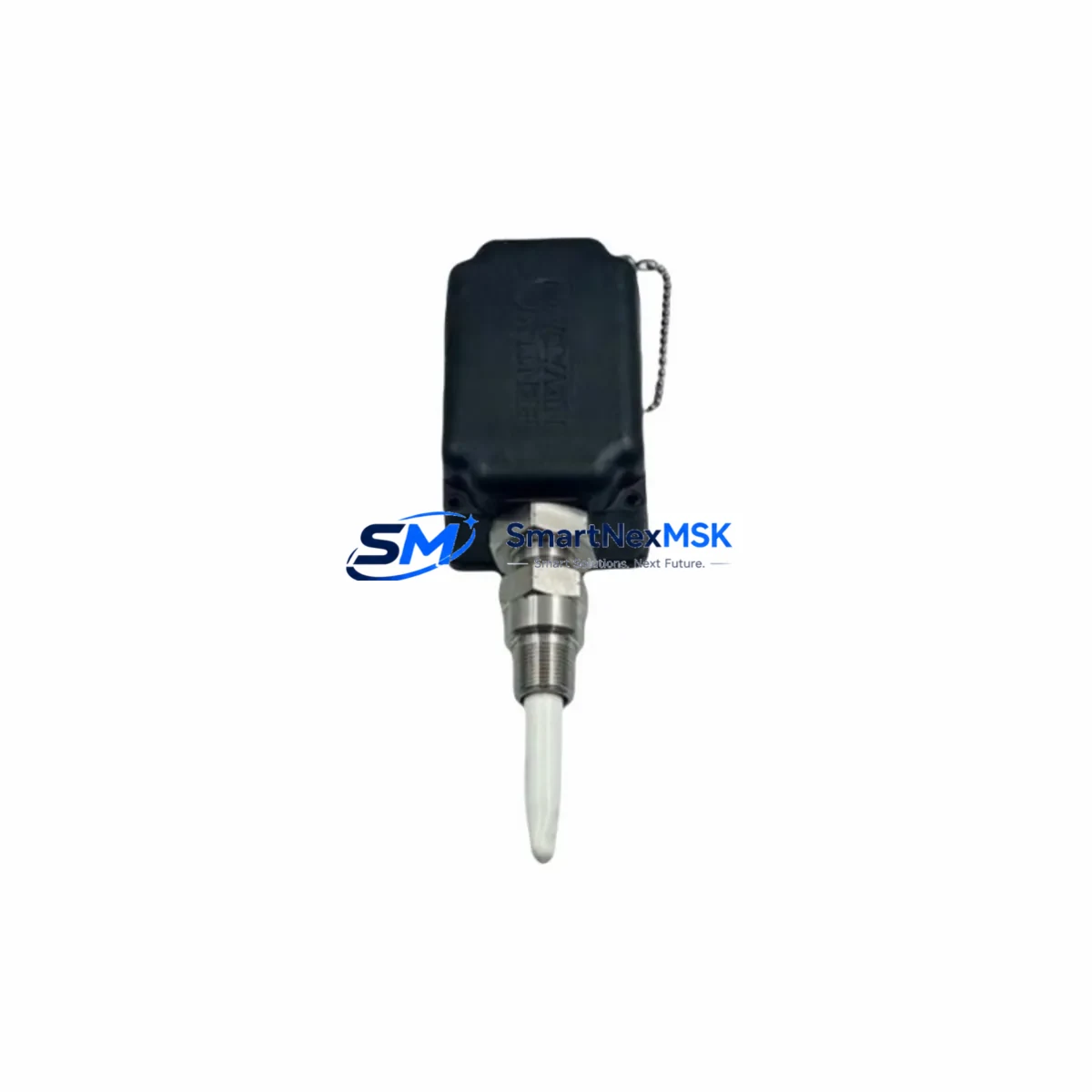

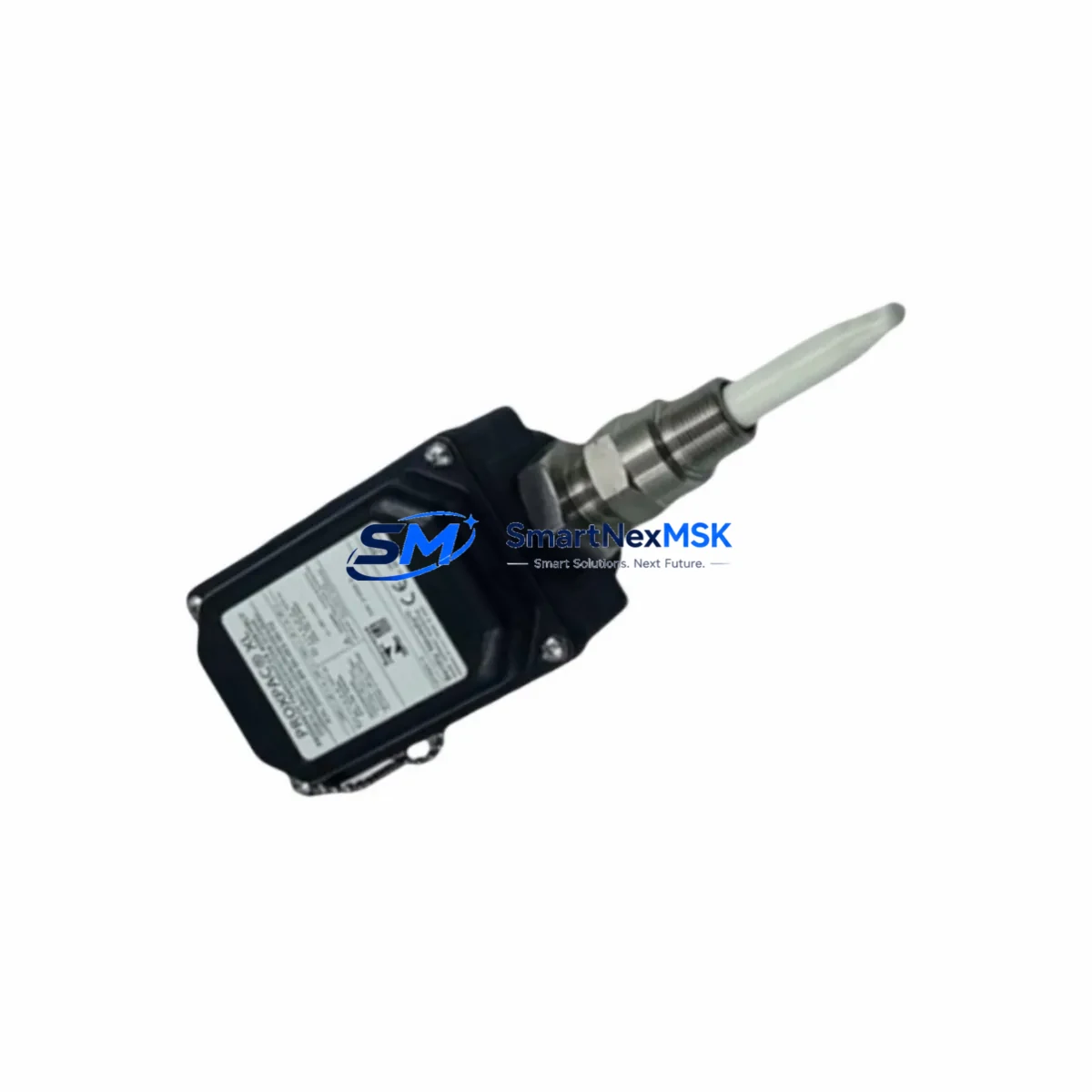

The Bently Nevada 330881-BR-07-155-06-02 is a PROXPAC XL Proximity Transducer Assembly engineered for continuous vibration and position monitoring in rotating machinery protection systems. As a maintenance-ready spare part, this unit is designed to minimize unplanned downtime and support rapid field replacement in critical industrial environments including turbines, compressors, pumps, and generator sets operating under Bently Nevada 3500 Series machinery protection frameworks.

For maintenance engineers managing rotating equipment reliability programs, having a verified spare of the 330881-BR-07-155-06-02 on the shelf is a fundamental risk-reduction strategy. Proximity transducer assemblies are wear-sensitive components subject to cable fatigue, connector corrosion, and signal drift over extended service cycles. Proactive stocking of this assembly — alongside its associated extension cables, proximitor modules, and barrier isolators — ensures that fault isolation and component swap-out can be completed within a single maintenance window, avoiding extended outages.

This unit ships tested and verified against original Bently Nevada specifications, with full dimensional and electrical conformance to the 330881 series. Each assembly undergoes pre-shipment functional checks covering output sensitivity, gap voltage linearity, and cable continuity. A 12-month warranty is included from date of shipment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330881-BR-07-155-06-02 in the field, a disciplined maintenance engineer will treat the transducer swap as an opportunity to inspect the full vibration monitoring loop. Begin with the proximitor/driver module — typically a Bently Nevada 330180 or 330130 series proximitor — verifying that gap voltage output falls within the linear range (typically -10 VDC ±0.5 V at the recommended installation gap). A drifted or failed proximitor will cause the new transducer to report erroneous readings even after a clean installation.

Next, inspect the extension cable assembly (commonly 330130-series or 330180-series matched cables) for jacket cracking, connector pin corrosion, and shield continuity. Extension cables are frequently overlooked during transducer replacements and are a leading cause of repeat faults. Verify that the cable routing avoids sharp bends, heat sources, and contact with rotating components.

At the 3500 Series monitor rack, check the I/O module seating, terminal block torque, and any Zener barrier isolators or galvanic isolators installed in the signal path for hazardous area compliance. Barrier degradation can introduce noise or signal attenuation that mimics transducer failure. If the installation uses a 3500/42M or 3500/40M proximitor I/O module, confirm that the module firmware and configuration match the replacement transducer’s sensitivity and range settings.

For systems with Keyphasor® transducer inputs (such as the 330980 series), verify that the once-per-revolution reference signal is clean and properly phased after any shaft work or transducer repositioning. A corrupted Keyphasor signal will affect all vector-based measurements across the rack.

In control cabinets housing the 3500 rack, also inspect power supply modules (3500/15 or equivalent), relay output modules, and communication gateway modules (3500/92 Modbus or 3500/93 Ethernet) for alarm setpoint integrity and communication health. Planned maintenance windows are the right time to verify that all relay trip setpoints, time delays, and OK relay logic remain correctly configured after any hardware change.

For older installations approaching end-of-life, consider stocking 3500/22M transient data interface modules and 3500/25 keyphasor modules alongside proximity transducer assemblies to support a comprehensive spares strategy that covers the full measurement chain from sensor to rack output.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement 330881-BR-07-155-06-02 matches the installed cable length (155 in.), connector configuration (BR = BNC/coaxial), and target material. Cross-reference the part number suffix against the original installation drawing before removing the existing assembly.

Step 2 — Safe Isolation: Follow site lock-out/tag-out (LOTO) procedures. For online replacement in non-trip-critical monitoring loops, coordinate with the control room to bypass the affected channel and acknowledge any resulting OK relay changes at the 3500 rack.

Step 3 — Physical Removal and Installation: Remove the existing transducer by unscrewing from the probe holder. Clean the probe tip and target area. Install the replacement assembly, setting the air gap per the Bently Nevada installation specification (typically 50 mil / 1.27 mm for standard steel targets). Secure the cable with appropriate clamps to prevent vibration-induced fatigue.

Step 4 — Electrical Verification: With power restored to the proximitor, measure the gap voltage at the proximitor output. Confirm the reading falls within the linear range. Check the OK status at the 3500 monitor. Verify that vibration amplitude and phase readings are stable and consistent with pre-replacement baseline data.

Step 5 — Documentation and Return to Service: Record the replacement in the equipment maintenance log, noting the new part serial number, installation gap, and gap voltage. Remove the channel bypass and confirm alarm and trip functions are restored. Archive the replaced assembly for failure analysis if required.

This workflow supports rapid downtime recovery while maintaining system integrity and audit traceability — critical requirements for facilities operating under ISO 55000 asset management or API 670 machinery protection standards.

Spare Parts Support FAQ

Q: Is the 330881-BR-07-155-06-02 compatible with both the Bently Nevada 3500 and 3300 Series monitors?
A: Yes. The 330881 PROXPAC XL series is designed for use with Bently Nevada 3500 Series and 3300 Series proximity monitor systems. Always verify the proximitor model and sensitivity configuration match the replacement transducer before installation.

Q: What is the recommended spare parts stocking strategy for this transducer assembly?
A: For critical rotating machinery, a minimum of one spare transducer assembly per monitored shaft position is recommended, with additional spares for high-criticality machines (turbines, compressors). Pair with at least one spare extension cable and one spare proximitor module to cover the full measurement chain.

Q: How is each unit tested before shipment?
A: Every 330881-BR-07-155-06-02 unit undergoes pre-shipment functional testing covering output sensitivity verification, gap voltage linearity check, cable continuity, and connector integrity. Units are shipped with test documentation available upon request. A 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q: Can this assembly replace older or discontinued Bently Nevada proximity transducer models?
A: The 330881 PROXPAC XL series is the current-generation replacement for several legacy Bently Nevada proximity transducer configurations. Compatibility depends on cable length, connector type, and target material. Contact our technical team with your existing part number and installation drawing for a confirmed cross-reference before ordering.
