Bently Nevada 330901-00-09-05-02-00 Retrofit-Ready Proximity Transducer

Bently Nevada 330901-00-09-05-02-00 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems

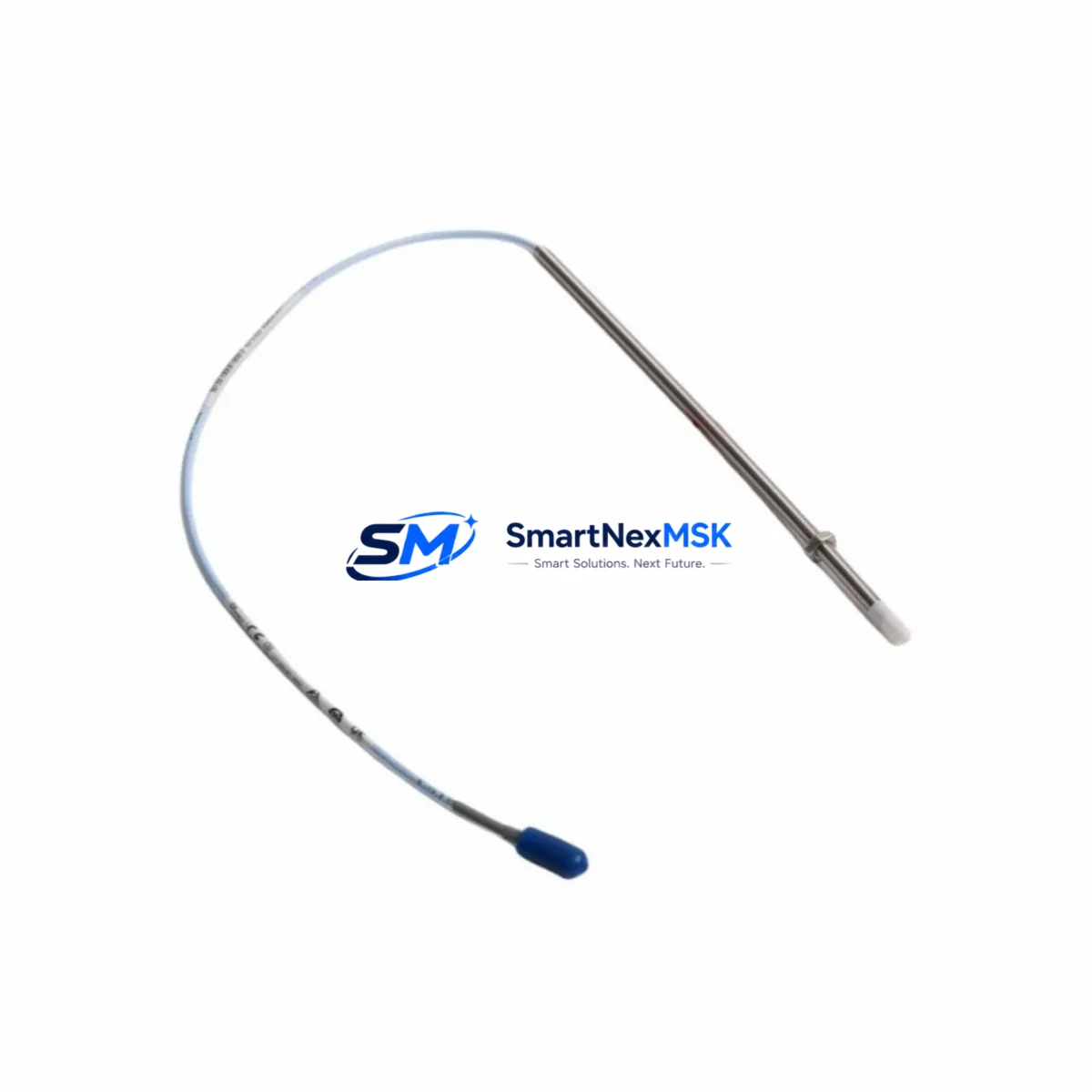

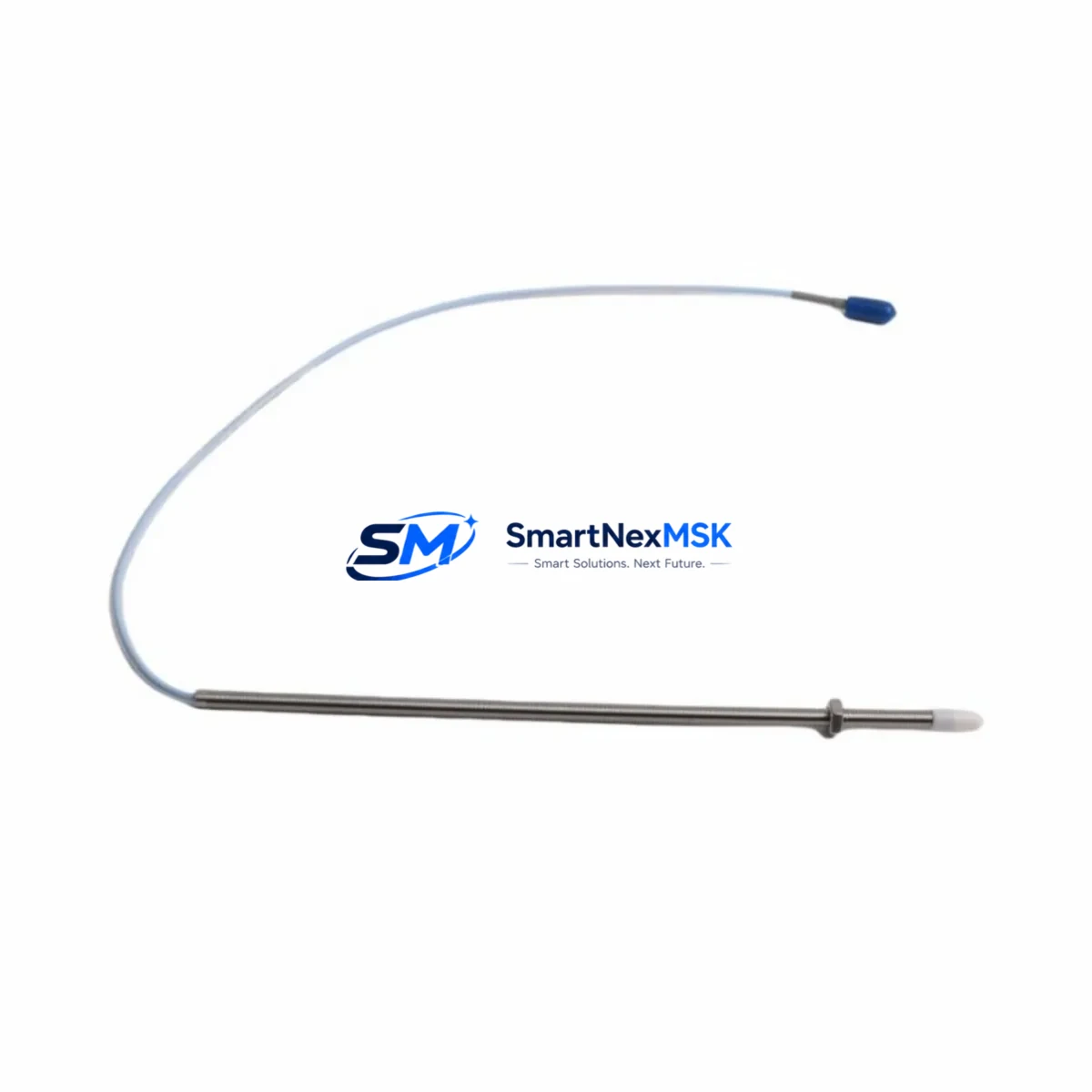

The Bently Nevada 330901-00-09-05-02-00 is a high-precision Non-Contacting Voltage (NSv) proximity transducer engineered for the 3300 XL Series machinery protection and condition monitoring platform. As legacy 3300 XL installations approach end-of-support milestones, this unit serves as a verified retrofit-ready replacement for facilities managing rotating machinery — including turbines, compressors, pumps, and motors — where continuous vibration monitoring is mission-critical.

This transducer operates within the 3300 XL NSv system architecture, interfacing directly with the 3300 XL 8mm Extension Cable and the 3300 XL Proximitor® Sensor to deliver calibrated gap voltage and dynamic vibration signals to the monitoring rack. When replacing a failed or end-of-life unit, engineers must confirm the existing cable length, extension cable part number, and Proximitor® model to ensure the complete transducer system remains within the calibrated range. The 330901-00-09-05-02-00 is factory-calibrated for AISI 4140 steel targets and is compatible with the standard 3300 XL signal conditioning chain without requiring recalibration of the Proximitor® or downstream 3300 XL Monitor modules.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity transducer in an operating plant requires careful coordination across the entire signal chain. The 330901-00-09-05-02-00 probe connects to the 3300 XL Extension Cable, which in turn feeds the 3300 XL Proximitor® Sensor — typically mounted on or near the machinery bearing housing. The Proximitor® converts the raw oscillator signal into a calibrated -18 VDC gap output and a dynamic vibration signal, both of which are routed to the 3300 XL Monitor module installed in the monitoring rack or control cabinet.

During retrofit planning, engineers should verify the following before ordering a replacement unit: the probe cable length designation (the -09- in this SKU indicates a 0.9 m probe cable), the extension cable length designation (-05- indicates a 5 m extension), and the Proximitor® sensor model to confirm the complete system remains within the published calibration range. Mismatched cable lengths will shift the gap voltage curve and may trigger false Not OK alarms on the 3300 XL Monitor.

In control cabinet upgrades where the 3300 XL rack is being migrated to a newer Bently Nevada System 1 or 3500 Series platform, the proximity transducer itself may remain mechanically compatible, but the Proximitor® Sensor and Monitor modules will require replacement. In such migrations, the 3500/42M Proximitor® Monitor or the 3500/40M Proximitor® I/O Module are common upgrade targets. The rack backplane, power supply module, and communication gateway (such as the 3500/92 Communication Gateway for Modbus or Ethernet/IP integration) must also be evaluated for compatibility with the new monitoring architecture.

For plants running a hybrid architecture — where legacy 3300 XL monitors coexist with newer 3500 Series racks — the 330901-00-09-05-02-00 transducer can continue to serve the 3300 XL signal chain while the broader system migration is planned in phases. This approach minimizes capital expenditure and allows maintenance teams to replace individual failed transducers without committing to a full rack upgrade during an unplanned outage.

Additional components commonly involved in 3300 XL retrofit projects include the 3300 XL Power Supply, the 3300 XL Rack Interface Module, the 3300 XL Keyphasor® Module for phase reference measurements, and the 3300 XL Dual Voting Logic Module for safety-critical trip applications. HMI screens configured in System 1 software or third-party SCADA platforms will need tag mapping updates if monitor module addresses change during the migration.

Downtime Control During System Migration

Unplanned downtime during a proximity transducer replacement is typically avoidable with proper pre-staging. Before removing the failed 330901-00-09-05-02-00 unit, maintenance teams should document the existing gap voltage reading, the probe mounting depth (gap setting), and the current OK/Not OK relay status on the associated 3300 XL Monitor module. This baseline allows rapid recommissioning after the new transducer is installed.

Where the monitoring system supports it, the relevant channel should be placed in Bypass mode on the 3300 XL Monitor before disconnecting the probe. This prevents a spurious Not OK trip from propagating to the plant DCS or safety system during the swap. After installing the replacement transducer and extension cable, the gap voltage should be re-established at -18 VDC ±1 V by adjusting the probe mounting depth, and the channel should be returned to normal monitoring mode only after the OK status is confirmed.

For facilities where the 3300 XL rack feeds a Bently Nevada System 1 condition monitoring software platform, the historian tags and alarm setpoints associated with the replaced channel should be verified after recommissioning to ensure no configuration drift occurred during the outage. If the replacement transducer is part of a broader control cabinet upgrade involving new 3500 Series Monitor modules, the System 1 configuration database will require a full channel re-mapping exercise before the new rack is placed in service.

All replacement units supplied by SMARTNEXMSK are pre-tested prior to shipment and include a 12-month warranty covering manufacturing defects and functional performance. Pre-shipment testing documentation is available upon request for quality-critical applications.

Retrofit Support FAQ

Q1: Is the 330901-00-09-05-02-00 a direct drop-in replacement for my existing 3300 XL NSv transducer?
A: Yes, provided the replacement unit shares the same probe cable length (0.9 m), extension cable length (5 m), and target material calibration (AISI 4140 steel). Verify the complete part number on the existing Proximitor® Sensor label to confirm the full system remains within the calibrated range before installation.

Q2: What commissioning checks are required after installing the replacement transducer?
A: After mechanical installation, adjust the probe gap to achieve a gap voltage of -18 VDC ±1 V as measured at the Proximitor® output. Confirm the OK relay on the 3300 XL Monitor is energized and that the vibration channel is reading within expected baseline levels before returning the channel to normal monitoring mode.

Q3: Can this transducer be used during a phased migration from 3300 XL to 3500 Series?
A: Yes. The 330901-00-09-05-02-00 probe is mechanically and electrically compatible with the 3300 XL Proximitor® Sensor and can continue to operate in the existing 3300 XL signal chain while the broader rack migration is planned. When the 3500 Series Proximitor® Monitor is eventually installed, a new transducer system matched to the 3500 Series calibration specification may be required.

Q4: What warranty and testing documentation is provided with each unit?
A: Every unit supplied by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional performance from the date of shipment. Pre-shipment functional test reports are available upon request. Units are shipped with standard ESD-protective packaging suitable for international freight.
