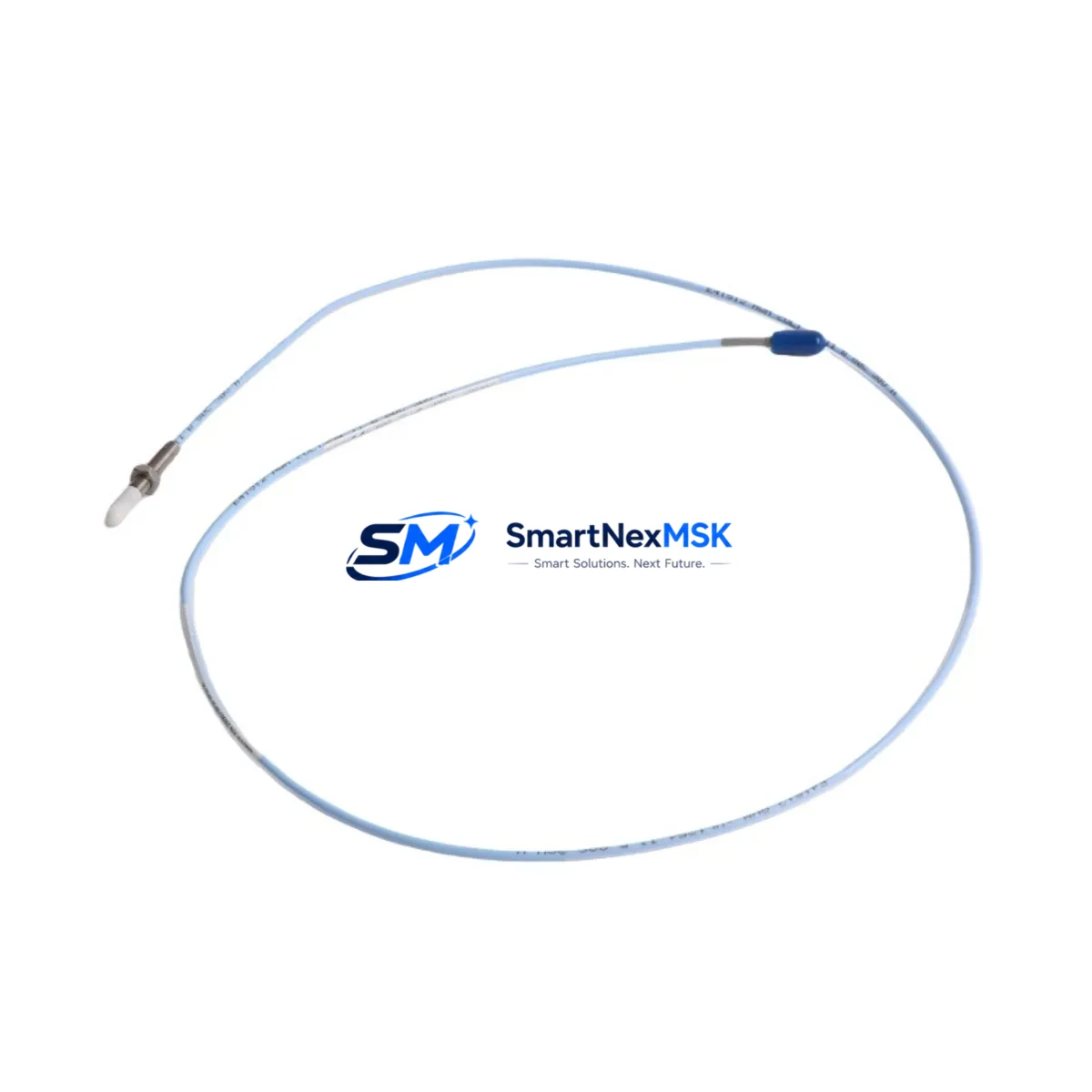

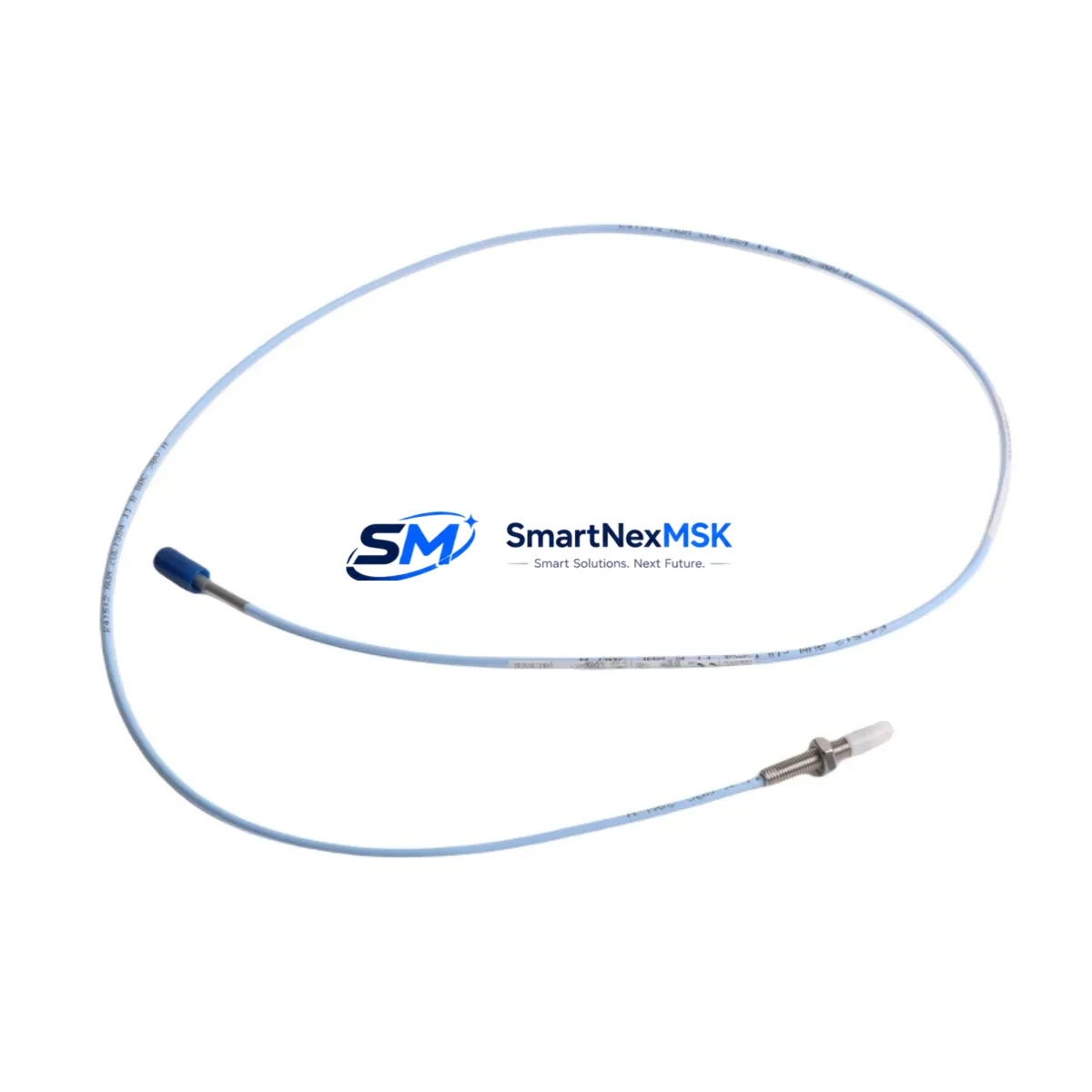

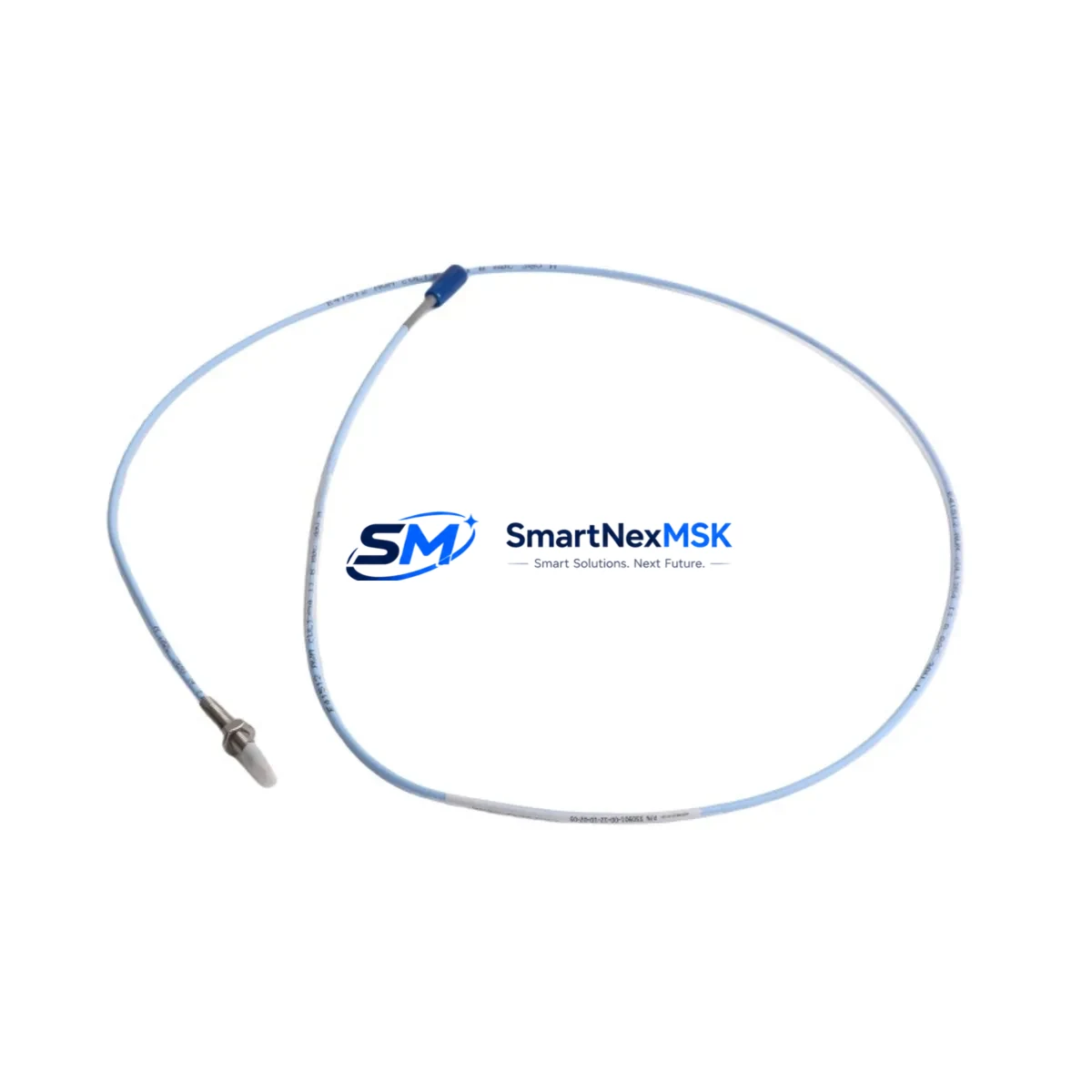

Bently Nevada 330901-00-12-05-02-05 Safety-Enhanced Proximity Probe

Bently Nevada 330901-00-12-05-02-05 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

The Bently Nevada 330901-00-12-05-02-05 is a ruggedized eddy-current proximity probe from the industry-proven 3300 NSv series, engineered to deliver continuous, high-integrity shaft displacement and vibration measurements in the most demanding industrial environments. Designed for integration into critical machinery protection systems, this probe is a cornerstone component in safety instrumented loops where signal accuracy, mechanical durability, and long-term field reliability are non-negotiable.

In high-load rotating machinery applications — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — even a momentary loss of vibration signal can mask developing faults and delay protective shutdown responses. The 330901-00-12-05-02-05 addresses this risk through its ruggedized stainless-steel housing, hermetically sealed tip construction, and stable electromagnetic sensing characteristics that resist signal drift under thermal cycling, mechanical shock, and aggressive chemical exposure. Its 5 mm sensing range and calibrated output linearity ensure that the Bently Nevada 3300 XL proximitor/driver receives a clean, consistent signal across the full operating range — eliminating false trips and missed alarms that compromise both safety and production continuity.

When deployed alongside the Bently Nevada 330130-080-01-00 extension cable and the 330180-X1-05 proximitor, this probe forms a complete eddy-current measurement chain that meets the signal integrity requirements of API 670-compliant machinery protection systems. In control cabinet installations, the probe signal feeds directly into the Bently Nevada 3500/42M proximitor monitor, which provides dual-channel vibration and position monitoring with relay-based trip outputs. This architecture ensures that shaft radial vibration, axial position, and differential expansion data are continuously available to the plant DCS or safety PLC — enabling automated protective actions before mechanical damage occurs.

Safety Reliability Table

Control Cabinet Protection Strategy

Reliable machinery protection begins at the sensor level, and the 330901-00-12-05-02-05 is designed to anchor a layered protection architecture within the control cabinet. In a typical turbomachinery protection panel, this probe connects via the Bently Nevada 330130 series extension cable to a 330180 proximitor mounted on a DIN rail inside the cabinet. The proximitor conditions the raw eddy-current signal into a calibrated DC voltage output, which is then wired to the Bently Nevada 3500/42M monitor card housed in a 3500 rack system.

The 3500 rack — populated with modules such as the 3500/15 power supply, 3500/22M transient data interface, and 3500/32 4-channel relay module — provides the processing backbone for multi-channel vibration, position, and speed monitoring. Trip relay outputs from the 3500/32 are wired to the plant safety PLC or emergency shutdown system (ESD), ensuring that high-vibration or high-axial-position events trigger automated protective responses without operator intervention.

To protect the signal chain from power-line disturbances and ground loops — common in heavy industrial environments with large variable-frequency drives (VFDs) and high-current motor starters — the cabinet design should incorporate isolated 24 VDC power supplies and proper cable segregation between signal and power wiring. Surge protection devices on the proximitor power input further reduce the risk of transient damage to the measurement chain. When the 330901-00-12-05-02-05 is used in hazardous area installations (Zone 1 or Zone 2), it is paired with Bently Nevada 3300 XL intrinsically safe barriers to maintain ATEX/IECEx compliance and prevent ignition risk in flammable atmospheres.

For plants operating redundant protection architectures, dual probes — a primary 330901-00-12-05-02-05 and a backup unit — are mounted at 90° intervals on the shaft journal, feeding independent monitor channels. This 2-out-of-2 (2oo2) or 2-out-of-3 (2oo3) voting logic, configured in the Bently Nevada System 1 software, ensures that a single probe failure does not cause a spurious trip or, more critically, a missed protective shutdown.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In fluid catalytic cracking (FCC) units and ethylene compressor trains, the 330901-00-12-05-02-05 monitors shaft radial vibration on critical rotating equipment operating continuously at elevated temperatures and in hydrocarbon-rich atmospheres. Its sealed, ruggedized construction resists chemical ingress and thermal shock, maintaining measurement integrity through process upsets and emergency shutdowns.

Power Generation: Steam turbine-generator sets in coal-fired and combined-cycle power plants rely on API 670-compliant proximity probe systems for shaft eccentricity, differential expansion, and thrust position monitoring. The 330901-00-12-05-02-05, integrated into the 3500 protection rack, provides the continuous position data required for automated rundown protection and post-trip analysis.

Mining & Mineral Processing: Large SAG mills, ball mills, and slurry pump drives in open-pit and underground mining operations subject rotating machinery to extreme mechanical loads and high-vibration environments. The ruggedized NSv probe housing withstands the structural vibration and contamination levels typical of these installations, providing reliable shaft monitoring data to the plant control room.

Water & Wastewater Treatment: High-speed centrifugal blowers and large submersible pump motors in municipal water treatment facilities benefit from continuous vibration monitoring to detect bearing wear and rotor imbalance before catastrophic failure. The non-contact eddy-current measurement principle eliminates sensor wear, ensuring long service intervals in remote or difficult-to-access installations.

Metallurgy & Steel Production: Rolling mill drives, continuous casting machines, and large induction furnace cooling pumps operate in environments with intense electromagnetic interference from high-current bus bars and induction heating systems. The coaxially shielded cable of the 330901-00-12-05-02-05 and the differential signal architecture of the 3300 NSv system provide robust EMI rejection, maintaining signal fidelity in these electrically hostile environments.

Port & Marine Terminals: Crane hoist drives, ship-loader conveyor systems, and large seawater cooling pumps in coastal industrial facilities require corrosion-resistant instrumentation capable of operating in high-humidity, salt-laden atmospheres. The 316 stainless steel housing and IP67-rated tip construction of this probe meet these environmental demands without additional protective measures.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330901-00-12-05-02-05?
All units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers manufacturing defects, calibration failures, and premature component failure under normal operating conditions. Warranty claims are processed with priority turnaround to minimize plant downtime.

Q2: What pre-shipment testing and inspection is performed?
Every 330901-00-12-05-02-05 unit undergoes a multi-point outgoing quality inspection prior to shipment, including dimensional verification of the probe tip, continuity and insulation resistance testing of the integral cable, and functional verification of the eddy-current sensing output against a calibrated reference target. Test records are available upon request for quality-critical applications.

Q3: Is this probe compatible with existing Bently Nevada 3300 and 3500 system installations?
Yes. The 330901-00-12-05-02-05 is fully compatible with the Bently Nevada 3300 XL proximitor/driver system and the 3500 series machinery protection racks. It is a direct form-fit-function replacement for earlier 330901 series probes and can be installed without recalibration of the proximitor, provided the target material matches the standard AISI 4140/4340 calibration specification.

Q4: Can long-term supply continuity be assured for maintenance and spare parts programs?
SMARTNEXMSK maintains dedicated inventory of Bently Nevada 3300 NSv series components, including the 330901-00-12-05-02-05 probe, compatible extension cables, and proximitor units, to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. Contact our technical sales team to discuss consignment stock arrangements or blanket purchase orders for your facility.
