Bently Nevada 330901-00-15-05-02-00 Maintenance-Ready Spare

Bently Nevada 330901-00-15-05-02-00 Maintenance-Ready Spare: Spare Replacement & Industrial Downtime Risk Control

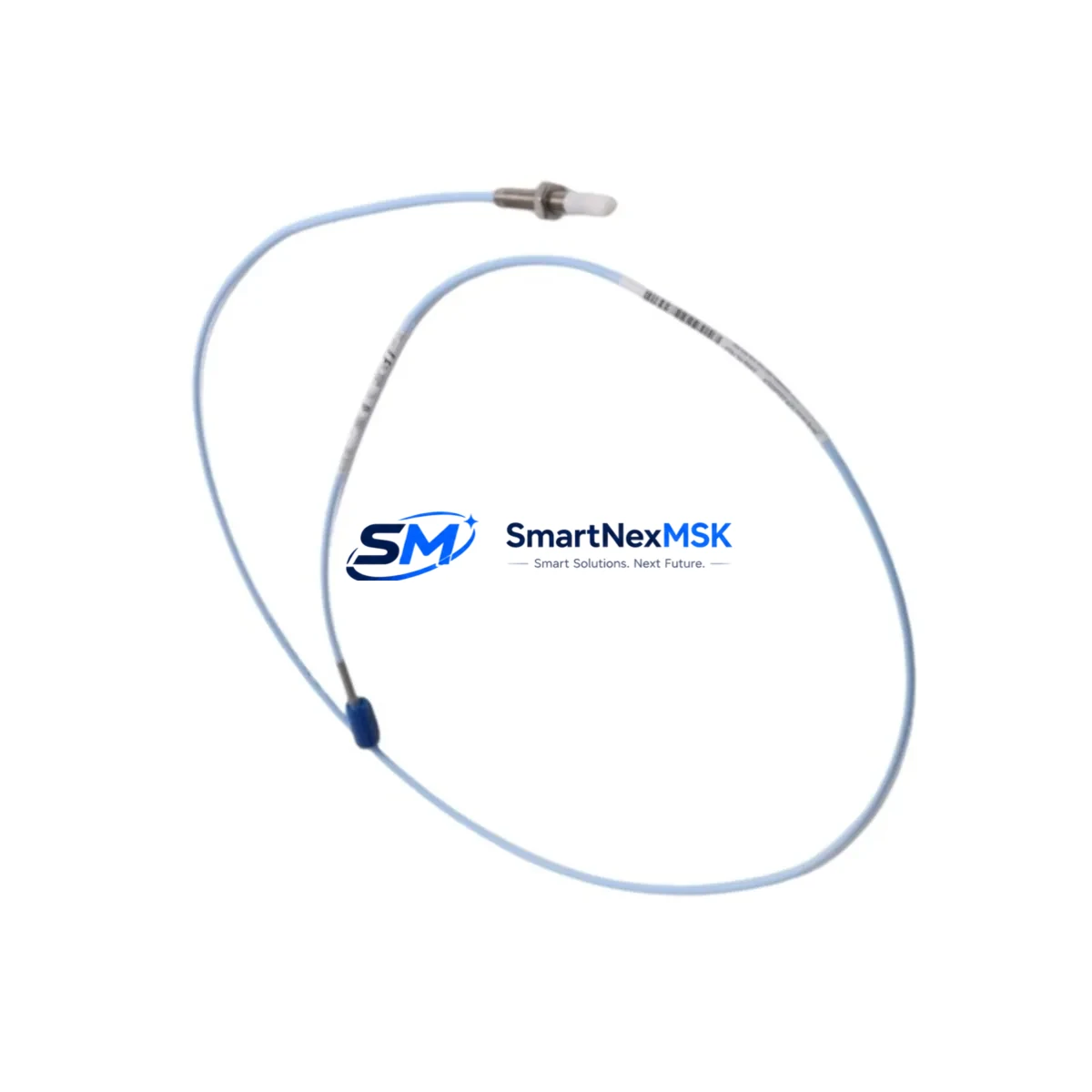

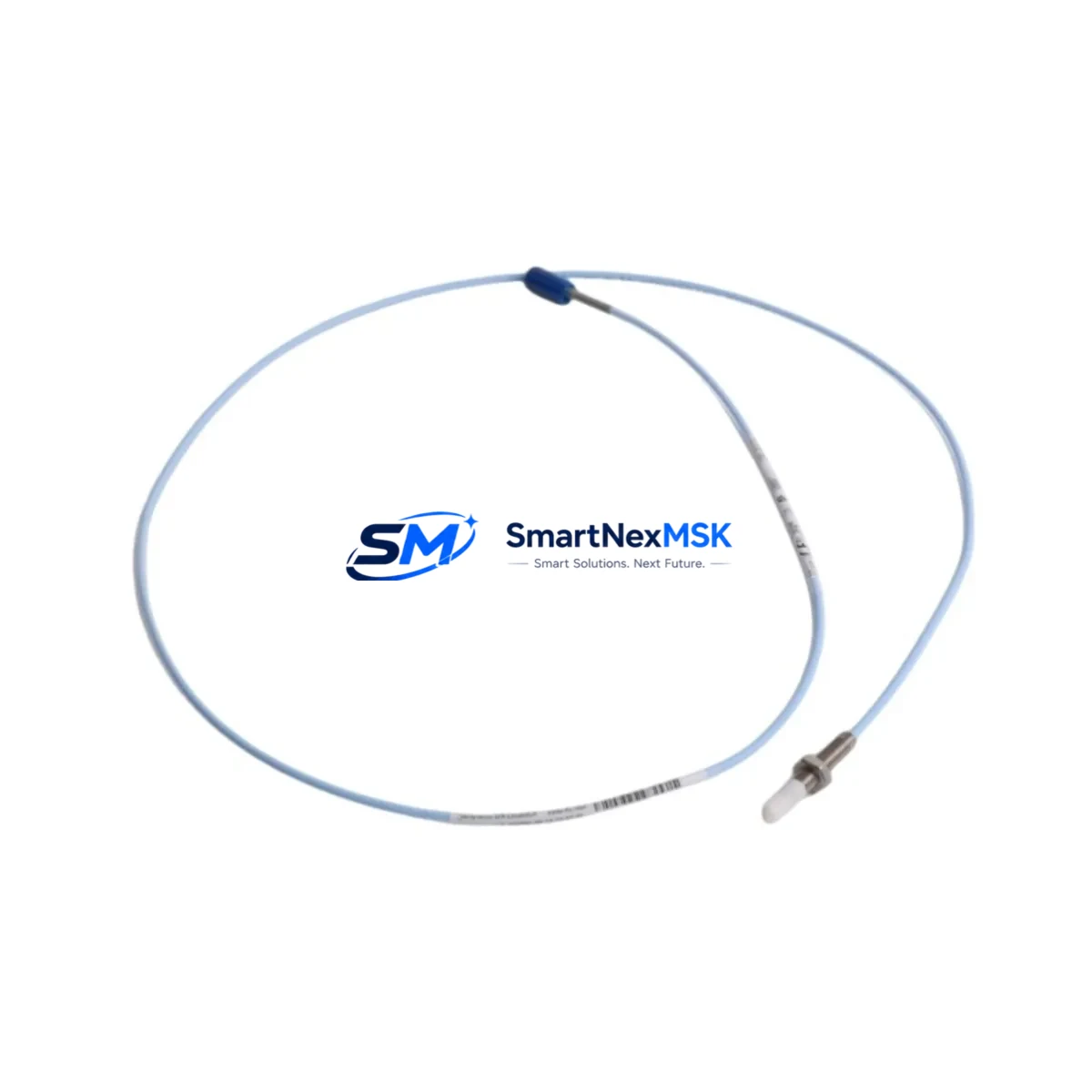

The Bently Nevada 330901-00-15-05-02-00 is an original NSv series eddy-current proximity probe with a 5-metre armored cable, designed for continuous shaft vibration and position monitoring in rotating machinery. As a maintenance-ready spare, this probe is a critical component in turbine protection systems, compressor trains, pump sets, and generator monitoring panels where unplanned downtime carries significant operational and financial risk. Holding a verified replacement unit in your spare parts inventory is the single most effective measure to reduce mean time to repair (MTTR) when a probe failure triggers a machinery trip.

For maintenance engineers managing Bently Nevada 3300 XL or System 1 monitoring architectures, the 330901-00-15-05-02-00 integrates directly with the 3300 XL 8mm proximity transducer system. Its 5m cable length and standard TNC connector make it a drop-in replacement for the most common probe-to-proximitor cable configurations found in legacy and current-generation control cabinets. Procurement engineers sourcing this part should confirm the cable length suffix (-05) and gap voltage range match the existing proximitor calibration sheet before installation.

Every unit shipped by SMARTNEXMSK undergoes pre-shipment electrical verification including tip resistance check, cable continuity, and connector integrity inspection. Each spare is covered by a 12-month warranty against manufacturing defects, with documentation available upon request for quality audit purposes.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330901-00-15-05-02-00 probe during a planned outage or emergency callout, a thorough inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure the monitoring system returns to full specification. Begin with the associated proximitor — typically a Bently Nevada 330180-91-00 or 330181-91-00 — checking its output voltage at the known gap distance against the calibration curve. A drifted proximitor will produce false readings even with a new probe installed.

Inspect the 3300 XL extension cable (part series 330130) for jacket abrasion, connector corrosion, and shield continuity. Extension cable degradation is a leading cause of intermittent probe faults that are misdiagnosed as probe failures. Next, verify the 3500 rack power supply module (3500/15 or 3500/05) is delivering stable ±24 VDC to the I/O modules; voltage sag under load can shift the probe gap voltage and trigger nuisance trips.

At the monitor card level, check the 3500/40M or 3500/42M vibration monitor channel configuration — particularly the OK mode, full-scale range, and alert/danger setpoints — to confirm they match the replacement probe’s sensitivity. If the control cabinet includes a 3500/20 Rack Interface Module (RIM) for Modbus or Ethernet communication to the DCS, verify the channel mapping has not been disrupted during the probe swap.

For facilities running parallel protection on critical machinery, also inspect the 3500/45 position monitor channels associated with the same shaft, and confirm that the 3500/32 relay output module trip logic is functioning correctly after the replacement. Where signal isolation is required between the Bently Nevada rack and the plant DCS analog input cards, check the signal isolator or barrier (e.g., MTL or P+F series) for correct loop power and output scaling. Finally, review the terminal block and field wiring in the junction box for tightness, moisture ingress, and correct shielding grounding — loose terminations are a common source of high-frequency noise that can mask real vibration events.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the monitoring channel at the 3500 rack. Place the affected channel in bypass mode via the RIM or local keyswitch to prevent a spurious trip during probe removal.

Step 2 — Gap Measurement: Before removing the old probe, record the existing gap voltage and physical gap distance. This baseline confirms whether the previous probe had drifted and provides a reference for setting the replacement.

Step 3 — Probe Removal: Unscrew the probe from the bracket using the correct spanner. Avoid bending the cable at the probe body. Inspect the probe tip for impact marks or contamination that may indicate a shaft contact event.

Step 4 — Installation: Thread the 330901-00-15-05-02-00 replacement into the bracket. Set the gap to the value specified on the calibration sheet (typically 1.0–1.5 mm for 8mm probes). Torque to the bracket manufacturer’s specification.

Step 5 — Verification: Connect the extension cable and proximitor. Power up the channel and measure the output voltage at the set gap. Compare against the probe sensitivity curve (typically –200 mV/mil or –7.87 V/mm). Adjust gap if required.

Step 6 — Return to Service: Remove the bypass, confirm the monitor channel shows OK status, and verify the DCS is receiving a valid vibration signal. Log the replacement in the maintenance management system with the new probe serial number and gap setting.

This workflow minimises downtime, maintains system compatibility, and ensures the replacement is fully verified before the machine is returned to load.

Spare Parts Support FAQ

Q1: Is the 330901-00-15-05-02-00 compatible with both 3300 XL and 3500 series monitors?
Yes. The NSv series probe is designed for use within the Bently Nevada 3300 XL 8mm proximity transducer system and is fully compatible with 3500 series monitor cards including the 3500/40M, 3500/42M, and 3500/45, provided the correct proximitor model is used and the channel is configured for the probe’s sensitivity specification.

Q2: What is included in the 12-month warranty and how is a claim processed?
Each unit is covered for 12 months from the shipment date against manufacturing defects and electrical failure under normal operating conditions. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, part number, and a description of the fault. SMARTNEXMSK will arrange inspection and, where applicable, replacement or credit.

Q3: How do I verify the probe is genuine and has passed pre-shipment testing?
All units supplied by SMARTNEXMSK are sourced from authorised channels or verified surplus stock and undergo pre-shipment electrical testing including tip resistance measurement, cable continuity check, and connector integrity inspection. Test records are available upon request and can be provided with the shipment documentation for quality audit purposes.

Q4: Can I stock this probe as a long-term spare for an aging 3300 XL system?
Yes. The 330901-00-15-05-02-00 is well-suited for long-term spare holding in facilities operating legacy Bently Nevada systems where OEM availability may be limited. Store the probe in its original packaging in a dry, temperature-controlled environment away from strong magnetic fields. SMARTNEXMSK maintains ongoing supply capability for this part and can support blanket order arrangements for facilities requiring multiple units across a maintenance cycle.
