Bently Nevada 330901-00-40-10-02-CN 3300 XL Spare

Bently Nevada 330901-00-40-10-02-CN 3300 XL Maintenance-Ready Spare for Vibration Monitoring Automation

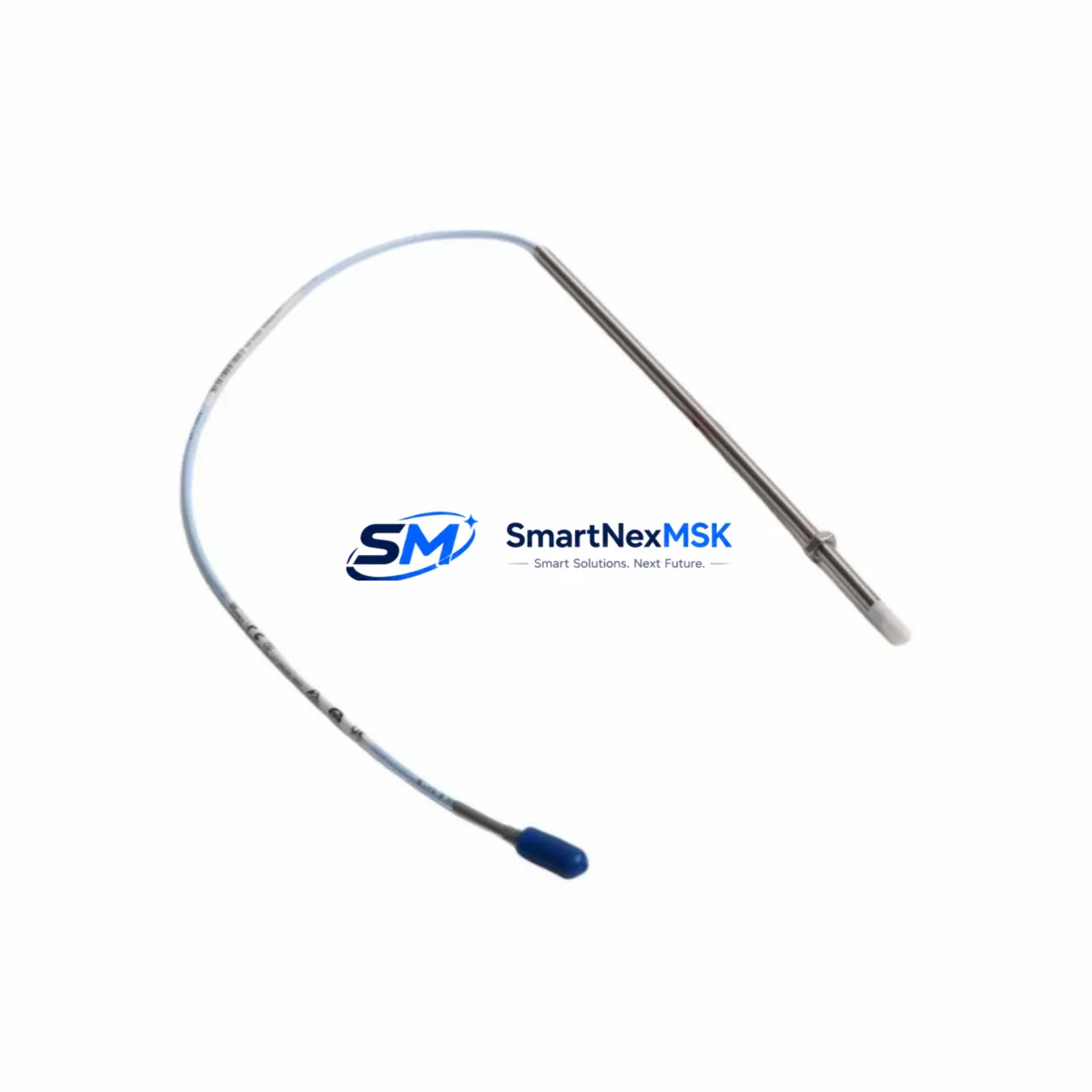

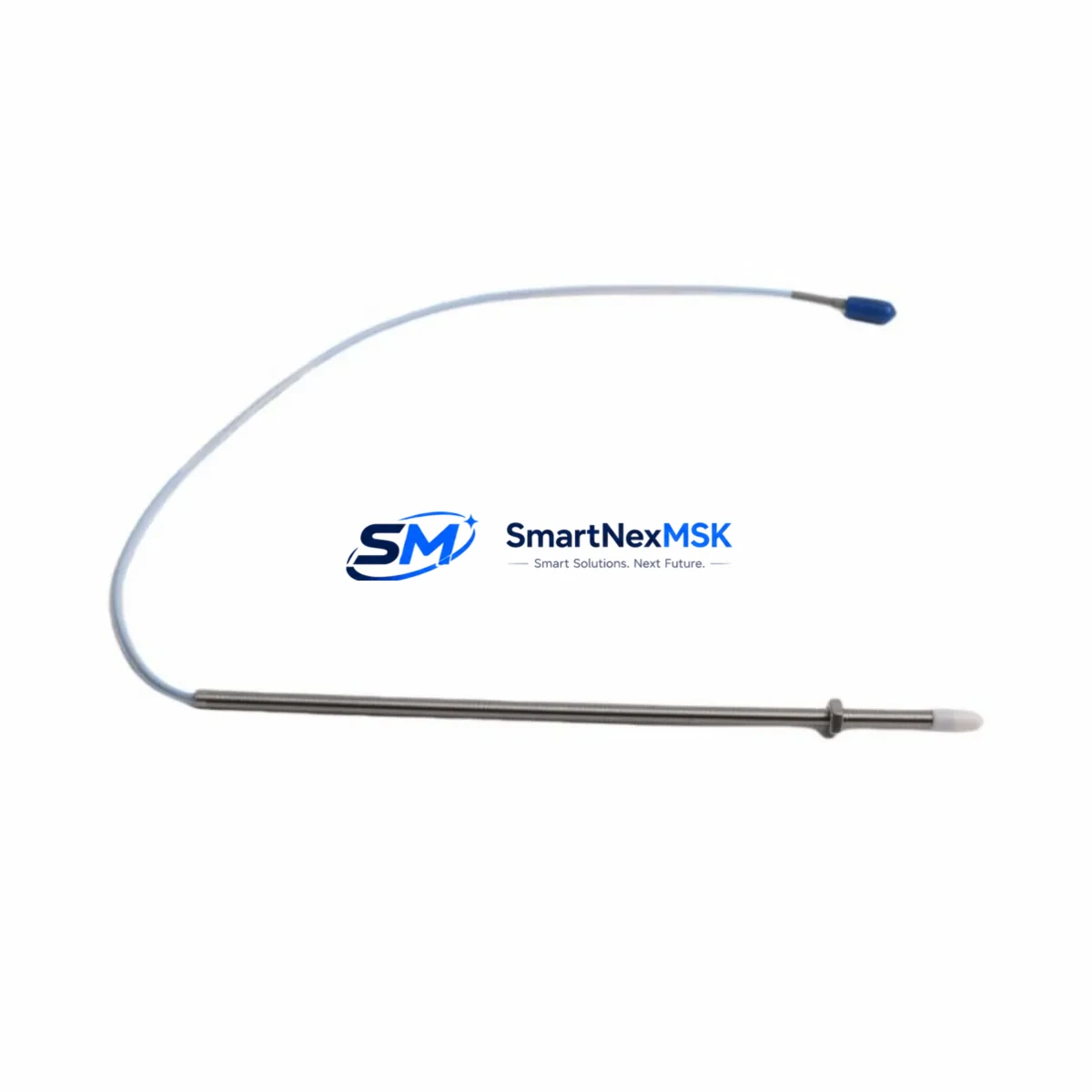

The Bently Nevada 330901-00-40-10-02-CN is an original NSv Proximity Transducer engineered for the 3300 XL Series continuous vibration monitoring system. Designed for critical rotating machinery protection in power generation, oil & gas, petrochemical, and heavy industrial environments, this transducer delivers reliable non-contact displacement measurement with the precision required for turbine, compressor, and pump shaft monitoring. Sourced as an original spare, each unit is tested prior to shipment and backed by a 12-month warranty, ensuring your maintenance team can restore system integrity with confidence and minimal downtime.

For maintenance engineers managing aging DCS or PLC-integrated condition monitoring systems, having a verified replacement for the 330901-00-40-10-02-CN on the shelf is a critical element of any predictive maintenance strategy. Unplanned vibration monitor failures can trigger emergency shutdowns, cascade into broader control system faults, and result in costly production losses. Stocking this transducer as a ready spare eliminates the lead-time risk associated with OEM procurement channels and supports rapid fault isolation during planned or unplanned outages.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330901-00-40-10-02-CN in the field, a thorough inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure accurate vibration data post-restoration. The transducer operates as part of a matched system: the probe, extension cable, and Proximitor sensor must be calibrated as a set. If the Proximitor sensor — such as the 330180-X1-05 or 330180-51-05 — has not been replaced within the last maintenance cycle, it should be bench-tested for output linearity before the system is returned to service.

Maintenance engineers should also inspect the 3300 XL monitor rack, including the 3300/16 or 3300/20 monitor cards, for signs of moisture ingress, connector corrosion, or relay contact wear. The 3300 XL system’s I/O terminal blocks and field wiring should be checked for continuity and insulation resistance, particularly in high-vibration or high-temperature zones. Barrier modules and Zener barriers used in hazardous area installations should be verified for correct voltage clamping and continuity.

For systems integrated with a DCS or safety PLC, confirm that the 4–20 mA or voltage output from the Proximitor is correctly received at the analog input card. If the plant uses a Bently Nevada 3500 Series rack for overall machinery protection, cross-check that the 3500/42M or 3500/45 monitor modules are receiving valid gap voltage within the –10 V to –18 V window. Communication modules linking the 3300 XL to a plant historian or SCADA system — such as Modbus RTU or Ethernet gateway cards — should be verified for correct tag mapping after any transducer replacement.

In control cabinet inspections, pay attention to the 24 VDC power supply rail feeding the Proximitor. A degraded power supply can cause erratic gap voltage readings that mimic transducer failure. Fuse holders, terminal strips, and cable glands in the junction box should be inspected for tightness and corrosion. For older systems approaching end-of-life, consider stocking companion spares including extension cables (e.g. 330130-045-00-00), armored cable assemblies, and replacement Proximitor housings to support a complete measurement loop restoration without additional procurement delays.

Site Replacement Workflow

Replacing the 330901-00-40-10-02-CN follows a structured procedure to minimize downtime and maintain system calibration integrity:

1. Isolate and de-energize the Proximitor sensor supply at the terminal block. Confirm zero voltage at the transducer connector before disconnecting.
2. Record the existing gap voltage from the monitor display or DCS historian prior to removal. This baseline confirms the target installation gap for the replacement unit.
3. Remove the old transducer by unscrewing from the bracket. Inspect the probe tip for impact damage, contamination, or thread wear that may indicate a bracket alignment issue.
4. Install the replacement 330901-00-40-10-02-CN and set the gap to the manufacturer-specified nominal (typically 1.0–1.5 mm depending on shaft material). Use a calibrated gap-setting tool or feeler gauge.
5. Reconnect the extension cable and verify the matched system (probe + cable + Proximitor) is from the same calibrated set. Mixing unmatched components will introduce measurement error.
6. Re-energize and verify gap voltage at the Proximitor output. Confirm the reading falls within the linear range (–10 V to –18 V). Adjust gap as needed.
7. Confirm monitor status at the 3300 XL rack — clear any latched alarms and verify OK relay status. Check DCS or historian for correct tag update.
8. Document the replacement in the plant CMMS with the new serial number, installation date, and gap voltage for future reference.

This workflow supports compatibility with legacy 3300 XL installations and reduces the risk of introducing new faults during the replacement process. For systems where the original bracket or mounting hardware has corroded, replacement mounting hardware should be sourced concurrently to avoid a second outage.

Spare Parts Support FAQ

Q1: Is the 330901-00-40-10-02-CN a direct drop-in replacement for older 3300 XL proximity probes?
Yes, the 330901-00-40-10-02-CN is designed for the 3300 XL NSv system and is dimensionally and electrically compatible with standard 3300 XL probe brackets and Proximitor sensors. However, always verify the matched system calibration — probe, extension cable, and Proximitor must be used as a calibrated set for accurate measurement.

Q2: What is included in the 12-month warranty?
Each unit is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Pre-shipment functional and calibration testing is performed on every unit. Warranty claims are supported with replacement or refund at our discretion.

Q3: How do you verify compatibility before shipment?
We verify the part number, series designation, cable length, connector type, and output sensitivity against the 3300 XL NSv specification prior to shipment. For orders requiring additional documentation, we can provide test records and inspection reports upon request.

Q4: Can you support long-term or blanket orders for spare parts inventory programs?
Yes. We support planned spare parts programs with scheduled releases, reserved stock, and priority fulfillment for critical spares. Contact our team to discuss inventory agreements for the 330901-00-40-10-02-CN and related 3300 XL system components.
