Bently Nevada 330901-14-43-05-02-05 Proximity Probe 3300 NSv

Bently Nevada 330901-14-43-05-02-05 Retrofit-Ready Proximity Probe for 3300 NSv Control Systems

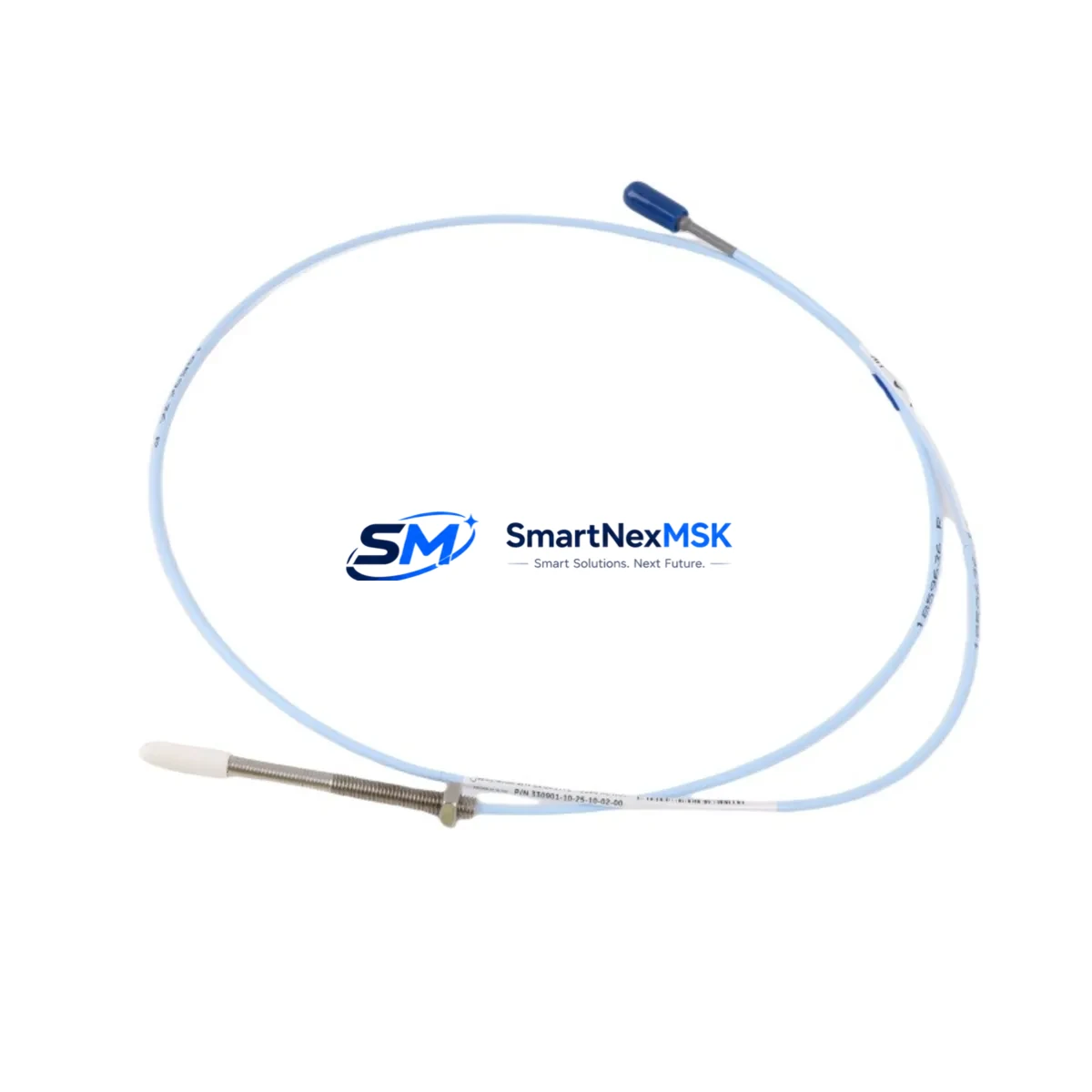

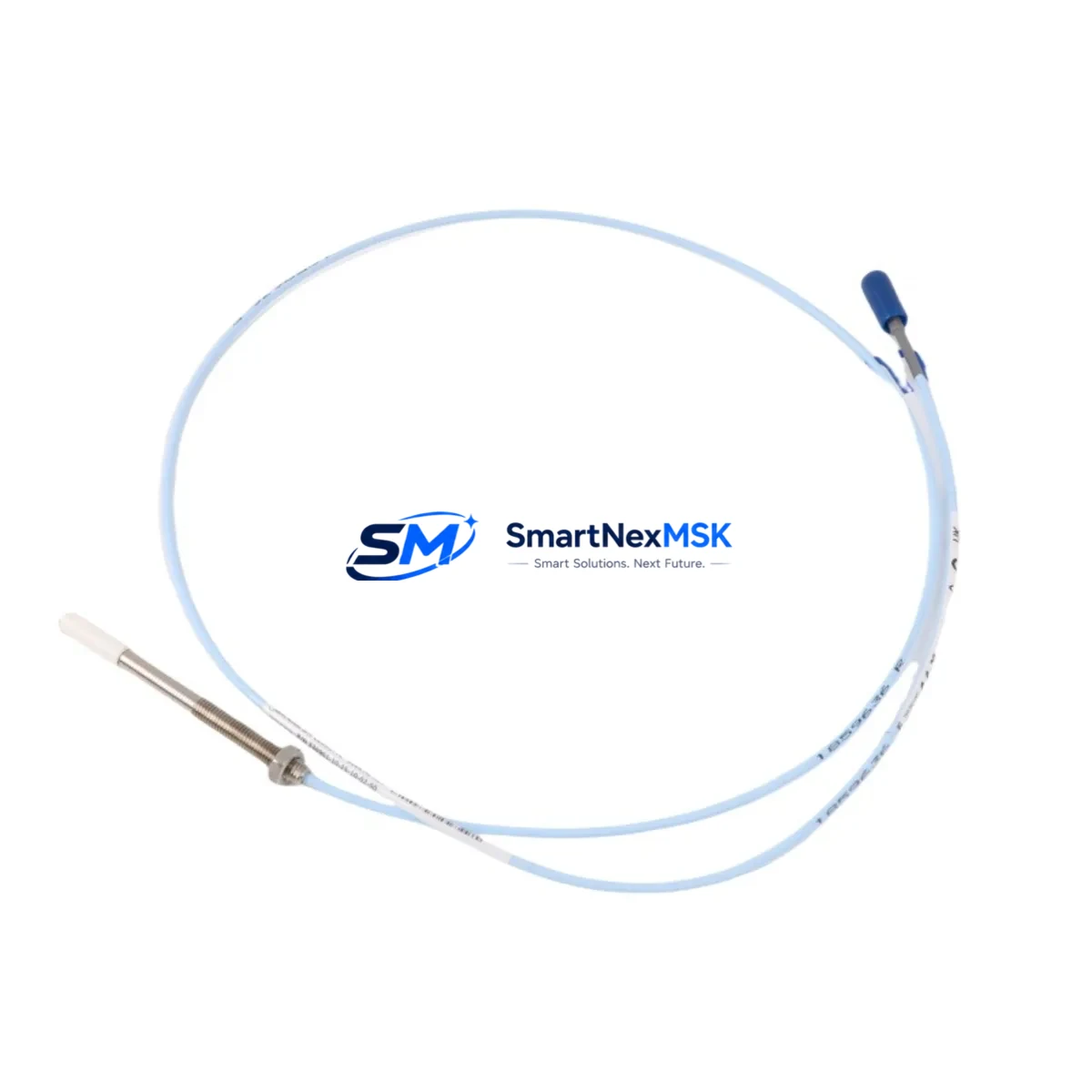

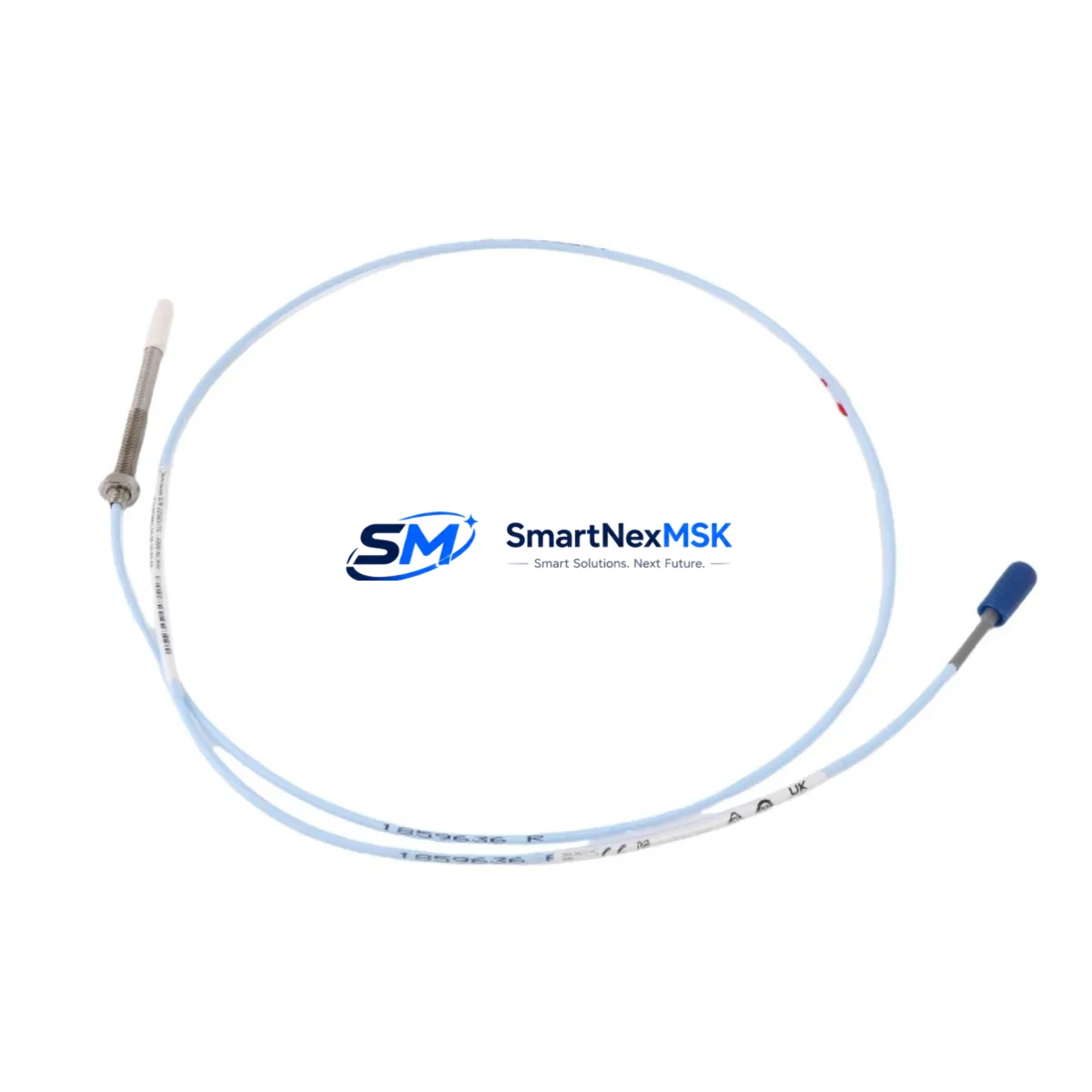

The Bently Nevada 330901-14-43-05-02-05 is a 5mm eddy-current proximity probe engineered for seamless integration into Bently Nevada 3300 NSv vibration monitoring systems. As legacy 3300 Series installations approach end-of-support milestones, plant engineers and reliability teams increasingly rely on this probe as a verified drop-in replacement that preserves existing wiring, signal conditioning, and Keyphasor® timing references without requiring panel redesign or software reconfiguration. Whether you are executing a planned outage upgrade, responding to an unplanned probe failure, or building a critical-spare inventory for a rotating-machinery protection system, the 330901-14-43-05-02-05 delivers the dimensional accuracy, sensitivity range, and connector compatibility required for a confident, low-risk retrofit.

This probe is fully compatible with the Bently Nevada 3300 XL 8mm Extension Cable, the 3300 XL Proximitor® Sensor, and the standard 3300 NSv rack-mounted monitor cards. It operates within the standard –24 VDC bias voltage window and produces the expected –200 mV/mil (–7.87 V/mm) output scale factor, ensuring that existing vibration alarm setpoints, danger thresholds, and trend baselines remain valid after installation. No recalibration of the 3300 NSv monitor card is required when replacing a like-for-like probe of the same gap range and cable length.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful proximity probe retrofit within a 3300 NSv or 3500 Series machinery protection system requires careful coordination across several interdependent components. Before removing the existing probe, technicians should document the current gap voltage reading at the Bently Nevada 3300 NSv monitor card front panel — typically between –10.0 and –18.0 VDC at the recommended air gap — and photograph the terminal block wiring at the junction box to preserve the original shield-drain and signal-conductor routing.

The 330901-14-43-05-02-05 ships with an integral 5-metre armored cable terminated in the standard MIL-C-5015 connector. When mating to the Bently Nevada 3300 XL 5m Extension Cable (part 330130-080-00-05), verify that the extension cable’s armor and drain wire are grounded at one end only — typically at the Proximitor® Sensor housing — to prevent ground loops that can introduce noise into the 3300 NSv vibration channel. If the existing installation uses a Bently Nevada 330180-91-05 Proximitor® Sensor, no sensor replacement is required; the 330901-14-43-05-02-05 is electrically and mechanically interchangeable.

For systems where the 3300 NSv monitor card feeds a DCS historian or safety instrumented system via a Bently Nevada 3500/20 Communication Gateway or a Modbus RTU interface card, confirm that the analog output scaling (mV/mil) has not been overridden in the gateway configuration. A mismatch between the probe’s native scale factor and the gateway’s programmed engineering-unit conversion will produce erroneous vibration readings in the DCS trend display and may trigger nuisance alarms on the Bently Nevada 3500/42M Proximitor® Monitor or 3500/45 Position Monitor cards installed in the same rack.

Where the control cabinet also houses a Bently Nevada 3500/15 Power Supply Module, inspect the DC bus voltage under load before commissioning the new probe. A degraded power supply delivering less than –24 VDC nominal can shift the Proximitor® bias point and compress the probe’s linear range, causing the 3300 NSv card to report a gap fault even when the physical air gap is within specification. Replacing the 3500/15 Power Supply Module concurrently with the probe is recommended if the supply is more than eight years old or shows output ripple above 50 mV peak-to-peak.

If the retrofit is part of a broader migration from a 3300 NSv rack to a 3500 Series rack, the 330901-14-43-05-02-05 probe is directly compatible with the 3500/42M Proximitor® Monitor without any probe-side modification. The primary migration task shifts to the rack backplane: the 3500 rack uses a different I/O module pinout than the 3300 NSv chassis, so terminal block adapters or rewired field junction boxes are typically required. Bently Nevada’s System 1 Evolution software can import historical trend data from the legacy 3300 NSv configuration, preserving alarm history and baseline vibration signatures for post-migration comparison.

For plants running GE Mark VIe or Emerson DeltaV DCS platforms alongside the Bently Nevada protection system, the analog 4–20 mA or ±10 V vibration output from the 3300 NSv card connects to the DCS AI module without protocol conversion. However, if the site is migrating to a FOUNDATION Fieldbus or PROFIBUS PA instrument loop, a signal converter will be required between the 3300 NSv analog output and the fieldbus segment — the proximity probe system itself remains analog regardless of the upstream DCS communication protocol.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement on a critical rotating machine — compressor, turbine, pump, or fan — requires a structured hot-swap protocol. Where the process permits a brief coastdown, the preferred approach is to place the 3300 NSv monitor channel in bypass mode via the Bently Nevada System 1 software or the front-panel inhibit switch before breaking the probe connector, preventing a spurious trip signal from reaching the ESD system or DCS interlock logic.

Once the new 330901-14-43-05-02-05 probe is installed and the air gap is set to the manufacturer-recommended 1.0 mm (40 mil) nominal — verified with a non-ferrous feeler gauge and confirmed by the gap voltage reading at the Proximitor® output — the channel inhibit can be released and the monitor card’s OK relay will re-energize within the 3300 NSv card’s standard response time. The original PLC ladder logic, DCS function block diagram, and HMI faceplate alarm limits require no modification, because the probe’s output characteristics are identical to the unit being replaced.

For machines that cannot be taken offline, a parallel monitoring approach using a portable Bently Nevada ADRE 408 DSPi data acquisition system allows continuous vibration trending on the adjacent bearing while the primary 3300 NSv channel is briefly interrupted. This approach is particularly valuable on single-train critical compressors where the API 670 protection philosophy requires continuous monitoring. After the replacement probe is commissioned and the gap voltage is confirmed stable, the portable system can be disconnected and the 3300 NSv channel restored to normal protective mode.

All probe replacement activities should be documented in the plant’s CMMS with the as-found gap voltage, as-left gap voltage, probe serial number, and technician sign-off. This record supports the 12-month warranty claim process and provides the baseline data required for the next planned inspection interval.

Retrofit Support FAQ

Q1: Is the 330901-14-43-05-02-05 a direct drop-in replacement for my existing 3300 NSv proximity probe?
Yes. The 330901-14-43-05-02-05 is dimensionally and electrically equivalent to the original Bently Nevada 5mm proximity probe used in 3300 NSv systems. The connector, cable length, scale factor, and bias voltage range are identical, so no rewiring, recalibration, or monitor card parameter changes are required. Simply match the air gap to the as-found setting and verify the gap voltage at the Proximitor® output before releasing the channel from bypass.

Q2: What pre-shipment testing is performed on this probe?
Each unit undergoes dimensional inspection, connector continuity verification, and functional output testing against a calibrated target at the standard –24 VDC supply voltage before shipment. A test certificate confirming the measured scale factor and gap voltage at 1.0 mm air gap is included with the unit. The 12-month warranty covers manufacturing defects and out-of-specification output performance under normal operating conditions.

Q3: Can this probe be used with a Bently Nevada 3500 Series rack instead of the 3300 NSv?
Yes. The 330901-14-43-05-02-05 is compatible with the Bently Nevada 3500/42M Proximitor® Monitor and 3500/45 Position Monitor cards. The probe-side connection and Proximitor® sensor are unchanged; only the rack backplane wiring and I/O terminal mapping differ between the 3300 NSv and 3500 chassis. Consult the 3500/42M installation manual for the correct terminal assignments when migrating to the 3500 rack.

Q4: What is the warranty coverage and how do I make a claim?
This unit carries a 12-month warranty from the date of shipment, covering defects in materials and workmanship. To initiate a warranty claim, contact sales@smartnexmsk.com with the purchase order number, probe serial number, installation date, and a description of the fault. Replacement units are dispatched within 3 business days of claim approval. The warranty does not cover damage resulting from incorrect air gap setting, mechanical impact, or operation outside the specified bias voltage range.
