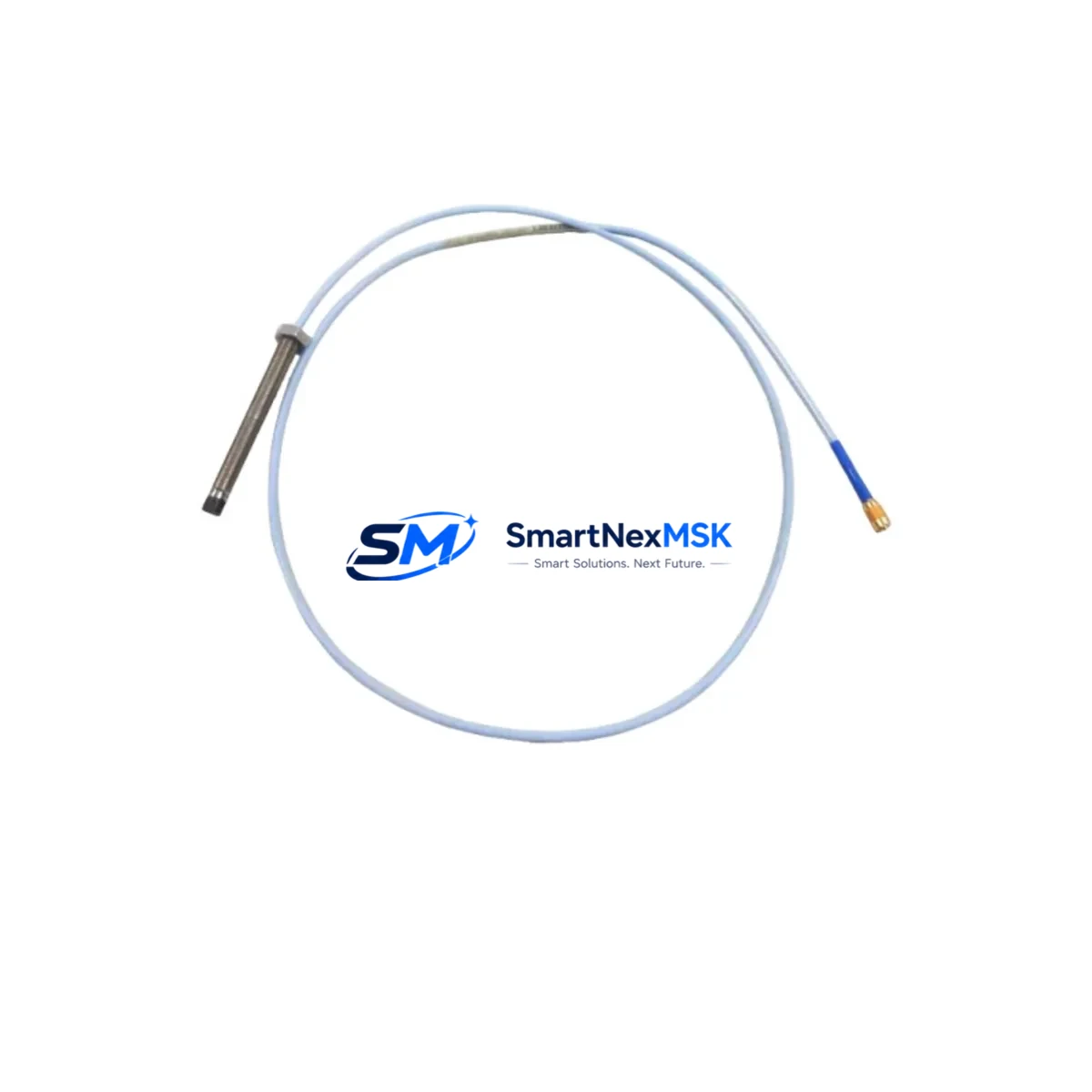

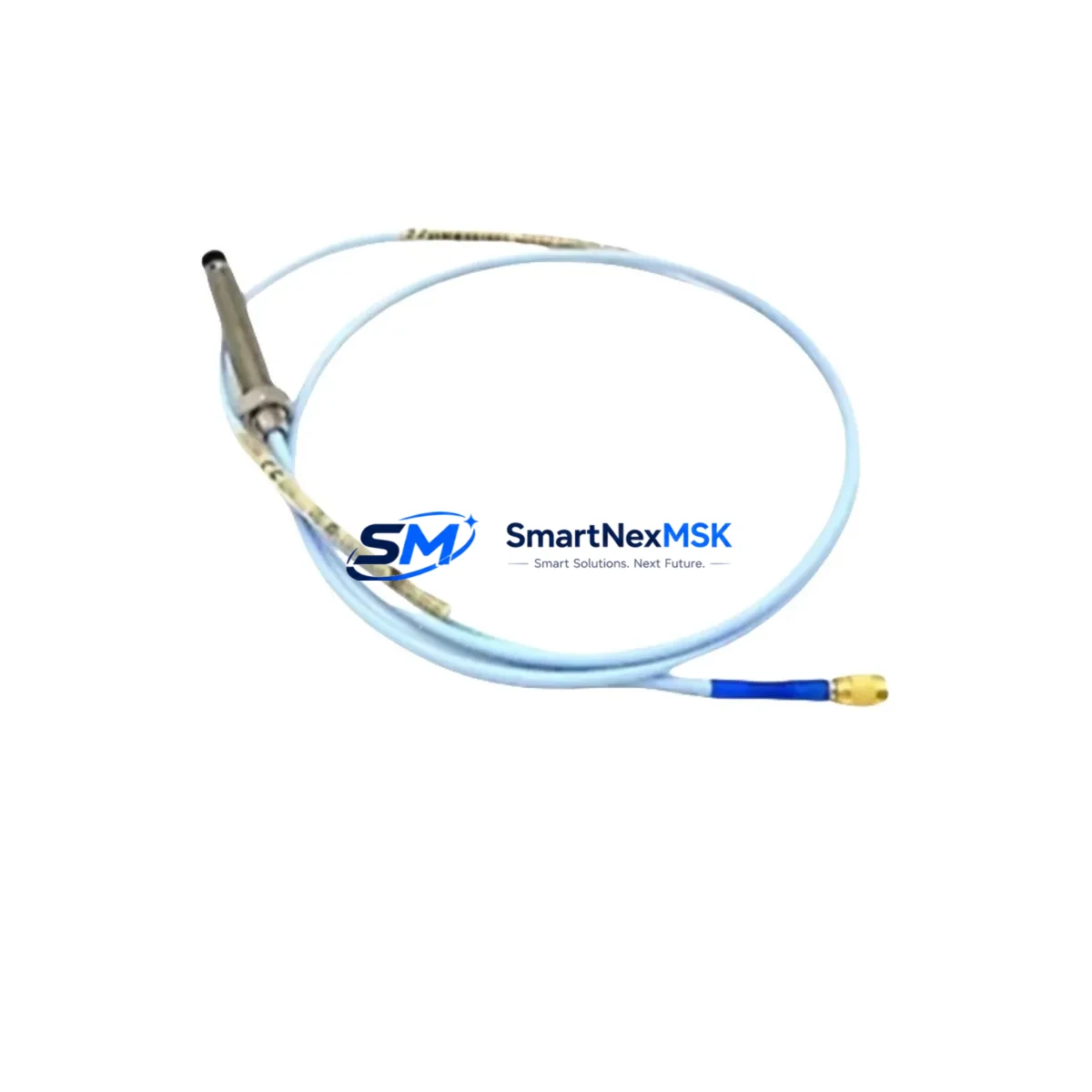

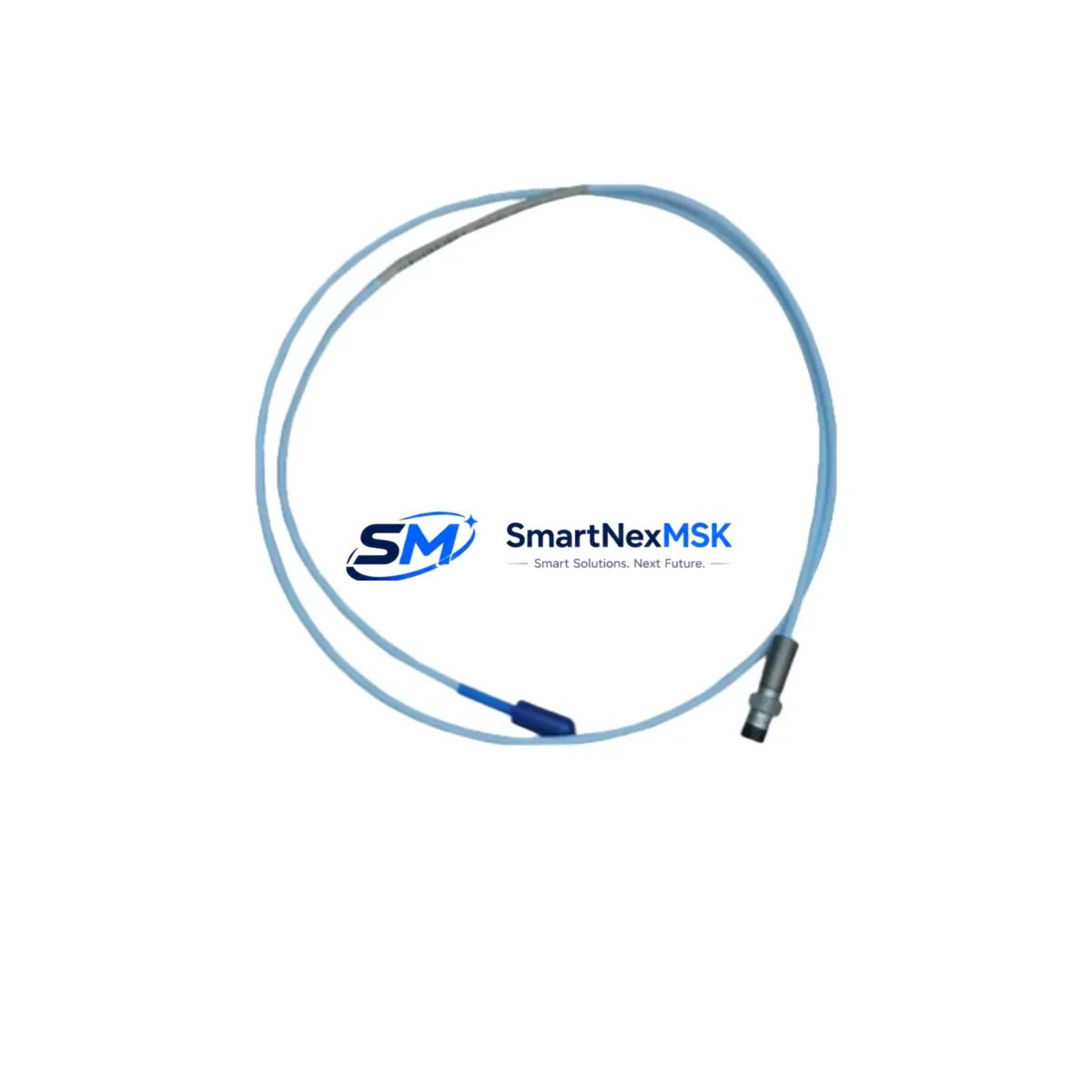

Bently Nevada 330901-22-40-10-01-05 3300 XL Retrofit Cable

Bently Nevada 330901-22-40-10-01-05 3300 XL Retrofit-Ready Extension Cable: Seamless Compatibility for Legacy System Upgrades

The Bently Nevada 330901-22-40-10-01-05 is a 22-foot (approximately 6.7 m) armored extension cable engineered for the 3300 XL proximity transducer system — one of the most widely deployed vibration monitoring platforms in rotating machinery protection. As original equipment ages and OEM support windows close, this cable serves as a direct, drop-in replacement that preserves signal integrity, maintains system calibration, and eliminates the need for costly control system overhauls. Whether you are restoring a legacy turbine protection rack, upgrading a compressor monitoring loop, or replacing a damaged cable in a critical machinery train, the 330901-22-40-10-01-05 delivers the dimensional and electrical compatibility required for a confident, low-risk retrofit.

This extension cable is designed to interface directly between the 3300 XL proximitor/oscillator and the field-mounted proximity probe, maintaining the precise gap voltage and sensitivity specifications that the 3300 XL system demands. The armored construction protects the coaxial signal path in harsh industrial environments — including high-vibration machinery pedestals, steam-laden turbine halls, and outdoor compressor stations — where cable integrity is non-negotiable for continuous machinery protection.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 330901-22-40-10-01-05 into an existing machinery protection system requires a structured approach that accounts for the full signal chain — from the probe tip to the monitor rack input card. In a typical 3300 XL installation, the proximity probe (such as the Bently Nevada 330103-00-06-10-02-00 or 330130-040-00-00 series) is connected via this extension cable to a proximitor/oscillator module mounted near the machinery. The proximitor converts the eddy-current signal to a DC voltage proportional to shaft gap, which is then transmitted to the monitor rack.

When planning a cable replacement or system upgrade, engineers should first audit the existing proximitor model — common units include the 330180-X1-05 and 330190-X0-CN proximitor/oscillators — to confirm that the replacement cable’s connector type and impedance characteristics are compatible. In installations where the 3300 XL system feeds into a Bently Nevada 3500 series machinery protection rack (such as the 3500/42M or 3500/45 position monitor cards), the signal chain integrity must be validated end-to-end after cable replacement.

For control cabinets that also house Bently Nevada 3500/20 power supply modules or 3500/01 rack interface modules, technicians should verify that the rack’s power budget is unaffected by the cable swap and that all terminal block connections — particularly the BNC-to-terminal adapters used in some legacy installations — are re-torqued to specification. Where the machinery protection system interfaces with a DCS or safety instrumented system (SIS) via 4–20 mA or relay outputs, the output signal should be verified at the DCS I/O card after cable replacement to confirm no offset has been introduced.

In plants where the 3300 XL system is being migrated toward a newer Bently Nevada System 1 condition monitoring platform, the 330901-22-40-10-01-05 cable remains compatible during the transition period, allowing the field wiring to remain in place while the monitor rack and software platform are upgraded. This is particularly valuable in phased modernization projects where minimizing field wiring changes is a priority for cost and schedule control.

Downtime Control During System Migration

Minimizing unplanned downtime during cable replacement or system migration is a primary concern for rotating machinery operators. The 330901-22-40-10-01-05 is designed to support hot-swap replacement in installations where the machinery can be briefly taken offline for maintenance — a process that, when properly planned, can be completed within a single maintenance window without requiring re-programming of the monitor rack or modification of the DCS historian configuration.

Before initiating the cable swap, technicians should document the existing gap voltage reading at the proximitor output and record the vibration baseline from the 3500 series monitor or the System 1 software trend display. This baseline serves as the acceptance criterion for post-installation commissioning. The original program logic in the safety relay or DCS — including vibration trip setpoints, alert thresholds, and time delays — should be exported and archived before any hardware changes are made.

During the cable replacement, the field probe should remain in its installed position to preserve the mechanical gap setting. Only the extension cable is disconnected and replaced, which eliminates the need to re-set the probe gap and repeat the full calibration procedure. After the new 330901-22-40-10-01-05 cable is connected, the gap voltage should be measured and compared to the documented baseline. If the reading is within the acceptable tolerance, the system can be returned to service without further adjustment. If a deviation is observed, the probe gap should be inspected and adjusted before the machinery is restarted.

For facilities operating continuous processes where even brief shutdowns carry significant production cost, a pre-staged spare cable — tested and verified before the maintenance window — is strongly recommended. All units supplied by SMARTNEXMSK are subject to outgoing inspection and functional verification prior to shipment, supporting a rapid, confident installation on arrival.

Retrofit Support FAQ

Q1: Is the 330901-22-40-10-01-05 a direct replacement for the original Bently Nevada OEM cable?
A: Yes. This cable is a direct dimensional and electrical replacement for the original 330901-22-40-10-01-05 OEM part. It maintains the same connector interface, cable length, and coaxial signal characteristics required by the 3300 XL proximity transducer system. No modification to the proximitor, probe, or monitor rack is required for a like-for-like replacement.

Q2: What commissioning steps are required after installation?
A: After connecting the replacement cable, measure the DC gap voltage at the proximitor output and compare it to the pre-replacement baseline. The reading should be within ±0.5 VDC of the original value. Verify that the vibration signal displayed on the 3500 series monitor or System 1 software is stable and within the expected range before returning the machinery to service. No re-programming of the monitor rack or DCS is required for a cable-only replacement.

Q3: Can this cable be used in a system that is being upgraded from 3300 XL to a newer Bently Nevada platform?
A: Yes. The 330901-22-40-10-01-05 extension cable is compatible with the 3300 XL probe and proximitor system, which can continue to operate during a phased migration to a newer monitor rack or condition monitoring platform. This allows the field wiring to remain unchanged while the rack-level hardware and software are upgraded, reducing migration risk and field labor cost.

Q4: What warranty coverage is provided, and how is it supported?
A: All 330901-22-40-10-01-05 cables supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and signal performance. Each unit undergoes outgoing inspection prior to shipment. In the event of a warranty claim, contact our technical support team with the order reference and a description of the observed fault. Replacement or credit will be arranged promptly to minimize impact on your operations.
