Bently Nevada 330902-00-10-10-01-05 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330902-00-10-10-01-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

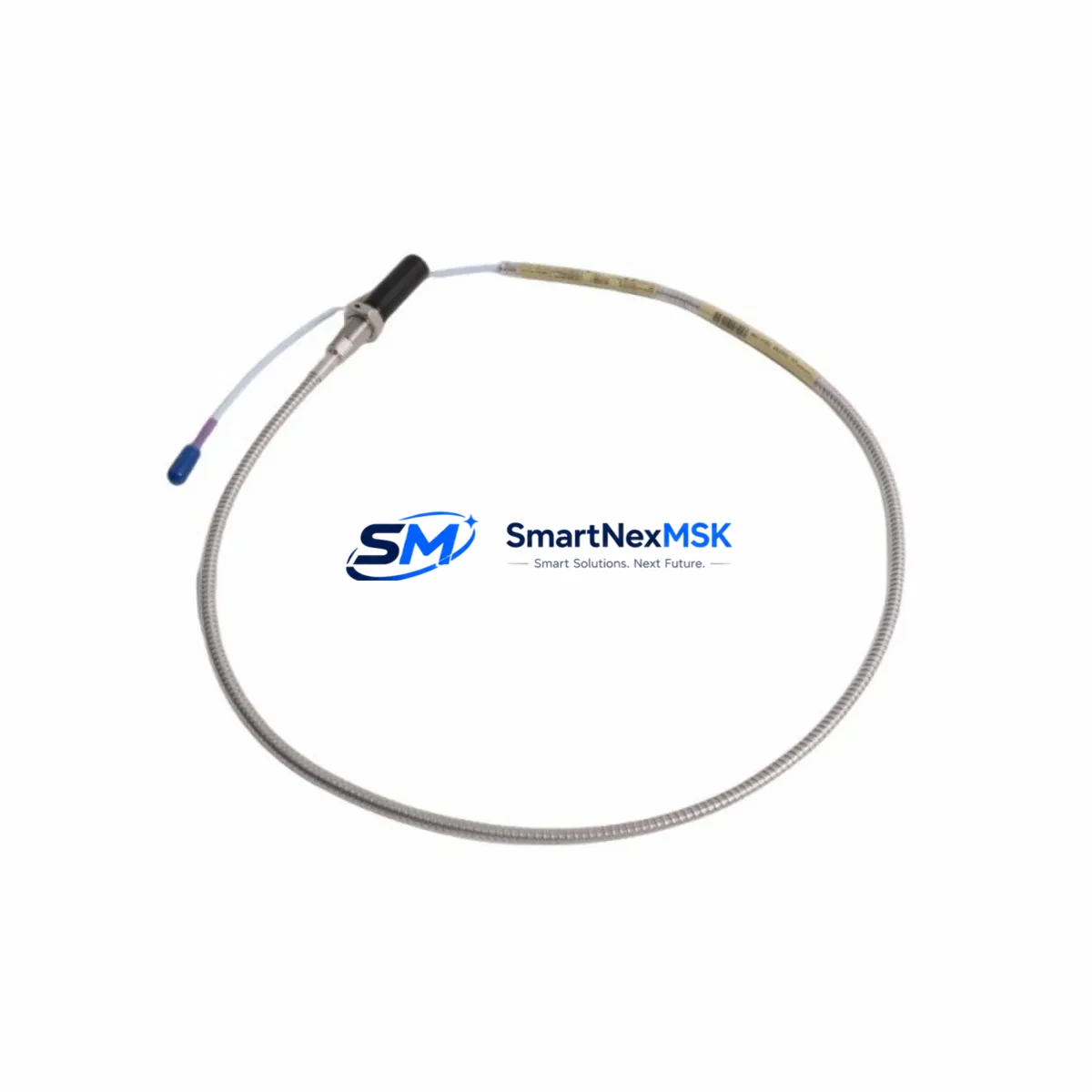

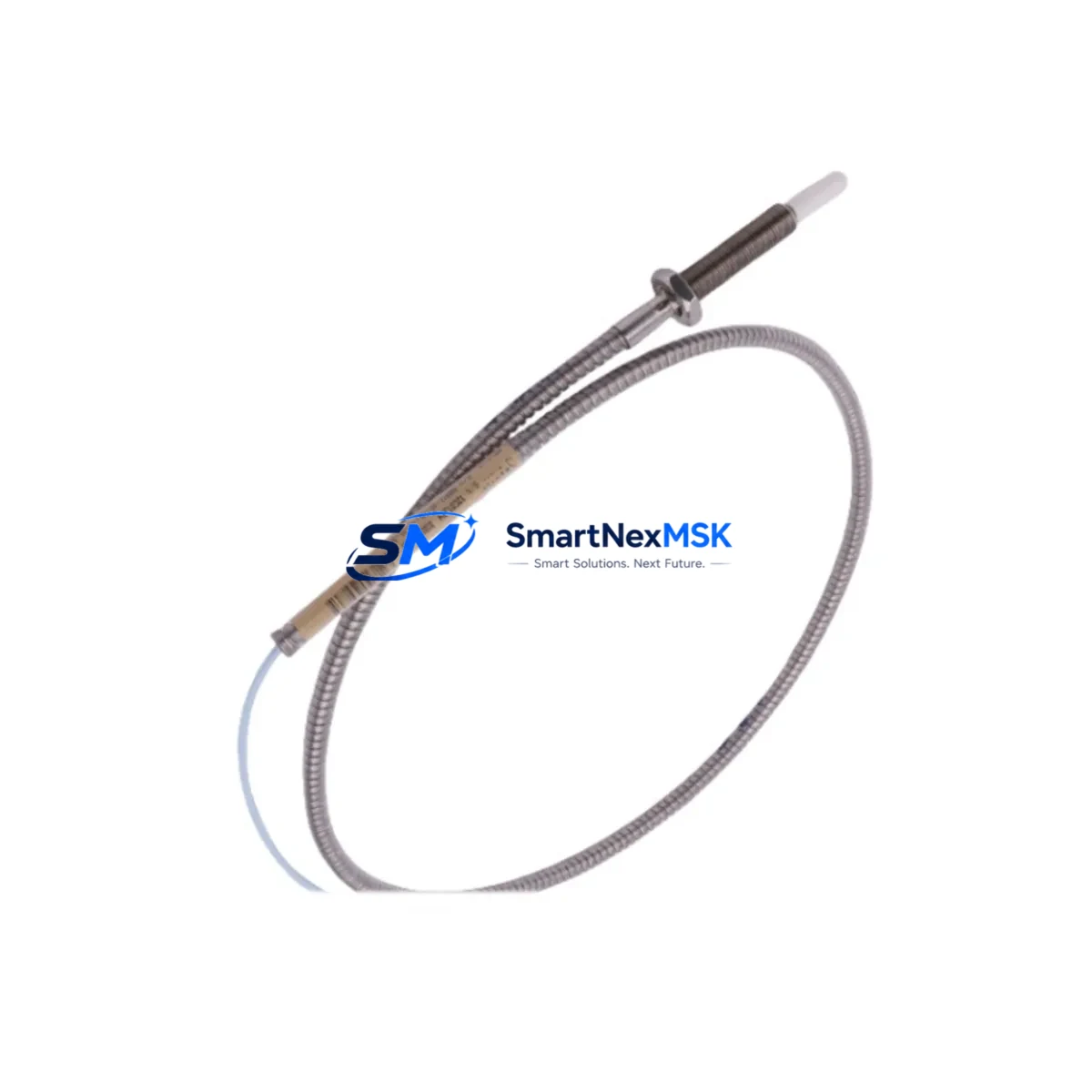

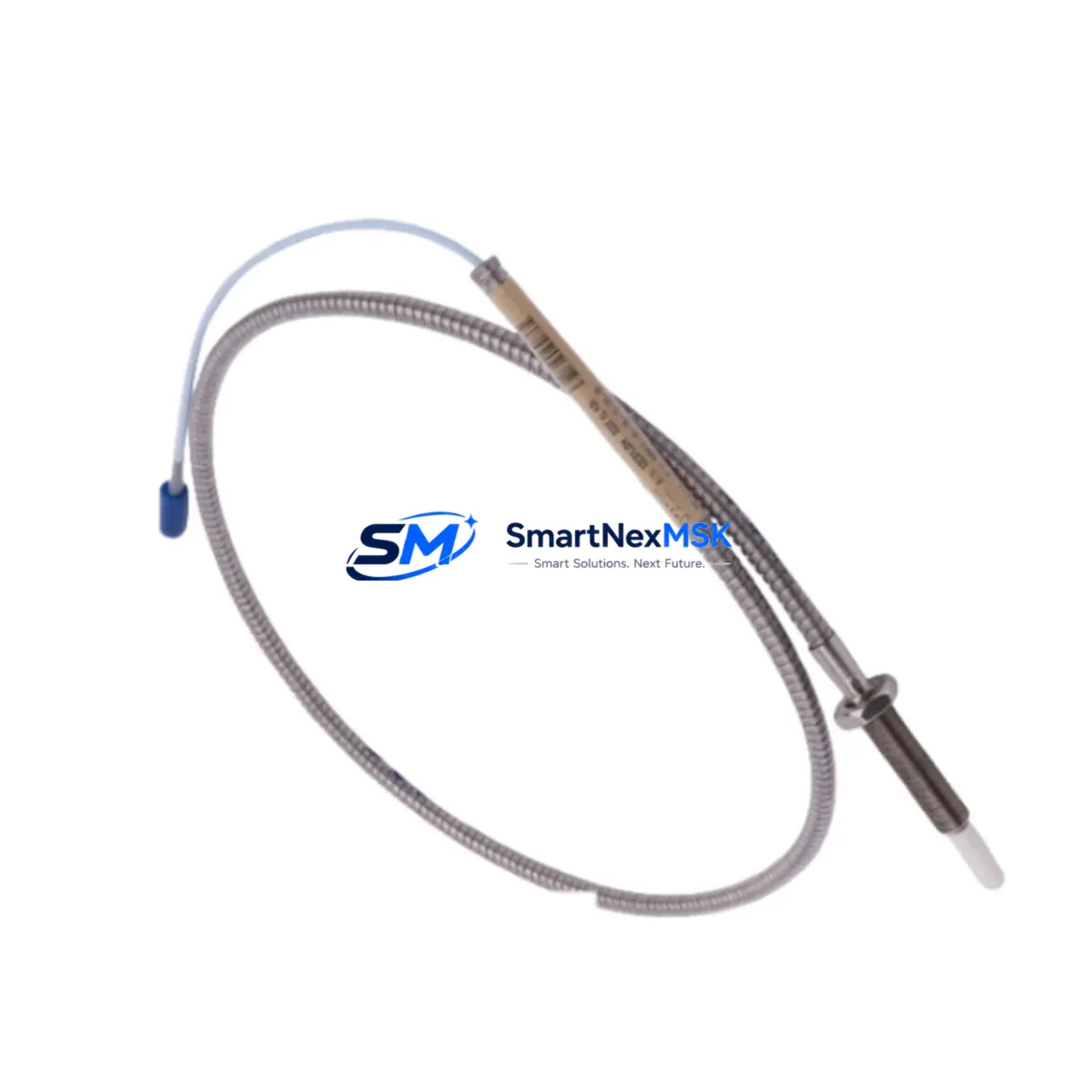

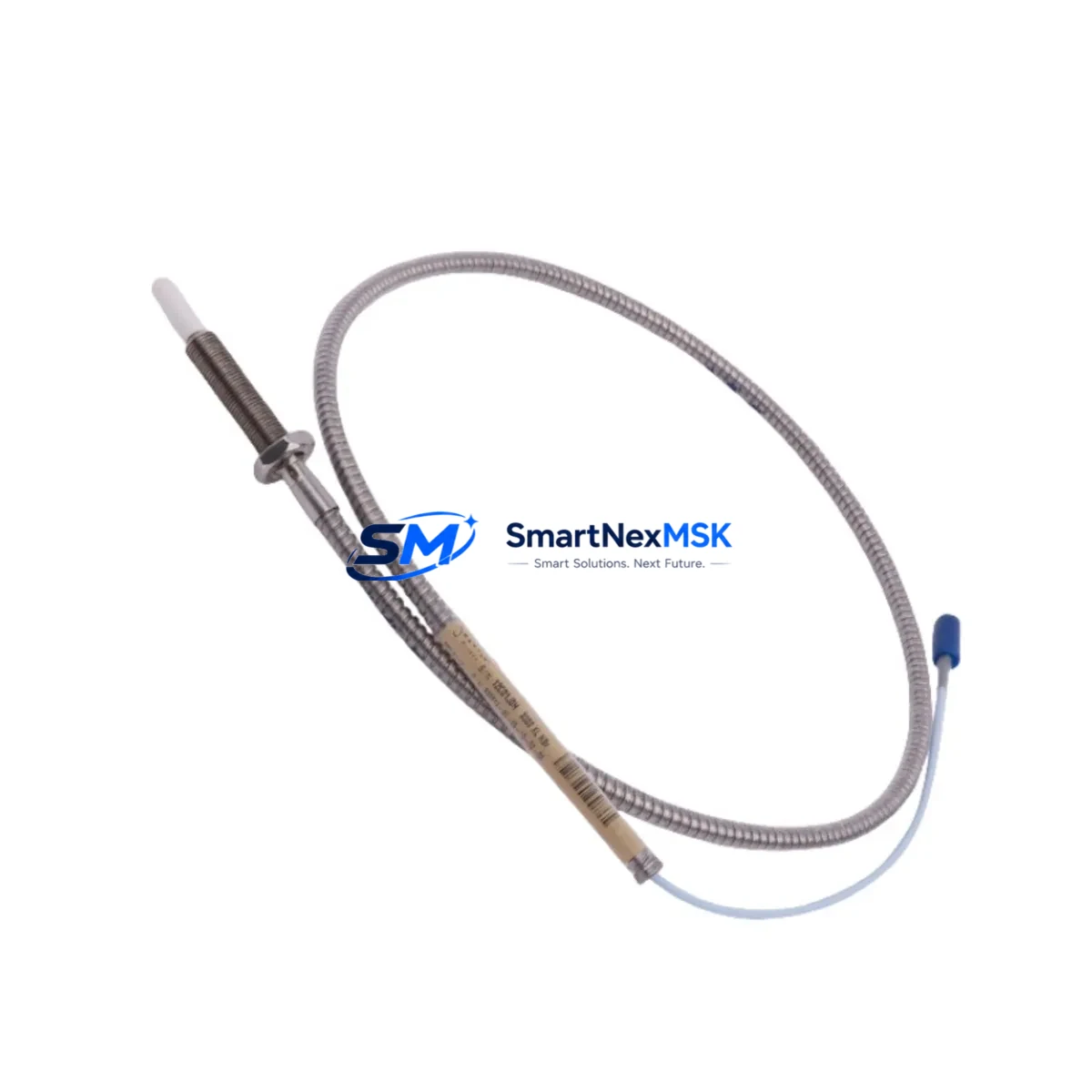

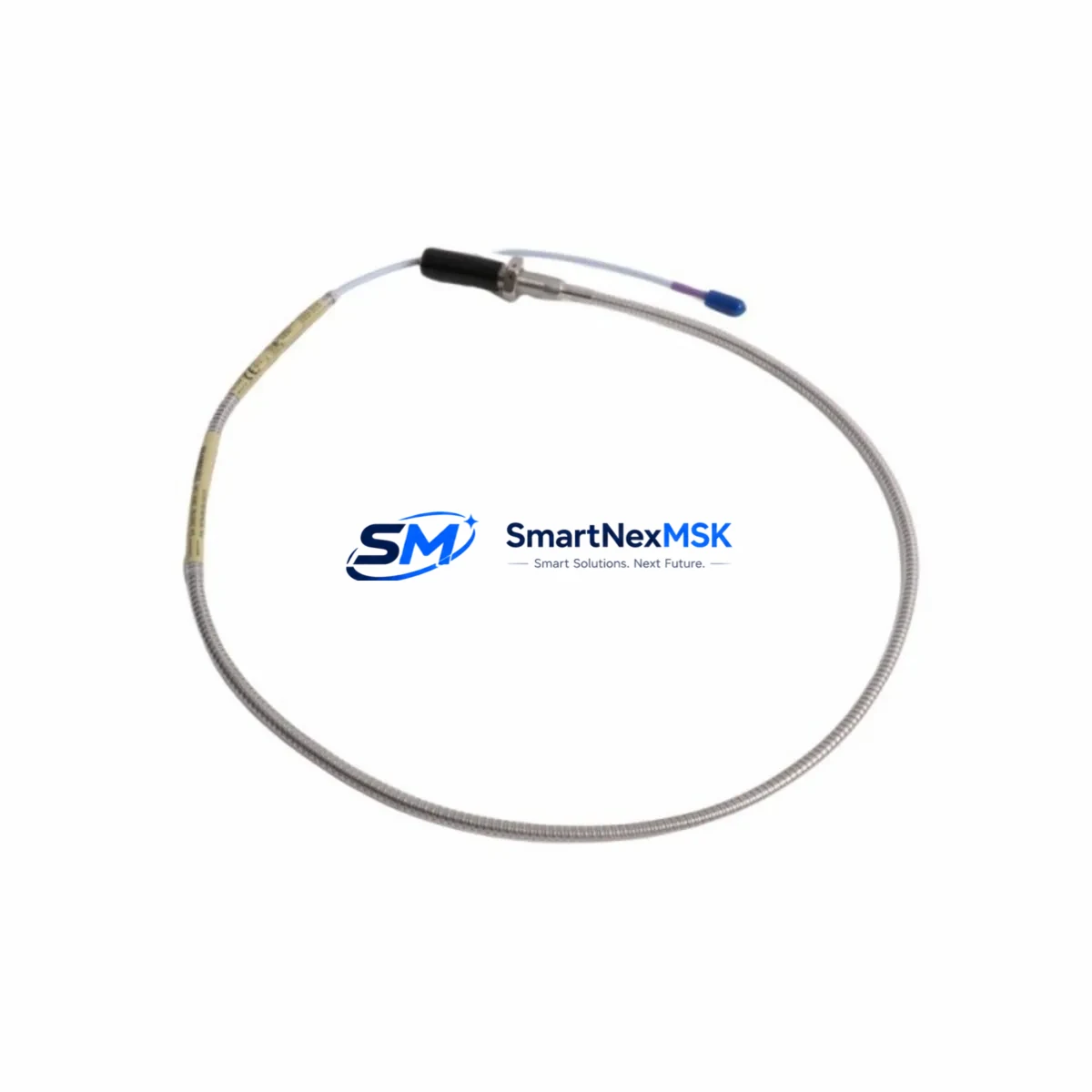

The Bently Nevada 330902-00-10-10-01-05 is an NSv Series 5mm proximity probe engineered for non-contacting vibration and position measurement in rotating machinery protection systems. As legacy 3300 Series installations approach end-of-service life, this probe serves as the primary retrofit-ready replacement for aging 330900 and 330905 probes, offering direct mechanical and electrical compatibility with existing 3300 XL monitor racks, extension cables, and Proximitor® sensor assemblies. Whether you are upgrading a turbine protection panel, replacing a failed probe on a compressor train, or migrating from an older 3300 Series rack to a current 3300 XL 16-channel monitor, the 330902-00-10-10-01-05 delivers the signal integrity and dimensional accuracy required for uninterrupted machinery protection.

This probe is designed for direct integration with the Bently Nevada 3300 XL monitoring platform. It operates with the standard Proximitor® sensor (such as the 3300 XL 8mm Proximitor® or the dedicated NSv Proximitor® module) and is fully compatible with the 3300 XL 16-channel monitor, the 3500/42M proximity I/O module, and the 3500 rack-based machinery protection system. When planning a retrofit from a 3300 Series rack to a 3500 Series system, engineers must verify that the existing extension cable — typically a 330130 or 330180 series armored cable — matches the new probe’s tip-to-driver distance specification. Mismatched cable lengths are the most common source of calibration error during system migration and must be resolved before commissioning.

For installations where the original probe was wired to a 3300/16 monitor or a 3300/55 dual-channel monitor, the 330902-00-10-10-01-05 can be installed without rerouting conduit, provided the junction box terminations and field wiring are inspected for continuity and insulation integrity. The probe’s 5-metre integral cable terminates in a standard MIL-spec connector compatible with the Bently Nevada junction box and barrier strip assemblies used across most 3300 XL panel configurations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a thorough audit of the existing probe installation. Before removing the 330900 or 330905 probe, technicians should document the current gap voltage reading from the 3300 XL 16-channel monitor or the 3500/42M proximity I/O module, record the alarm and danger setpoints stored in the monitor configuration, and photograph the junction box wiring to preserve terminal assignment references. The 330902-00-10-10-01-05 uses the same –24 VDC supply rail as its predecessors, so the existing power distribution within the control cabinet — typically sourced from a Bently Nevada 3500/15 power supply module or an equivalent 24 VDC DIN-rail supply — does not require modification.

When the probe is installed in a turbine or compressor application where the 3300 XL rack also hosts a 3300/55 dual-channel monitor for thrust position measurement, care must be taken to isolate the vibration channel from the position channel during the swap. The NSv Proximitor® sensor associated with this probe should be bench-tested against a calibration target before installation to confirm the output curve matches the stored calibration data in the System 1 condition monitoring software. If the site uses an older version of System 1 that does not support NSv probe calibration files, the calibration data must be entered manually using the probe’s published sensitivity specification of 7.87 V/mm (200 mV/mil).

For sites migrating from a standalone 3300 Series rack to a fully integrated 3500 Series machinery protection system, the retrofit scope typically expands to include replacement of the 3300/16 monitor cards with 3500/42M proximity I/O modules, installation of a new 3500/22M transient data interface, and reconfiguration of the Modbus or FOUNDATION Fieldbus communication link to the plant DCS. In these cases, the 330902-00-10-10-01-05 probe can be installed and commissioned independently of the rack migration, allowing the machinery protection function to remain active on the legacy 3300 XL rack while the new 3500 rack is configured and tested offline. This staged approach is strongly recommended for critical machinery where continuous protection coverage is a contractual or safety requirement.

Additional components commonly required during a 3300-to-3500 migration include the 3500/20 rack interface module for Ethernet connectivity, the 3500/32 4-channel relay module for alarm output wiring, and the 3500/92 communication gateway for legacy serial protocol bridging. Probe extension cables from the 330130 series should be inspected for jacket integrity and connector pin condition before reuse; cables showing signs of oil ingress or mechanical damage should be replaced to avoid intermittent signal faults that can trigger nuisance trips during the commissioning phase.

Downtime Control During System Migration

Minimizing unplanned downtime during a probe replacement or rack migration requires a structured pre-outage preparation process. Before the maintenance window opens, the replacement 330902-00-10-10-01-05 probe should be bench-verified against a calibration rig to confirm gap voltage linearity across the full measurement range. The existing program logic in the 3300 XL monitor — including OK relay logic, alert multiplier settings, and bypass relay configurations — should be exported and archived so that the same setpoints can be restored or replicated in the replacement monitor without relying on field memory.

During the outage, the probe swap itself typically requires less than 30 minutes for a single channel, provided the machinery is at rest and the probe access port is unobstructed. The critical path item is gap setting: the probe tip must be positioned at the nominal –10 VDC gap voltage point, verified with a calibrated digital voltmeter at the Proximitor® output terminals, before the monitor is returned to service. If the site operates a redundant 3300 XL rack in a 1oo2 or 2oo3 voting configuration, the channel under maintenance can be placed in bypass mode using the 3300 XL monitor’s front-panel bypass switch, allowing the remaining channels to maintain protection coverage throughout the probe replacement procedure.

For sites where the probe is installed in a hazardous area classified as Zone 1 or Division 1, the replacement procedure must comply with the applicable hot-work permit and intrinsic safety barrier requirements. The 330902-00-10-10-01-05 is rated for use with Bently Nevada’s approved Zener barrier assemblies, and the barrier ground bond must be verified before the channel is returned to service. Post-installation, a full functional test — including simulated high-vibration alarm, danger trip, and OK relay dropout — should be completed and documented before the maintenance window is closed.

Retrofit Support FAQ

Q1: Is the 330902-00-10-10-01-05 a direct drop-in replacement for the 330900 and 330905 probes?
Yes. The 330902-00-10-10-01-05 is mechanically and electrically compatible with the 330900 and 330905 probe families. The mounting thread, tip diameter, and integral cable connector are identical, allowing direct installation without modification to the probe holder or junction box wiring. Gap voltage recalibration is required after installation to confirm the –10 VDC nominal operating point.

Q2: Can this probe be used with the 3500/42M proximity I/O module in a 3500 Series rack?
Yes. The 330902-00-10-10-01-05 is fully compatible with the 3500/42M proximity I/O module. When used in a 3500 Series rack, the probe must be paired with the correct NSv Proximitor® sensor, and the channel configuration in the 3500 rack software must be set to match the probe’s sensitivity specification. Existing 330130 or 330180 series extension cables can be reused provided they pass a continuity and insulation resistance test.

Q3: What pre-shipment testing is performed on this probe?
Each 330902-00-10-10-01-05 unit undergoes functional verification including gap voltage linearity testing, cable continuity check, and connector integrity inspection before shipment. Units are supplied with a test report confirming compliance with Bently Nevada’s published performance specifications. The 12-month warranty covers manufacturing defects and performance deviations identified under normal operating conditions.

Q4: How long does delivery typically take, and is stock available for urgent requirements?
Stock units are available for same-day or next-business-day dispatch for urgent maintenance requirements. Standard delivery lead times vary by destination; expedited freight options are available on request. Contact our sales team to confirm current inventory levels and arrange priority shipment for critical machinery applications.
