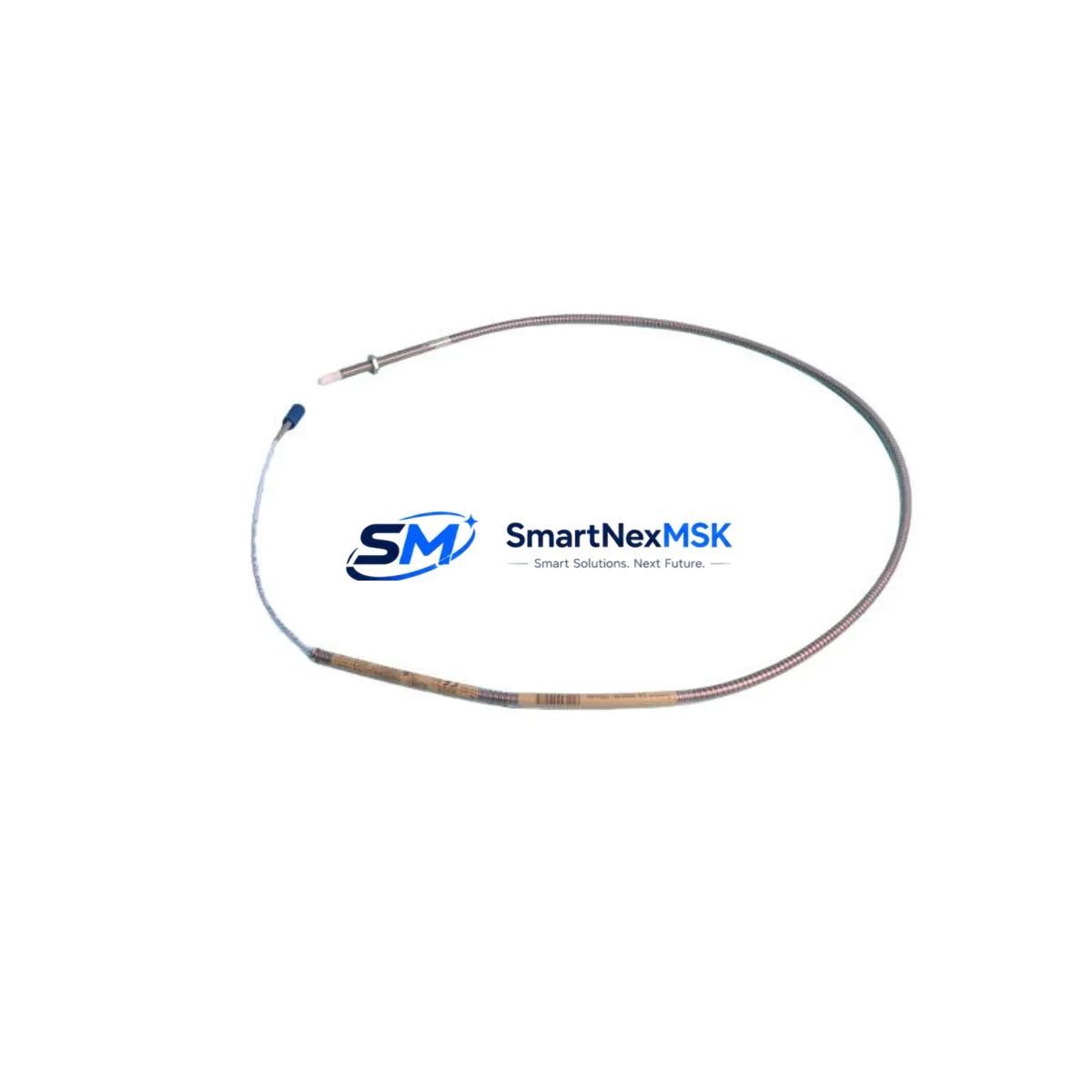

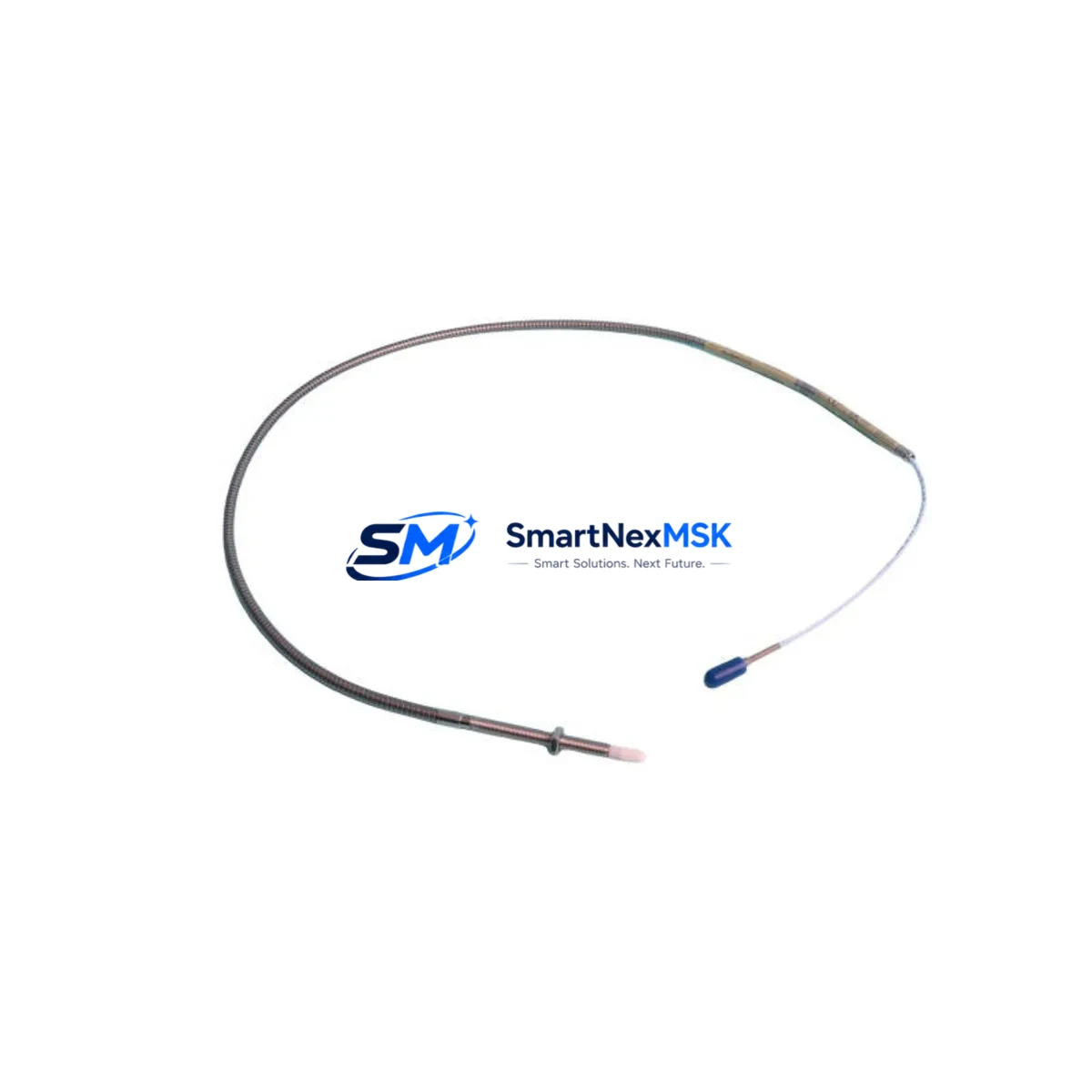

Bently Nevada 330903-00-03-05-01-00 Spare for 3300 XL NSv Automation
The Bently Nevada 330903-00-03-05-01-00 is an original proximity transducer engineered for the 3300 XL NSv series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a strategic spare parts inventory for a critical compressor train or turbine skid, this transducer is a direct, specification-matched replacement that restores full system functionality without recalibration or signal chain modification.
Maintenance engineers and reliability teams operating Bently Nevada 3300 XL NSv systems depend on the 330903-00-03-05-01-00 as a front-line sensing element for shaft radial vibration, position, and eccentricity measurement. Its 5-metre integral cable configuration and -18 mm probe tip geometry are factory-matched to the 3300 XL NSv monitor’s input requirements, ensuring plug-and-play replacement with no field trimming or impedance adjustment. Every unit shipped from our inventory undergoes pre-shipment functional verification against Bently Nevada OEM specifications before dispatch.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 330903-00-03-05-01-00 |
| Brand | Bently Nevada |
| Series | 3300 XL NSv |
| Product Type | Proximity Transducer (Eddy-Current) |
| Probe Tip Diameter | 18 mm |
| Cable Length | 5 m (integral) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Operating Gap Range | 0.25 – 2.25 mm (10 – 90 mil) |
| Supply Voltage | -24 VDC (nominal) |
| Temperature Range | -35°C to +177°C (probe) |
| Connector Type | Integral coaxial, TNC-compatible |
| Compatibility | 3300 XL NSv Monitor, 3300 XL 8mm System, 3500/42M, 3500/40M |
| Application | Radial vibration, axial position, eccentricity — rotating machinery |
| Condition | Original spare, new or refurbished-to-spec |
| Warranty | 12 months from date of shipment |
| Pre-Shipment Test | Functional verification against OEM specification |
| Lead Time | In stock — ships within 2 business days |
Maintenance Planning for Continuous Operation
When a 330903-00-03-05-01-00 proximity transducer is flagged during a routine control cabinet inspection or triggers a high-vibration alarm on the 3300 XL NSv monitor, the replacement scope should extend beyond the transducer alone. A disciplined maintenance engineer will simultaneously verify the condition of the paired 330130-080-00-00 extension cable and the 330180-X0-05 proximitor/oscillator, since cable impedance drift and oscillator gain degradation are common co-failure modes that can mask or mimic transducer faults.
At the monitor rack level, inspect the 3300 XL NSv monitor module input card for connector corrosion and verify that the 3500/20 power supply module is delivering stable -24 VDC within tolerance. A degraded rack power supply is a frequent root cause of erratic proximity readings that are incorrectly attributed to the transducer. If the installation includes a 3500/92 communication gateway or 3500/22M transient data interface, confirm that the Modbus or Ethernet link to the DCS or historian is intact after the transducer swap.
For installations where the 3300 XL NSv system feeds a Bently Nevada 3500 series rack, cross-check the 3500/42M proximitor I/O module terminal block wiring and verify shield grounding continuity. Loose or corroded shield terminations at the 3500/15 terminal board are a known source of noise injection that can corrupt vibration trend data. Where signal isolation is required between the transducer loop and the DCS analog input, inspect any installed signal isolator or barrier module (such as a Pepperl+Fuchs or MTL type) for correct loop power and output range.
In facilities running legacy rotating equipment with extended service intervals, the 330903-00-03-05-01-00 is frequently stocked alongside 3300 XL 8mm proximity probe sets, 3500/40M Proximitor I/O modules, and 3500/45 position monitor cards as part of a minimum viable spare parts kit for the machinery protection system. Procurement engineers should also consider holding one spare 3300 XL NSv monitor chassis for critical machines where a rack-level failure would result in a mandatory shutdown under site safety rules.
Site Replacement Workflow
Step 1 — Isolation and permit: Obtain a work permit and isolate the monitor channel per site LOTO procedure. Note the current gap voltage reading from the 3300 XL NSv monitor display or DCS faceplate before disconnecting the transducer — this baseline is essential for post-installation verification.
Step 2 — Transducer removal: Disconnect the coaxial connector at the proximitor junction box. Unthread the probe from the bracket, taking care not to damage the probe tip or the target shaft surface. Record the installed gap distance using a feeler gauge if the bracket is adjustable.
Step 3 — Replacement installation: Install the 330903-00-03-05-01-00 replacement into the existing bracket. Set the probe gap to the OEM-specified nominal value (typically 1.0–1.5 mm / 40–60 mil for most 18 mm probe applications). Reconnect the coaxial cable, ensuring the TNC connector is fully seated and the cable is routed without sharp bends.
Step 4 — System verification: Power the channel and confirm the gap voltage on the 3300 XL NSv monitor falls within the linear range (typically -10 to -18 VDC). Compare against the pre-removal baseline. Clear any latched alarms and verify that the vibration trend is stable and noise-free before returning the machine to service.
Step 5 — Documentation: Record the replacement in the CMMS with the new part serial number, installation date, and post-installation gap voltage. Update the spare parts inventory to trigger a replenishment order, maintaining a minimum of one spare transducer per critical machine train.
Spare Parts Support FAQ
Q: Is the 330903-00-03-05-01-00 compatible with both the 3300 XL NSv and the older 3300 XL 8mm system?
A: The 330903-00-03-05-01-00 is designed and calibrated for the 3300 XL NSv system. While the physical probe geometry is similar to some 3300 XL 8mm variants, sensitivity and scale factor differences mean cross-system use requires confirmation against the specific monitor’s input specification. Contact our technical team with your monitor part number for a compatibility check before ordering.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. Each unit is pre-tested before dispatch. Warranty claims are supported with a replacement unit or full refund, subject to inspection of the returned part.
Q: Can you supply the complete 3300 XL NSv transducer system — probe, extension cable, and proximitor — as a matched set?
A: Yes. We stock the 330903-00-03-05-01-00 probe, compatible 330130 series extension cables, and 330180 series proximitor/oscillators as individual items and can assemble matched sets on request. Ordering as a matched set ensures impedance compatibility and simplifies site installation.
Q: What is your typical lead time and do you support emergency orders?
A: Standard in-stock orders ship within 2 business days. For emergency shutdown situations, contact us directly at sales@smartnexmsk.com or +86 18259474341 to arrange priority dispatch. We maintain buffer stock of high-demand Bently Nevada 3300 XL NSv components specifically to support unplanned outage recovery.
