Bently Nevada 330903-00-03-10-01-CN Safety Proximity Probe

Bently Nevada 330903-00-03-10-01-CN Safety Proximity Probe: Reliable Control in Harsh Industrial Sites

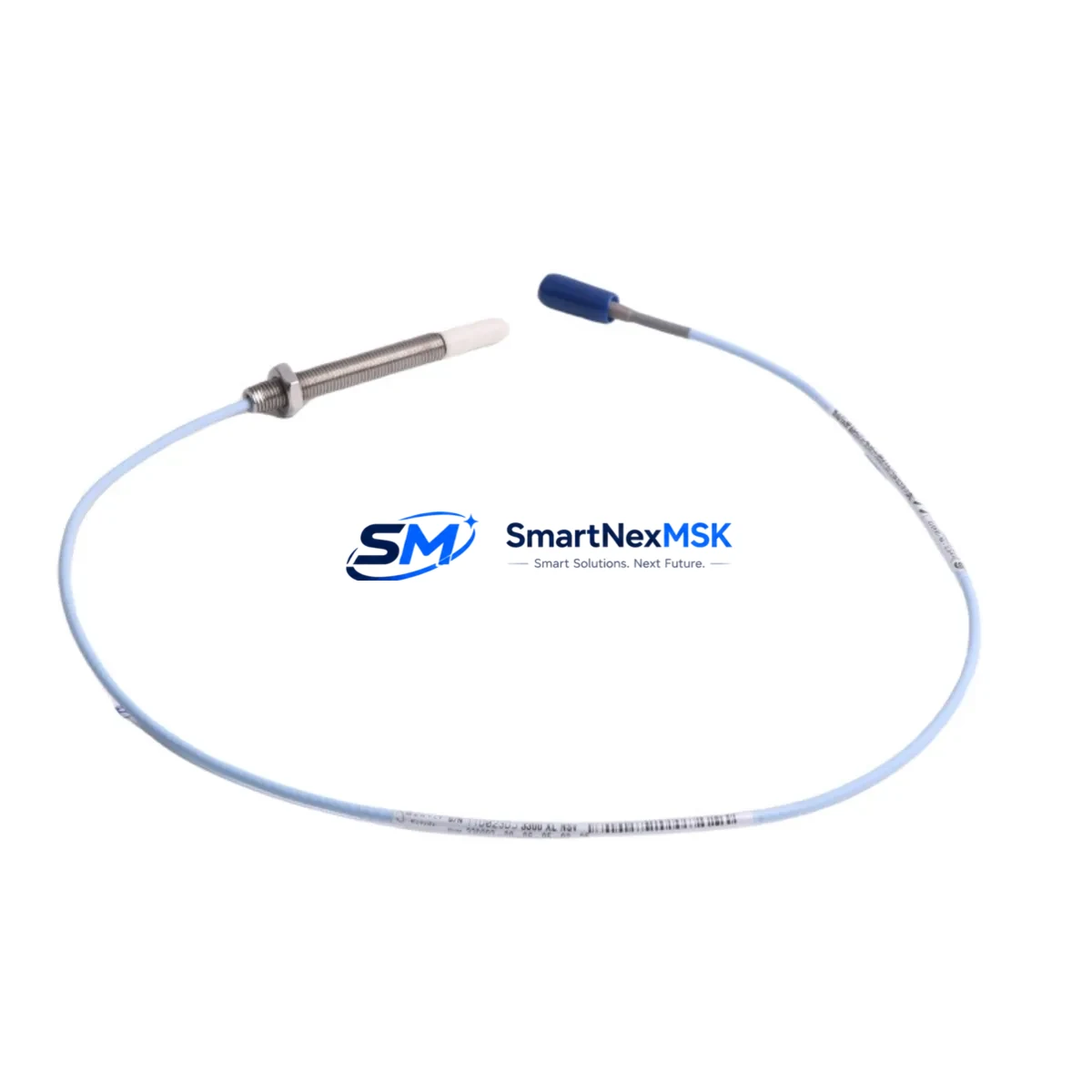

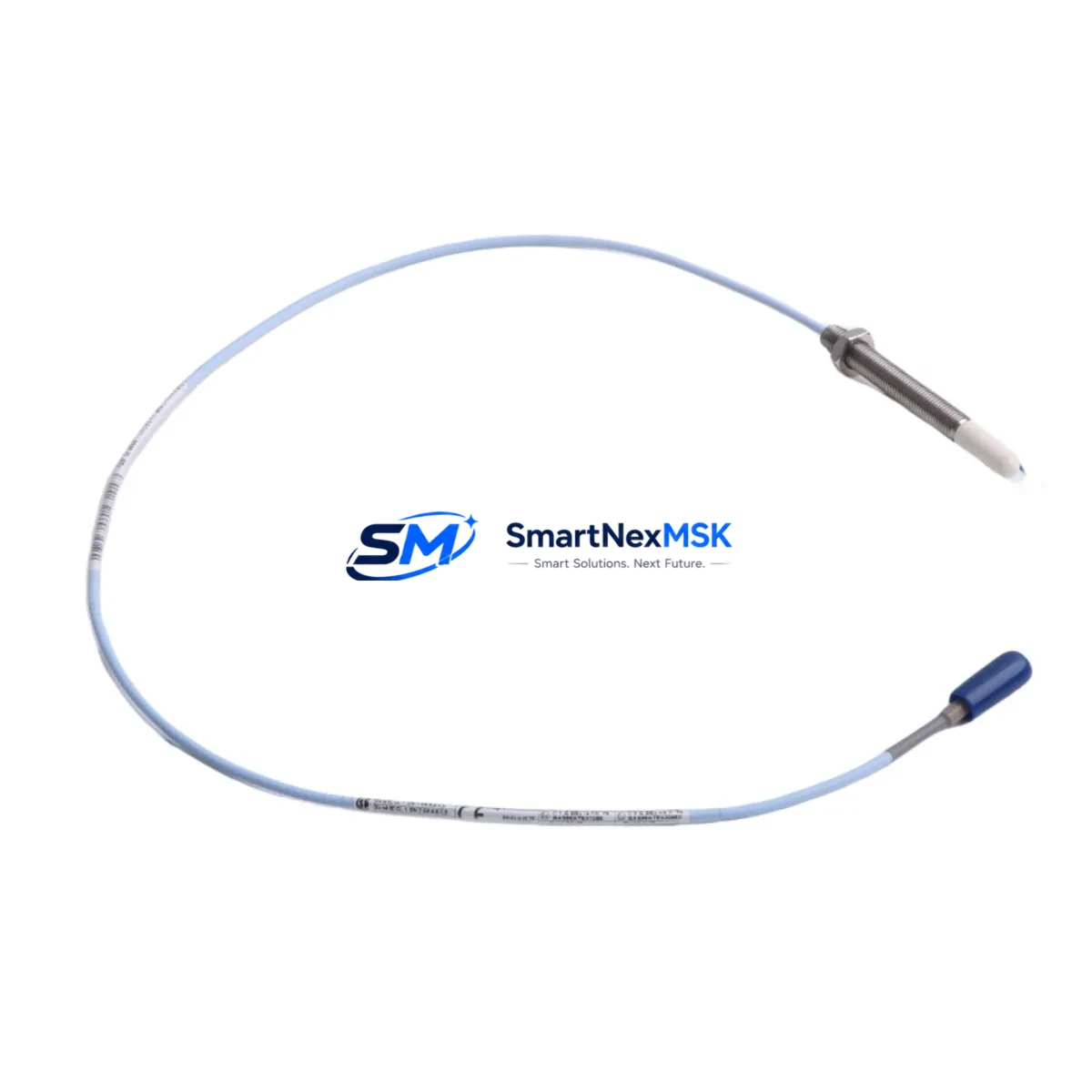

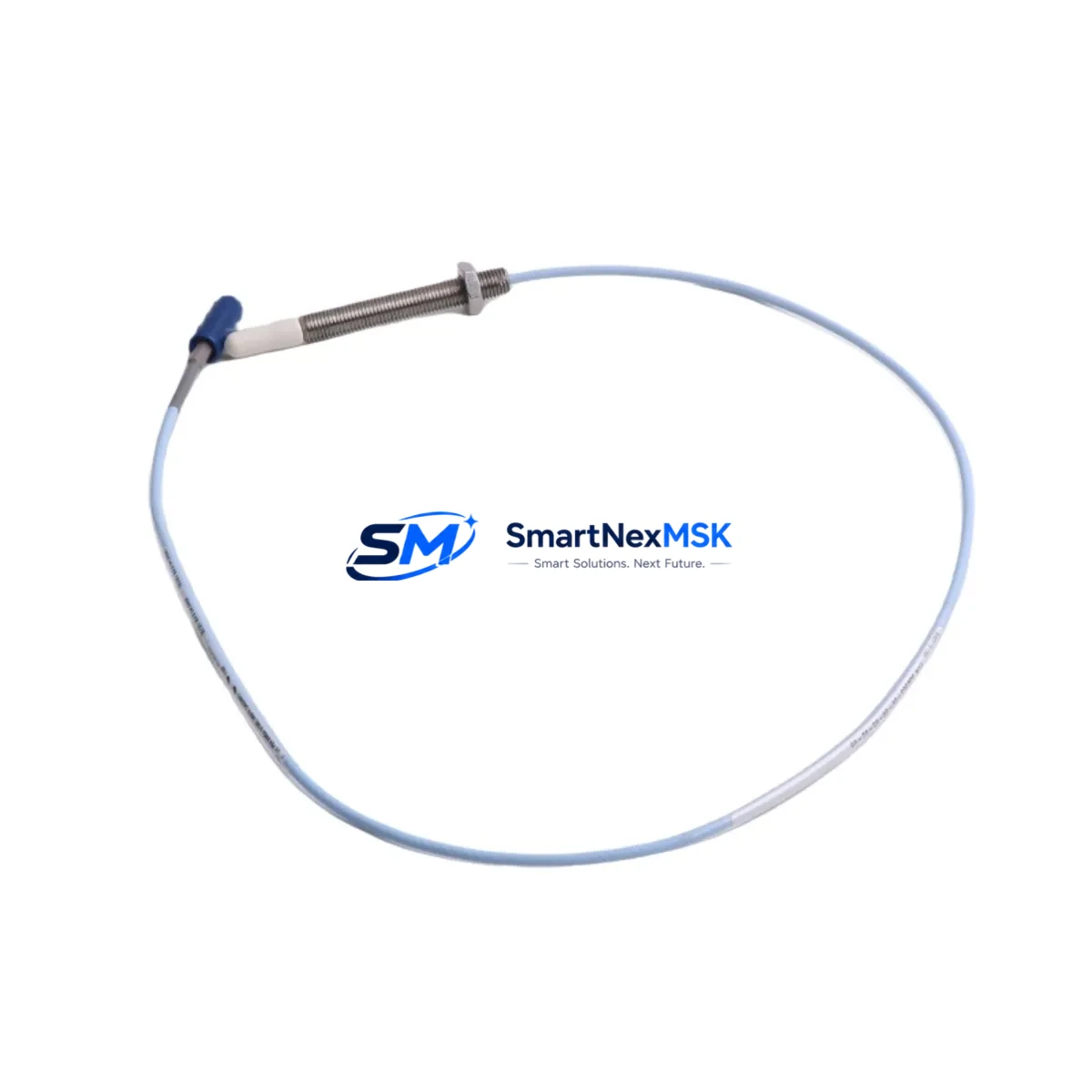

The Bently Nevada 330903-00-03-10-01-CN is an 8mm eddy current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As part of the renowned Bently Nevada 3300 NSv Series, this probe delivers exceptional signal stability, immunity to electromagnetic interference, and long-term mechanical durability — making it a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, water treatment, metallurgical, port, and continuous manufacturing facilities.

In high-load, high-interference production environments, control interruption caused by sensor drift or probe failure can trigger unplanned shutdowns, safety interlock activations, and costly equipment damage. The 330903-00-03-10-01-CN is specifically designed to eliminate these risks. Its ruggedized stainless steel housing and hermetically sealed tip resist moisture ingress, chemical exposure, and mechanical shock — ensuring consistent gap measurement output even in the presence of strong magnetic fields, high-frequency electrical noise, and extreme temperature cycling.

When integrated into a complete Bently Nevada 3300 Series monitoring loop, this probe works in concert with the Bently Nevada 330130-080-00-00 extension cable and the Bently Nevada 330180-X1-05 proximitor/driver to form a fully calibrated, three-component measurement chain. Signal integrity across this chain is critical: any mismatch in cable length or driver configuration can introduce measurement error that compromises the accuracy of the overall vibration protection system. The 330903-00-03-10-01-CN is factory-matched to the standard 3300 NSv system parameters, eliminating calibration uncertainty at commissioning.

In control cabinet installations, this probe is typically deployed alongside Bently Nevada 3500/42M proximitor I/O modules and Bently Nevada 3500/22M transient data interface cards, which process the raw proximity signal into actionable vibration amplitude and phase data for the plant DCS or safety instrumented system (SIS). The probe’s output is fully compatible with Bently Nevada 3500 Series rack-based monitoring systems, enabling seamless integration into existing machinery protection architectures without signal conditioning adapters or custom wiring.

For installations where power supply stability is a concern — particularly in remote field panels or skid-mounted control enclosures — pairing this probe system with a regulated Bently Nevada 3500/15 power supply module ensures that voltage fluctuations and transient surges do not propagate into the measurement circuit. Surge protection at the field terminal strip, using DIN-rail mounted transient voltage suppressors rated for the 24 VDC proximitor supply rail, further reduces the risk of probe driver damage during lightning events or bus switching transients.

Communication integrity between the 3300 NSv measurement chain and the plant control system is maintained through the Bently Nevada 3500/92 communication gateway, which supports Modbus TCP, OPC-DA, and proprietary System 1 protocols. This ensures that vibration alarm states, danger setpoints, and historical trend data are continuously available to the plant historian and operator workstation — a requirement in safety-instrumented environments operating under IEC 61511 functional safety standards.

All units supplied by SMARTNEXMSK undergo pre-shipment electrical verification, including tip resistance measurement, insulation resistance testing, and static sensitivity confirmation against the published Bently Nevada calibration curve. Each probe is shipped with a test report and is covered by a 12-month warranty against manufacturing defects and premature failure under normal operating conditions.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 330903-00-03-10-01-CN within a well-engineered control cabinet protection strategy requires attention to the entire signal chain and power architecture. In a typical turbomachinery protection panel, this probe feeds into a Bently Nevada 3500/42M proximitor I/O module, which conditions the raw -24 VDC gap voltage into calibrated vibration amplitude and DC gap signals. These signals are then processed by the Bently Nevada 3500/40M proximitor I/O module for redundant channel monitoring, ensuring that a single-channel fault does not result in a spurious trip or, more critically, a missed danger condition.

The rack housing these modules — typically a Bently Nevada 3500/05 main rack — provides the backplane communication bus and power distribution to all installed I/O cards. Rack-level power redundancy, achieved by installing dual Bently Nevada 3500/15 power supply modules in a 1oo2 configuration, ensures that a power supply failure does not interrupt the monitoring function. This architecture is particularly important in SIL 2-rated machinery protection loops where continuous monitoring availability is a functional safety requirement.

For installations in hazardous areas classified as Zone 1 or Zone 2 under IEC 60079, the probe system must be paired with a certified Bently Nevada 3300 XL 8mm proximitor with ATEX or IECEx approval, and all field wiring must be routed through certified Zener barriers or galvanic isolators mounted in the safe-area control cabinet. The Bently Nevada 330130-080-00-00 extension cable, with its double-shielded coaxial construction, provides the necessary signal integrity across long cable runs from the hazardous area field installation to the safe-area monitoring rack.

Surge protection at the field terminal interface — using DIN-rail transient voltage suppressors rated for the coaxial signal line — protects the proximitor driver input from induced voltage spikes caused by nearby variable frequency drives (VFDs), large motor starts, or bus switching events. This is a frequently overlooked but critical element of a robust control cabinet protection strategy in heavy industrial environments.

Critical Industrial Safety Applications

The Bently Nevada 330903-00-03-10-01-CN proximity probe is deployed across a wide range of critical industrial safety applications where continuous, accurate shaft vibration and position monitoring is essential to safe operation.

In petrochemical and refinery facilities, this probe monitors the radial vibration of centrifugal compressors, pumps, and expanders operating in flammable and toxic service. Accurate vibration trending enables early detection of rotor imbalance, bearing wear, and seal degradation — allowing maintenance teams to schedule corrective action before a failure event triggers an emergency shutdown or process release.

In power generation plants — including coal-fired, gas turbine, and combined-cycle facilities — the probe is installed on steam turbine journal bearings and generator shaft extensions. The high-frequency response (DC to 10,000 Hz) ensures that both low-speed runout and high-frequency subsynchronous instability events are captured with full fidelity, providing the turbine protection system with the data needed to initiate a controlled trip before catastrophic bearing failure occurs.

In mining and mineral processing operations, where large grinding mills, crushers, and slurry pumps operate in high-dust, high-vibration environments, the IP67-rated stainless steel housing of the 330903-00-03-10-01-CN provides the mechanical robustness needed for reliable long-term installation without frequent probe replacement. The probe’s resistance to chemical exposure is particularly valuable in wet processing circuits where acidic or alkaline slurries are present near rotating equipment.

In water and wastewater treatment facilities, the probe monitors the shaft position and vibration of large vertical turbine pumps and blower units. Accurate DC gap monitoring enables detection of thrust bearing wear and shaft settling — conditions that, if undetected, can lead to impeller contact with the pump casing and catastrophic mechanical failure.

In metallurgical and steel mill environments, where rolling mill drives, continuous casters, and large induction furnace blowers operate under extreme thermal and mechanical loads, the probe’s wide operating temperature range (-35°C to +177°C) ensures reliable measurement even in close proximity to high-temperature process equipment.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330903-00-03-10-01-CN?
All units supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, premature electrical failure, and mechanical integrity issues under normal operating conditions. Warranty claims are supported by our technical team with replacement dispatch within 5 business days of confirmed fault diagnosis.

Q2: What pre-shipment testing is performed on each probe?
Each 330903-00-03-10-01-CN unit undergoes a multi-point electrical inspection prior to shipment, including tip coil resistance measurement, insulation resistance testing between the coaxial shield and center conductor, and static sensitivity verification against the published Bently Nevada 3300 NSv calibration curve. A test report is included with each shipment.

Q3: Is this probe compatible with existing Bently Nevada 3500 Series monitoring racks?
Yes. The 330903-00-03-10-01-CN is fully compatible with the Bently Nevada 3300 NSv proximitor system and integrates directly with 3500 Series I/O modules including the 3500/42M and 3500/40M. The probe, when used with the correct extension cable and proximitor driver, produces a calibrated output that meets the input specifications of all standard 3500 Series proximity I/O cards without modification.

Q4: Can long-term supply continuity be guaranteed for this part number?
SMARTNEXMSK maintains dedicated inventory of the 330903-00-03-10-01-CN and key 3300 NSv Series accessories to support both planned maintenance programs and emergency replacement requirements. We support customers with blanket order arrangements, consignment stock agreements, and expedited shipping for critical plant shutdowns. Our sourcing network ensures supply continuity for legacy Bently Nevada part numbers that may have extended lead times through standard distribution channels.
