Bently Nevada 330903-00-05-10-02-05/CN Safety Probe Cable

Bently Nevada 330903-00-05-10-02-05/CN Safety Probe Cable: Reliable Control in Harsh Industrial Sites

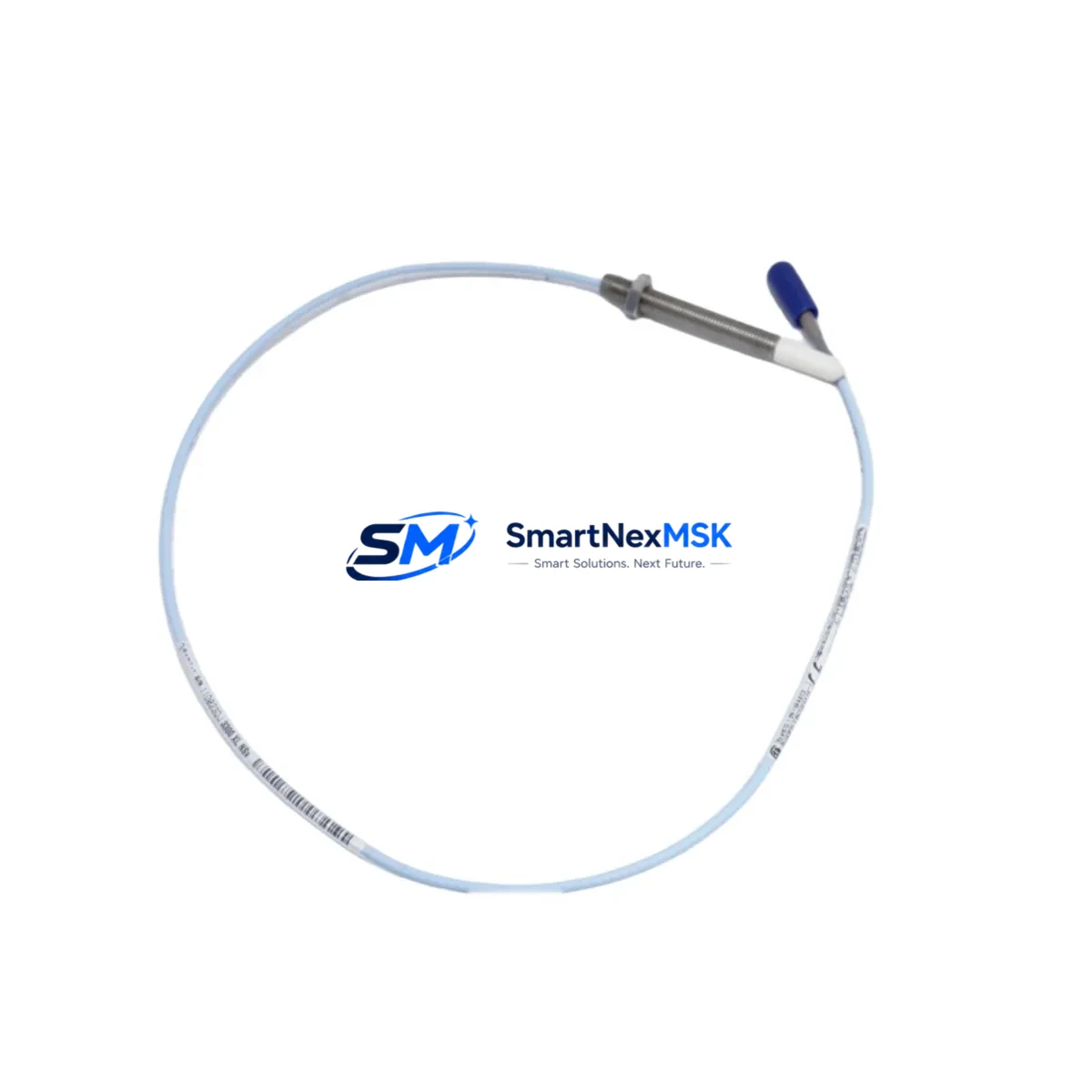

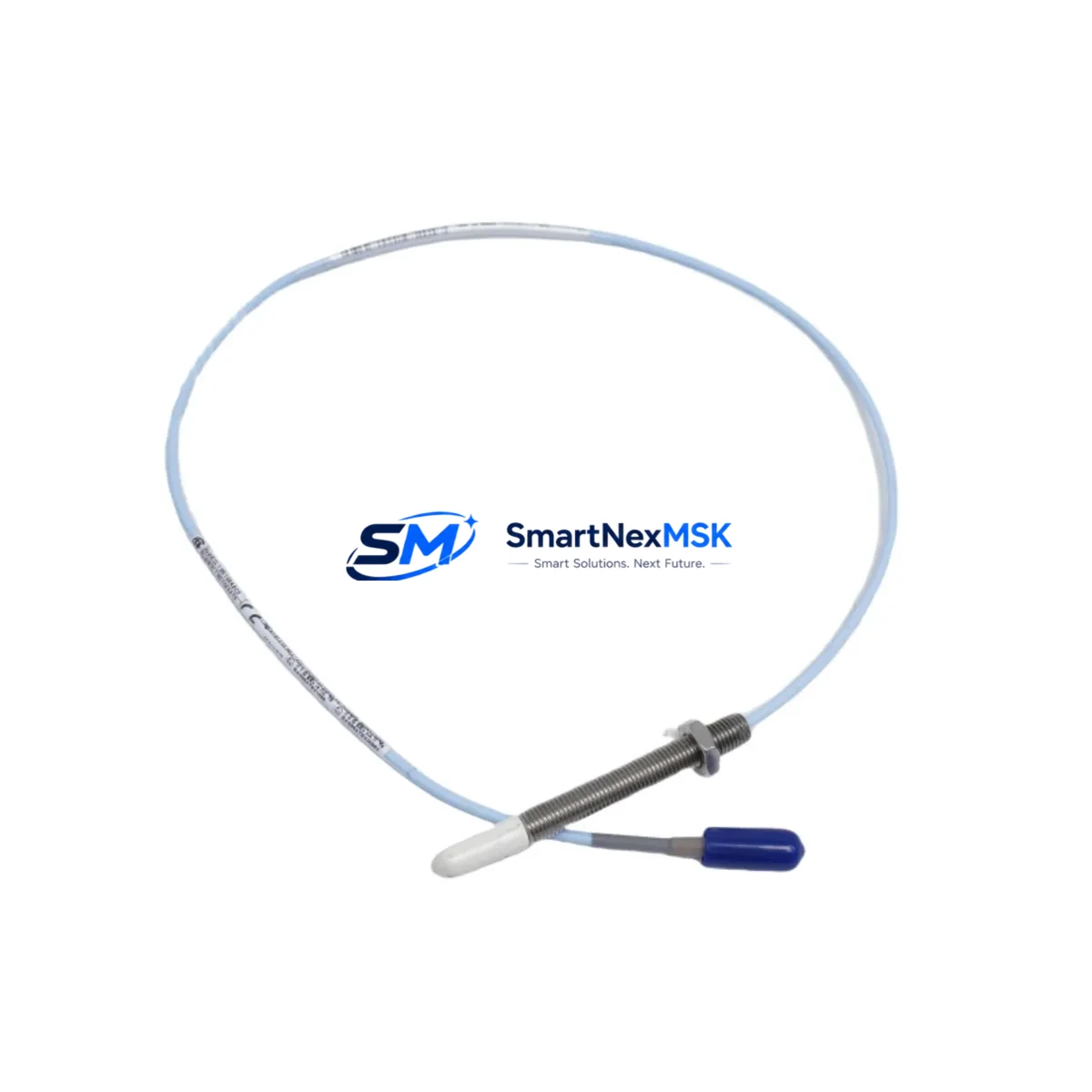

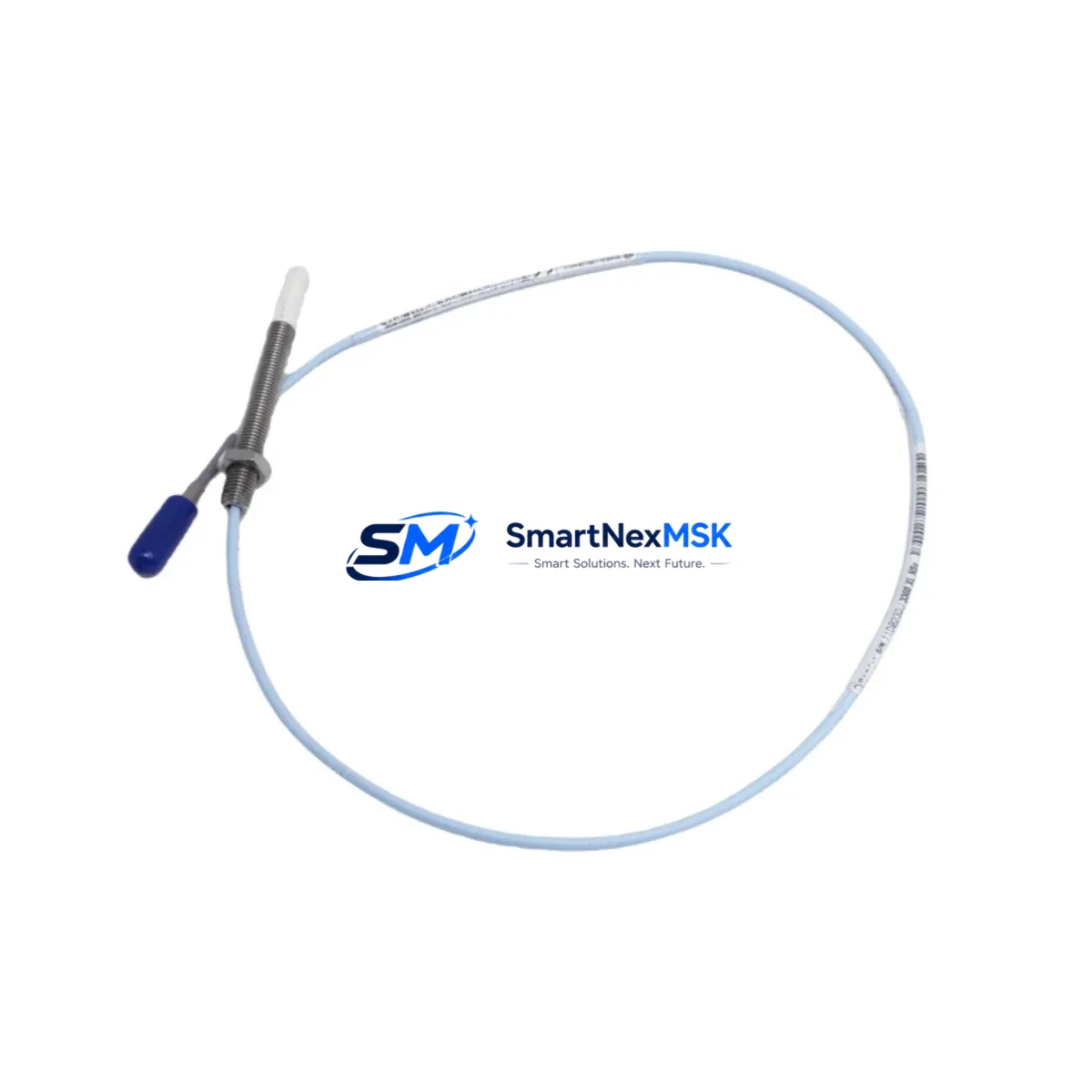

The Bently Nevada 330903-00-05-10-02-05/CN is a ruggedized proximity probe extension cable engineered for the 3300 NSv Proximity Transducer System — one of the most trusted vibration and position monitoring platforms in continuous heavy industrial operations. Designed to perform reliably in high-interference, high-temperature, and mechanically demanding environments, this extension cable is a critical link in the signal chain between the proximity probe and the Bently Nevada 3300 XL proximitor sensor. Its ruggedized construction ensures signal integrity is maintained even under sustained mechanical vibration, electromagnetic interference (EMI), and chemical exposure common in petrochemical plants, power generation facilities, and metallurgical processing sites.

In safety-critical control architectures, signal degradation in the probe-to-proximitor cable path is a leading cause of false trips, missed alarms, and unplanned shutdowns. The 330903-00-05-10-02-05/CN addresses this risk directly through its shielded, low-capacitance cable design, which minimizes signal drift and maintains measurement accuracy across the full operating temperature range. Whether installed in a rotating machinery protection loop, a turbine overspeed interlock, or a compressor surge control circuit, this cable delivers the consistent electrical performance required for dependable safety system operation.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection panel, the 330903-00-05-10-02-05/CN extension cable operates as part of a tightly integrated signal chain. It connects the field-mounted proximity probe — typically a Bently Nevada 330730-080-00-00 or 330780-50-00 probe — to the 3300 XL Proximitor Sensor mounted inside the control cabinet. The proximitor converts the raw eddy-current signal into a voltage output that feeds directly into the Bently Nevada 3500/42M Proximitor Monitor or the 3500/40M Proximitor/Seismic Monitor, both of which provide real-time vibration and position data to the plant DCS or safety instrumented system (SIS).

To ensure the integrity of the full measurement loop, the extension cable must be paired with a correctly specified proximitor power supply — typically the Bently Nevada 3500/15 Power Supply module, which provides stable, regulated DC power to the transducer system and prevents voltage fluctuation from corrupting vibration readings. In installations where multiple measurement channels share a common cabinet, the Bently Nevada 3500/20 Rack Interface Module coordinates communication between individual monitor modules and the plant historian or control system, ensuring that any signal anomaly detected by the 330903-00-05-10-02-05/CN cable path is immediately flagged and logged.

For plants operating under IEC 61511 or IEC 62061 functional safety standards, the extension cable is often installed alongside Bently Nevada 3500/33 16-Channel Relay Module outputs, which translate vibration alarm states into hardwired trip signals for emergency shutdown (ESD) systems. In high-vibration environments such as gas turbine enclosures or large centrifugal compressor trains, additional mechanical protection — such as conduit routing and cable clamp assemblies — is applied to prevent abrasion damage to the ruggedized jacket. The 330903-00-05-10-02-05/CN is also fully compatible with the Bently Nevada TDXnet communication interface, enabling remote diagnostics and predictive maintenance data collection without interrupting the live protection loop.

Critical Industrial Safety Applications

The 330903-00-05-10-02-05/CN ruggedized extension cable is deployed across a wide range of heavy industrial sectors where continuous, uninterrupted machinery monitoring is a safety and operational imperative.

In petrochemical and refinery plants, it is installed on critical rotating equipment including crude oil charge pumps, reactor feed compressors, and flare gas blowers — machinery where a missed vibration alarm can escalate into a process safety incident. The cable’s chemical-resistant jacket withstands hydrocarbon vapor exposure and wash-down cleaning cycles without degradation.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the extension cable forms part of the turbine shaft vibration monitoring loop, feeding real-time displacement data to the plant’s turbine supervisory instrumentation (TSI) system. Any interruption in this signal path can trigger a spurious trip or, worse, mask a developing bearing failure.

In mining and mineral processing operations, the cable is used on large ball mills, SAG mills, and slurry pumps operating in dusty, high-vibration environments. Its ruggedized construction resists mechanical fatigue from continuous equipment vibration and thermal cycling between day and night shifts.

In water and wastewater treatment plants, it monitors the shaft position and vibration of large vertical turbine pumps and centrifugal blowers, where bearing wear detection is critical to preventing unplanned outages in essential public infrastructure.

In metallurgical and steel production facilities, the cable is deployed on rolling mill drives, continuous casting equipment, and large induction furnace cooling pumps — all of which operate under extreme thermal and electromagnetic stress that demands the highest cable shielding performance.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330903-00-05-10-02-05/CN?
The 12-month warranty covers all manufacturing defects, connector integrity failures, and functional performance issues under normal industrial operating conditions. If the cable fails to meet Bently Nevada 3300 NSv system specifications within the warranty period, we provide a free replacement or full refund. Warranty claims are processed within 5 business days of receiving the returned item.

Q2: What pre-shipment testing is performed on this extension cable?
Every 330903-00-05-10-02-05/CN unit undergoes full electrical continuity testing, insulation resistance measurement, and connector integrity inspection before dispatch. Test records are available upon request for customers with quality management system (QMS) documentation requirements.

Q3: Is this cable compatible with all Bently Nevada 3300 series proximitor sensors and probes?
Yes. The 330903-00-05-10-02-05/CN is designed for use within the Bently Nevada 3300 NSv Proximity Transducer System and is electrically compatible with the full range of 3300 XL Proximitor Sensors and 330730 / 330780 / 330900 series proximity probes. Always verify the total system cable length (probe + extension) does not exceed the proximitor’s specified range.

Q4: Can you guarantee long-term supply and replacement support for this SKU?
Yes. We maintain dedicated stock of the 330903-00-05-10-02-05/CN and its common variants to support planned maintenance shutdowns, emergency replacements, and long-term spare parts programs. For customers managing multi-year maintenance contracts, we offer reserved stock arrangements and priority dispatch to minimize machinery downtime.
