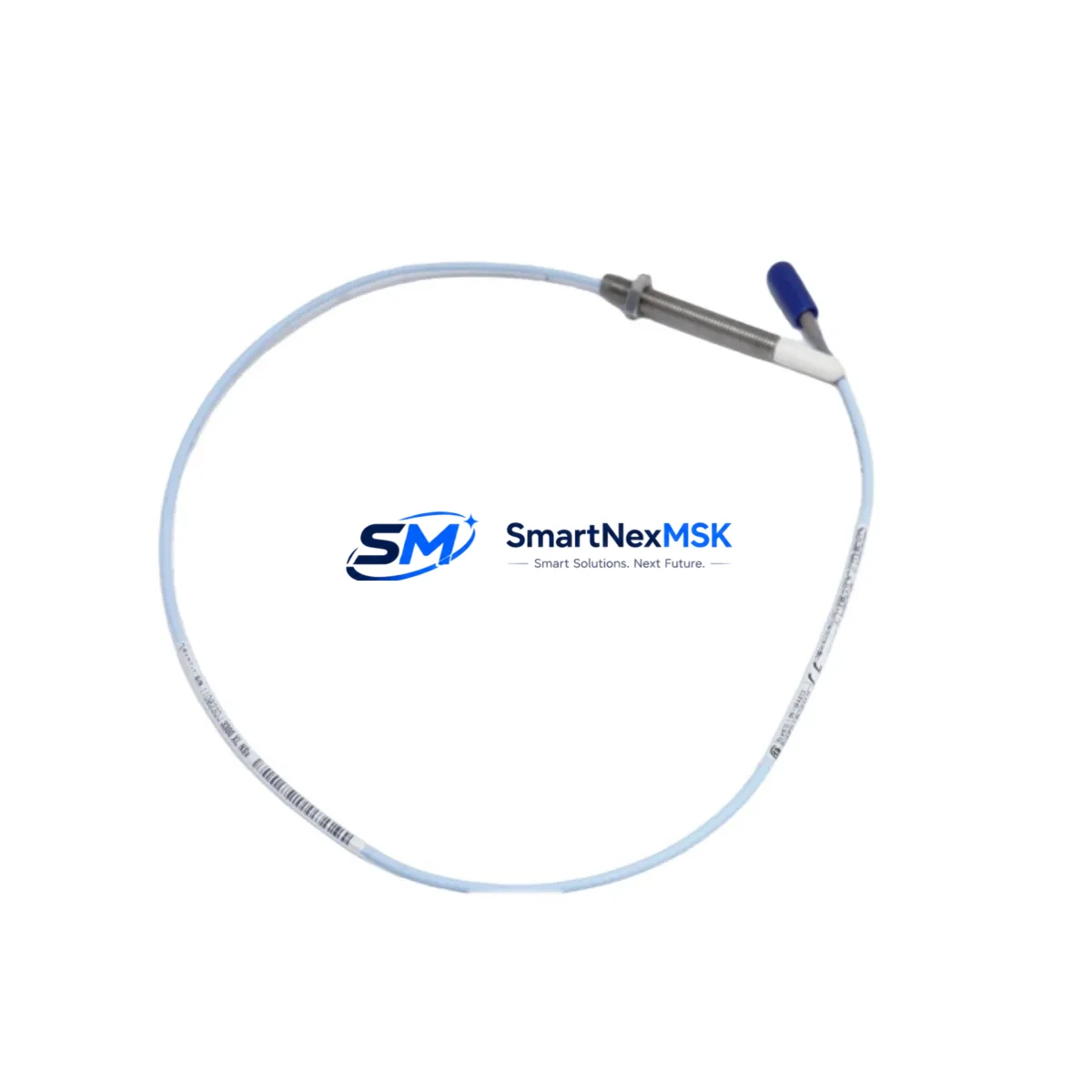

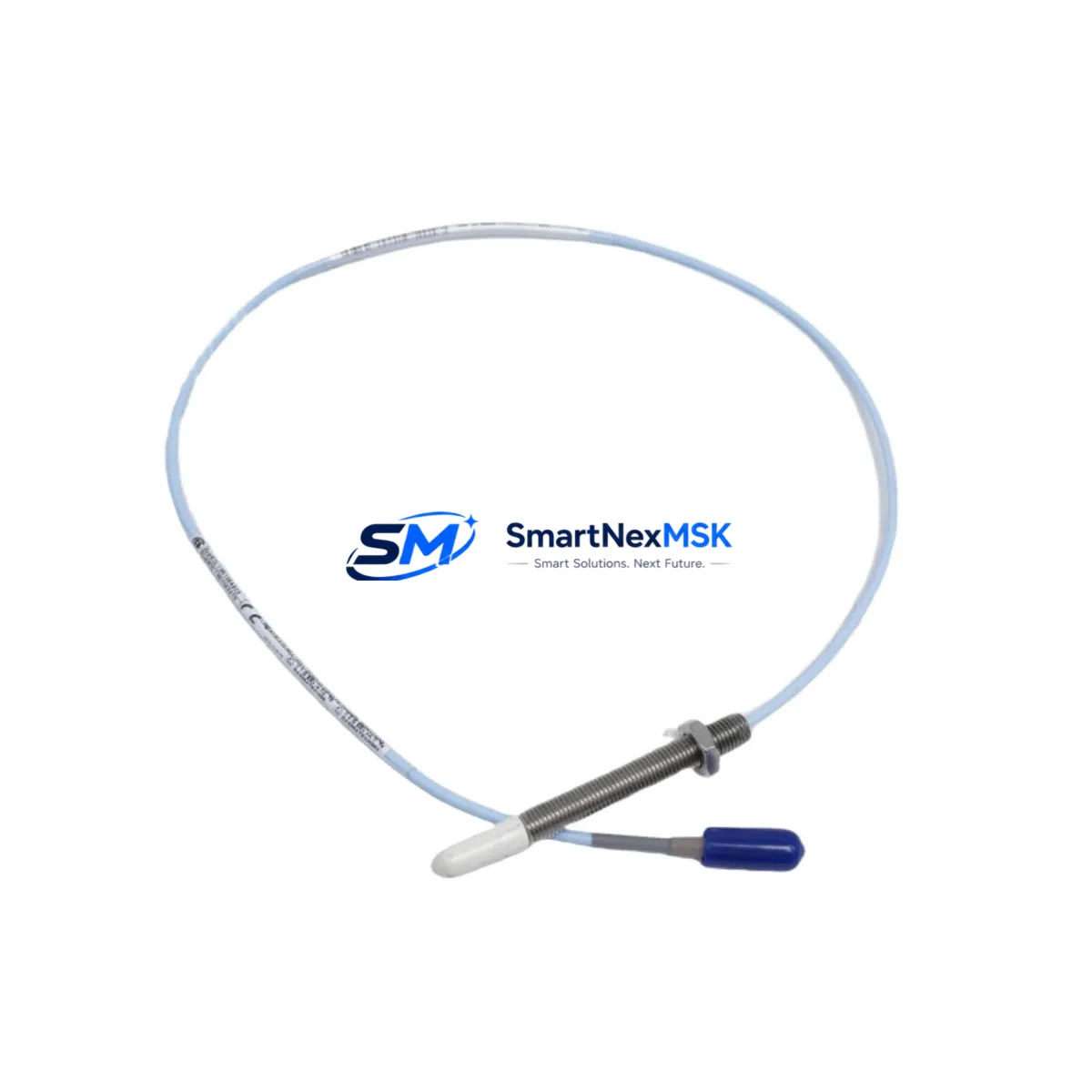

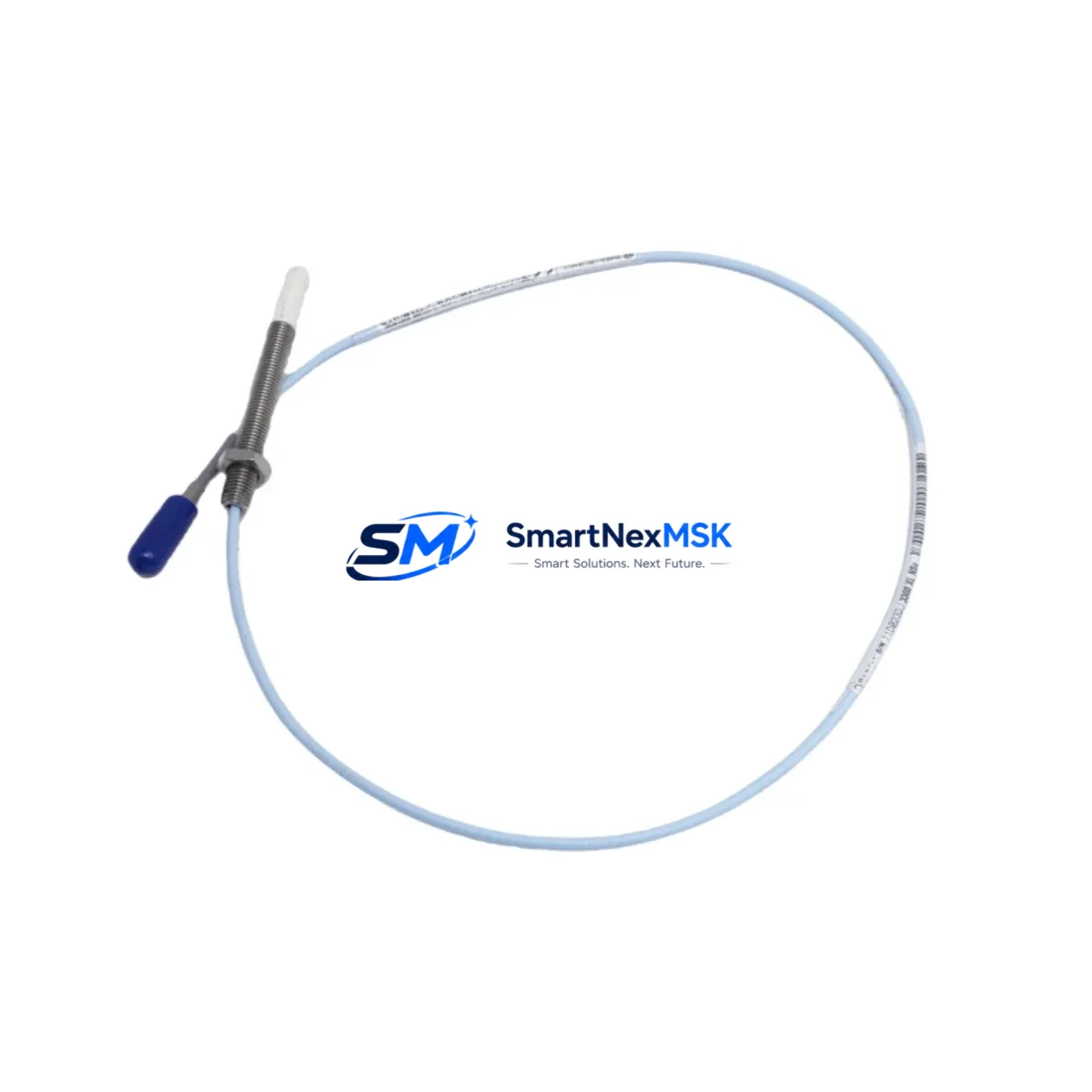

The Bently Nevada 330903-00-06-10-02-05/CN is an original 8mm eddy-current proximity probe engineered for the 3300 NSv Series vibration monitoring system. Designed for continuous shaft displacement and vibration measurement in rotating machinery, this probe is a critical spare for maintenance engineers managing turbines, compressors, pumps, and motors in process-critical environments. Holding verified stock of this SKU directly reduces unplanned downtime risk and supports rapid fault isolation during scheduled or emergency maintenance windows.

For maintenance and procurement engineers, the 330903-00-06-10-02-05/CN represents a non-negotiable line item in any rotating machinery spare parts kit. Its 8mm sensing tip, 200 mV/mil sensitivity, and compatibility with the 3300 XL 8mm proximitor/sensor system make it a direct, plug-compatible replacement for aging or failed probes without requiring system reconfiguration. All units are sourced from original manufacturing channels, individually tested prior to dispatch, and covered by a 12-month warranty against defects in materials and workmanship.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330903-00-06-10-02-05/CN in the field, a disciplined maintenance engineer will treat the probe swap as an opportunity to audit the entire vibration monitoring loop. The probe does not operate in isolation — it functions as part of a three-component measurement chain alongside the 330130-series 8mm extension cable and the 330180-series 3300 XL Proximitor Sensor. Any degradation in the extension cable’s coaxial shielding or connector integrity will introduce noise into the gap voltage signal, masking real vibration data or triggering false alarms. Both components should be inspected or replaced concurrently.

At the panel level, verify the 3300 XL Rack (176449-01 or equivalent) power supply rails are within specification — typically -24 VDC ±10% — before commissioning the new probe. A drifting rack power supply is a common root cause of probe sensitivity errors that are misdiagnosed as probe failure. Check the 3500/42M Proximitor I/O Module or equivalent I/O card for correct channel configuration, gap voltage setpoints, and alert/danger thresholds before returning the machine to service.

For facilities running mixed Bently Nevada and third-party monitoring, confirm that the 3300 RAM (Rack Adapter Module) or any signal conditioner / signal isolator in the loop is compatible with the 200 mV/mil output scale of the NSv probe family. Mismatched scaling factors between the probe and the monitoring rack are a frequent source of erroneous vibration readings post-replacement. Where the control system interfaces with a DCS historian or PLC analog input card, re-verify the 4–20 mA or voltage output scaling at the I/O terminal block after probe installation.

Planned maintenance kits for rotating machinery should also include proximity probe tip protectors, anti-seize compound for the M10 thread, and a calibrated gap-setting tool to achieve the recommended 50 mil (1.27 mm) nominal gap on steel targets. Facilities with multiple monitored shafts should maintain a minimum of two 330903-00-06-10-02-05/CN probes in bonded spare stock to support same-shift replacement without waiting on procurement lead times.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the 3300 XL rack channel associated with the failed probe. Confirm gap voltage reads 0 VDC at the proximitor output before disconnecting the probe cable.

Step 2 — Probe Removal: Loosen the jam nut and unthread the 330903-00-06-10-02-05/CN from the probe holder. Inspect the probe tip for impact damage, corrosion, or contamination. Inspect the probe holder bore for wear or debris.

Step 3 — Extension Cable Inspection: Disconnect the 330130-series extension cable at both the probe and proximitor ends. Check the coaxial connector pins for corrosion and the cable jacket for abrasion. Replace if any anomaly is found — a compromised cable will degrade the new probe’s performance immediately.

Step 4 — New Probe Installation: Apply anti-seize to the M10 thread. Thread the replacement 330903-00-06-10-02-05/CN into the holder. Set the gap to the target value (typically 50 mil / 1.27 mm on AISI 4140 steel) using a feeler gauge or gap-setting tool. Torque the jam nut to specification.

Step 5 — System Verification: Re-energize the rack channel. Confirm gap voltage at the proximitor output is within the linear range (typically -10 to -18 VDC for a 50 mil gap). Verify the DCS or monitoring system displays a valid vibration reading within expected baseline range before releasing the machine to operations.

This workflow is compatible with direct replacement of legacy 330900-series probes in existing 3300 NSv installations, eliminating the need for bracket modification or cable re-routing in most standard configurations.

Spare Parts Support FAQ

Q1: Is the 330903-00-06-10-02-05/CN compatible with older 3300 NSv racks and 3500-series monitoring systems?
Yes. The 330903-00-06-10-02-05/CN is designed for the 3300 NSv measurement chain and is backward-compatible with standard 3300 XL rack configurations. For 3500-series systems, compatibility depends on the I/O module type — confirm the channel is configured for 8mm NSv probe input before installation.

Q2: What pre-shipment testing is performed on each unit?
Every 330903-00-06-10-02-05/CN is bench-tested for gap voltage linearity, sensitivity (200 mV/mil ±1%), and connector integrity prior to dispatch. A test report is available upon request. Units are shipped in anti-static, padded packaging to prevent transit damage to the probe tip and cable assembly.

Q3: How should this probe be stored as a long-term spare?
Store in original packaging in a dry, temperature-controlled environment (0–40°C, <85% RH non-condensing). Avoid storing near strong magnetic fields or solvents. Inspect the probe tip and connector annually. Shelf life under proper storage conditions exceeds 5 years without performance degradation.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers defects in materials and workmanship from the date of shipment. It does not cover damage resulting from improper installation, mechanical impact, chemical exposure, or operation outside specified parameters. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement or full refund options available.
