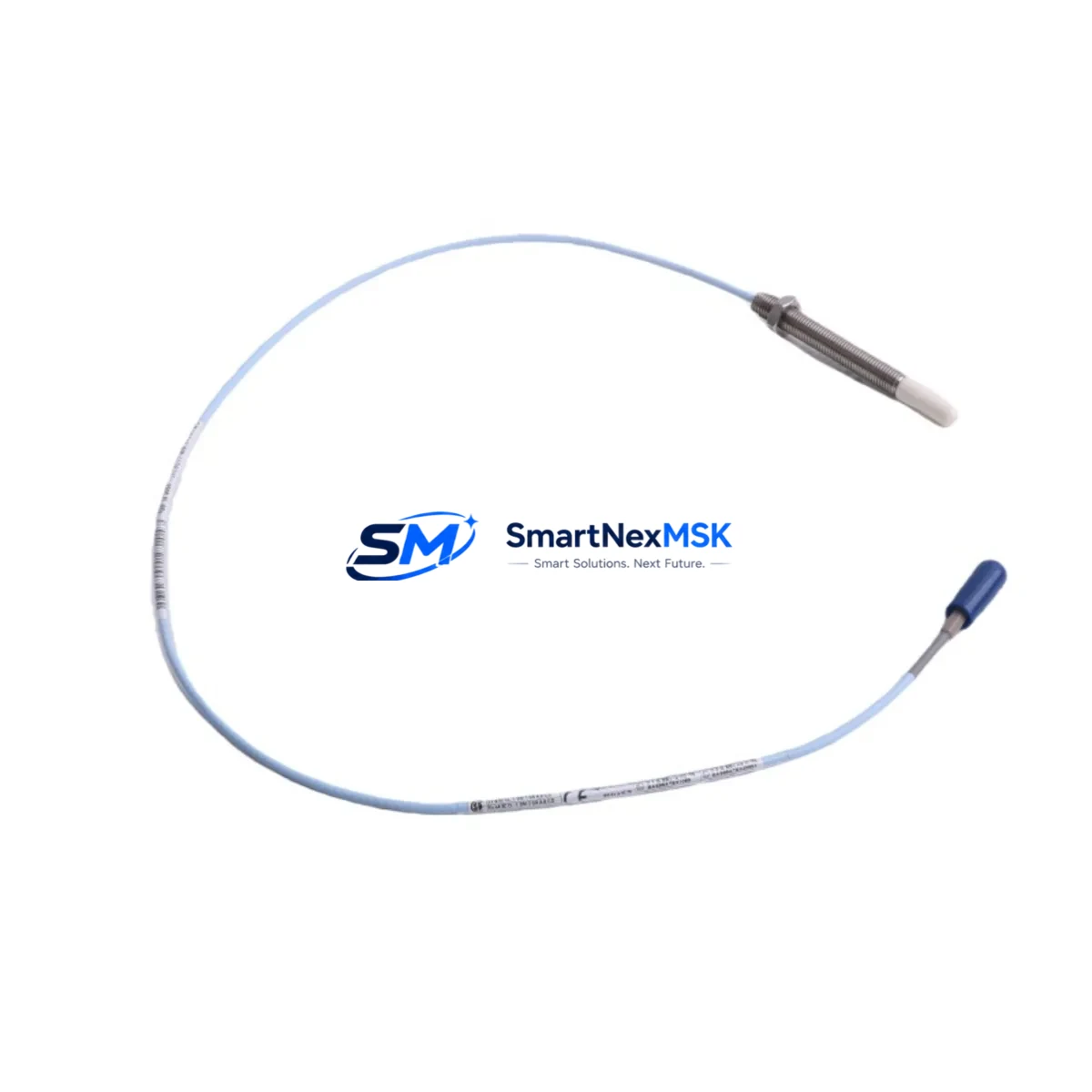

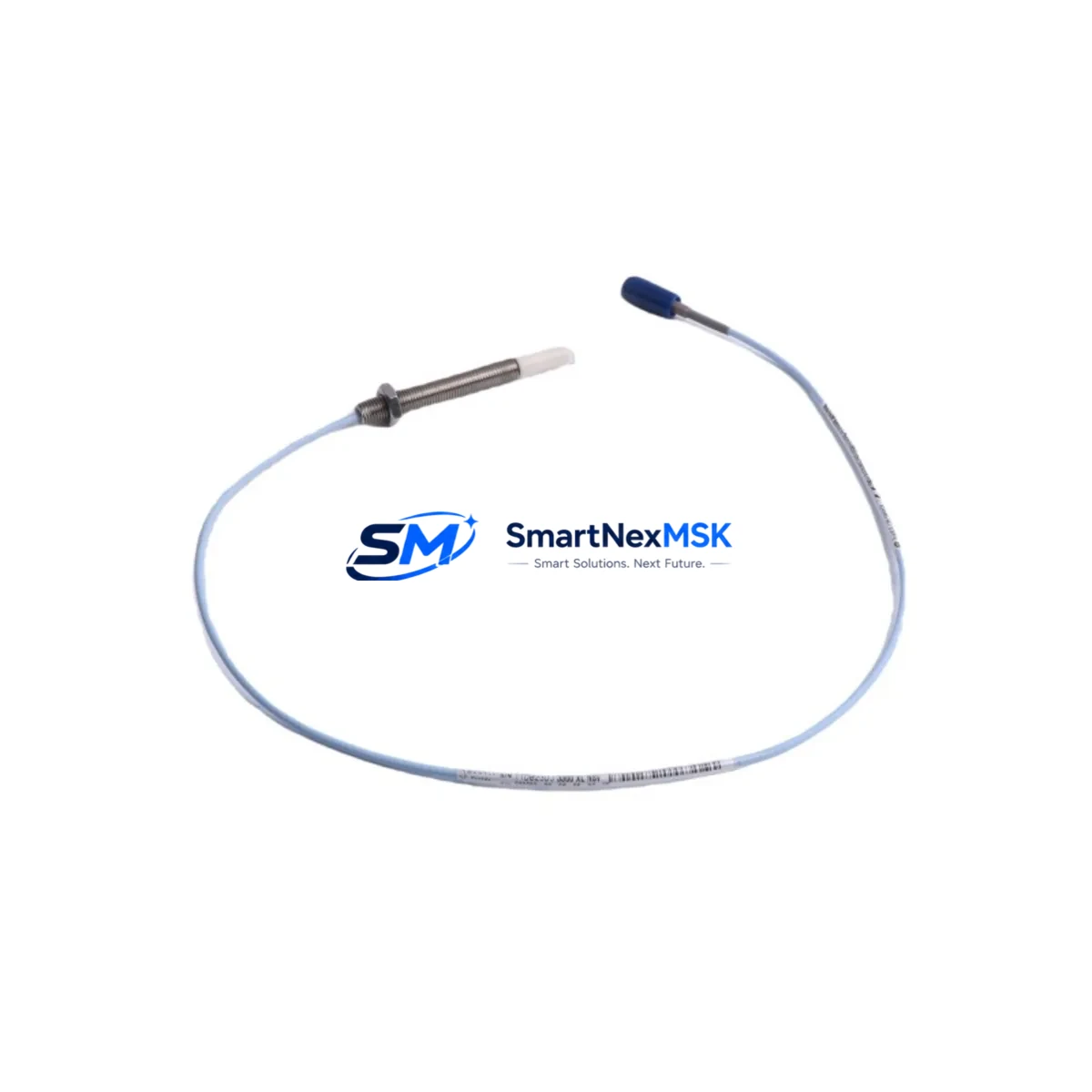

Bently Nevada 330903-00-08-05-01-00 Safety-Enhanced Proximity Transducer

Bently Nevada 330903-00-08-05-01-00 Safety-Enhanced Proximity Transducer for Harsh Industrial Sites

The Bently Nevada 330903-00-08-05-01-00 is a high-reliability, safety-grade proximity transducer from the 3300 XL NSv Series, engineered specifically for continuous vibration monitoring in the most demanding industrial environments. Designed to operate without compromise in high-load, high-interference, and safety-critical control loops, this transducer delivers consistent, drift-free shaft displacement measurements that form the backbone of rotating machinery protection systems across oil & gas, power generation, mining, metallurgy, water treatment, and continuous process manufacturing.

In heavy industrial facilities where control interruption is not an option, the 330903-00-08-05-01-00 provides the signal integrity and mechanical robustness required to sustain safe, uninterrupted operation. Its non-contact eddy-current sensing principle eliminates mechanical wear, while its ruggedized housing resists vibration, moisture ingress, chemical exposure, and electromagnetic interference — all common threats in control cabinets and field junction boxes operating near variable frequency drives, high-voltage switchgear, and large rotating assets.

Safety Reliability Table

Control Cabinet Protection Strategy

The 330903-00-08-05-01-00 proximity transducer does not operate in isolation — it is a critical front-end sensor within a layered machinery protection architecture. In a properly configured control cabinet or machinery protection panel, this transducer interfaces directly with the Bently Nevada 3300 XL Proximitor Sensor (e.g., 330180-91-05), which conditions the raw eddy-current signal into a calibrated DC voltage output suitable for monitoring systems. The Proximitor is typically mounted in a DIN-rail enclosure alongside Bently Nevada 3500 Series Rack modules — such as the 3500/42M Proximitor/Seismic Monitor — which provide real-time alarm and trip outputs to the plant DCS or safety instrumented system.

To protect the signal chain from power-related disturbances, the monitoring rack is typically powered through a Bently Nevada 3500/15 Power Supply module or an equivalent redundant 24 VDC industrial power supply with surge suppression. In environments with significant electrical noise — such as those near large motors, welding equipment, or VFDs — additional signal isolators and transient surge suppressors are installed at the cabinet entry points to prevent surge damage to the Proximitor input circuitry.

For installations requiring SIL-rated interlock protection, the transducer output feeds into a safety relay module or a SIL 2-certified logic solver, ensuring that shaft displacement beyond the danger threshold triggers an automatic machine trip before catastrophic bearing failure or rotor contact can occur. The complete loop — from the 330903-00-08-05-01-00 probe tip through the extension cable, Proximitor, monitor rack, and safety relay — must be validated during commissioning using a Bently Nevada System 1 software platform or equivalent loop calibration tool to confirm end-to-end signal accuracy and alarm setpoint integrity.

Cable routing discipline is equally critical: the 3300 XL 8mm armored extension cable must be routed away from high-voltage conductors and secured with non-ferrous cable clamps to prevent signal interference and mechanical abrasion in high-vibration zones. Proper grounding of the cable shield at a single point — typically at the Proximitor — eliminates ground loop noise that could cause false alarms or mask genuine vibration events.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In crude distillation units, compressor trains, and reactor feed pumps, the 330903-00-08-05-01-00 monitors shaft radial displacement on critical rotating equipment. Any abnormal shaft orbit — caused by rotor imbalance, bearing wear, or process surge — is detected in real time, enabling the safety system to initiate a controlled shutdown before seal failure or fire risk escalates.

Power Generation: Steam turbines and gas turbines in power plants operate at extreme speeds and temperatures. The 3300 XL NSv proximity transducer provides the continuous, high-resolution shaft position data required by turbine protection systems to detect rubs, instability, and critical speed crossings during startup and shutdown sequences — conditions where machinery is most vulnerable to damage.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to severe mechanical shock and dusty, corrosive atmospheres. The IP67-rated probe body and ruggedized cable of the 330903-00-08-05-01-00 maintain reliable signal output even when exposed to abrasive dust, water spray, and continuous structural vibration from adjacent crushing equipment.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blowers in water treatment facilities require continuous vibration monitoring to prevent unplanned outages that could disrupt municipal water supply. The non-contact sensing principle of this transducer ensures zero mechanical interference with the monitored shaft, providing years of maintenance-free operation in humid, chemically aggressive environments.

Metallurgy & Steel Production: Rolling mills, continuous casters, and large induction furnace drives generate intense electromagnetic fields and mechanical shock loads. The EMI-shielded coaxial cable construction of the 330903-00-08-05-01-00 maintains signal integrity in these environments, ensuring that vibration alarms are not masked by electrical noise — a critical requirement in facilities where undetected bearing failure can result in costly production line shutdowns and safety incidents.

Port & Material Handling: Ship-to-shore cranes, conveyor drive systems, and large hoisting machinery in port operations depend on reliable vibration monitoring to prevent mechanical failures during high-utilization periods. The 3300 XL NSv transducer’s wide operating temperature range and robust mechanical construction make it suitable for outdoor and semi-outdoor installations subject to thermal cycling and salt-laden air.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330903-00-08-05-01-00?
The 12-month warranty covers all manufacturing defects, material failures, and functional performance deviations under normal operating conditions as specified in the Bently Nevada 3300 XL NSv product documentation. Warranty claims are supported with full replacement or repair, and our team provides pre-shipment functional verification records upon request.

Q2: How is the unit tested before shipment?
Every 330903-00-08-05-01-00 unit undergoes outgoing quality inspection prior to dispatch, including visual inspection, cable continuity verification, and functional output check against Bently Nevada calibration standards. Test records are available for critical applications requiring full traceability documentation.

Q3: Is this transducer compatible with existing 3300 XL system installations?
Yes. The 330903-00-08-05-01-00 is a direct form-fit-function replacement within the Bently Nevada 3300 XL NSv system architecture. It is compatible with all standard 3300 XL Proximitor Sensors and 3300 XL 8mm extension cables. No recalibration of the Proximitor is required when replacing a like-for-like unit, provided the target material and gap setting remain unchanged.

Q4: Can long-term supply be guaranteed for maintenance and spare parts programs?
We maintain dedicated inventory of the 330903-00-08-05-01-00 and related 3300 XL NSv components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. Customers operating critical assets in continuous production environments are encouraged to contact our team to discuss consignment stock arrangements and priority fulfillment lead times.
