Bently Nevada 330903-00-08-10-01-00 Spare 3300 NSv Automation: Precision Spare Parts for Industrial Downtime Recovery

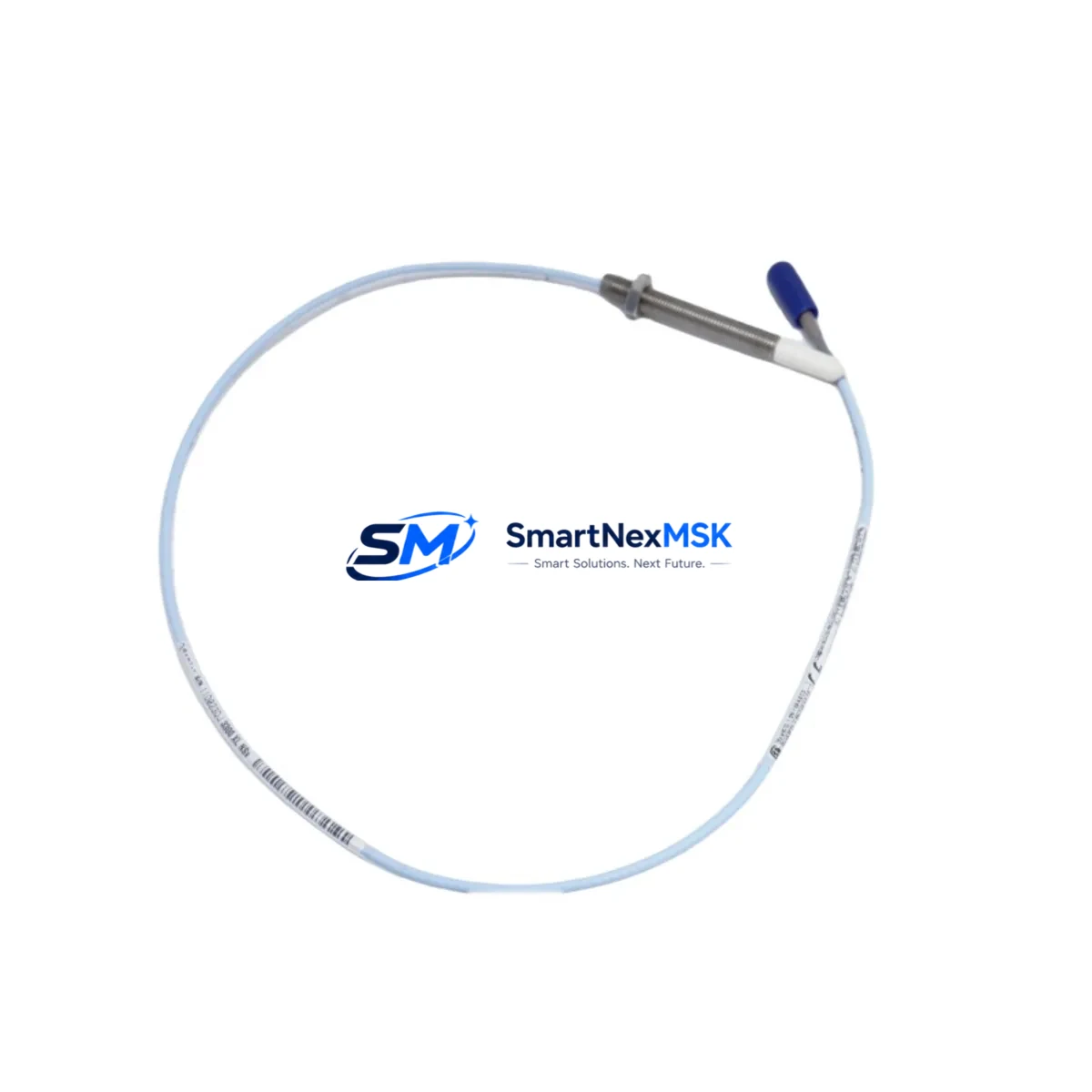

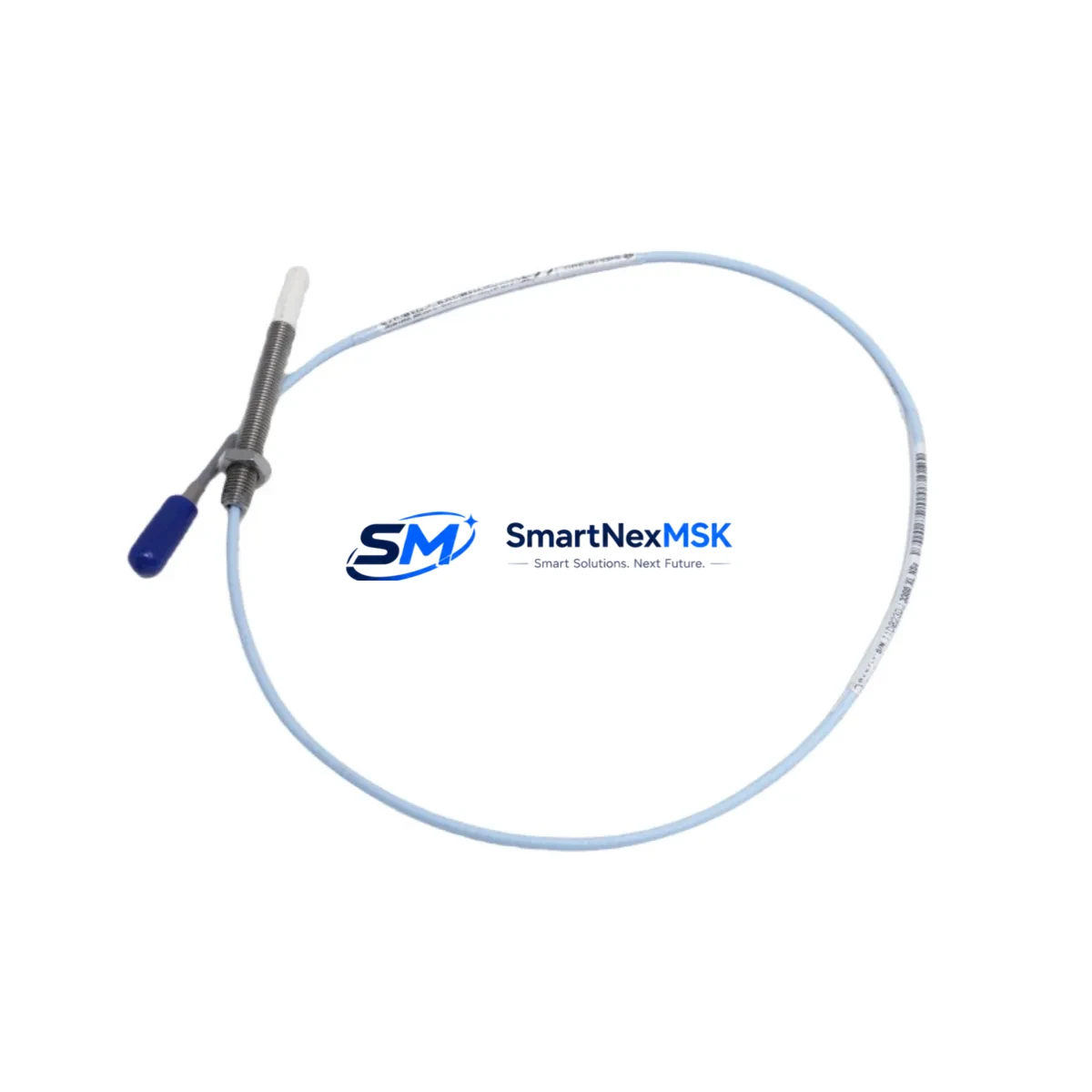

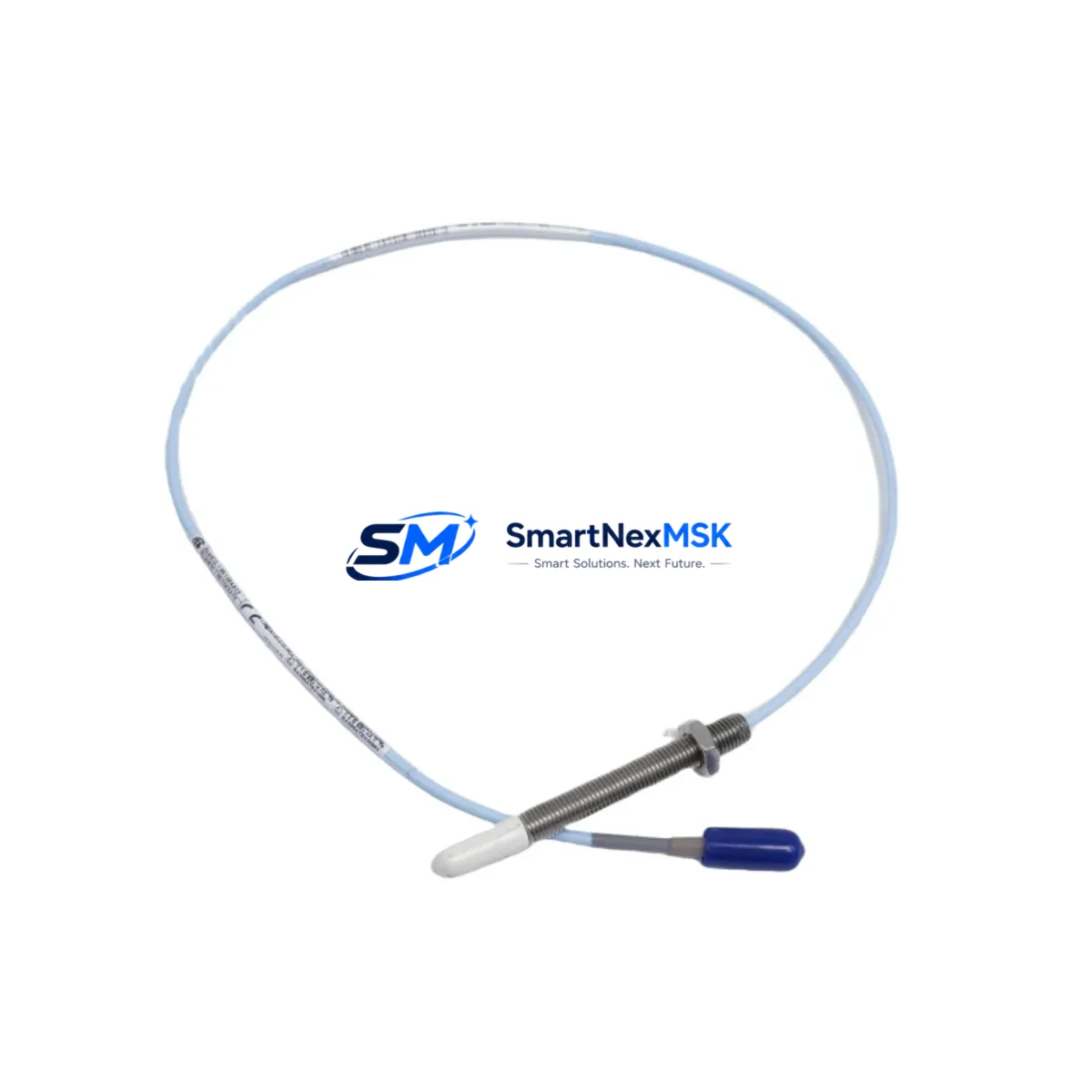

The Bently Nevada 330903-00-08-10-01-00 is an original 8mm eddy-current proximity probe engineered for the Bently Nevada 3300 NSv vibration monitoring system. Designed for continuous-duty industrial environments, this probe delivers reliable shaft displacement and vibration measurements critical to rotating machinery protection in turbines, compressors, pumps, and generators. Sourced as a genuine OEM-grade spare, the 330903-00-08-10-01-00 is a direct maintenance replacement that restores system integrity without recalibration delays or compatibility risk.

For maintenance engineers managing aging machinery protection systems, having a verified spare of the 330903-00-08-10-01-00 on the shelf is a fundamental risk-reduction strategy. Proximity probe failures are among the leading causes of unplanned shutdowns in rotating equipment monitoring. A single failed probe can trigger a false trip, mask a real fault, or leave critical machinery unprotected — all scenarios with severe operational and safety consequences. Stocking this spare eliminates the lead-time gap between fault detection and system restoration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330903-00-08-10-01-00 proximity probe in a 3300 NSv monitoring loop, a thorough maintenance engineer will not stop at the probe itself. The eddy-current measurement chain is a system — and any weak link can compromise the integrity of the entire vibration signal. During a planned or emergency replacement, the following components should be inspected or replaced concurrently:

The 3300 NSv Proximitor Sensor (such as the 330180-91-00 or 330130-080-01-00) is the signal conditioning module that pairs directly with this probe. If the probe has failed due to environmental stress, the Proximitor may have been exposed to the same conditions and should be bench-tested. Similarly, the 330130 Series Extension Cable connecting the probe to the Proximitor is a frequent wear point — inspect for insulation damage, connector corrosion, and continuity before reinstalling.

At the monitoring rack level, verify the 3300/16 Dual Voting Logic or 3500/42M Proximitor I/O Module is receiving clean signal within the expected gap voltage window. A drifting gap voltage reading often indicates a probe or cable issue rather than a true machinery fault. While the cabinet is open, inspect the 3500 Rack Power Supply (e.g. 3500/15 Power Supply Module) for output stability — voltage fluctuations at the rack level can cause false alarms across multiple channels.

For facilities running integrated safety systems, confirm that the 3500/33 16-Channel Relay Module or equivalent relay output card is correctly configured for the new probe’s channel assignment. Relay setpoints may need to be re-verified after probe replacement, particularly if the previous probe had drifted from its nominal scale factor. If the plant uses a System 1 Evolution or System 1 Optimizer software platform for condition monitoring, update the probe configuration record and re-baseline the vibration trend data after installation.

Procurement engineers building a comprehensive spare parts kit for a 3300 NSv-equipped machine train should also consider stocking the 330105-02-12-10-02-05 Proximitor Sensor, 330130-080-01-CN Extension Cable, and a set of 3500/22M Transient Data Interface modules for complete loop redundancy. Maintaining a minimum of one spare probe per monitored shaft position is a recognized best practice in API 670-compliant machinery protection programs.

Site Replacement Workflow

Replacing the 330903-00-08-10-01-00 in the field follows a structured sequence to minimize downtime and ensure measurement accuracy is restored on the first attempt:

1. Pre-Replacement Verification: Confirm the replacement probe is the correct part number and configuration (8mm, 1.0m cable, standard tip). Cross-reference the probe’s scale factor label against the Proximitor’s configured sensitivity. Mismatched scale factors are a common source of post-replacement calibration errors.

2. Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. For hot-standby systems, switch monitoring to the redundant channel before removing the active probe. Do not remove the probe while the machine is running unless the system is designed for online replacement.

3. Gap Setting: Install the new 330903-00-08-10-01-00 and set the probe gap to the manufacturer-specified nominal gap voltage (typically -10.0 VDC ± 0.5 VDC for a 1.0mm gap). Use a calibrated gap-setting tool or feeler gauge. Verify gap voltage at the Proximitor output terminal before reconnecting to the monitoring rack.

4. Signal Verification: After reconnection, confirm the channel is reading within the expected vibration baseline range. Compare against historical trend data in the condition monitoring system. A sudden step change in vibration reading after probe replacement typically indicates a gap setting error or a wiring reversal.

5. Documentation: Record the replacement date, new probe serial number, gap voltage as-found and as-left values, and the technician’s name in the equipment maintenance log. Update the spare parts inventory to trigger a replenishment order for the consumed 330903-00-08-10-01-00 unit.

This workflow applies equally to planned turnaround replacements and emergency fault-response scenarios. Having the spare pre-tested and shelf-ready reduces the critical-path replacement time from hours to under 30 minutes.

Spare Parts Support FAQ

Q1: Is the 330903-00-08-10-01-00 compatible with both 3300 XL and 3300 NSv systems?
The 330903-00-08-10-01-00 is specifically configured for the 3300 NSv platform. While the physical probe body is similar to 3300 XL probes, the cable termination, scale factor, and Proximitor pairing are NSv-specific. Always verify the Proximitor model number before substituting probes across sub-series. Contact our technical team for cross-compatibility confirmation before ordering.

Q2: What is included in the 12-month warranty and how does it apply to spare parts?
All units ship with a 12-month warranty covering manufacturing defects and functional performance under normal operating conditions. Each unit is functionally tested prior to dispatch. The warranty period begins from the date of shipment. Warranty claims are supported with replacement or full refund, subject to inspection of the returned unit. Damage caused by incorrect installation, overvoltage, or mechanical impact is excluded.

Q3: How should the 330903-00-08-10-01-00 be stored as a long-term shelf spare?
Store in the original anti-static packaging in a dry, temperature-controlled environment (10°C–35°C, <70% RH non-condensing). Avoid storing near strong magnetic fields or high-vibration areas. Inspect the probe tip and cable connector annually for corrosion or physical damage. Shelf life under proper storage conditions exceeds 5 years without performance degradation.

Q4: Can you supply multiple units for a plant-wide spare parts standardization program?
Yes. We support bulk procurement for plant-wide spare parts programs, turnaround kits, and OEM-equivalent stocking agreements. Volume pricing is available for orders of 3 or more units. Lead times for bulk orders are confirmed at the time of inquiry. Contact our sales team to discuss consignment stocking, blanket purchase orders, or annual supply agreements tailored to your maintenance schedule.
