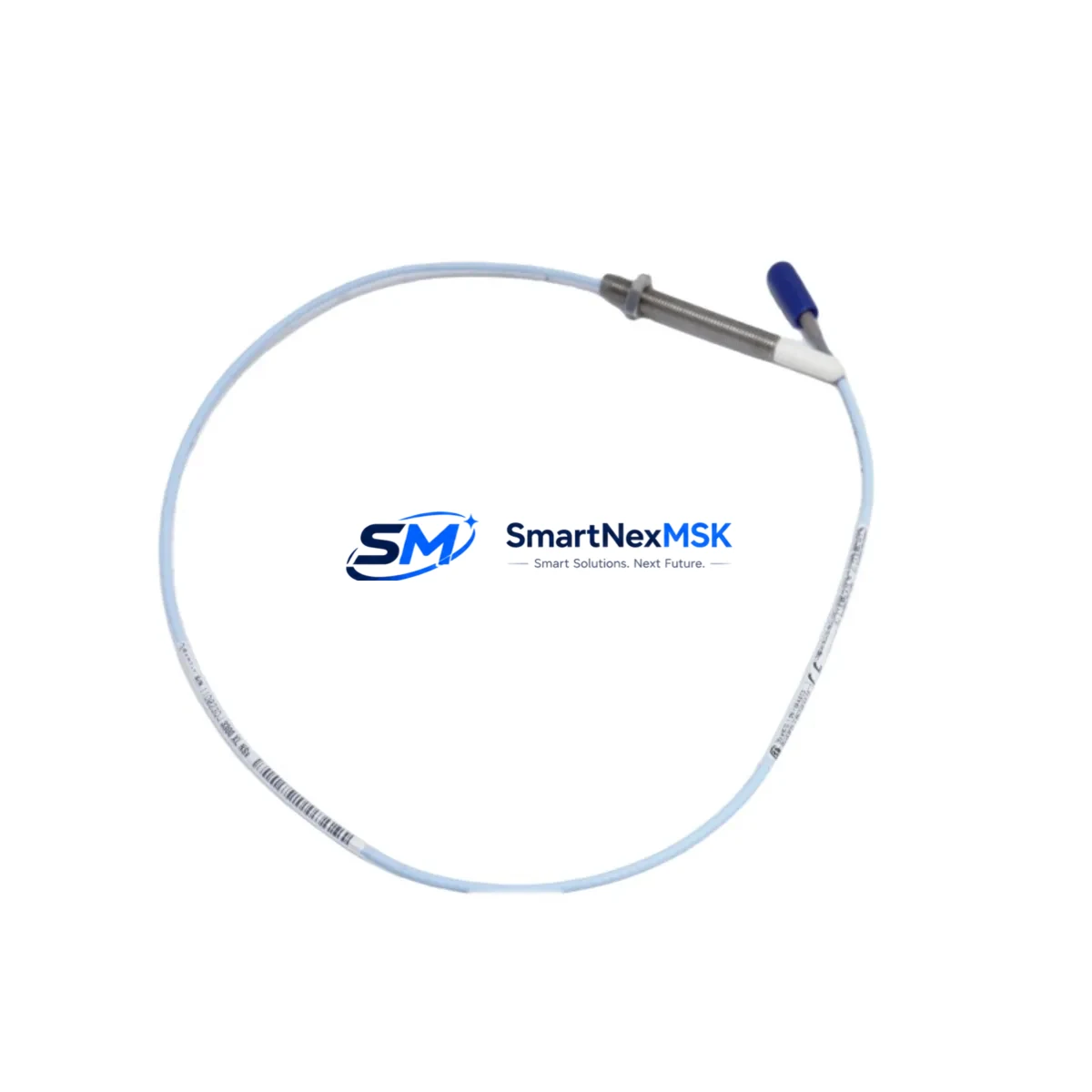

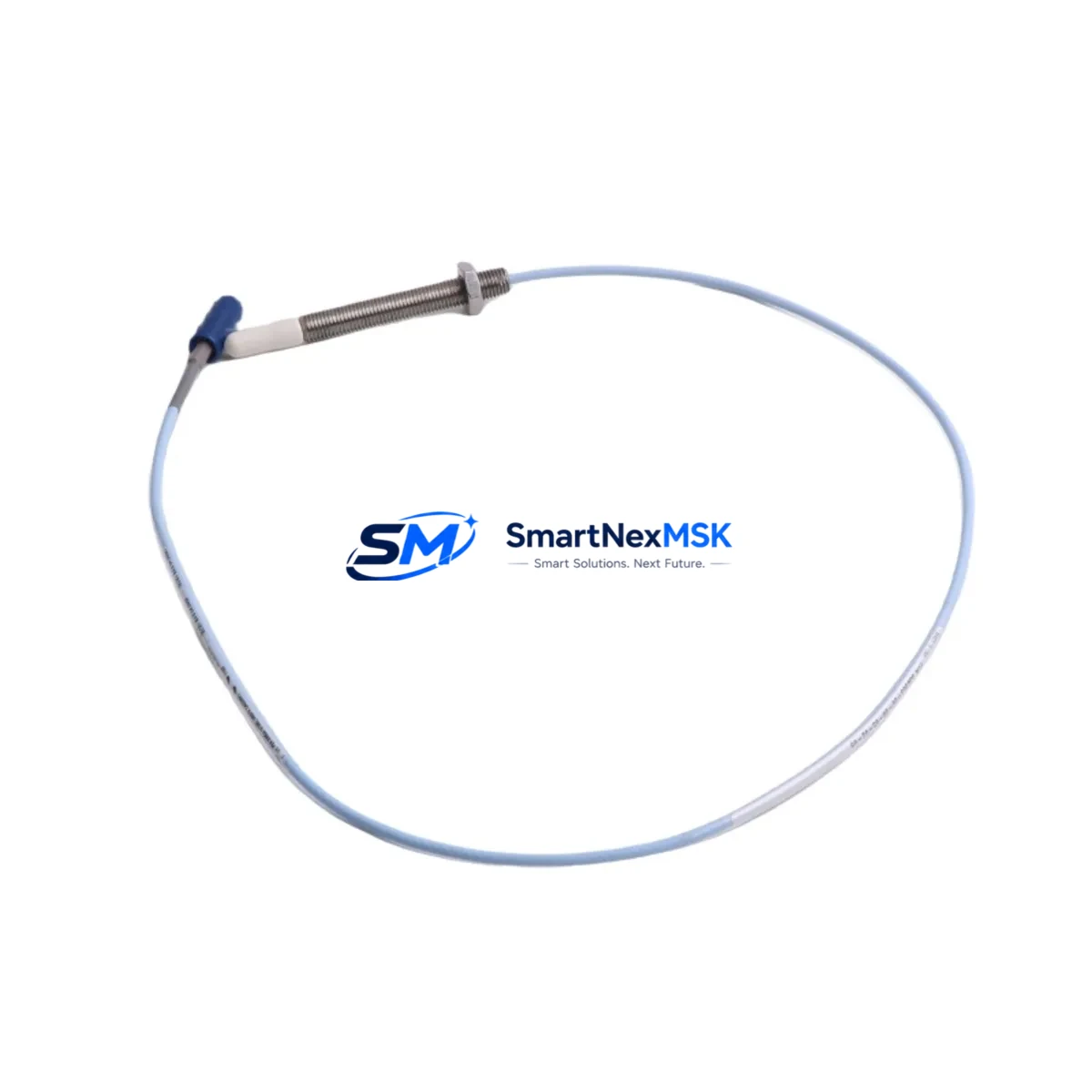

Bently Nevada 330903-00-08-10-02-05/CN: Retrofit-Ready Proximity Extension Cable for 3300 NSv Control Systems
The Bently Nevada 330903-00-08-10-02-05/CN is an 8-metre proximity extension cable engineered for the 3300 NSv vibration monitoring platform. As legacy machinery protection systems age and OEM support windows close, this cable serves as a direct, drop-in replacement for discontinued or end-of-life extension cable assemblies used across turbine, compressor, and pump monitoring installations. Whether you are executing a planned control-cabinet upgrade, recovering from an unplanned cable failure, or migrating an entire machinery protection loop to a modernised rack, the 330903-00-08-10-02-05/CN delivers the electrical and mechanical compatibility required to restore full system integrity with minimal intervention.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | 330903-00-08-10-02-05/CN |
| Cable Length | 8 metres (26.2 ft) |
| Compatible System | Bently Nevada 3300 NSv Machinery Protection System |
| Connector Interface | Standard coaxial BNC-style, compatible with 3300 NSv transducer input modules |
| Replaces / Supersedes | Discontinued 330903-series extension cables of equivalent length |
| Installation Requirement | No rack modification required; direct plug-in replacement |
| Communication Compatibility | Passive signal cable; compatible with all 3300 NSv monitor cards |
| Retrofit Recommendation | Verify probe tip gap and driver voltage after cable swap; re-confirm OK relay state |
| Commissioning Focus | Gap voltage check, signal noise floor verification, alarm setpoint confirmation |
| Warranty | 12-Month Warranty — tested and certified before shipment |
Retrofit Planning for Existing Automation Systems
Successful integration of the 330903-00-08-10-02-05/CN into an existing machinery protection loop requires a structured approach that accounts for every component in the signal chain. The extension cable connects the proximity probe — typically a Bently Nevada 330101 or 330130 series eddy-current probe — to the proximitor or driver module housed in the 3300 NSv rack. Before disconnecting the legacy cable, engineers should document the existing gap voltage reading (normally –10 VDC ±0.5 V for standard 5-mm probes) and record the vibration baseline displayed on the associated 3300/16-channel or 3300/20-channel monitor card.
Within the same control cabinet, the 3300 NSv rack typically houses a 3300/05 power supply module that feeds both the monitor cards and the proximitor drivers. Confirm that the power supply output capacity is within specification before re-energising the loop, particularly in installations where additional I/O expansion modules or a 3300/55 Keyphasor module have been added since the original commissioning. Cable routing should follow the original conduit path to avoid introducing electromagnetic interference from adjacent VFD power cables or relay output wiring.
For sites running a parallel DCS or safety instrumented system, the 3300 NSv rack communicates vibration data via a 3300/93 System 1 interface module or a Modbus gateway card. After the cable replacement, verify that the System 1 software — or the connected DCS historian — is receiving updated vibration and gap values before closing the work order. HMI screens tied to the machinery protection loop should be checked for correct tag mapping; a stale or frozen value on the operator display is a common indicator of a wiring or addressing error introduced during the swap.
In multi-machine installations where several 3300 NSv racks share a common communication backbone, it is advisable to replace extension cables one loop at a time, keeping adjacent channels live throughout the process. This approach preserves the overall protection coverage of the train and avoids simultaneous bypass of multiple measurement points. Spare 330905 termination resistors and 330130-series probe assemblies should be staged at the work site before beginning, as these components are frequently found to be degraded during cable replacement inspections.
Downtime Control During System Migration
Minimising production downtime during a proximity cable replacement begins with pre-work preparation. Before the maintenance window opens, obtain a certified replacement 330903-00-08-10-02-05/CN from verified stock, confirm the gap voltage specification for the installed probe model, and prepare a bypass procedure approved by the site safety authority. Where the machinery protection system is connected to an emergency shutdown (ESD) logic solver, coordinate with the control room to place the affected channel in bypass mode — logging the bypass start time and expected duration in the safety management system.
During the physical swap, label both ends of the new cable before routing to prevent cross-connection with adjacent channels. Reconnect the proximitor end first, then the monitor card end, and restore power to the rack before removing the bypass. Perform a live gap voltage check and compare against the pre-work baseline; a deviation of more than ±0.5 V indicates a probe seating or cable continuity issue that must be resolved before the bypass is lifted. The entire cable replacement procedure, when pre-planned, can typically be completed within a 30-to-60-minute maintenance window, preserving the original PLC or DCS program logic without any software modification.
For sites where the 3300 NSv system feeds trip outputs to a turbine control system or a Woodward governor, confirm that the OK relay has re-energised and that the trip output is in the healthy state before returning the machine to service. Document the post-replacement gap voltage, vibration baseline, and alarm setpoint confirmation in the site maintenance record to support future audits and warranty claims.
Retrofit Support FAQ
Q1: Is the 330903-00-08-10-02-05/CN a direct replacement for my existing 8-metre extension cable?
Yes. The 330903-00-08-10-02-05/CN is a direct, pin-compatible replacement for all standard 8-metre Bently Nevada 330903-series extension cables used in 3300 NSv proximity measurement loops. No rack modification or re-addressing is required.
Q2: What commissioning checks are required after installation?
After installation, verify the gap voltage at the proximitor output (target: –10 VDC ±0.5 V for standard 5-mm probes), confirm the vibration baseline on the monitor card, and check that the OK relay has re-energised. Update the HMI tag display and confirm the DCS or System 1 historian is receiving live data.
Q3: Can this cable be used with probes and drivers from other Bently Nevada series?
The 330903-00-08-10-02-05/CN is optimised for the 3300 NSv platform. Compatibility with other Bently Nevada series — such as the 3500 or 7200 — depends on the specific probe and driver combination. Contact our technical team with your full system configuration for confirmation before ordering.
Q4: What does the 12-month warranty cover, and how is the cable tested before shipment?
Every 330903-00-08-10-02-05/CN unit is tested for continuity, insulation resistance, and connector integrity before shipment. The 12-month warranty covers manufacturing defects and electrical performance under normal operating conditions. Warranty claims are supported with full documentation and expedited replacement from stock.
