Bently Nevada 330903-00-09-10-01-00 Spare for 3300 NSv Automation: Precision Replacement for Industrial Downtime Control

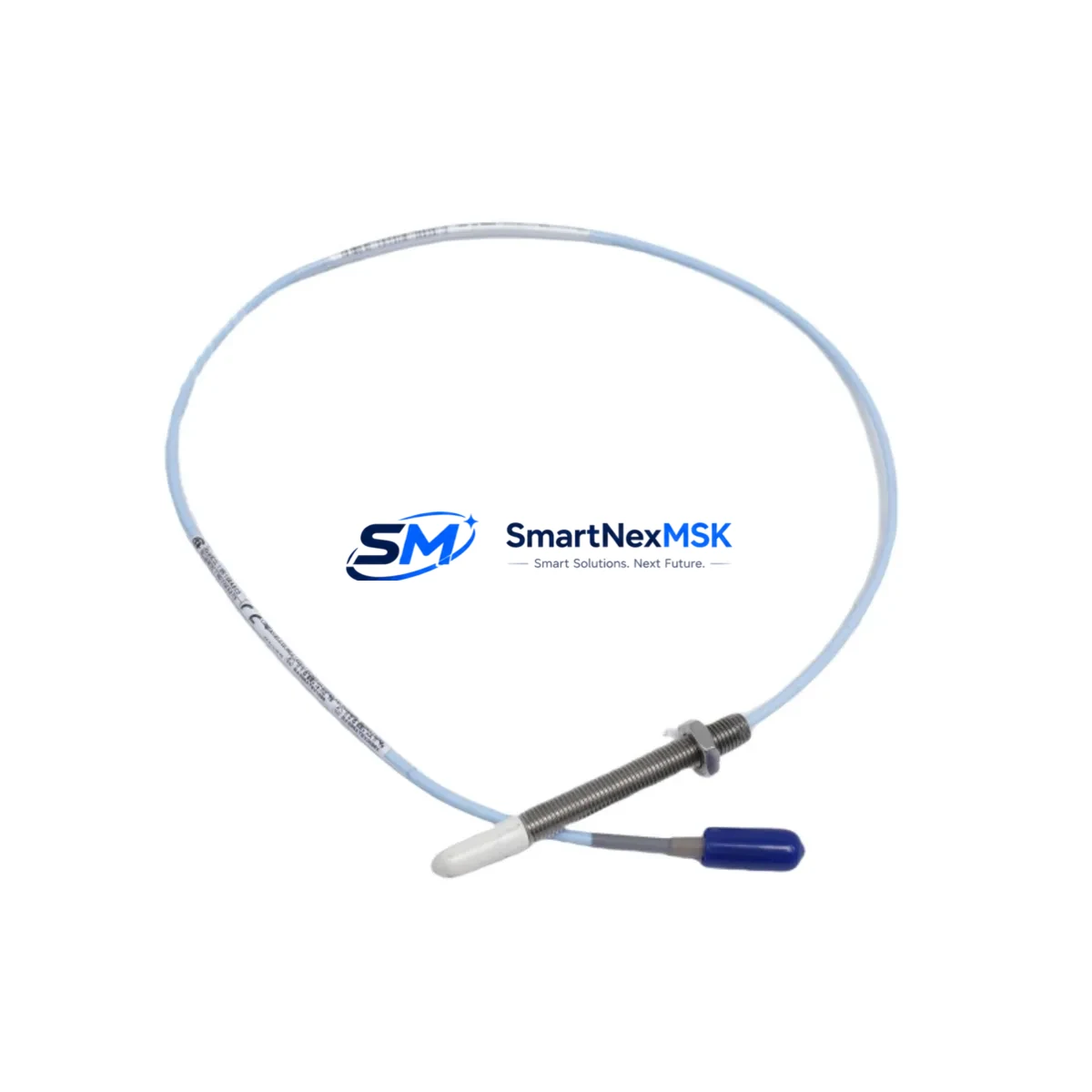

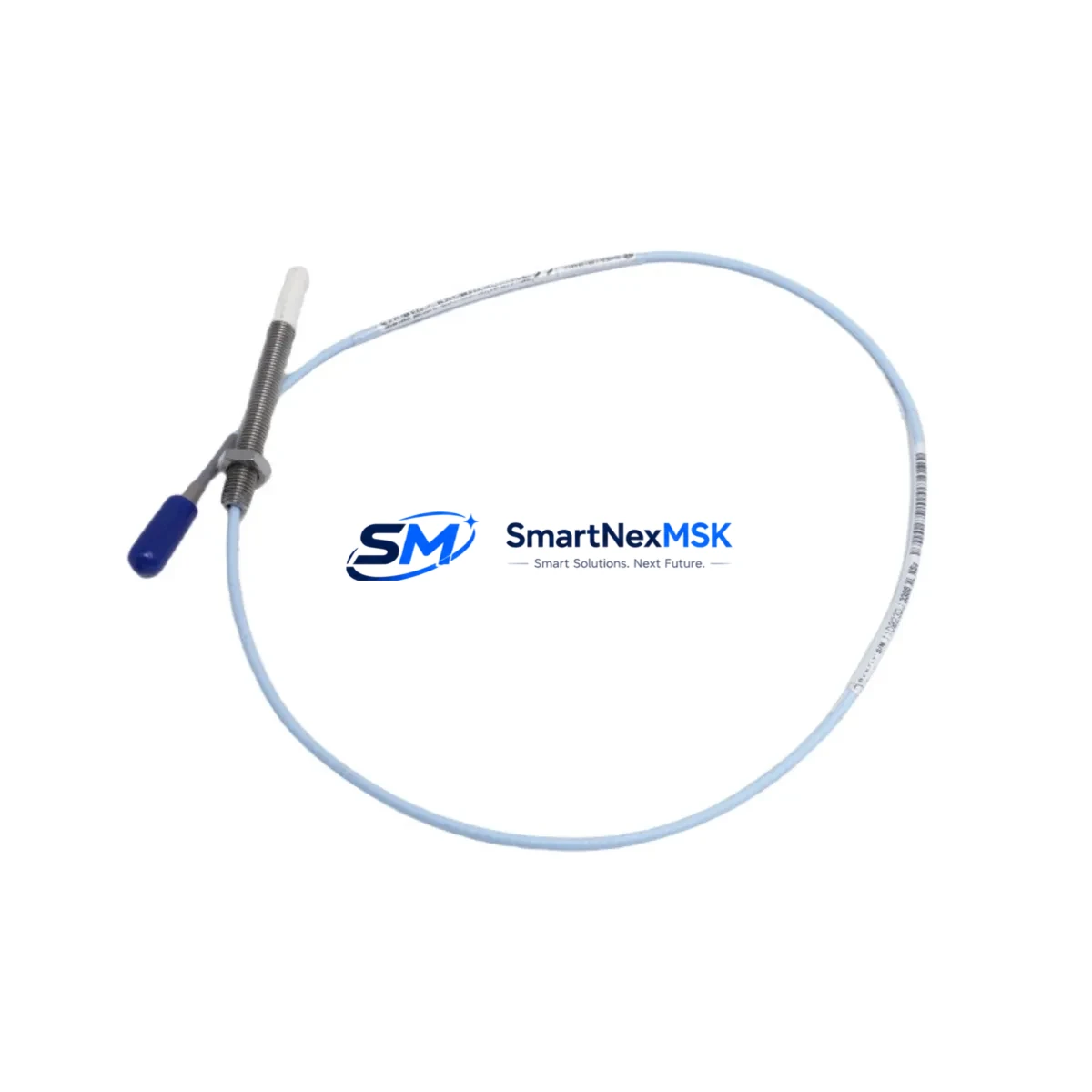

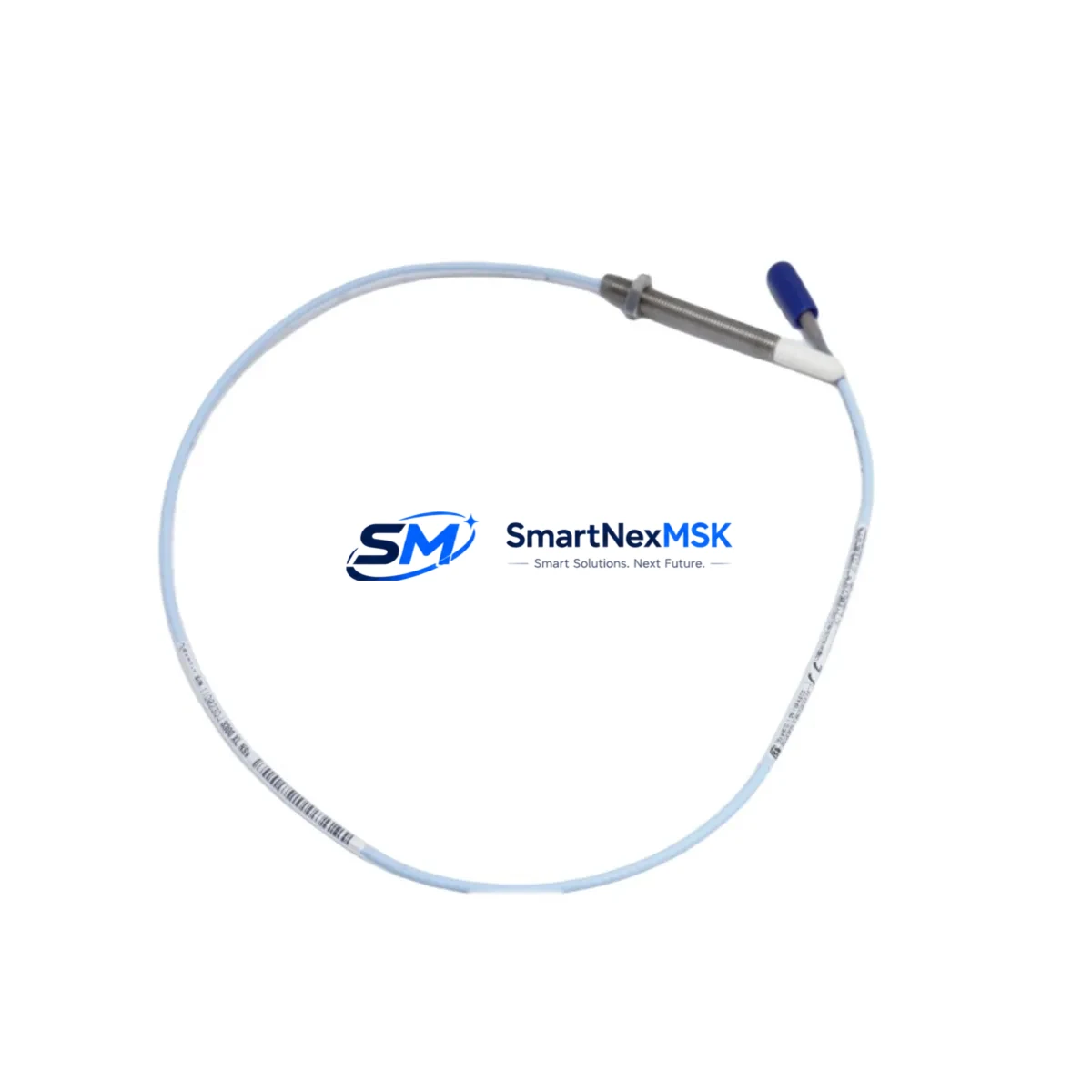

The Bently Nevada 330903-00-09-10-01-00 is an 8mm eddy current proximity probe engineered for continuous vibration and position monitoring in rotating machinery. As a maintenance-ready spare within the 3300 NSv series ecosystem, this probe is a critical component in turbine protection panels, compressor monitoring racks, and pump condition monitoring systems across oil & gas, power generation, and heavy manufacturing facilities. Sourced as an original spare, it meets the full electrical and mechanical specification of the factory unit, ensuring drop-in compatibility without recalibration of the monitoring system.

For maintenance engineers managing aging machinery protection systems, having a verified spare of the 330903-00-09-10-01-00 on the shelf is a fundamental risk-reduction strategy. Eddy current probes are wear-sensitive components subject to cable fatigue, connector corrosion, and tip damage from debris contact. A failed probe in a critical measurement channel can trigger a spurious trip or, worse, mask a genuine vibration fault — both outcomes carry significant operational and safety consequences. Stocking this probe as part of a planned maintenance inventory eliminates the lead-time risk associated with emergency procurement.

Procurement engineers should note that the 330903-00-09-10-01-00 is part of a matched system. When replacing this probe, the complete measurement chain — including the extension cable (typically 330130-series or 330180-series) and the proximitor/driver module (such as the 3300 XL 8mm proximitor) — should be inspected and functionally tested. A probe replacement that is not paired with a verified driver module and cable assembly may produce measurement errors that are difficult to diagnose in the field. Maintaining matched sets of probe, cable, and proximitor as a single spare kit is best practice for 3300 NSv installations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured maintenance plan for a 3300 NSv monitoring channel should address the entire signal path, not just the probe. When scheduling a planned replacement of the 330903-00-09-10-01-00, maintenance teams should simultaneously inspect and, where service life warrants, replace the following components:

• Extension Cable (330130-series / 330180-series): Check for jacket cracking, connector pin corrosion, and continuity. Cable degradation is a leading cause of intermittent probe faults.
• 3300 XL 8mm Proximitor Module: Verify output voltage at the gap center point. A drifted proximitor will produce measurement errors even with a new probe installed.
• 3300/16 or 3300/20 Monitor Card: Inspect the monitor card for alarm setpoint integrity and channel OK status after probe replacement.
• Terminal Block and Field Wiring: Inspect the I/O terminal block for loose connections, oxidation, and correct shielding grounding. Poor grounding introduces noise into the vibration signal.
• Barrier or Zener Barrier (for hazardous area installations): Verify barrier integrity and continuity if the probe is installed in a Zone 1 or Zone 2 classified area.
• Power Supply Module (e.g. 3300/05 Power Supply): Confirm supply voltage stability. Voltage sag under load can affect proximitor linearity.
• Signal Conditioner / Isolator: If a signal isolator is used between the proximitor and the DCS or safety system, verify isolation integrity and output scaling.
• Keyphasor Probe (e.g. 330900-series): If the machine uses a Keyphasor reference for phase and speed measurement, inspect the Keyphasor probe and its cable at the same time to avoid a second outage.
• Rack Backplane and Connector: Inspect the 3300 rack backplane connectors for bent pins or contamination, particularly in high-vibration or high-humidity environments.
• Alarm and Trip Relay Outputs: After reinstallation, functionally test the alarm and trip relay outputs from the monitor to the DCS or ESD system to confirm the protection chain is intact.

This holistic approach to probe replacement reduces the probability of a repeat outage caused by an adjacent component failure and supports the goal of maximizing mean time between maintenance interventions.

Site Replacement Workflow

Replacing the 330903-00-09-10-01-00 in the field follows a structured sequence to minimize downtime and ensure measurement integrity is restored before the machine is returned to service:

1. Permit and Isolation: Obtain a work permit and isolate the monitoring channel at the 3300 rack. Do not remove the probe while the machine is running unless the monitor is configured for hot-swap and the channel is bypassed.
2. Gap Measurement Before Removal: Record the existing probe gap voltage (typically -10 VDC at the center of the linear range). This provides a baseline for the replacement installation.
3. Probe Removal: Unthread the probe carefully. Inspect the probe tip and the target area on the shaft for damage or contamination.
4. New Probe Installation: Thread the 330903-00-09-10-01-00 replacement into the probe holder. Set the gap to achieve the target output voltage as specified in the system documentation (typically -10 VDC ± 0.5 VDC).
5. Cable Connection: Connect the probe integral cable to the extension cable. Verify connector seating and apply thread-locking compound if specified.
6. Functional Verification: With the machine at rest, verify the gap voltage at the proximitor output and at the monitor input. Confirm the channel OK LED is active and no alarms are present.
7. Return to Service: Remove the channel bypass, confirm alarm setpoints are active, and document the replacement in the maintenance management system.

This workflow is applicable to both planned outage replacements and emergency corrective maintenance scenarios. The 330903-00-09-10-01-00 is a direct replacement for earlier 3300 NSv probe variants, eliminating the need for system reconfiguration in most installations.

Spare Parts Support FAQ

Q: Is the 330903-00-09-10-01-00 compatible with older 3300 series monitors that predate the NSv designation?
A: In most cases, yes. The 8mm eddy current probe interface is consistent across the 3300 product family. However, we recommend confirming the proximitor part number and system documentation before installation. Our technical team can assist with compatibility verification prior to shipment.

Q: How is the probe tested before shipment?
A: Each 330903-00-09-10-01-00 unit is bench-tested for output voltage linearity, sensitivity, and connector integrity before dispatch. A test report is available upon request. Units are shipped in anti-static packaging with physical protection for the probe tip and connector.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and electrical performance failures under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified environmental range. Warranty claims are processed with priority to minimize your downtime exposure.

Q: Can you supply matched sets of probe, extension cable, and proximitor for a complete channel replacement?
A: Yes. We can supply the 330903-00-09-10-01-00 probe together with the appropriate 330130-series or 330180-series extension cable and the 3300 XL 8mm proximitor as a matched channel kit. Contact our sales team with your system documentation for a complete kit quotation.
