Bently Nevada 330903-00-11-05-02-05 Spare 3300 NSv

Bently Nevada 330903-00-11-05-02-05 Spare 3300 NSv: Precision Replacement for Industrial Downtime Control

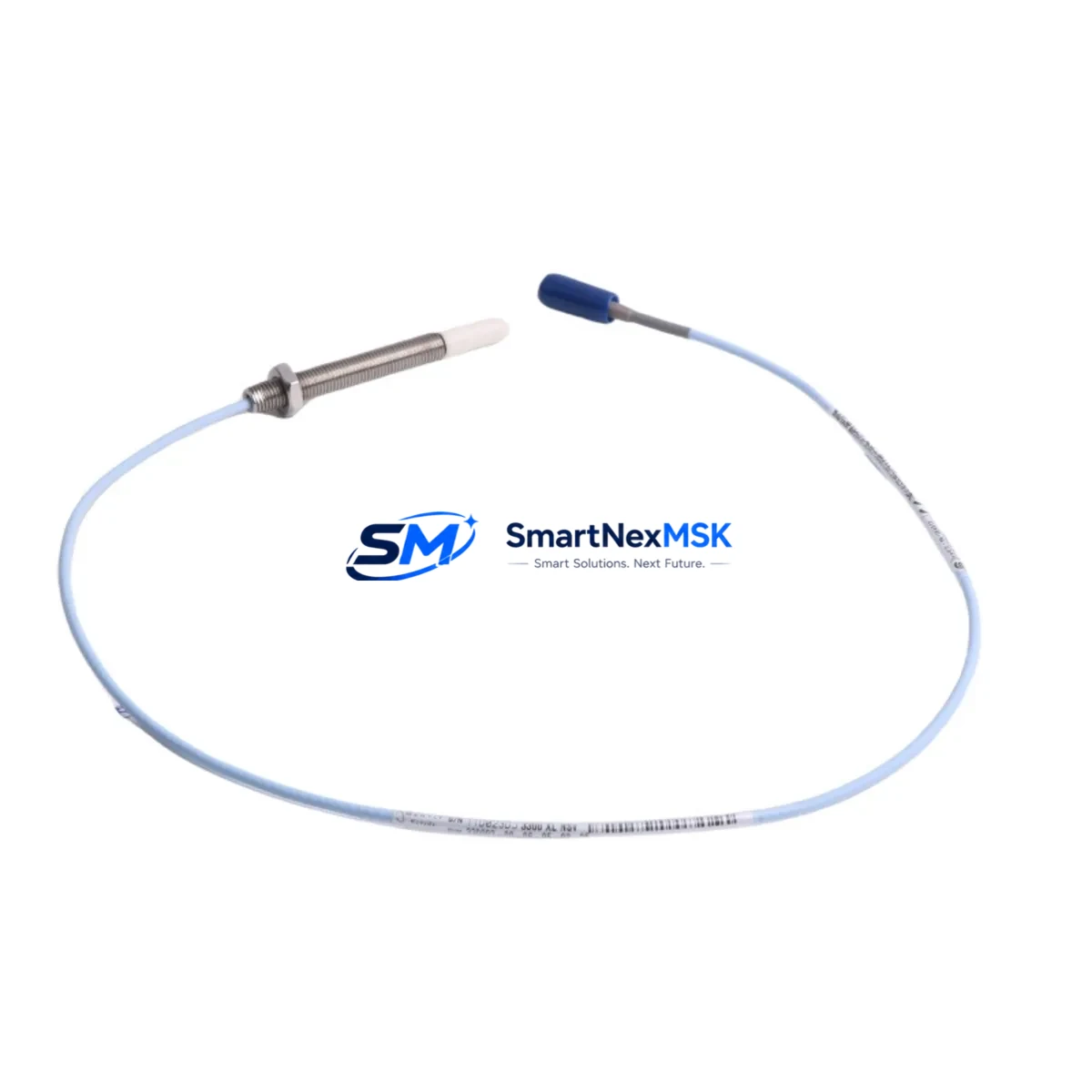

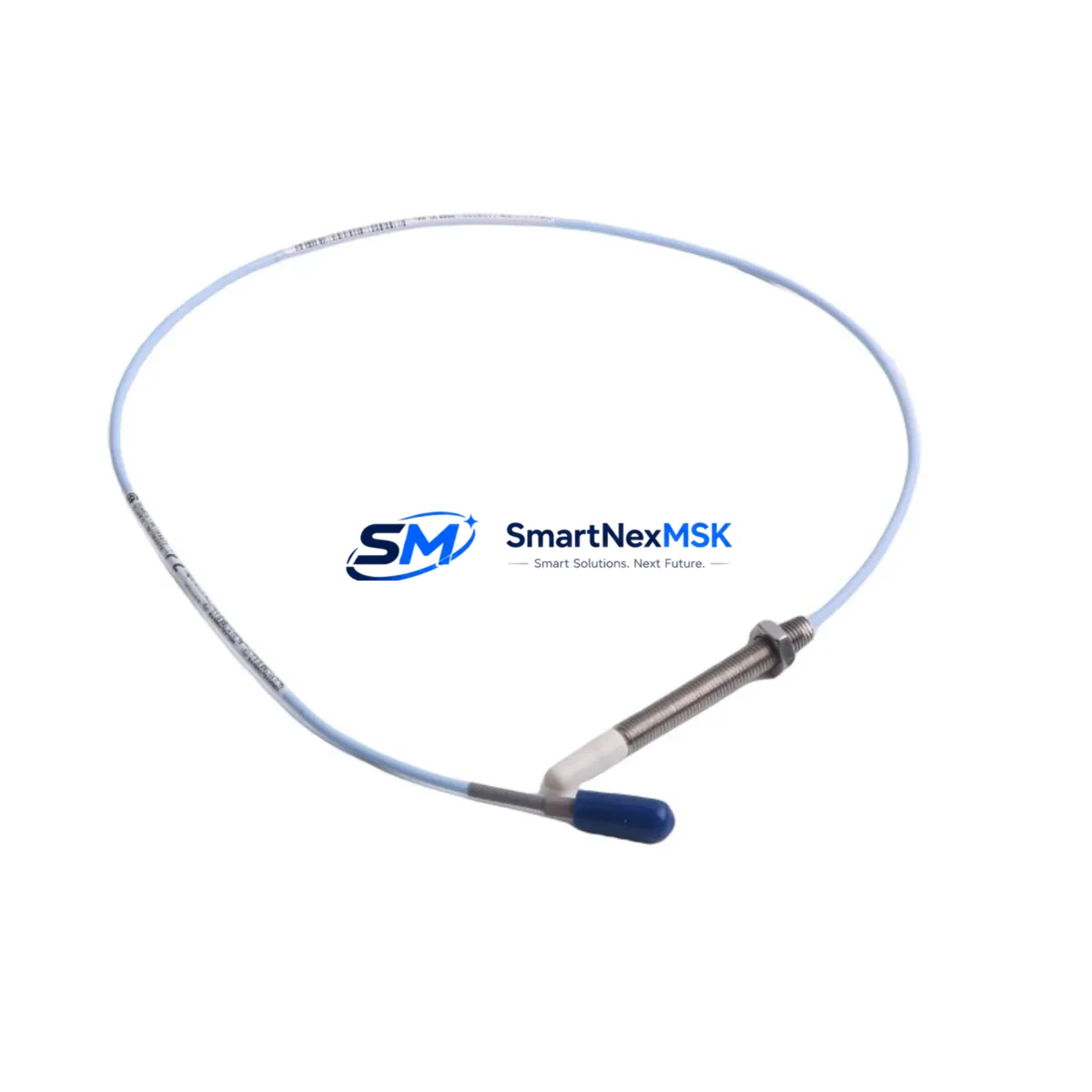

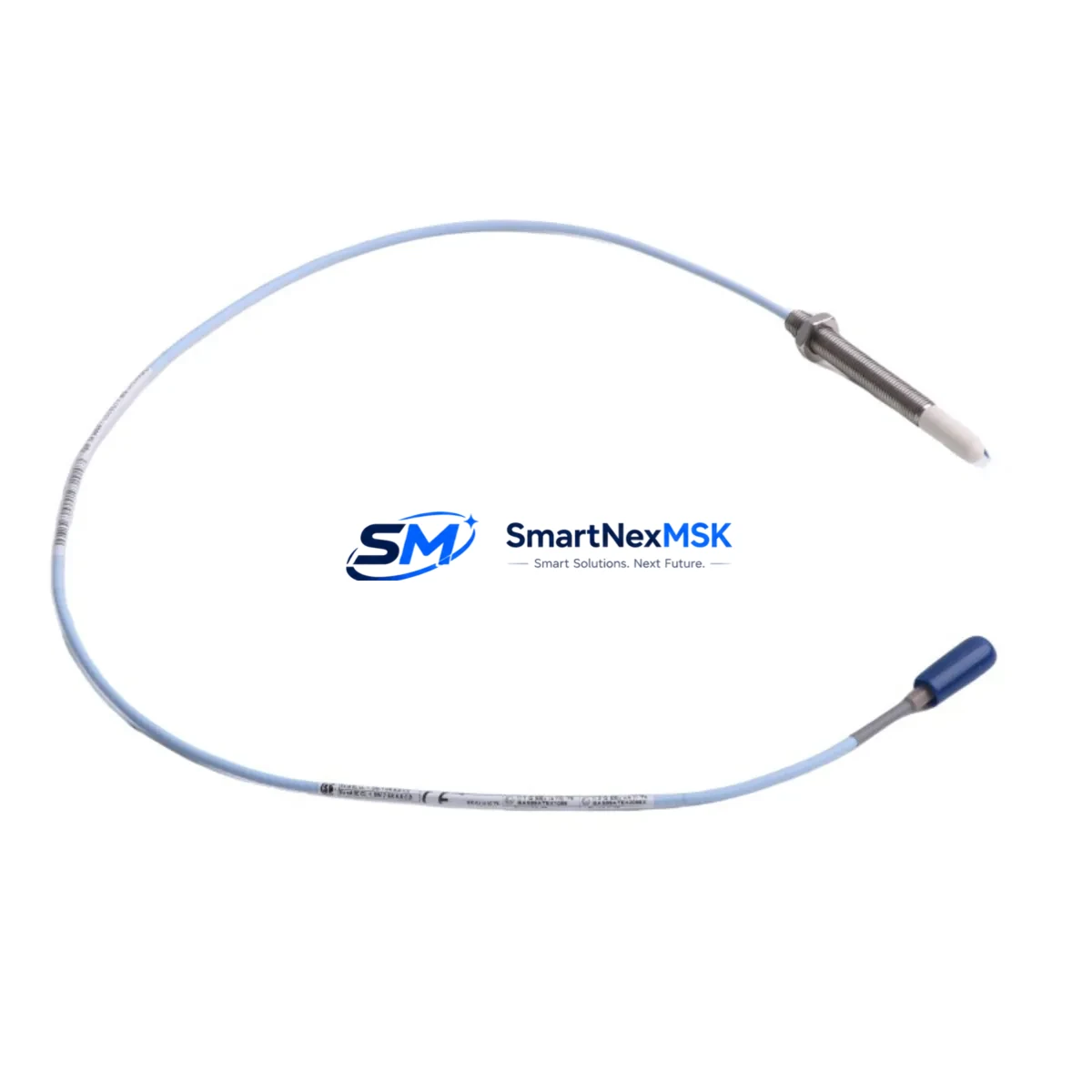

The Bently Nevada 330903-00-11-05-02-05 is an original eddy-current proximity probe engineered for the 3300 NSv (Non-contacting Vibration) monitoring system. In rotating machinery protection environments — turbines, compressors, pumps, and gearboxes — this probe is a critical front-line sensor responsible for shaft vibration, axial position, and differential expansion measurement. When this component fails or degrades, the entire machinery protection loop is compromised, and unplanned downtime becomes an immediate risk. Stocking a verified original spare is the most effective single action a maintenance team can take to protect mean time to repair (MTTR).

This listing supplies a tested, original-specification 330903-00-11-05-02-05 probe, shipped with a 12-month warranty and pre-shipment functional verification. Each unit is inspected for tip condition, cable integrity, connector seating, and coil impedance before dispatch. Orders are processed within 1–2 business days with worldwide express logistics available.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330903-00-11-05-02-05 probe in the field is rarely an isolated task. Experienced maintenance engineers treat a probe replacement as a trigger for a broader loop inspection. The 3300 NSv system relies on a matched signal chain: the probe, the extension cable (typically a 330130 or 330180 series), and the proximitor/driver module (such as the 3300/16 or 3300/20 proximitor) must all be verified as a set. A degraded extension cable or a proximitor with a drifting output will produce erroneous readings even with a new probe installed — a common source of repeat callouts.

During the same maintenance window, technicians should inspect the 3300 NSv monitor rack itself, checking the 3500/42M or 3500/45 monitor modules for alarm setpoint integrity and relay output continuity. The 24 VDC or ±24 VDC power supply feeding the proximitor rail should be load-tested; a sagging supply voltage is a frequent root cause of intermittent probe signal loss. Terminal blocks and field wiring in the junction box — particularly the coaxial shield grounding points — should be torqued and inspected for corrosion.

For plants running legacy turbine control systems, the 330903-00-11-05-02-05 probe often feeds into a Bently Nevada 3500 series rack alongside thrust position monitors, speed sensors (such as the 330180 series tachometer probes), and temperature inputs. A complete bearing protection audit should include the paired radial vibration probes (X and Y planes), the keyphasor probe (typically a 330980 or 330104 series), and any axial displacement probes monitoring thrust collar position. If the control system interfaces with a DCS or safety instrumented system (SIS), verify that the 4–20 mA or relay outputs from the 3500 rack are correctly received at the DCS I/O card after probe replacement — signal scaling changes are a known post-maintenance issue.

For facilities managing aging 3300 NSv installations, it is advisable to maintain a minimum spare holding of two 330903-00-11-05-02-05 probes per critical machine train, alongside at least one matched extension cable set and one spare proximitor module. This three-component spare kit approach eliminates the most common causes of extended downtime during emergency callouts and is consistent with API 670 machinery protection best practices.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the machinery protection loop at the 3500 rack. Note the current gap voltage reading (typically –10 to –18 VDC for a healthy probe at nominal gap) before disconnection — this serves as your post-installation acceptance baseline.

Step 2 — Probe Removal: Disconnect the extension cable at the junction box. Remove the probe from the mounting bracket, noting the thread engagement depth and any shim configuration. Inspect the probe tip for mechanical damage, pitting, or contamination from shaft contact.

Step 3 — New Probe Installation: Install the 330903-00-11-05-02-05 replacement to the same thread depth. Do not over-torque the locknut — follow OEM torque specification (typically 2.8–3.4 N·m for 3/8-24 UNF threads). Reconnect the extension cable, ensuring the coaxial connector is fully seated and the outer shield is properly grounded at the junction box.

Step 4 — Gap Setting and Verification: With the machine stationary, power the proximitor and measure the gap voltage. Adjust the probe axial position until the output falls within the linear range center (typically –12 VDC ±1 V). Record the final gap voltage in the maintenance log.

Step 5 — Functional Test: Restore the monitor rack to service. Verify that the 3500 monitor displays a valid vibration reading within expected baseline range. Confirm alarm and danger relay outputs are functional. Update the equipment history record with the replacement date, new probe serial number, and final gap voltage.

This workflow is compatible with direct replacement of older 330903 series variants and is applicable to 3300 XL and 3500 series monitor configurations with appropriate driver module verification.

Spare Parts Support FAQ

Q1: Is the 330903-00-11-05-02-05 compatible with the Bently Nevada 3500 series monitors?
The 330903-00-11-05-02-05 is a 3300 NSv series probe. It is compatible with 3500 series monitors when used with the correct proximitor/driver module (e.g., 3300/16 or 3300/20). Always verify the driver module part number against the probe specification before installation. If your 3500 rack uses a different driver standard, contact our technical team for compatibility confirmation before ordering.

Q2: What is included in the 12-month warranty and what does pre-shipment testing cover?
Every 330903-00-11-05-02-05 unit is tested for coil impedance, tip integrity, cable continuity, and connector seating before dispatch. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the shipment date. It does not cover mechanical damage from improper installation or operation outside specified environmental limits. A test report is available upon request.

Q3: How should I manage long-term spare parts inventory for 3300 NSv probes?
For critical rotating machinery, we recommend a minimum of two probes per machine train in your on-site spare parts store, reviewed annually. Given that the 3300 NSv platform is a mature product line, sourcing lead times from OEM channels can be extended. Maintaining a buffer stock through a specialist distributor ensures emergency availability. Probes should be stored in original packaging in a dry, temperature-controlled environment and inspected for connector condition every 24 months if unused.

Q4: Can I replace a 330903-00-11-05-02-05 with a different suffix variant (e.g., -00-11-05-01-05)?
Suffix digits in the 330903 series encode probe length, cable length, connector type, and temperature rating. Substituting a different suffix variant may result in incorrect gap voltage range, incompatible connector fit, or out-of-specification signal output. Always match the full part number. If the exact suffix is unavailable, contact us — we can advise on validated cross-reference options and confirm system compatibility before shipment.
