Bently Nevada 330903-00-11-05-02-CN Safety Proximity Cable

Bently Nevada 330903-00-11-05-02-CN Safety Proximity Cable: Reliable Signal Integrity for Critical Vibration Monitoring

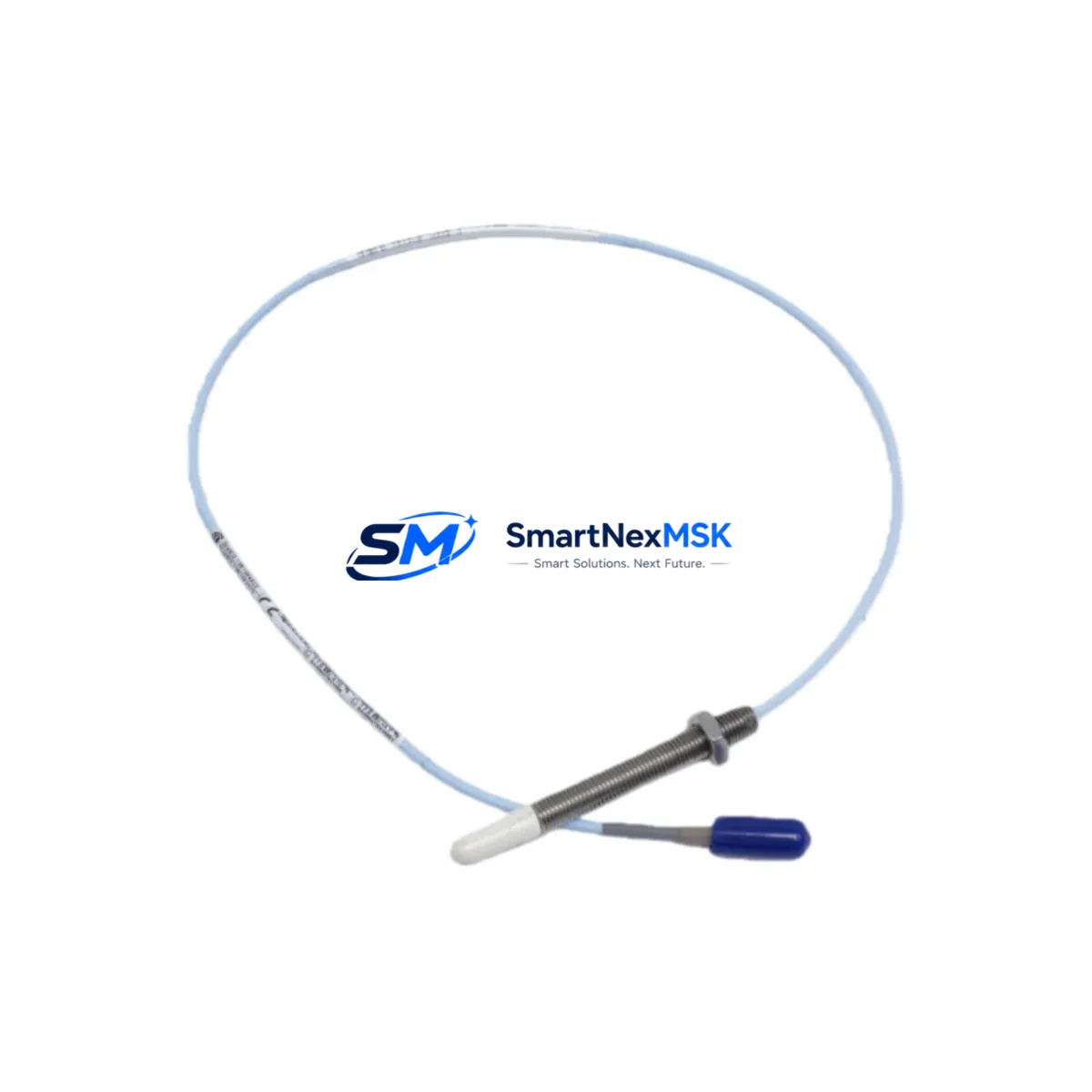

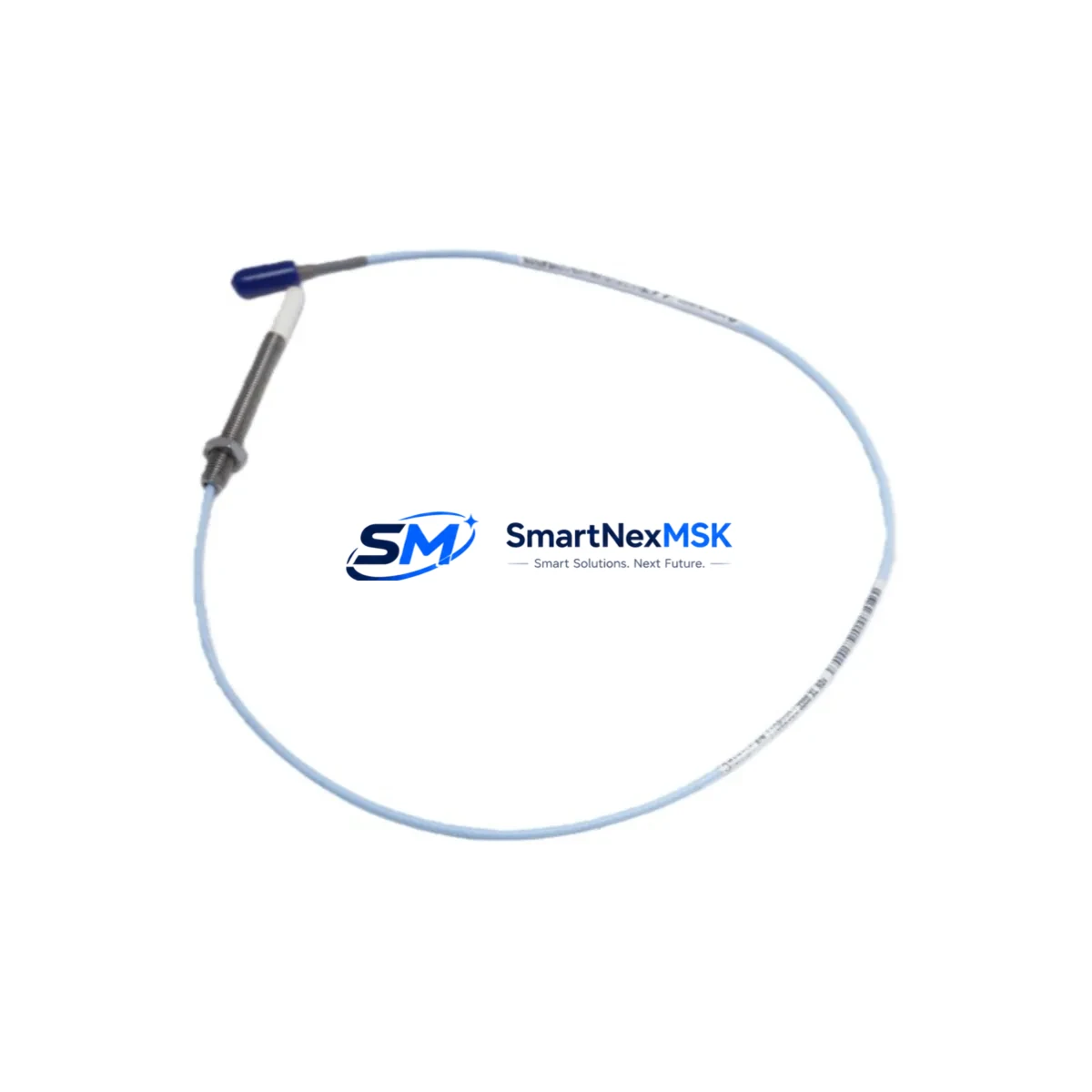

The Bently Nevada 330903-00-11-05-02-CN is a ruggedized proximity extension cable engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to interface seamlessly with the Bently Nevada 3300 XL NSv proximity transducer system, this cable ensures uninterrupted signal transmission between the proximitor/driver and the monitoring rack — a function that is foundational to machinery protection, predictive maintenance, and process safety in rotating equipment applications.

In high-stakes industrial facilities — including petrochemical plants, power generation stations, offshore platforms, and heavy metallurgical operations — signal integrity in the vibration monitoring loop is non-negotiable. A degraded or failed extension cable can cause false alarms, missed trip signals, or complete loss of machinery protection, any of which may result in catastrophic equipment failure or personnel hazard. The 330903-00-11-05-02-CN addresses these risks through its ruggedized construction, shielded cable architecture, and precision-matched impedance characteristics that preserve the accuracy of the eddy-current sensing chain from probe tip to monitor input.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered machinery protection architecture, the 330903-00-11-05-02-CN extension cable occupies a critical position in the signal chain between the field-mounted proximity probe and the monitoring system housed in the control cabinet. Its role is to maintain the low-noise, high-fidelity DC voltage signal that the Bently Nevada 3300 XL NSv proximitor/driver — such as the 330180-51-05 or 330180-91-00 driver module — relies upon to accurately report shaft radial vibration, axial position, or differential expansion.

Within the control cabinet, the signal from this cable feeds directly into Bently Nevada 3500 series rack monitors, including cards such as the 3500/42M Proximitor/Seismic Monitor or the 3500/40M Proximitor Monitor. These monitors process the incoming signal and trigger protective relay outputs when vibration or position thresholds are exceeded. Any signal degradation introduced by a substandard or damaged extension cable — whether from impedance mismatch, shield discontinuity, or connector corrosion — will directly compromise the monitor’s ability to protect the machine.

To ensure the full protection chain remains intact, the extension cable should be used alongside a correctly specified Bently Nevada 330130-080-00-00 or equivalent proximity probe, and routed through properly grounded cable conduit to prevent ground loops. Power supply stability for the proximitor driver is equally important: a regulated -24 VDC power supply module — such as those used in the Bently Nevada 3500/15 Power Supply module — ensures the eddy-current driver operates within its linear range, preventing false readings caused by supply voltage sag during load transients.

In facilities where the control cabinet is located in a classified hazardous area or near high-power variable frequency drives (VFDs), additional EMI shielding measures — including the use of Bently Nevada 330030-series armored probe assemblies and ferrite-core cable suppressors — are recommended to complement the inherent shielding of the 330903-00-11-05-02-CN. For systems requiring redundant monitoring, a secondary Bently Nevada 3500/22M Transient Data Interface or a parallel 3500/42M channel can be configured to provide continuous cross-validation of vibration readings, further reducing the risk of undetected machinery faults.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In API 670-compliant machinery protection systems for centrifugal compressors, steam turbines, and boiler feed pumps, this cable forms part of the certified vibration monitoring loop. Continuous operation in environments with hydrocarbon vapors, high ambient temperatures, and aggressive chemical exposure demands the oil-resistant jacket and corrosion-resistant connectors that this cable provides.

Power Generation: Gas turbines and steam turbines in power stations operate at high shaft speeds where even minor vibration anomalies can escalate rapidly. The 330903-00-11-05-02-CN ensures that the proximity monitoring system delivers real-time, accurate shaft displacement data to the 3500 series protection rack, enabling automatic trip before bearing damage occurs.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme vibration, dust ingress, and mechanical shock. The ruggedized construction of this extension cable maintains signal continuity in these harsh conditions, supporting predictive maintenance programs that reduce unplanned downtime in continuous production circuits.

Water and Wastewater Treatment: Large centrifugal pumps and blowers in municipal water infrastructure require reliable vibration monitoring to prevent catastrophic failures that could disrupt water supply. The 330903-00-11-05-02-CN supports long cable runs from field-mounted probes to remote monitoring panels in these distributed installations.

Metallurgy and Steel Production: Rolling mills, continuous casters, and large induction furnace drives operate in environments with intense electromagnetic interference from high-current bus bars and induction heating systems. The double-shielded coaxial construction of this cable provides robust EMI rejection, preserving signal integrity in these electrically noisy environments.

Port and Marine Applications: Crane drives, ship propulsion systems, and large diesel generators in port facilities benefit from the wide operating temperature range and vibration resistance of this cable, ensuring reliable machinery protection in outdoor and marine-adjacent environments.

Safety and Quality FAQ

Q1: What warranty is provided with the 330903-00-11-05-02-CN?
All units are covered by a 12-month warranty against defects in materials and workmanship from the date of shipment. This warranty applies to both new OEM stock and surplus-new units that have passed our pre-shipment functional inspection. In the event of a warranty claim, we provide replacement or full refund.

Q2: How is each cable tested before shipment?
Every 330903-00-11-05-02-CN unit undergoes a pre-shipment inspection that includes visual examination of connectors and jacket integrity, continuity and shield verification, and impedance spot-check to confirm compatibility with the 3300 XL NSv signal chain. Units that do not meet OEM specifications are quarantined and not shipped.

Q3: Is this cable compatible with both the 3300 XL and 3500 series systems?
Yes. The 330903-00-11-05-02-CN is designed for use within the Bently Nevada 3300 XL NSv proximity transducer system and is fully compatible with 3500 series rack monitors that accept 3300 XL NSv transducer inputs. Always verify the specific probe, driver, and monitor combination against the Bently Nevada system compatibility matrix for your application.

Q4: Can long-term supply be guaranteed for maintenance and spare parts programs?
We maintain standing inventory of the 330903-00-11-05-02-CN and related Bently Nevada 3300 XL NSv components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts programs. Customers with recurring procurement needs are encouraged to contact our sales team to discuss blanket order arrangements and priority allocation.
