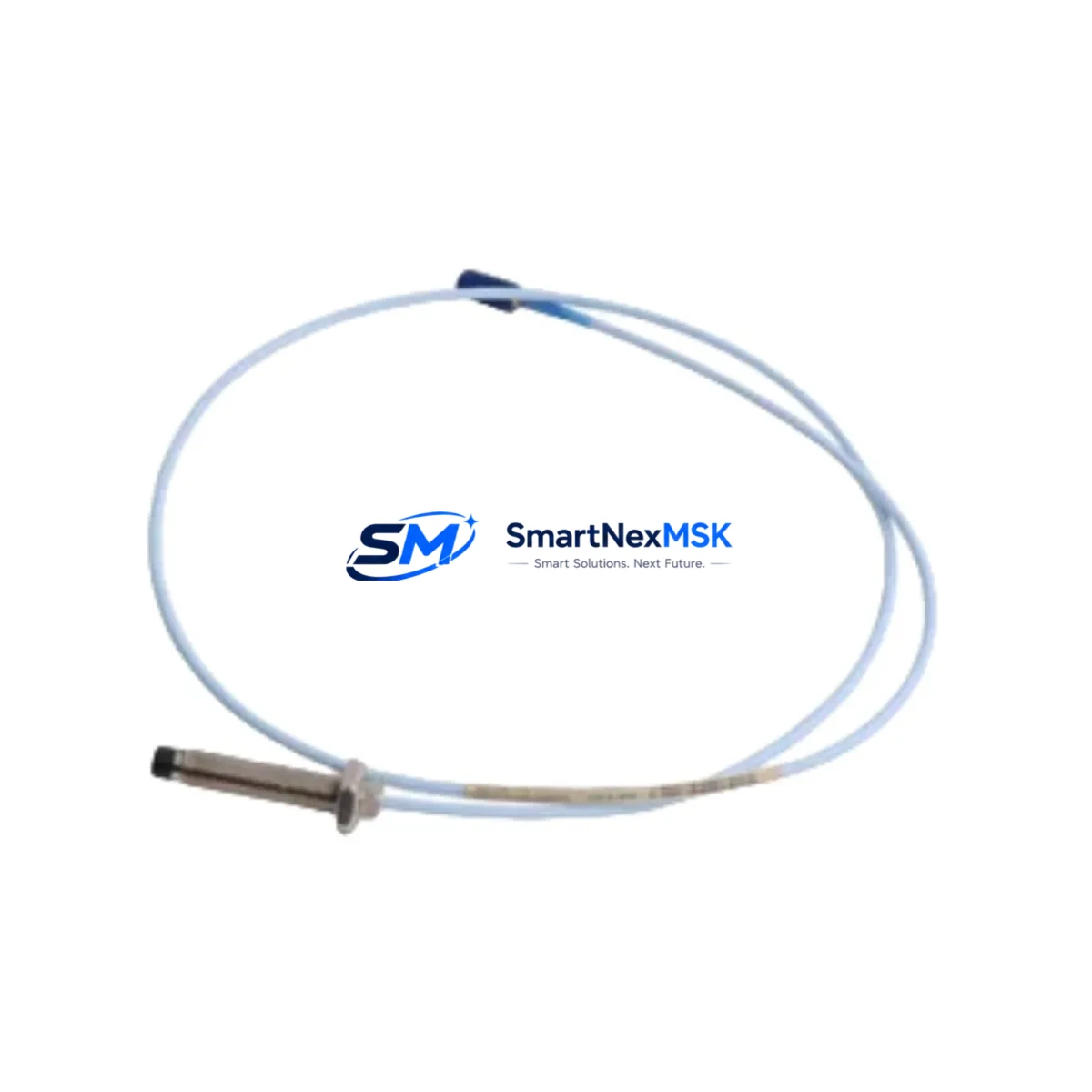

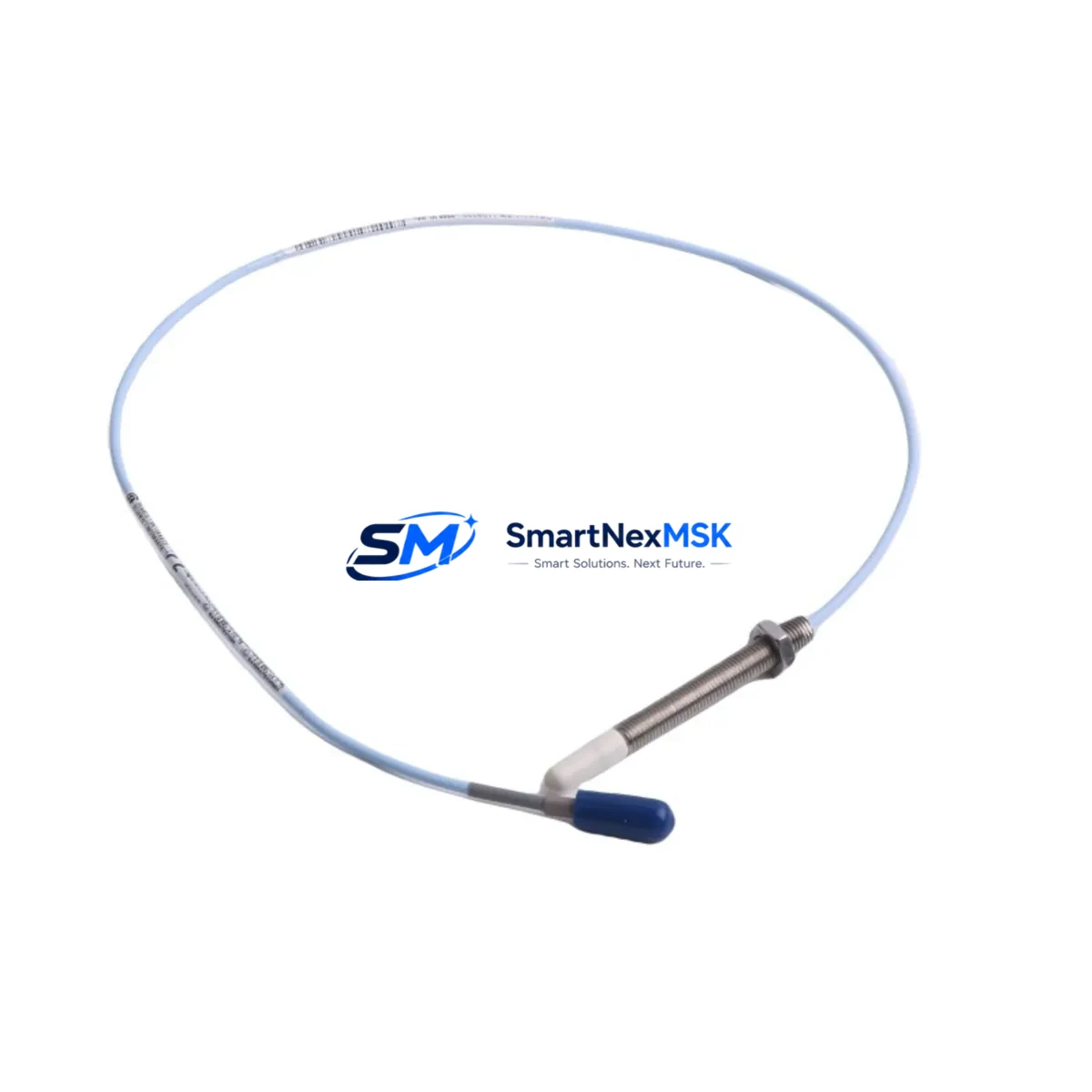

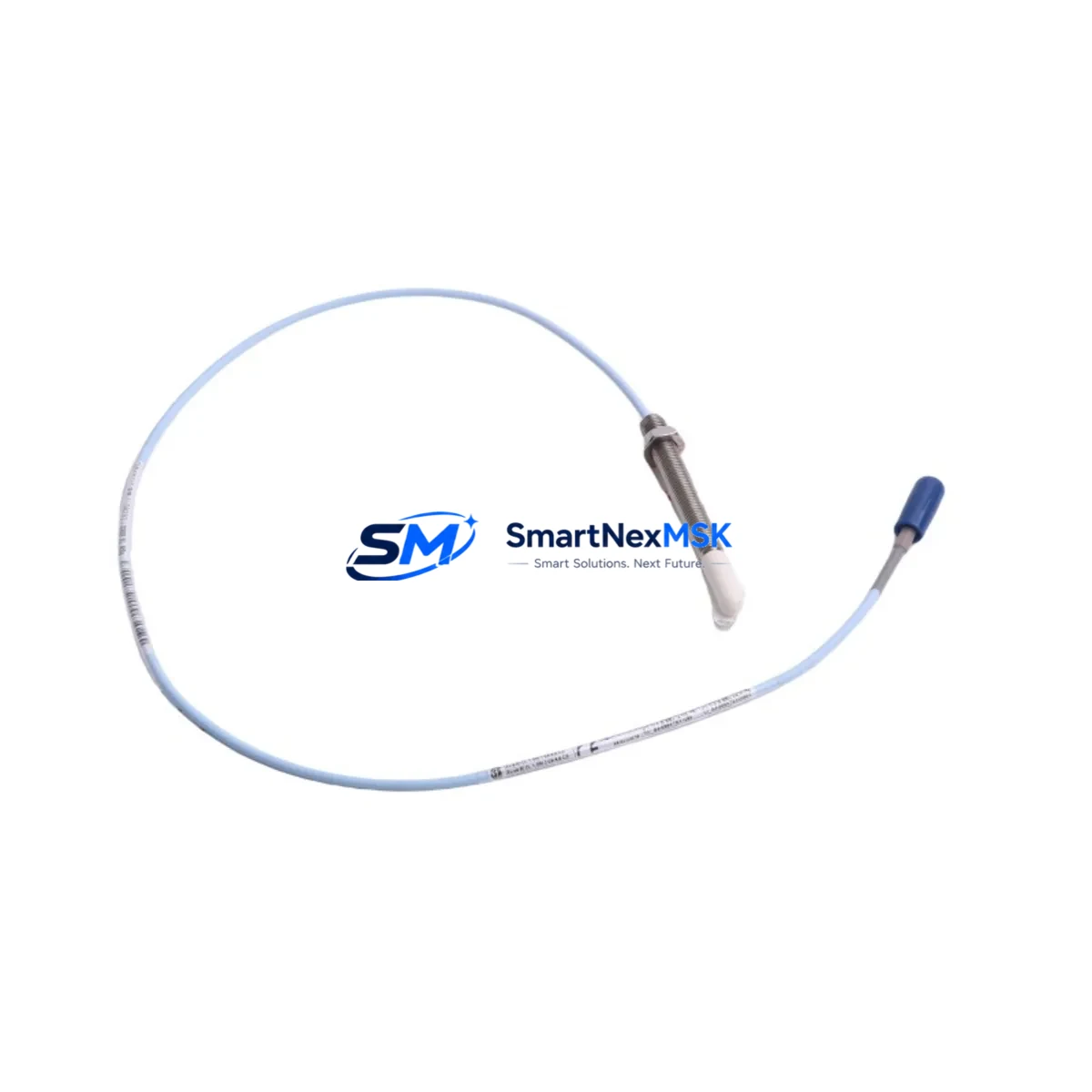

Bently Nevada 330903-00-11-10-02-05/CN 3300 NSv Probe

Bently Nevada 330903-00-11-10-02-05/CN Retrofit-Ready Proximity Probe for 3300 NSv Control Systems

The Bently Nevada 330903-00-11-10-02-05/CN is an eddy-current proximity probe engineered for seamless integration into Bently Nevada 3300 NSv vibration monitoring systems. As legacy machinery protection platforms reach end-of-life or face discontinued spare-parts availability, this probe serves as a verified retrofit solution for facilities managing turbines, compressors, pumps, and rotating equipment across oil & gas, power generation, petrochemical, and heavy industrial environments.

Whether you are replacing a failed probe on an aging 3300 Series rack, upgrading a control cabinet to extend operational life, or migrating from an obsolete monitoring architecture, the 330903-00-11-10-02-05/CN delivers the signal integrity, gap voltage linearity, and mechanical compatibility required for uninterrupted machinery protection. It is fully compatible with the Bently Nevada 3300 XL 8mm Proximity Transducer System and pairs directly with standard 3300 Series extension cables and proximitor sensors without requiring rewiring or signal conditioning modifications.

This probe is supplied with a 12-month warranty, pre-shipment functional testing, and full traceability documentation — critical requirements for facilities operating under ISO 10816, API 670, or internal reliability engineering standards.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a proximity probe in an active machinery protection loop requires careful coordination across multiple system components. When replacing the 330903-00-11-10-02-05/CN in a 3300 NSv rack, engineers should begin by auditing the existing 330130 series extension cable for insulation degradation, connector corrosion, or impedance mismatch — a compromised cable will introduce noise into the vibration signal even with a new probe installed. The proximitor sensor, typically a 330180-91-00 or equivalent 3300 XL Proximitor, must be verified for correct bias voltage output before the new probe is gapped and locked.

In control cabinets where the 3300 NSv rack shares a backplane with I/O modules or communication gateways, confirm that the rack’s internal power supply — often a 3300/20 Power Supply — is delivering stable ±24 VDC rails. Voltage sag during probe commissioning can cause false trip signals that propagate to the DCS or safety instrumented system. If the facility is migrating from a 3300 Series rack to a 3500 Series Machinery Protection System, note that the 330903 probe family remains compatible with 3500/42M Proximitor I/O modules when paired with appropriate signal conditioning.

For plants running legacy System 1 Evolution software or transitioning to System 1 v7.x, the probe replacement event should be logged as a configuration change, and the channel’s dynamic data baseline should be reset after the new probe is installed and gapped. HMI alarm setpoints for radial vibration — typically configured in the 3500/22M Transient Data Interface or equivalent — should be reviewed and confirmed against the original machinery protection philosophy document.

Where the control architecture includes a Modbus RTU or FOUNDATION Fieldbus communication link between the 3300 rack and the plant DCS, verify that the channel address mapping remains intact after the probe swap. In multi-rack installations, the 3300/55 Communication Gateway may require a soft reset to re-establish polling after a channel goes offline during probe replacement. I/O expansion modules such as the 3500/64 Process Variable Monitor should also be checked for alarm inhibit status before returning the loop to service.

Finally, for facilities maintaining a hot-standby or redundant monitoring configuration, coordinate the probe swap with the control room to ensure the redundant channel remains active throughout the procedure, minimizing exposure to unmonitored machinery operation.

Downtime Control During System Migration

Minimizing downtime during a proximity probe replacement begins with pre-staging all replacement components — including the 330903-00-11-10-02-05/CN probe, the matched extension cable, and a calibrated gap-setting tool — before the maintenance window opens. A pre-tested spare assembly, gapped and verified on the bench against a reference target material matching the shaft composition, can reduce in-field commissioning time from hours to minutes.

Before breaking the existing probe connection, export the current vibration trend data and alarm history from System 1 or the plant historian. This preserves the pre-replacement baseline and provides a reference for post-installation comparison. If the machinery protection rack supports channel inhibit without full rack shutdown, activate the inhibit function on the affected channel to prevent nuisance trips to the safety system during the swap.

After installing the new probe and setting the gap, perform a static gap voltage check with a digital voltmeter before re-enabling the channel. Confirm the DC bias voltage falls within the proximitor’s linear range (typically –10 VDC ±1 VDC at the nominal gap). Re-enable the channel, observe the dynamic vibration signal for at least one full equipment rotation cycle, and confirm that the waveform is clean and free of electrical noise before releasing the inhibit and returning the loop to normal protection status. Document the as-found and as-left gap voltages in the maintenance management system to support future reliability analysis.

Retrofit Support FAQ

Q1: Is the 330903-00-11-10-02-05/CN a direct replacement for other 330903 variants?
The 330903-00-11-10-02-05/CN is part of the Bently Nevada 330903 proximity probe family. The suffix digits encode cable length, connector type, and target material calibration. Before substituting a different suffix variant, verify that the replacement probe’s scale factor and gap voltage characteristics match the proximitor sensor’s configuration. In most 3300 NSv installations, the /CN suffix denotes a specific cable assembly and connector standard — confirm compatibility with your proximitor model before installation.

Q2: What commissioning steps are required after installing the replacement probe?
After mechanical installation, set the probe gap to the manufacturer-specified nominal distance using a non-ferrous feeler gauge or gap meter. Measure the DC bias voltage at the proximitor output and confirm it falls within the linear range. Reset the vibration channel baseline in System 1 or your plant DCS historian. Review and confirm HMI alarm setpoints for radial vibration, axial position, and any derived parameters. Perform a bump test if machinery is available for slow-roll, and document all as-left values in your CMMS.

Q3: How is outgoing quality verified before shipment?
Each 330903-00-11-10-02-05/CN unit undergoes pre-shipment functional testing including DC resistance measurement, insulation integrity check, and gap voltage linearity verification against a reference target. Units are shipped with a test report and are covered by a 12-month warranty from the date of shipment. Expedited shipping options are available to support urgent maintenance windows.

Q4: Can this probe be used in a 3500 Series rack migration?
Yes, with appropriate signal conditioning. The 330903 probe family is compatible with 3500 Series Proximitor I/O modules when the system is configured to accept the probe’s scale factor and gap voltage range. Consult the 3500/42M module datasheet and confirm channel configuration in the 3500 Rack Configuration Software before commissioning. If migrating from a 3300 to a 3500 rack, update the machinery protection setpoints and re-validate the overall protection loop before returning to service.
