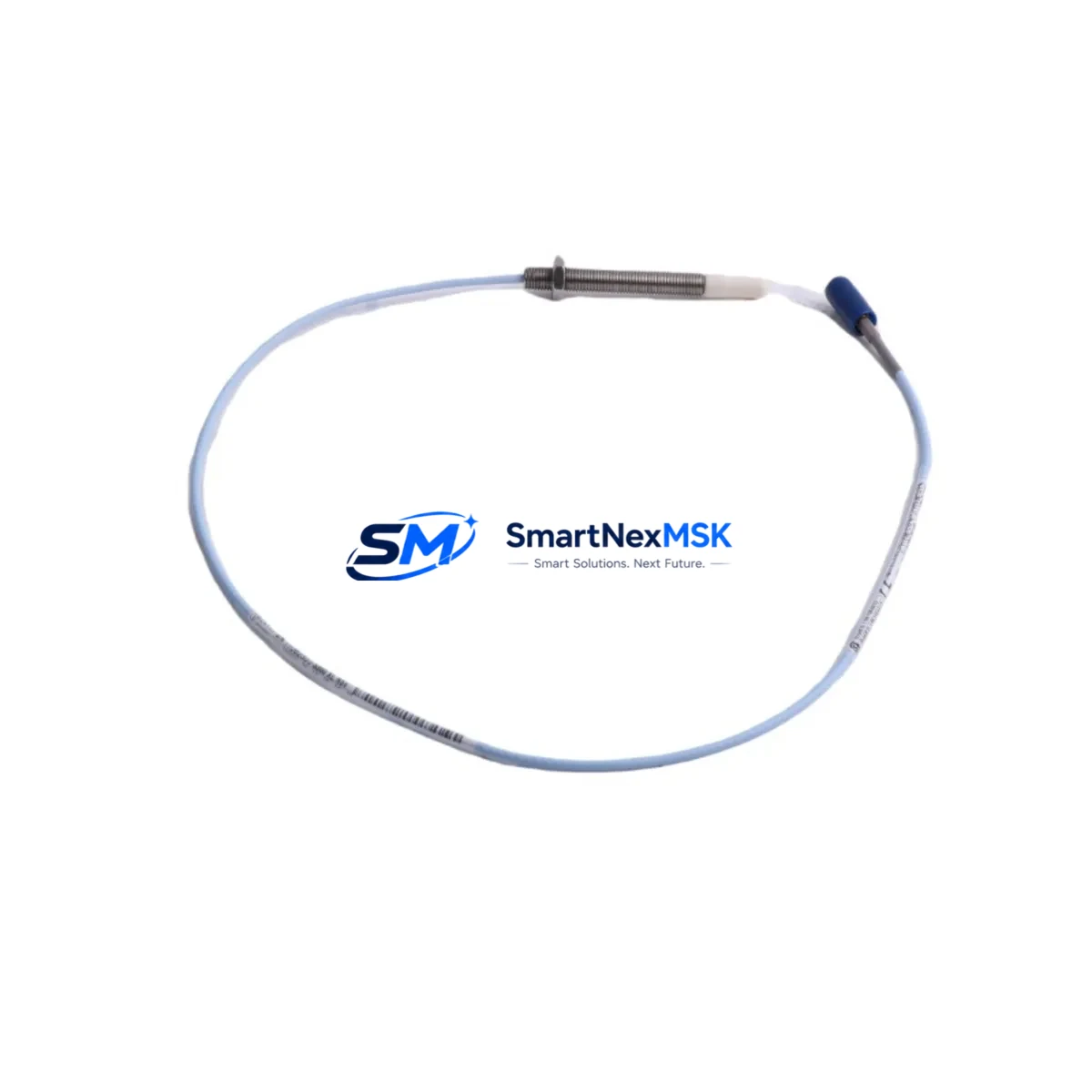

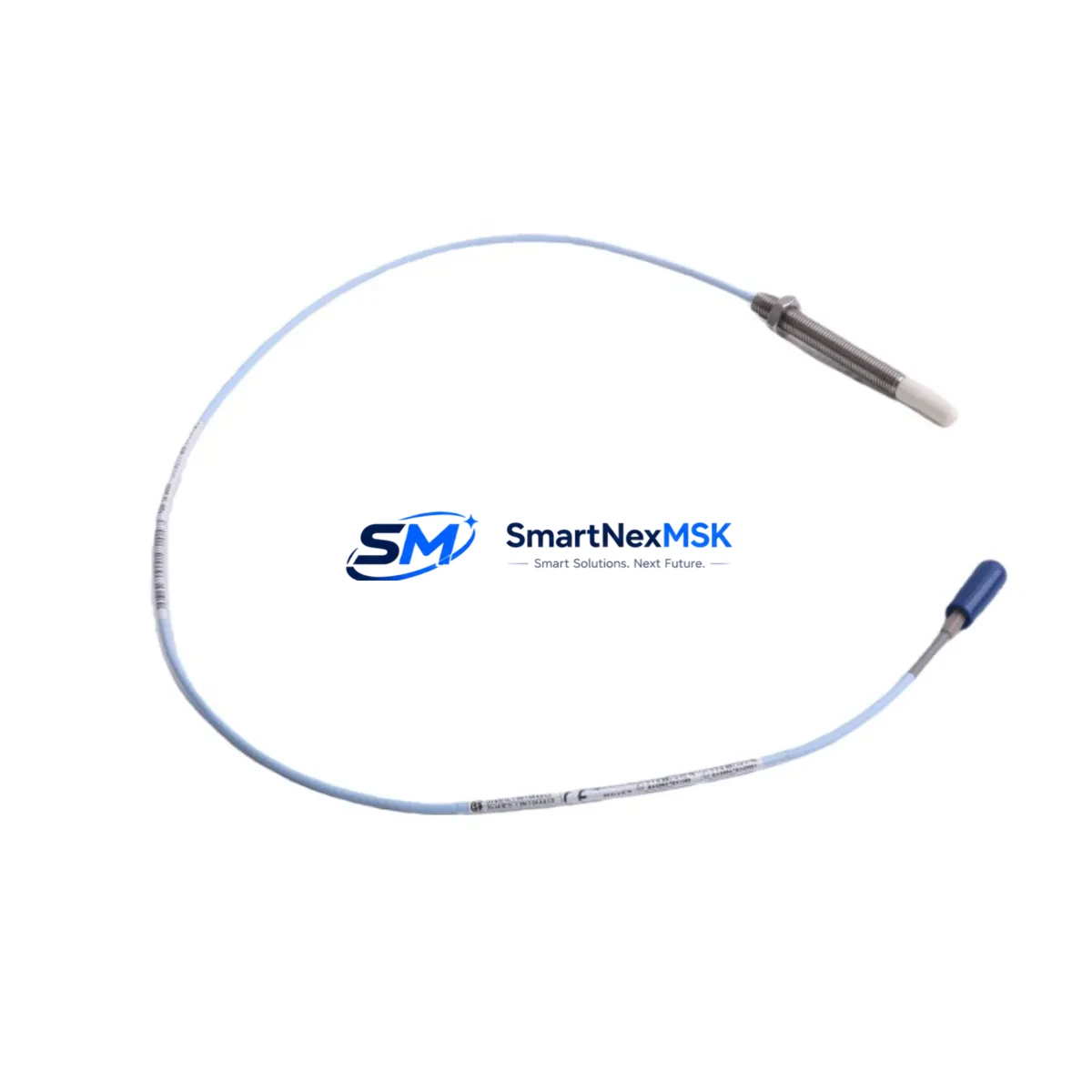

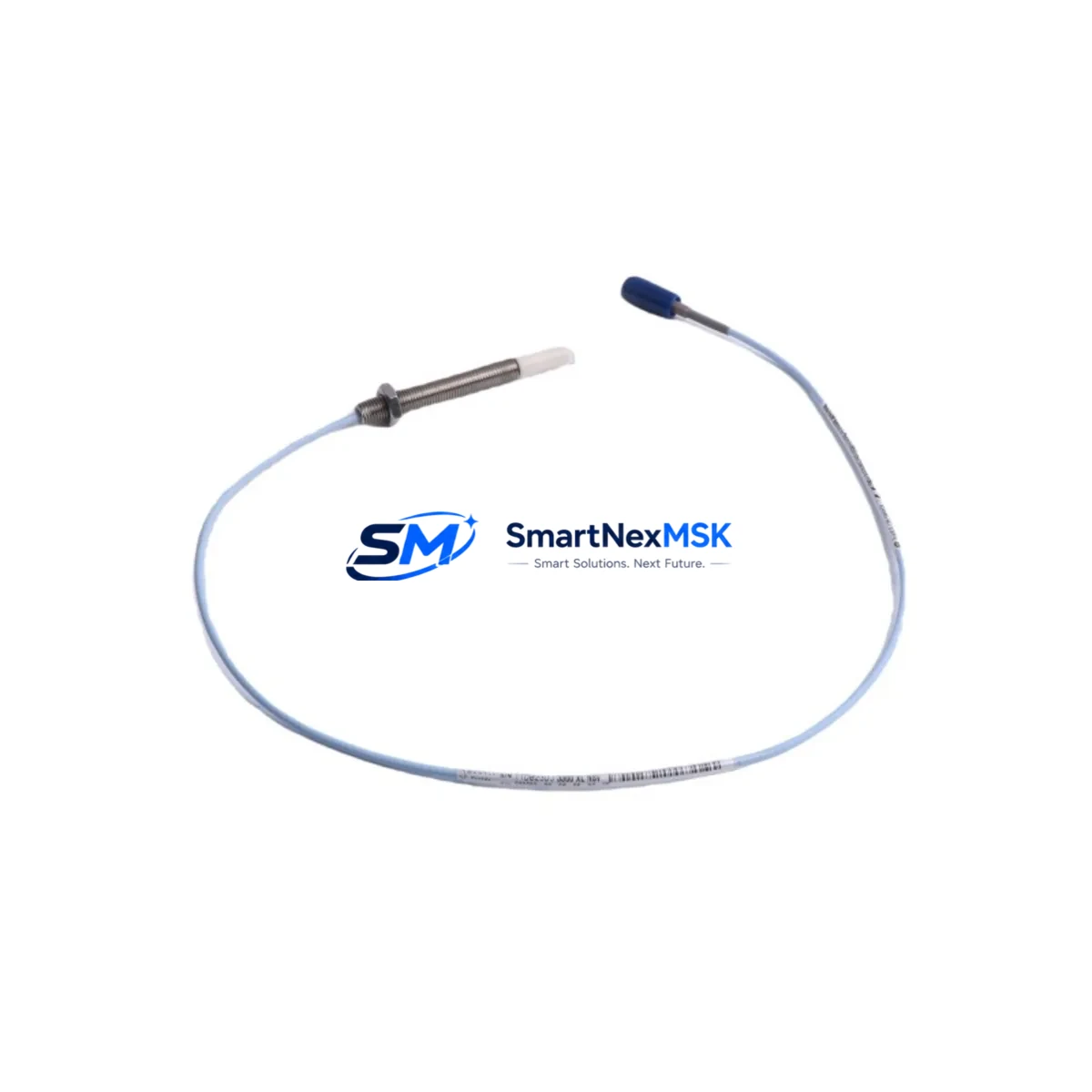

Bently Nevada 330903-00-12-05-02-05 Safety Proximity Transducer

Bently Nevada 330903-00-12-05-02-05 Safety-Enhanced Proximity Transducer for Harsh Industrial Sites

The Bently Nevada 330903-00-12-05-02-05 is a high-precision NSv Series proximity transducer engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed as a core component of the Bently Nevada 3300 XL Proximity Transducer System, this unit delivers exceptional signal integrity, long-term mechanical stability, and robust immunity to electromagnetic interference — making it an indispensable asset in rotating machinery protection, critical interlock loops, and high-availability control architectures.

In heavy industrial facilities — including petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical processing lines, and continuous manufacturing environments — unplanned machinery downtime carries severe safety and financial consequences. The 330903-00-12-05-02-05 is purpose-built to eliminate the root causes of such failures: signal drift under thermal stress, transducer output instability during voltage fluctuations, and sensor degradation in high-vibration or chemically aggressive atmospheres. Its eddy-current sensing principle operates without physical contact, eliminating mechanical wear and ensuring consistent, drift-free output across the full service life of the installation.

When integrated into a complete Bently Nevada 3300 XL monitoring system — alongside the 3300 XL 8mm Extension Cable, 3300 XL Proximitor Sensor, and 3300 XL Signal Conditioner — the 330903-00-12-05-02-05 forms a tightly coupled measurement chain that maintains calibrated linearity even under surge events, ground loop interference, and high-frequency electrical noise common in variable-frequency drive (VFD) environments. This makes it particularly well-suited for deployment adjacent to large motor control centers, transformer bays, and high-current bus systems where EMI exposure is unavoidable.

Safety Reliability Table

Control Cabinet Protection Strategy

Reliable machinery protection begins at the sensor level, but its effectiveness depends entirely on the integrity of the complete signal chain and the robustness of the surrounding control architecture. The Bently Nevada 330903-00-12-05-02-05 is designed to anchor this chain, but its performance is maximized when deployed alongside a carefully selected suite of complementary components.

Within the control cabinet, the transducer signal is typically routed to a Bently Nevada 3500/42M Proximitor I/O Module or a 3500/40M Proximitor Monitor, which provides real-time vibration amplitude processing, alarm setpoint management, and relay output for safety interlock activation. These rack-mounted monitors, housed in the Bently Nevada 3500 Rack with a dedicated 3500/15 Power Supply Module, ensure that power fluctuations on the plant distribution network do not propagate into the measurement system — a critical safeguard in facilities where large motor starts or welding operations cause transient voltage sags.

For installations requiring communication with a distributed control system (DCS) or safety instrumented system (SIS), the Bently Nevada 3500/92 Communication Gateway provides seamless Modbus TCP or OPC-DA integration, allowing vibration data from the 330903-00-12-05-02-05 to be transmitted to platforms such as the Emerson DeltaV SIS or a Rockwell Automation GuardLogix Safety PLC without signal degradation or latency. In parallel, surge protection devices — such as dedicated transient voltage suppressors installed at the cabinet entry point — shield the low-level millivolt signals from lightning-induced surges and switching transients that would otherwise corrupt proximity readings or trigger spurious shutdowns.

Cable routing discipline is equally important: the shielded coaxial cable of the 330903-00-12-05-02-05 should be segregated from high-voltage power cables and routed through dedicated instrumentation conduits or cable trays with proper grounding at a single point to prevent ground loop currents. When extension cables such as the Bently Nevada 330130-080-00-00 Extension Cable are used to bridge the distance between the probe and the Proximitor, connector integrity and torque specifications must be maintained to preserve the system’s calibrated sensitivity of 200 mV/mil.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In high-pressure compressor trains and centrifugal pump systems, the 330903-00-12-05-02-05 monitors shaft radial vibration and axial position continuously. Any deviation beyond API 670 alarm thresholds triggers an automated shutdown via the plant’s safety instrumented system, preventing catastrophic seal failures, bearing collapses, or rotor-stator contact events that could result in hydrocarbon release and fire.

Power Generation: Steam turbine and gas turbine installations rely on proximity transducers for differential expansion monitoring and eccentricity measurement during startup sequences. The 330903-00-12-05-02-05’s wide operating temperature range and stable output under thermal cycling make it suitable for both hot-section proximity and cold-end position measurement, supporting safe turbine run-up and coast-down procedures.

Mining and Mineral Processing: Ball mills, SAG mills, and large conveyor drive systems in mining operations are subject to extreme vibration, dust ingress, and electrical noise from high-power variable-speed drives. The eddy-current sensing principle of the 330903-00-12-05-02-05 is immune to contamination on the probe face, ensuring continuous, reliable shaft monitoring even in environments where optical or contact-based sensors would fail within weeks.

Water and Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in water treatment facilities require continuous vibration monitoring to detect impeller imbalance, bearing wear, and cavitation-induced vibration before they escalate to pump failure and service interruption. The 330903-00-12-05-02-05 provides the measurement accuracy required for early-warning condition monitoring programs in these critical public infrastructure assets.

Metallurgical and Steel Processing: Rolling mill drives, continuous caster pinch rolls, and induction furnace cooling pumps operate in environments with intense electromagnetic fields, high ambient temperatures, and aggressive coolant atmospheres. The robust construction and EMI immunity of the 330903-00-12-05-02-05 ensure measurement integrity in these conditions, supporting predictive maintenance programs that reduce unplanned outages in continuous production lines where every hour of downtime represents significant financial loss.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330903-00-12-05-02-05?
The 12-month warranty covers all manufacturing defects, functional failures, and output calibration deviations attributable to the unit itself. It does not cover damage resulting from incorrect installation, overvoltage beyond specified limits, or physical impact. Warranty claims are processed with priority dispatch of a replacement unit to minimize site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 330903-00-12-05-02-05 unit undergoes functional verification prior to dispatch, including output sensitivity confirmation at the nominal 200 mV/mil specification, cable continuity and insulation resistance testing, and connector integrity inspection. Units are shipped with individual test records available upon request.

Q3: Is this transducer compatible with existing Bently Nevada 3300 XL and 3500 series installations?
Yes. The 330903-00-12-05-02-05 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor family and the 3500 series rack monitoring system. It maintains the standard NSv system sensitivity and gap voltage characteristics, allowing direct replacement of existing probes without recalibration of the Proximitor or monitor, provided the target material and gap distance are maintained within specification.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
We maintain dedicated stock of the 330903-00-12-05-02-05 and related 3300 XL system components to support critical spare parts programs and emergency replacement requirements. For facilities operating under planned maintenance schedules, we offer reserved stock arrangements and priority fulfillment agreements to ensure that replacement units are available when needed, without lead-time risk.
