Bently Nevada 330903-00-12-10-02-05/CN Safety Proximity Probe

Bently Nevada 330903-00-12-10-02-05/CN Safety Proximity Probe: Reliable Control in Harsh Industrial Sites

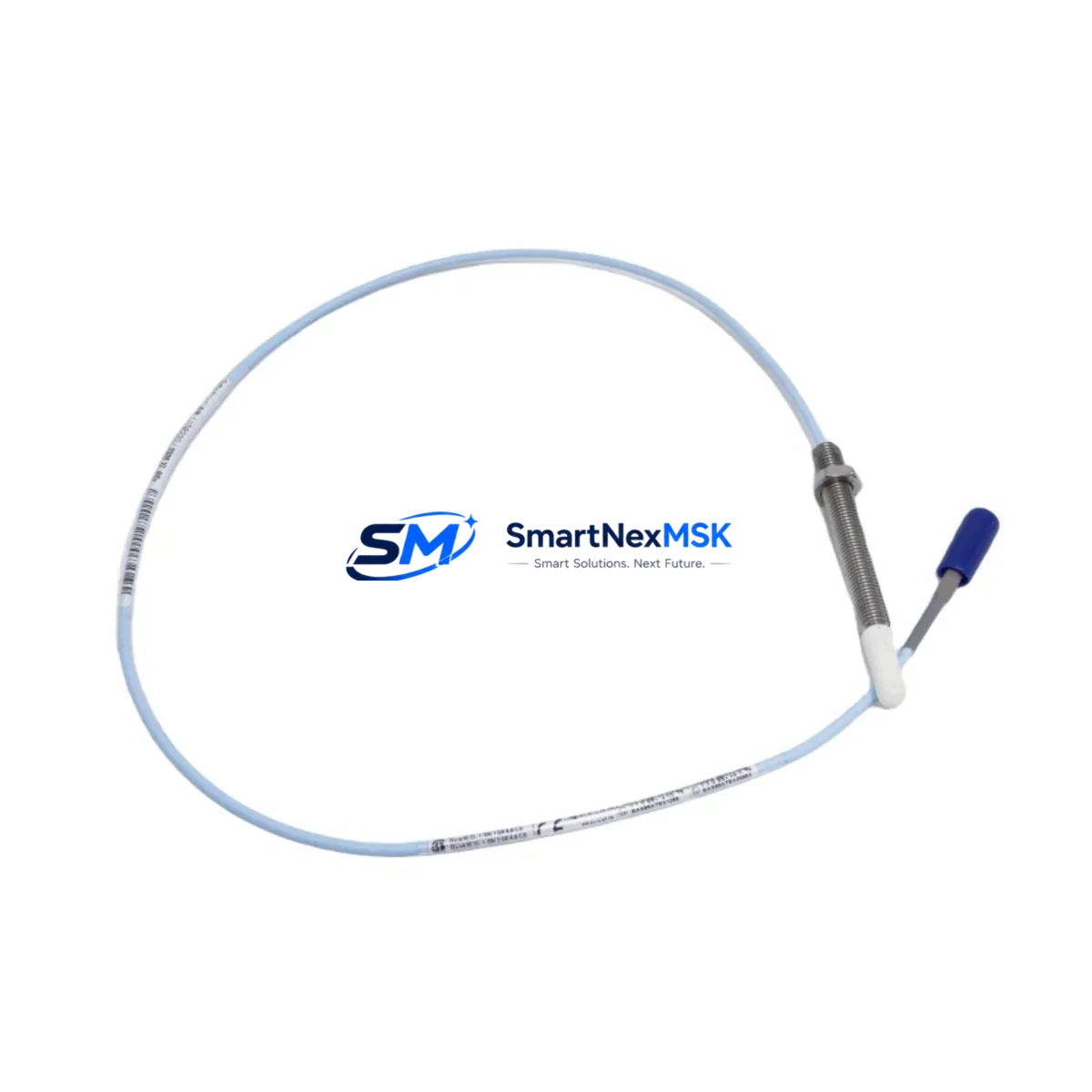

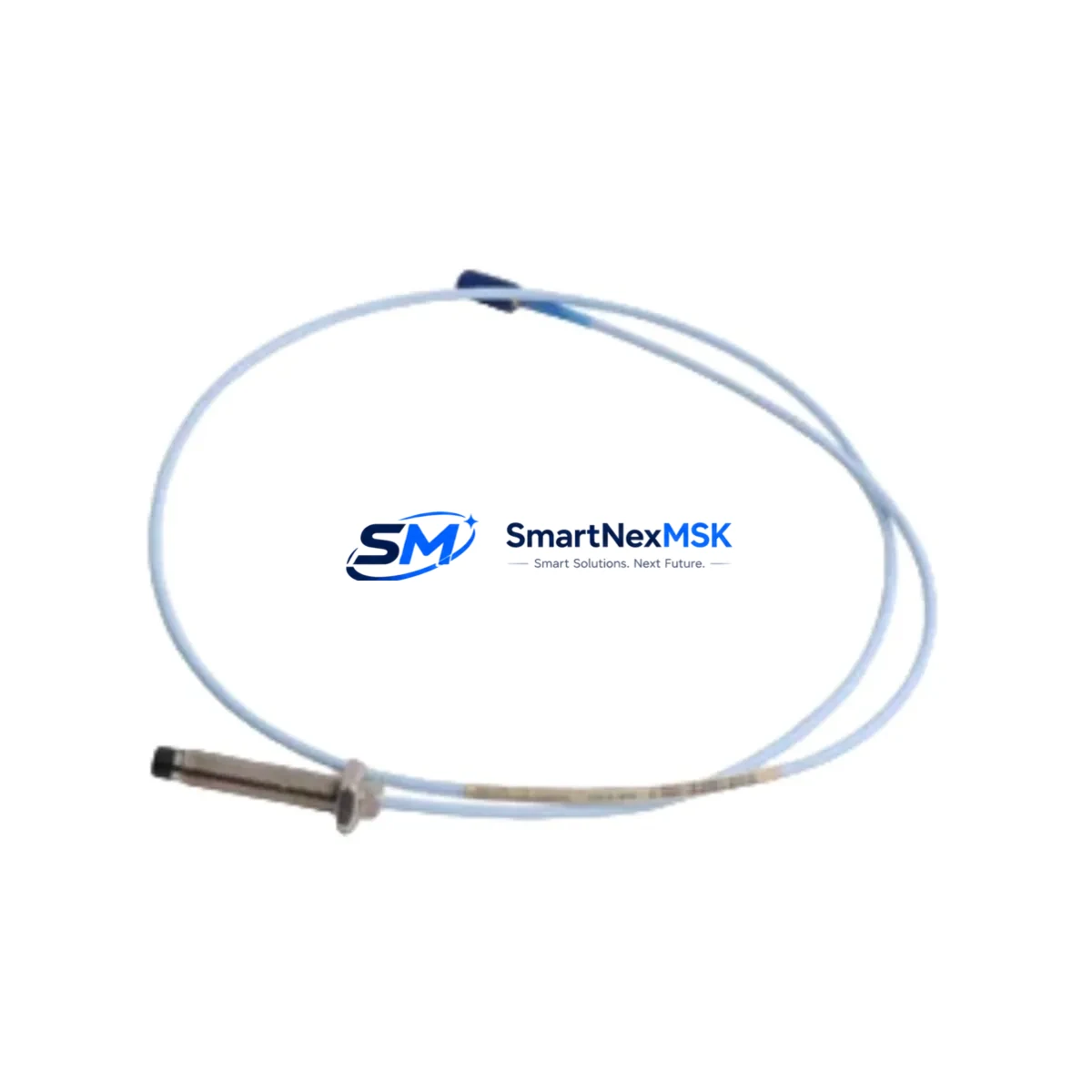

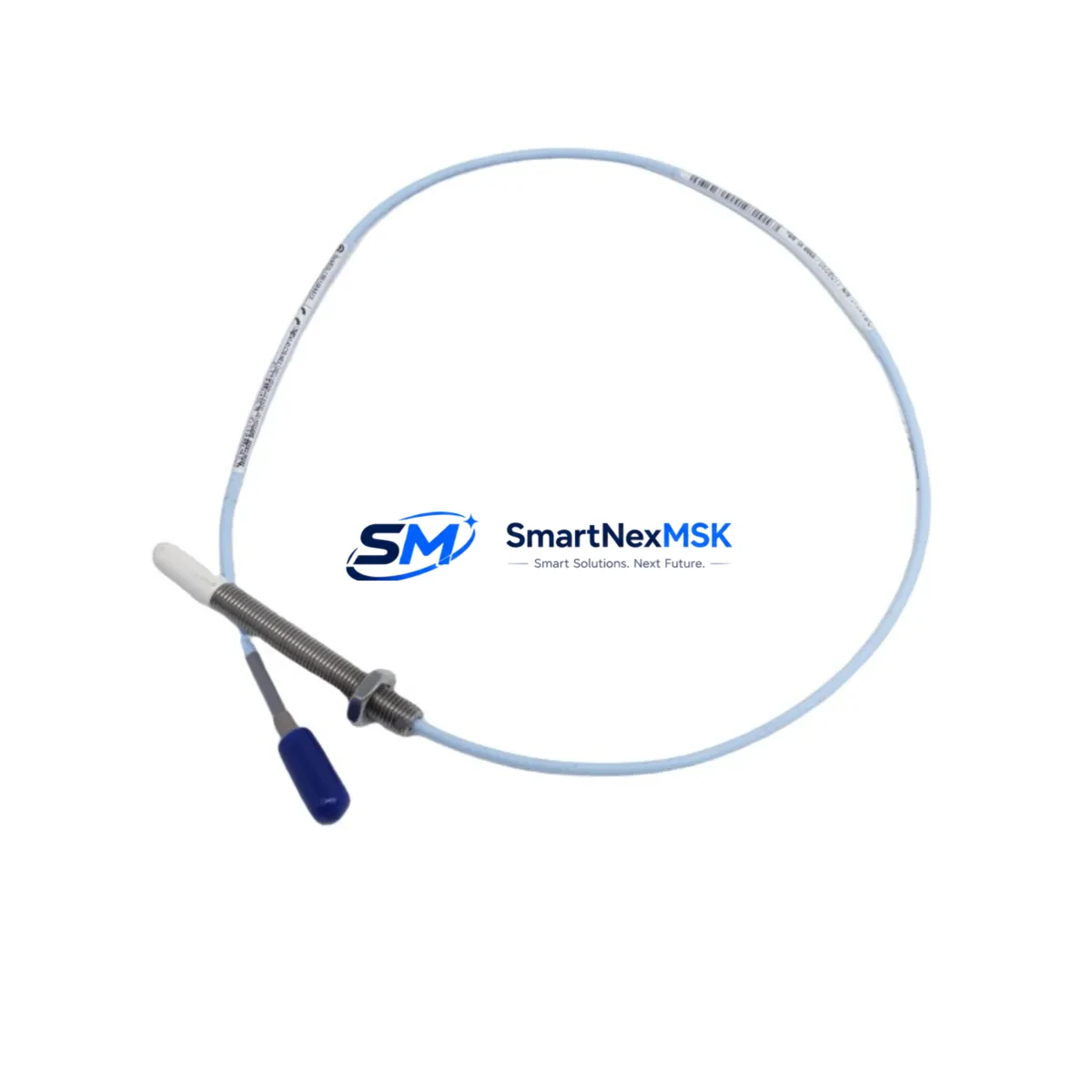

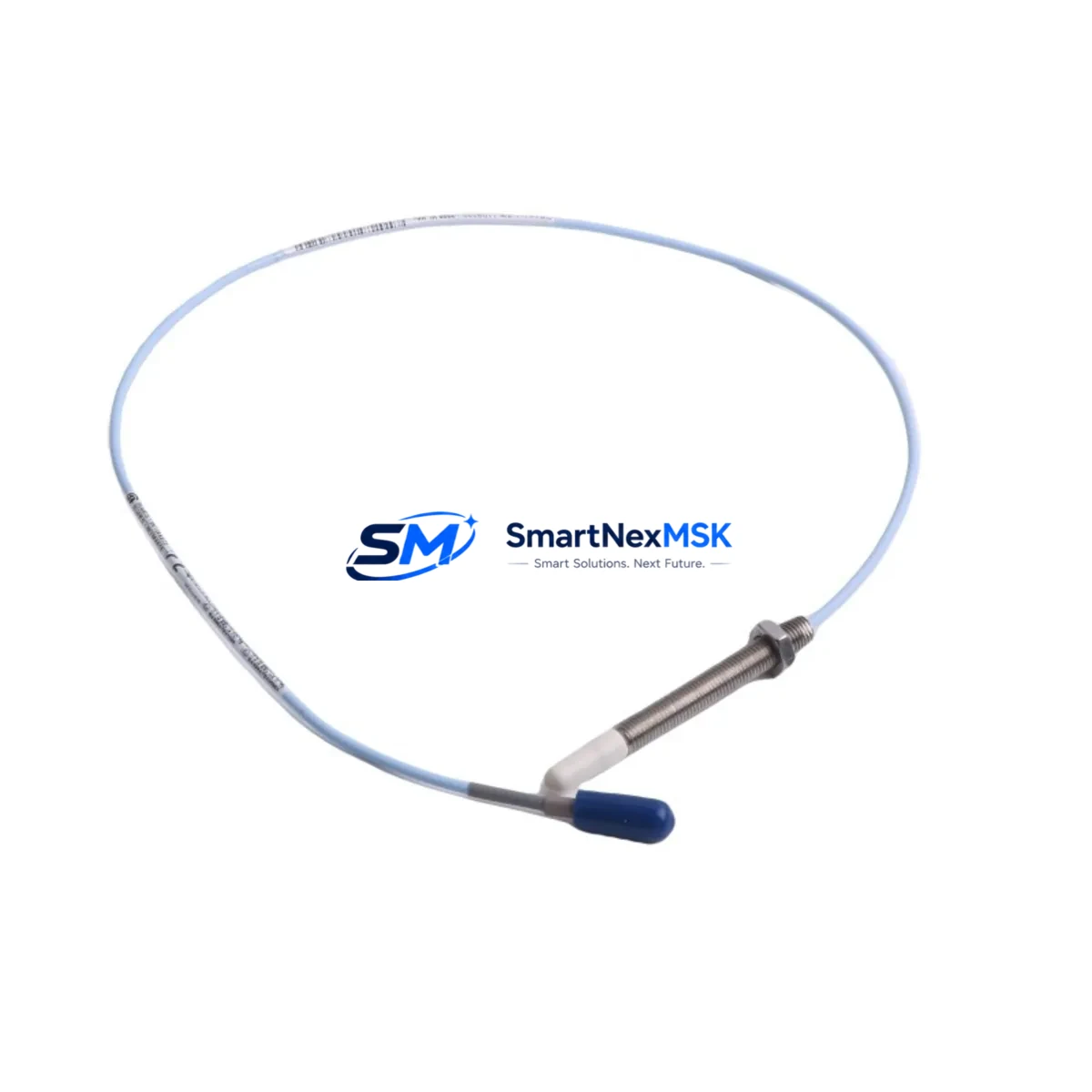

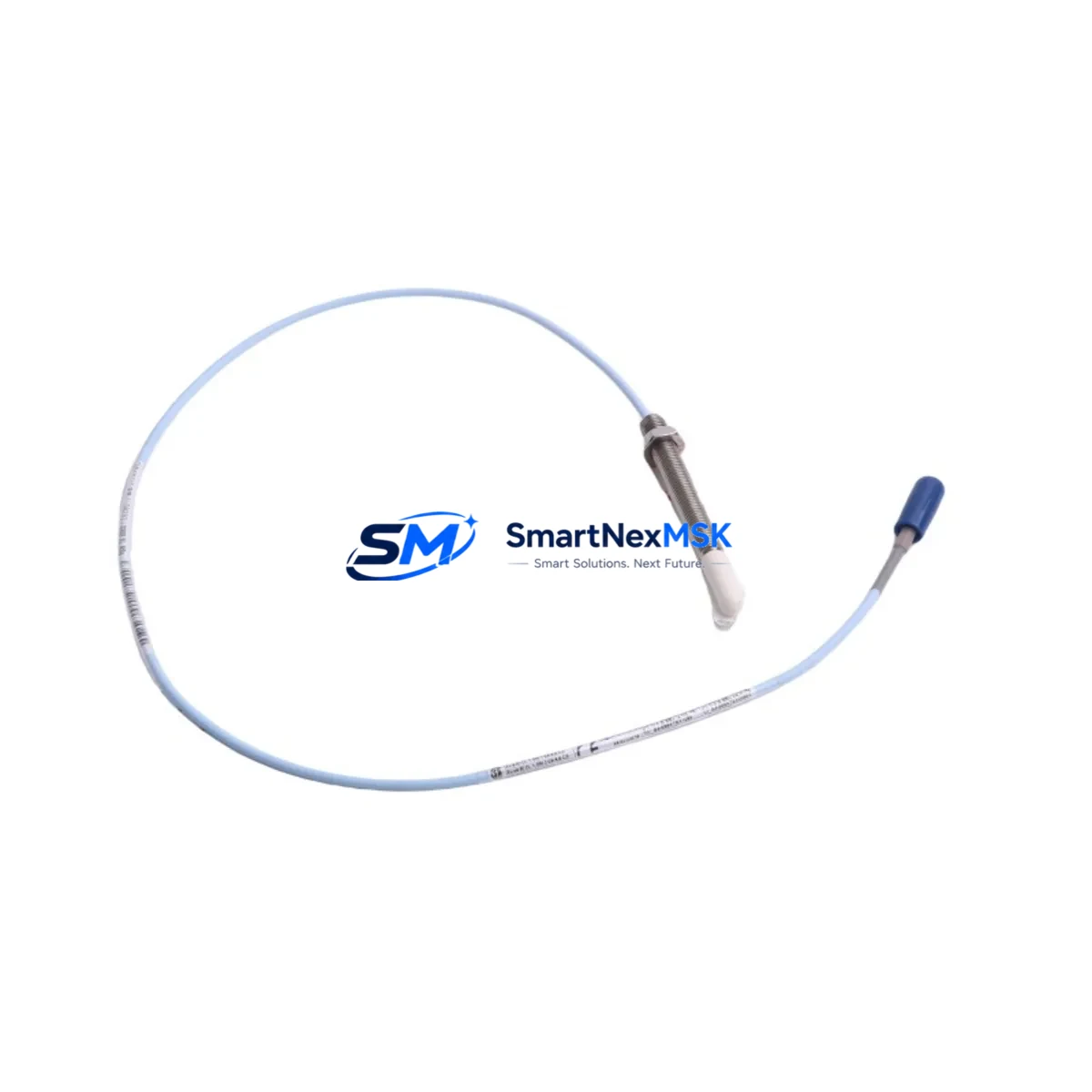

The Bently Nevada 330903-00-12-10-02-05/CN is a ruggedized 25 mm eddy-current proximity probe from the industry-proven 3300 NSv Series, engineered specifically for continuous vibration and position monitoring in the most demanding industrial environments. Whether deployed in rotating machinery protection systems, critical interlock loops, or high-interference control cabinets, this probe delivers the signal integrity and mechanical durability that safety-critical applications demand. Its non-contact sensing principle eliminates mechanical wear, ensuring long-term measurement stability even under sustained high-load operation, aggressive chemical exposure, and extreme temperature cycling.

In petrochemical refineries, power generation turbines, mining hoists, water treatment pump stations, metallurgical rolling mills, and port crane drives, unplanned machinery downtime carries severe safety and financial consequences. The 330903-00-12-10-02-05/CN is purpose-built to prevent exactly these scenarios. Its ruggedized construction — reinforced cable armor, hermetically sealed tip, and corrosion-resistant housing — maintains measurement accuracy where standard probes fail. The probe integrates seamlessly with the Bently Nevada 3300 XL 8mm Extension Cable and 3300 XL Proximitor Sensor to form a complete, calibrated measurement chain, eliminating signal drift caused by impedance mismatches or cable degradation in long field runs.

Safety Reliability Table

Control Cabinet Protection Strategy

Effective machinery protection in heavy industry is never a single-component solution. The 330903-00-12-10-02-05/CN operates as the field-sensing element within a layered protection architecture. In a typical turbine or compressor control cabinet, it works in conjunction with the Bently Nevada 3500/42M Proximitor / Seismic Monitor to provide real-time radial vibration and axial position data to the plant DCS or safety instrumented system (SIS). The monitor’s relay outputs feed directly into emergency shutdown (ESD) logic, ensuring that any exceedance of vibration trip setpoints triggers an orderly, safe machine coast-down.

Power quality is equally critical. Proximity probe systems are sensitive to supply voltage fluctuations; therefore, pairing the probe system with a Phoenix Contact QUINT 24VDC Power Supply or equivalent redundant power module ensures stable −24 VDC bias voltage, preventing false trips caused by power sag during load transients. Surge protection devices such as the MTL 5053 Zener Barrier or Pepperl+Fuchs Z787 Isolating Barrier are recommended at the cabinet entry point to clamp transient overvoltages from lightning strikes or switching surges that could otherwise damage the Proximitor input circuitry.

For communication integrity, the 3500 monitoring rack typically interfaces with the plant historian and DCS via Bently Nevada 3500/92 Communication Gateway using Modbus TCP or OPC-DA protocols. Ensuring this gateway is protected by a managed industrial Ethernet switch with port-level storm control — such as the Hirschmann RS20 Series — prevents network broadcast storms from disrupting real-time vibration data transmission. In safety loop architectures, the probe’s output chain should be validated against the Bently Nevada TDXnet Transient Data Interface to capture high-resolution waveform data for post-event analysis after any trip event.

Cable routing discipline is also a safety factor: the armored cable of the 330903-00-12-10-02-05/CN should be segregated from high-voltage power cables and routed through dedicated instrumentation conduit. Where conduit is impractical, the Bently Nevada 330130-080-00-00 Armored Extension Cable provides additional mechanical protection for exposed field runs in high-traffic machinery areas.

Critical Industrial Safety Applications

Petrochemical & Refinery: In fluid catalytic cracking (FCC) units and centrifugal compressor trains, the 330903-00-12-10-02-05/CN monitors shaft radial vibration and provides the primary trip signal to the SIS when vibration exceeds API 670 alarm and danger setpoints. Its ATEX Zone 1 certification makes it suitable for installation in classified hazardous areas where flammable vapors may be present.

Power Generation: Steam turbine and gas turbine generator sets rely on continuous proximity probe monitoring to detect rotor instability, oil whirl, and bearing wear before catastrophic failure. The probe’s wide operating temperature range accommodates the high-temperature bearing housings typical of large utility turbines, while its ruggedized cable withstands the vibration and thermal cycling of the turbine pedestal environment.

Mining & Mineral Processing: Ball mill pinion bearings, SAG mill trunnion bearings, and large slurry pump shafts are monitored using proximity probes to detect developing eccentricity and bearing defects. The IP67 rating and armored cable of the 330903-00-12-10-02-05/CN resist the dust, moisture, and mechanical impact common in underground and open-pit mining environments.

Water & Wastewater Treatment: High-speed centrifugal pumps and blower units in water treatment plants require continuous vibration monitoring to prevent unplanned outages that could compromise public water supply safety. The probe’s non-contact design eliminates the maintenance burden of contact-type sensors in wet, corrosive environments.

Metallurgy & Steel: Rolling mill drive shafts and continuous caster pinch roll assemblies operate under extreme radial loads and thermal stress. Proximity probe monitoring provides early warning of shaft deflection and bearing clearance changes, enabling planned maintenance shutdowns rather than emergency stops that risk product quality and worker safety.

Port & Heavy Lifting: Crane hoist gearboxes and slewing ring drives in port terminals are monitored for vibration anomalies that could indicate gear tooth damage or bearing failure. The 330903-00-12-10-02-05/CN’s robust construction withstands the salt-air corrosion and mechanical shock loads inherent in port crane applications.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing — including sensitivity verification, cable continuity, and insulation resistance checks — to confirm it meets Bently Nevada OEM specifications before dispatch. Warranty claims are supported with replacement or full refund.

Q2: How is the 330903-00-12-10-02-05/CN tested before shipment?
Every unit is bench-tested using a calibrated Proximitor and target material to verify sensitivity (7.87 V/mm ±0.5%), linear range, and cable integrity. Units that do not meet OEM tolerance specifications are quarantined and not shipped. A test report is available upon request for critical safety applications.

Q3: Is this probe compatible with existing Bently Nevada 3300 and 3500 systems?
Yes. The 330903-00-12-10-02-05/CN is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor and the 3500 Series Machinery Protection System. It is a direct replacement for earlier 330903 series probes and requires no recalibration of the Proximitor when used with the matched extension cable specified in the original system design.

Q4: Can long-term supply be guaranteed for ongoing plant maintenance programs?
Yes. We maintain dedicated safety-critical spare parts inventory for the Bently Nevada 3300 NSv and 3500 product families to support planned maintenance, turnaround shutdowns, and emergency replacement requirements. Customers with multi-unit or annual blanket order requirements are encouraged to contact our sales team to discuss reserved stock arrangements and priority fulfillment agreements.
