Bently Nevada 330903-00-13-10-02-05/CN Spare 3300 NSv: Precision Spare Parts Replacement for Industrial Downtime Control

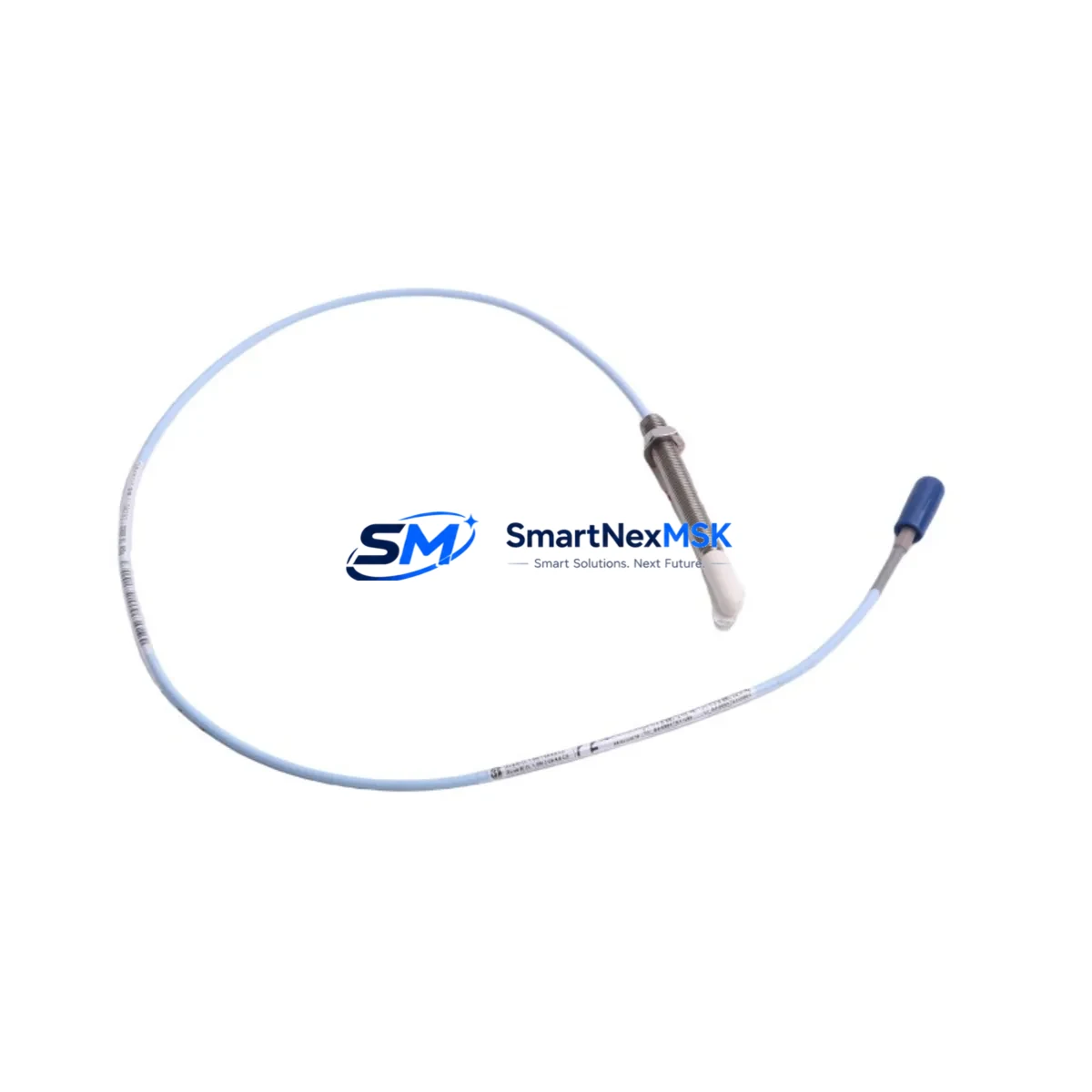

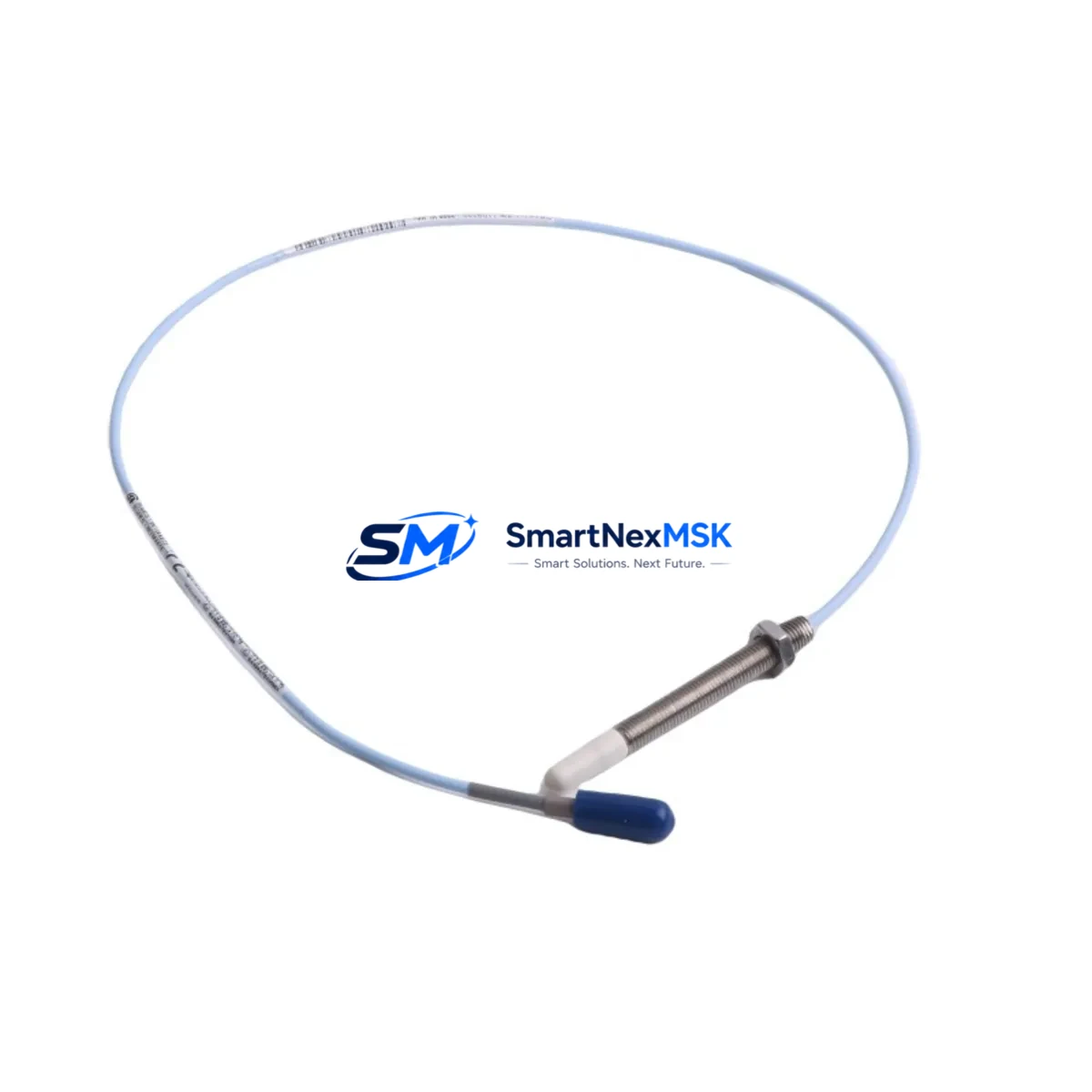

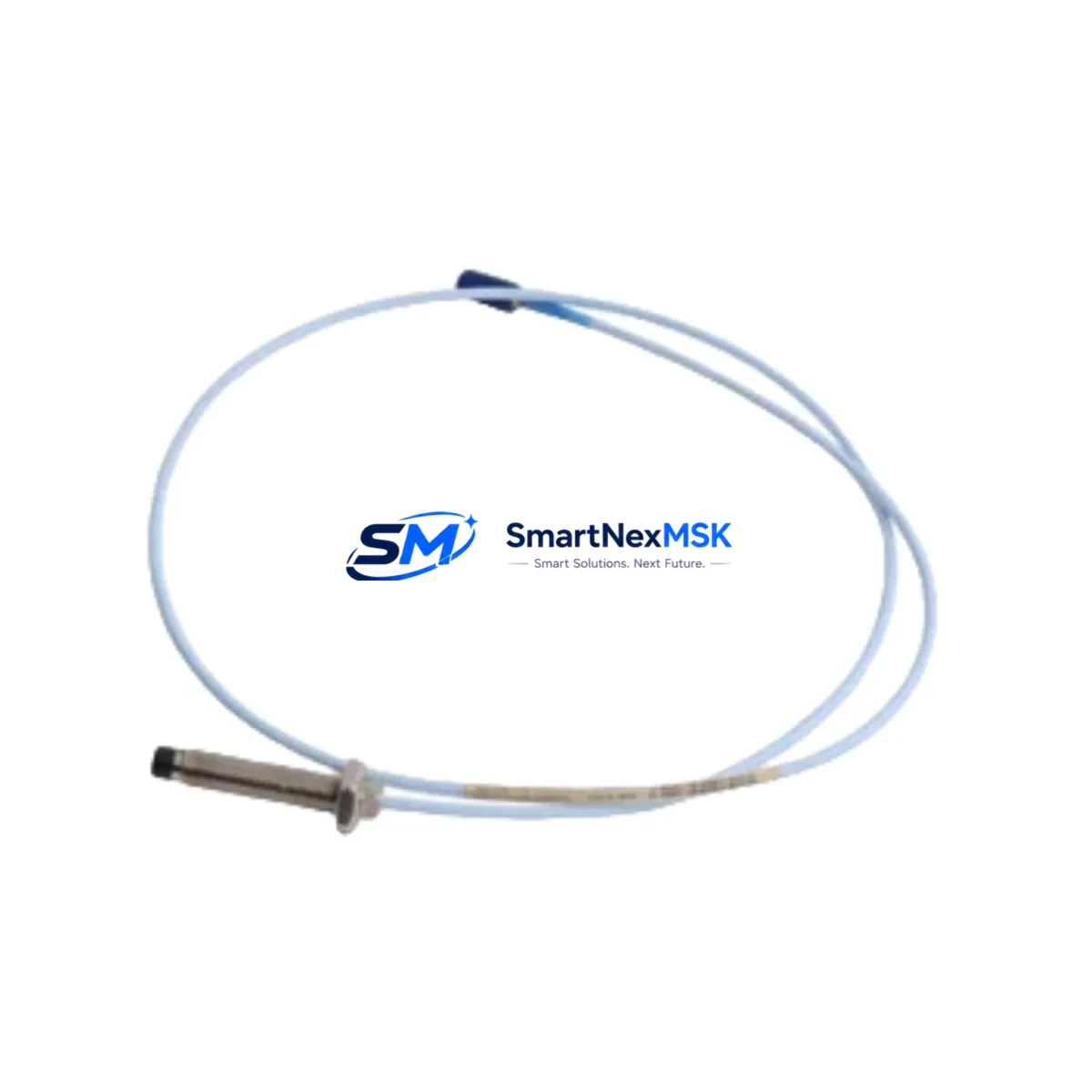

The Bently Nevada 330903-00-13-10-02-05/CN is an 8mm eddy-current proximity probe engineered for the 3300 NSv Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a strategic spare parts inventory for a critical compressor train or turbine skid, this probe is a direct, original-specification replacement that restores system integrity without recalibration of the full monitoring chain.

Maintenance engineers and reliability teams operating Bently Nevada 3300 NSv systems understand that probe replacement is not simply a hardware swap — it is a precision event. The 330903-00-13-10-02-05/CN must be paired with its matched extension cable and proximitor/oscillator driver to maintain the calibrated output scale factor of 200 mV/mil (7.87 V/mm). Any deviation in the probe-cable-driver combination introduces measurement error that can mask real shaft displacement or generate nuisance trips. Stocking this probe as a verified, tested spare eliminates that risk during emergency replacement scenarios.

This unit ships with full functional testing documentation, is covered by a 12-month warranty, and is sourced to meet the original Bently Nevada specification. Lead times are minimized through pre-shipment inspection and same-day dispatch capability for in-stock units.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330903-00-13-10-02-05/CN probe is flagged for replacement — whether due to a gap voltage drift alarm, physical damage from a rub event, or scheduled probe-tip inspection — the maintenance window should be used to audit the entire vibration monitoring loop. Experienced reliability engineers treat a single probe replacement as an opportunity to verify the health of the complete signal chain.

Begin by inspecting the 330130-series extension cable for jacket abrasion, connector corrosion, or shield continuity loss. A degraded extension cable is the most common source of intermittent gap voltage errors and is frequently overlooked when only the probe is replaced. Next, verify the 3300 XL Proximitor Sensor (driver module, e.g. 330180-X1-05) output voltage at the monitor input — a driver that is approaching end-of-life will exhibit elevated noise floor even with a new probe installed.

At the monitor rack level, confirm that the 3500/40M Proximitor/Seismic Monitor or equivalent 3300 rack card is reading within its calibrated range. If the facility runs a 3500 Series rack, this is also the time to inspect the 3500/20 Power Supply module for output ripple and verify that the 3500/92 Communication Gateway is logging data correctly to the plant historian. A corrupted communication module can mask a genuine machinery alarm even when the probe and driver are functioning correctly.

For facilities with older installations, check the Keyphasor probe (typically a 330900-series unit) and its associated driver, as Keyphasor signal integrity directly affects phase-referenced vibration analysis. If the control cabinet houses a TDI (Transient Data Interface) or a System 1 Evolution data acquisition node, verify that the node firmware is current and that the probe channel is mapped correctly in the asset configuration.

Finally, inspect terminal blocks, cable glands, and grounding straps inside the junction box. Loose terminations at the 3300 field wiring barrier or corroded ground studs are a leading cause of elevated noise in proximity probe circuits and should be addressed during any probe replacement event. Stocking a set of spare terminal blocks and a replacement junction box gasket alongside the 330903-00-13-10-02-05/CN probe is a low-cost measure that significantly reduces the risk of a repeat callout.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the monitor channel at the 3500/3300 rack. Place the channel in bypass mode to prevent a spurious trip during probe removal. Record the existing gap voltage (typically –10.0 VDC ± 0.5 V for a correctly gapped 8mm probe on steel).

Step 2 — Probe Removal: Loosen the probe locknut and back the probe out of the bracket. Inspect the probe tip for mechanical damage, target surface scoring, or contamination. If the target surface shows scoring deeper than 0.1 mm, schedule a shaft inspection before returning the machine to service.

Step 3 — New Probe Installation: Thread the 330903-00-13-10-02-05/CN into the bracket and set the gap to the specified value (typically 1.0 mm / 40 mil for radial vibration applications on steel targets). Verify gap voltage at the driver output: –10.0 VDC ± 0.5 V confirms correct installation.

Step 4 — System Verification: Remove the channel bypass, confirm the monitor is reading within normal vibration limits, and verify that the System 1 or DCS historian is receiving a clean signal. Log the replacement in the CMMS with the new probe serial number and installation gap setting.

Step 5 — Documentation: Update the spare parts register to trigger reorder of a replacement 330903-00-13-10-02-05/CN unit, maintaining minimum stock levels for critical machinery protection loops.

Spare Parts Support FAQ

Q1: Is the 330903-00-13-10-02-05/CN a direct drop-in replacement for older 330903-series probes?
Yes. The /CN suffix denotes the MIL-C-5015 connector variant. It is dimensionally and electrically compatible with other 330903-series 8mm probes used in 3300 NSv systems, provided the extension cable and driver are also matched to the 3300 NSv specification. Always verify the complete probe-cable-driver combination before installation.

Q2: What is included in the 12-month warranty?
All units are covered for 12 months from the date of shipment against manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing. Warranty claims are supported with replacement dispatch within 5 business days upon receipt of the defective unit.

Q3: Can you supply matched extension cables and Proximitor drivers alongside this probe?
Yes. We maintain stock of compatible 330130-series extension cables and 330180-series Proximitor drivers to support complete loop replacement. Contact our sales team to configure a matched spare set for your specific installation.

Q4: How do I verify compatibility with my existing 3300 or 3500 Series rack before ordering?
Provide your existing probe part number, extension cable length, and Proximitor driver model. Our technical team will confirm compatibility and, where required, advise on any configuration adjustments needed for the 3300 NSv scale factor. Same-day compatibility confirmation is available for standard configurations.
