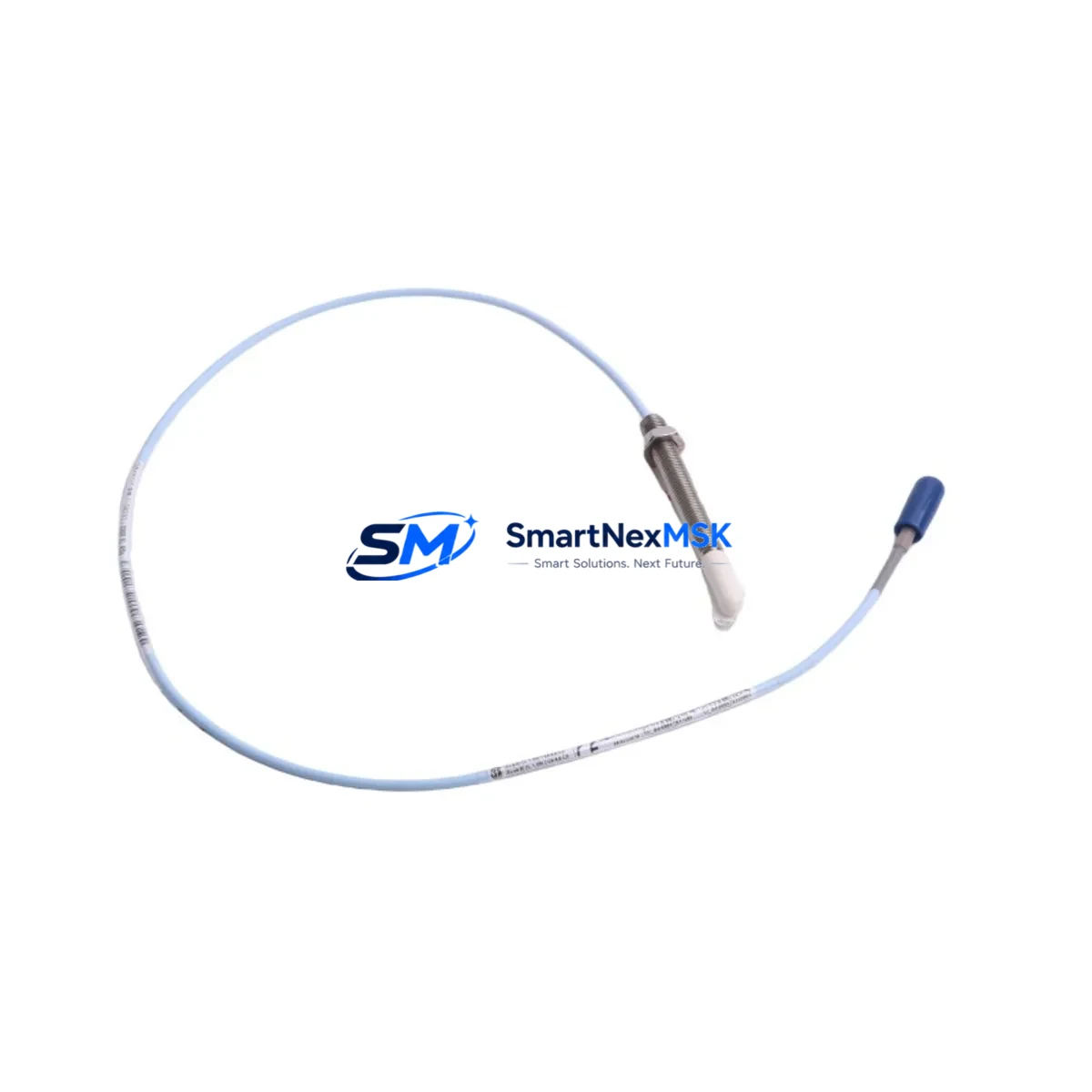

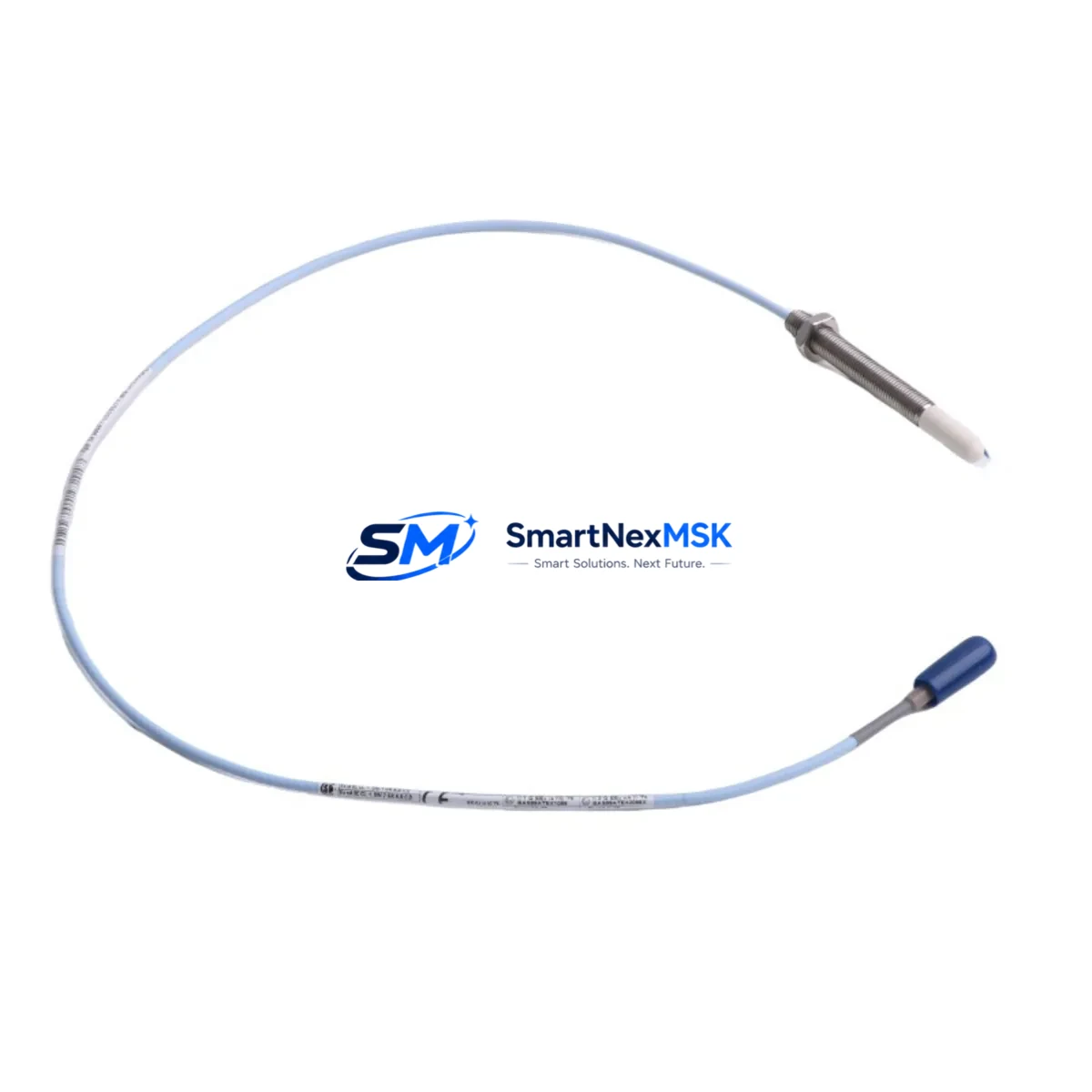

Bently Nevada 330903-00-14-05-02-00 Safety-Enhanced Proximity Probe for Harsh Industrial Sites
The Bently Nevada 330903-00-14-05-02-00 is a high-performance eddy-current proximity probe from the renowned 3300 NSv Series, engineered to deliver continuous, safety-critical shaft vibration and position monitoring in the most demanding industrial environments. Designed for integration into machinery protection systems, this probe is a cornerstone component in control cabinets, critical interlock loops, and turbomachinery safety architectures where signal integrity and uninterrupted operation are non-negotiable.
In high-load, high-interference production facilities — including petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical processing lines, and port machinery — the 330903-00-14-05-02-00 delivers the measurement precision and environmental resilience required to prevent unplanned shutdowns, protect rotating assets, and maintain personnel safety. Its eddy-current sensing principle ensures non-contact, wear-free operation, eliminating mechanical degradation as a failure mode even under continuous 24/7 duty cycles.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 330903-00-14-05-02-00 |
| Brand | Bently Nevada |
| Series | 3300 NSv (Non-Standard Voltage) |
| Sensor Type | Eddy-Current Proximity Probe |
| Probe Length | 14 inches (355.6 mm) |
| Cable Length | 5 meters (standard) |
| Tip Diameter | 8 mm |
| Output Voltage Range | -2 VDC to -18 VDC (NSv scale factor) |
| Operating Temperature | -35°C to +121°C |
| Target Material Compatibility | Steel, Stainless Steel, Inconel, Titanium |
| EMI/RFI Resistance | High — shielded coaxial cable construction |
| Ingress Protection | IP67 (probe body) |
| Connector Type | Coaxial, compatible with 3300 XL driver/extension cable system |
| Safety Application | Machinery protection, vibration interlock, overspeed detection |
| Condition | New / Surplus New — pre-shipment tested |
| Warranty | 12 Months — SMARTNEXMSK Quality Guarantee |
| Origin | USA |
Control Cabinet Protection Strategy
In a fully integrated turbomachinery protection cabinet, the 330903-00-14-05-02-00 proximity probe operates as the primary sensing element within a complete Bently Nevada 3300 Series monitoring chain. It pairs directly with the Bently Nevada 330130-080-01-00 extension cable and the Bently Nevada 330180-X1-05 proximitor/driver module to form a calibrated, low-noise signal path from the shaft surface to the monitoring rack. Signal conditioning is handled by the Bently Nevada 3500/42M Proximitor I/O Module, which interfaces with the 3500 Rack System for centralized vibration, position, and speed monitoring.
Power supply stability is critical in these architectures. The Bently Nevada 3500/15 Power Supply Module provides regulated, redundant DC power to the monitoring rack, protecting against voltage sag and transient surges that could cause false trips or missed alarms. In installations where the control cabinet is co-located with variable frequency drives or high-current switching equipment, the addition of a Phoenix Contact QUINT-PS/1AC/24DC/20 power supply upstream of the rack provides an additional layer of surge isolation and load buffering.
For communication and data integration into plant DCS or safety instrumented systems (SIS), the 3500/92 Communication Gateway Module enables Modbus TCP or OPC-DA connectivity, allowing vibration alarm states from the 330903-00-14-05-02-00 to propagate directly into the plant’s Emerson DeltaV SIS or Honeywell Safety Manager logic solvers. This integration ensures that high-vibration interlock signals reach the safety PLC without latency, supporting IEC 61511-compliant safety loop architectures. Complementary protection is provided by Bently Nevada 330500-02-00 Velomitor velocity sensors mounted on bearing housings, offering redundant vibration detection on the same rotating machine train.
Critical Industrial Safety Applications
Petrochemical & Refinery: In compressor trains and centrifugal pump systems at refineries and gas processing plants, the 330903-00-14-05-02-00 monitors radial shaft displacement in real time. Proximity probe signals feed directly into emergency shutdown (ESD) interlock logic, triggering automatic machine trip if vibration exceeds API 670 alarm setpoints — preventing catastrophic bearing failure, seal damage, and potential hydrocarbon release events.
Power Generation: Steam turbine and gas turbine installations rely on eddy-current proximity probes for continuous shaft centerline position monitoring. The 3300 NSv series probe’s wide operating temperature range and EMI-hardened cable construction make it suitable for installation in turbine bearing pedestals where thermal gradients and electromagnetic interference from generator excitation systems are significant. Reliable operation of this probe directly supports grid stability and prevents forced outages.
Mining & Mineral Processing: In SAG mills, ball mills, and large slurry pump drives, shaft vibration monitoring with the 330903-00-14-05-02-00 provides early warning of rotor imbalance, misalignment, and bearing wear — conditions that, if undetected, lead to multi-day production stoppages and costly mechanical repairs. The probe’s IP67-rated body withstands the dust, moisture, and vibration inherent in mineral processing environments.
Water & Wastewater Treatment: High-capacity centrifugal pumps and blower units in water treatment facilities operate continuously with minimal maintenance windows. Proximity probe monitoring enables condition-based maintenance scheduling, reducing unplanned downtime and ensuring compliance with environmental discharge regulations that depend on uninterrupted pump operation.
Metallurgy & Steel Production: Rolling mill drives, continuous casting machines, and large induction furnace cooling pumps all benefit from real-time shaft monitoring. The 330903-00-14-05-02-00’s compatibility with ferrous and non-ferrous target materials makes it versatile across the diverse rotating equipment found in integrated steel plants.
Safety and Quality FAQ
Q1: What warranty coverage is provided for the 330903-00-14-05-02-00?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each probe undergoes pre-shipment functional testing including output linearity verification and insulation resistance checks before dispatch.
Q2: How is the probe tested before shipment?
Every 330903-00-14-05-02-00 unit is bench-tested against Bently Nevada factory calibration standards. Testing includes gap voltage output verification across the full measurement range, cable continuity and shielding integrity checks, and connector inspection. A test report is available upon request for critical safety applications.
Q3: Is this probe compatible with existing 3300 Series driver and extension cable systems?
Yes. The 330903-00-14-05-02-00 is fully compatible with the Bently Nevada 3300 Series driver/extension cable ecosystem, including standard 330130 extension cables and 330180 proximitor modules. The NSv (Non-Standard Voltage) scale factor must be matched to the corresponding NSv-configured driver module to ensure correct calibration.
Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
SMARTNEXMSK maintains stocked inventory of the 330903-00-14-05-02-00 and related 3300 Series components to support planned maintenance, emergency replacement, and capital spares programs. Bulk order pricing and reserved stock arrangements are available for facilities with ongoing demand. Contact our team to discuss supply agreements tailored to your maintenance schedule.
