Bently Nevada 330903-00-14-10-02-05/CN 3300 NSv Probe

Bently Nevada 330903-00-14-10-02-05/CN 3300 NSv Probe: Retrofit-Ready Replacement for Legacy Vibration Monitoring Systems

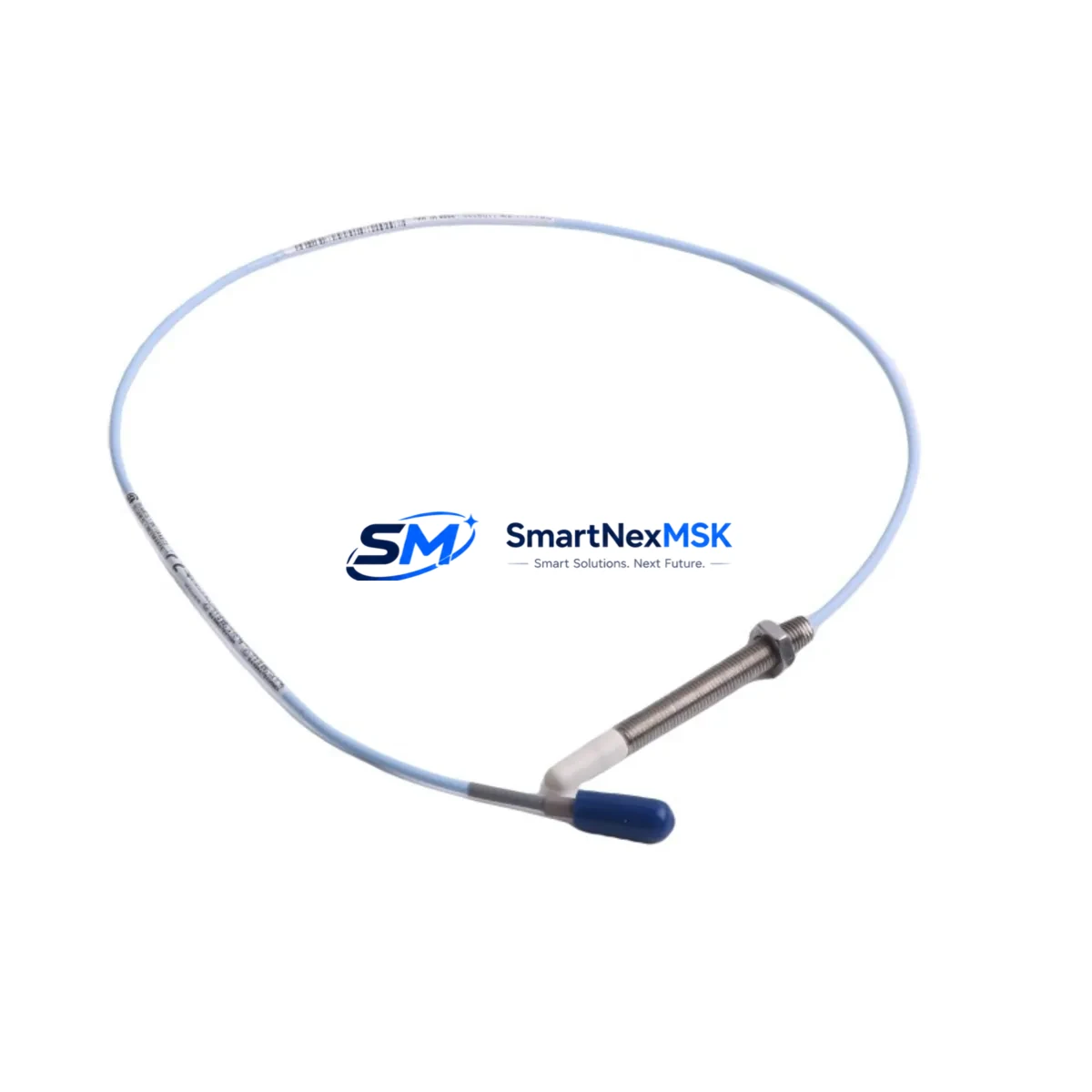

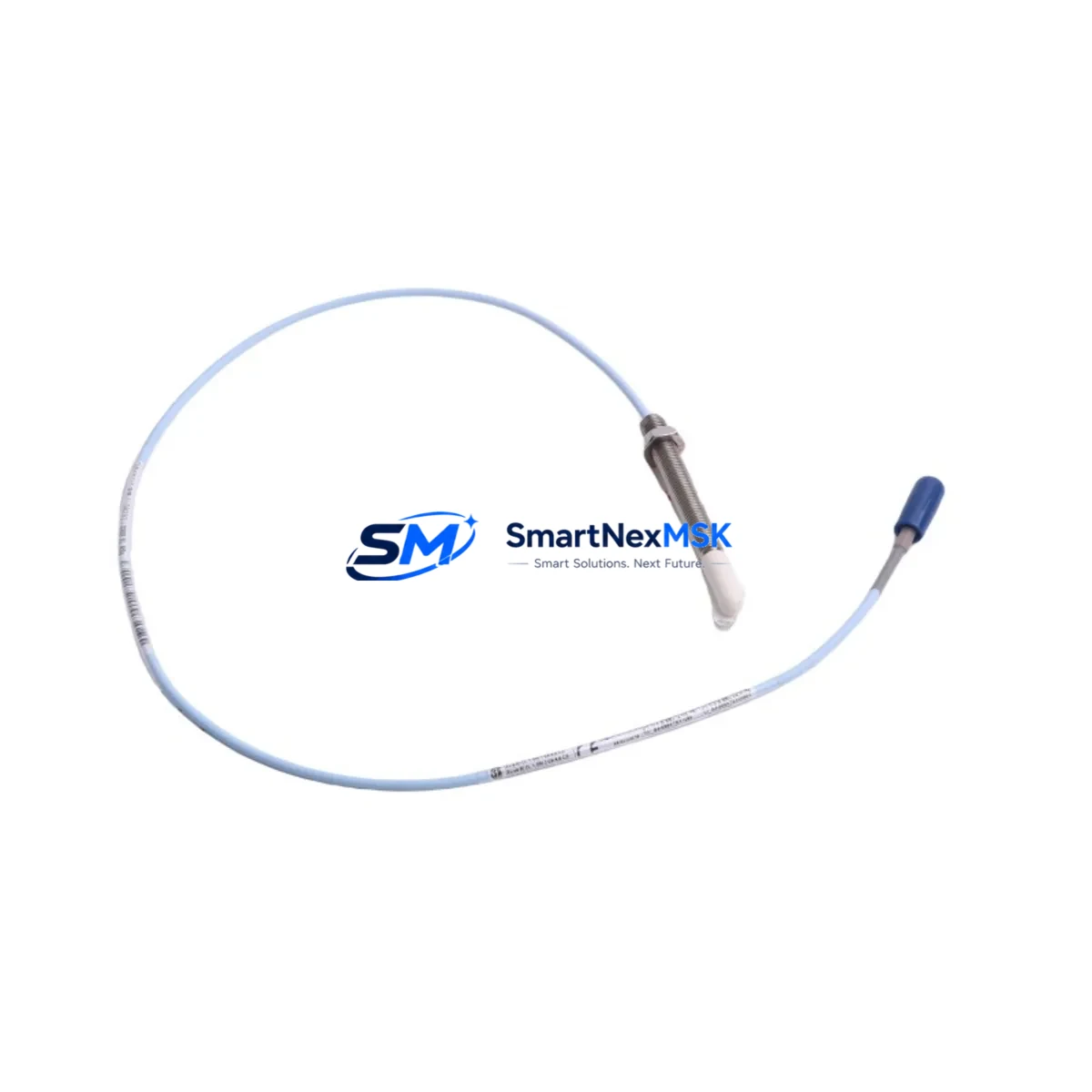

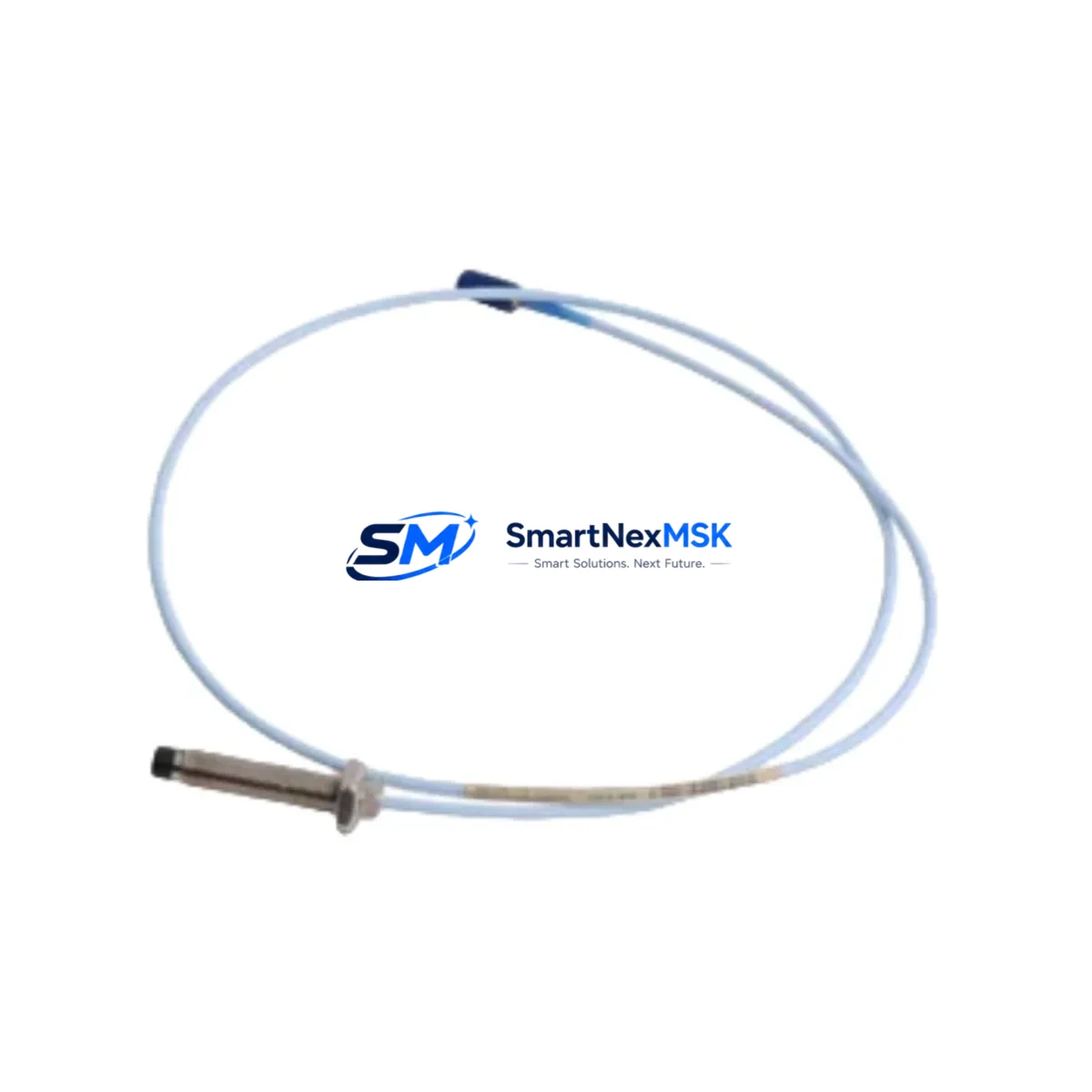

The Bently Nevada 330903-00-14-10-02-05/CN is a 3300 NSv Series eddy-current proximity probe engineered for continuous shaft vibration, axial position, and differential expansion monitoring in rotating machinery. As legacy 3300 Series installations approach end-of-life or face discontinued spare-parts availability, this probe serves as a verified drop-in replacement that preserves existing wiring, conduit routing, and signal chain integrity — minimizing retrofit scope and downtime exposure.

This probe operates within the standard 3300 NSv system architecture, pairing directly with the 3300 XL 8mm extension cable and the 3300 XL proximitor sensor to deliver calibrated output signals to the 3500/40M Proximitor Seismic Monitor or equivalent rack-mounted monitoring modules. Engineers planning a control system modernization can retain the existing 3500 Series rack infrastructure while replacing worn or obsolete probe assemblies, avoiding a full platform migration.

For facilities running older 3300 RAM or 3300 TDI monitor cards, the 330903-00-14-10-02-05/CN provides a compatible upgrade path that maintains the 200 mV/mil (7.87 V/mm) sensitivity standard, ensuring that existing alarm setpoints, gap voltage references, and trend baselines remain valid without recalibration of the entire monitoring loop. This is particularly valuable in turbine, compressor, and pump applications where vibration baselines have been established over years of operation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the maintenance window opens. When replacing the 330903-00-14-10-02-05/CN in an operating plant, engineers should first audit the full probe-to-monitor signal chain. This includes verifying the condition of the 3300 XL 8mm extension cable — a common wear point in high-vibration environments — and confirming that the 3300 XL proximitor sensor output voltage is within the –10 to –18 VDC operating range before the new probe is installed.

For facilities upgrading from older 3300 RAM monitor cards to the current 3500/40M Proximitor Seismic Monitor, the rack transition requires attention to I/O terminal mapping. The 3500 Series rack uses a different terminal block layout than legacy 3300 TDI cards, and the 3500/20 Rack Interface Module must be configured to match the existing field wiring before the new probe assembly is connected. Where the control system interfaces with a DCS via the 3500/92 Communication Gateway Module, engineers should confirm that the Modbus or FOUNDATION Fieldbus tag assignments for the affected measurement points are updated in the historian and DCS faceplate before returning the loop to service.

In multi-machine trains — such as gas turbine and compressor packages — the retrofit scope often extends beyond a single probe. Adjacent measurement points may use the 330730 proximity probe (radial vibration, Y-axis) or the 330180 proximity probe (thrust position), and these should be inspected simultaneously to avoid repeat outages. The 3500/15 Power Supply Module should also be load-checked when multiple probes are replaced in a single rack to ensure adequate current capacity for the updated configuration.

Where HMI screens reference specific tag names or gap voltage displays tied to the original probe serial number, the 3500 Series configuration software (System 1 or Rack Configuration Software) should be used to update asset records and re-export the configuration to the rack before the machine is returned to full-speed operation. Programming cable connectivity via the RS-232 or Ethernet port on the 3500/20 RIM should be verified prior to the maintenance window to avoid delays during the commissioning phase.

Downtime Control During System Migration

Minimizing unplanned downtime during a probe replacement requires a structured pre-outage checklist. Before the machine is taken offline, the existing gap voltage, vibration amplitude, and phase reference readings should be documented from the 3500/40M monitor front panel or the System 1 software historian. These baseline values serve as the acceptance criteria for the replacement probe during post-installation commissioning.

The 330903-00-14-10-02-05/CN is supplied pre-tested and gap-verified, reducing on-site setup time. Upon installation, the technician should confirm the probe tip-to-target gap using a calibrated DC voltmeter before reconnecting the extension cable to the proximitor. Once the gap is set and the proximitor output is confirmed within specification, the 3500/40M monitor channel can be re-enabled and the bypass removed — restoring full vibration protection before the machine is restarted.

For facilities with redundant monitoring configurations, the replacement can often be performed with the machine online by switching the affected channel to bypass mode in the 3500 rack, replacing the probe, verifying the output, and then removing the bypass — keeping the machine in continuous protected operation throughout the procedure. This approach is particularly effective in critical service applications where a full shutdown is not operationally acceptable.

Retrofit Support FAQ

Q1: Is the 330903-00-14-10-02-05/CN a direct replacement for other 330903 suffix variants?
The 330903 family shares the same 8mm tip diameter and 200 mV/mil sensitivity, but suffix codes encode cable length, connector type, and temperature rating. The -00-14-10-02-05/CN suffix specifies a 5m integral cable with standard connector. Verify the suffix against your existing installation drawing before ordering to confirm dimensional and electrical compatibility.

Q2: What commissioning steps are required after installation?
After mechanical installation, measure the DC gap voltage at the proximitor output with the machine stationary. The nominal gap for most 3300 NSv applications is –10 to –12 VDC at the recommended probe-to-target gap. Confirm the reading against the original calibration record, then perform a slow-roll vibration check before returning the machine to full speed. Update the System 1 asset record with the new probe serial number.

Q3: Can this probe be used with non-Bently Nevada monitors?
The 330903-00-14-10-02-05/CN outputs a standard eddy-current signal compatible with any monitor designed for 200 mV/mil sensitivity probes operating in the –24 VDC proximitor supply range. Compatibility with third-party monitors should be verified against the monitor’s input specification sheet, particularly for gap voltage range and input impedance requirements.

Q4: What does the 12-month warranty cover?
All units are supplied with a 12-month warranty covering manufacturing defects, calibration drift beyond specification, and connector integrity. Each probe is functionally tested and gap-verified prior to shipment. Warranty claims are supported with a replacement unit dispatched within 5 business days upon confirmation of the defect. Out-of-warranty repair and exchange services are also available.
