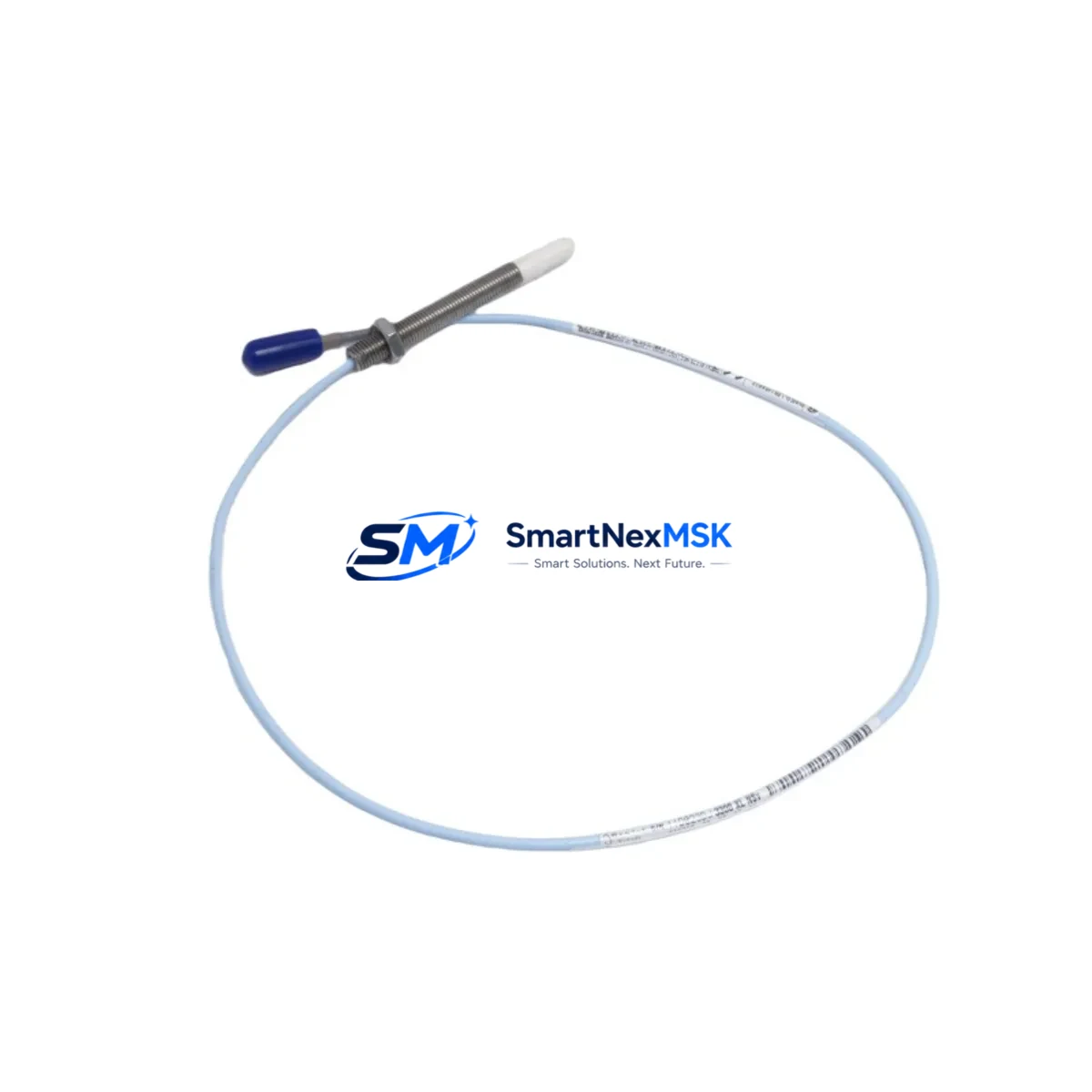

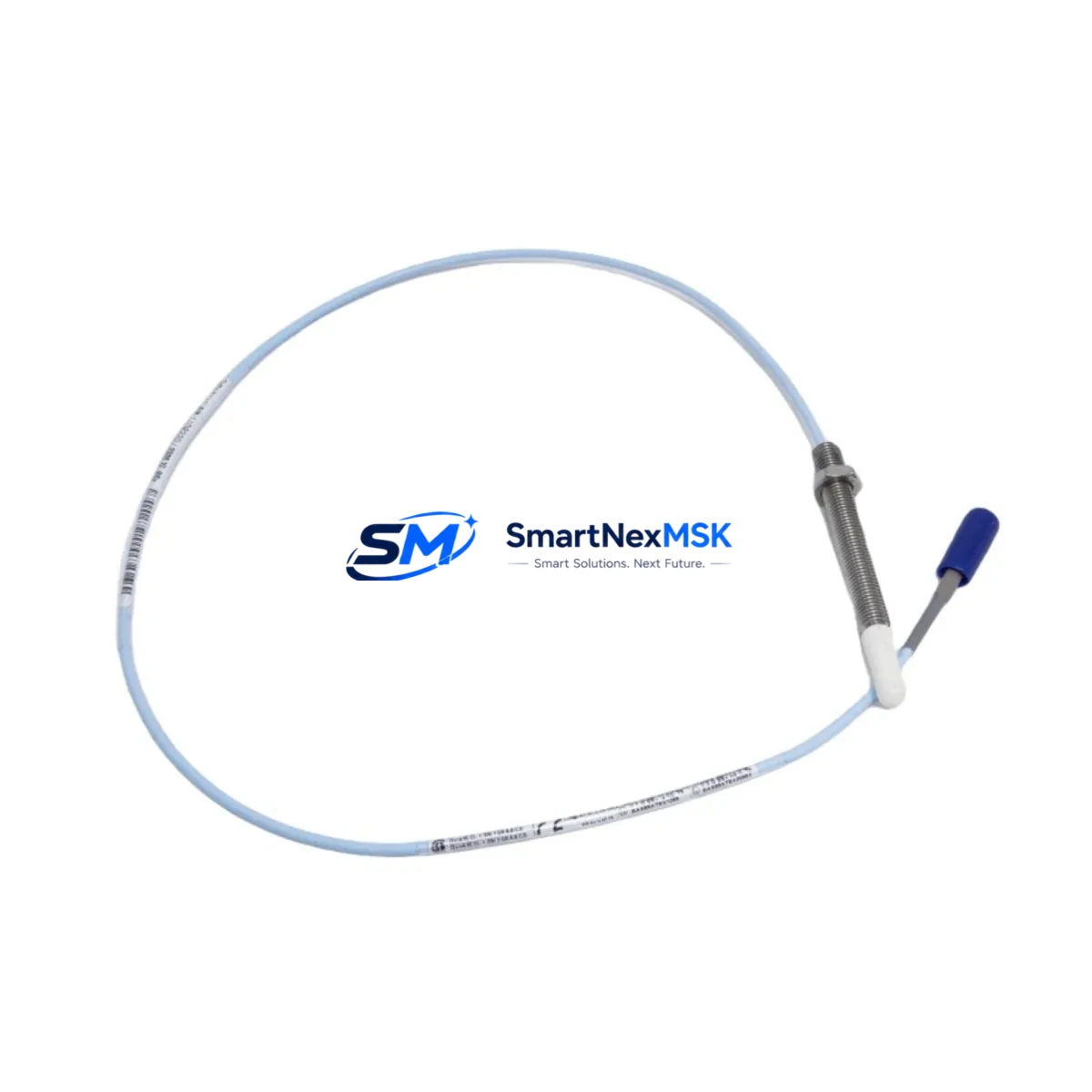

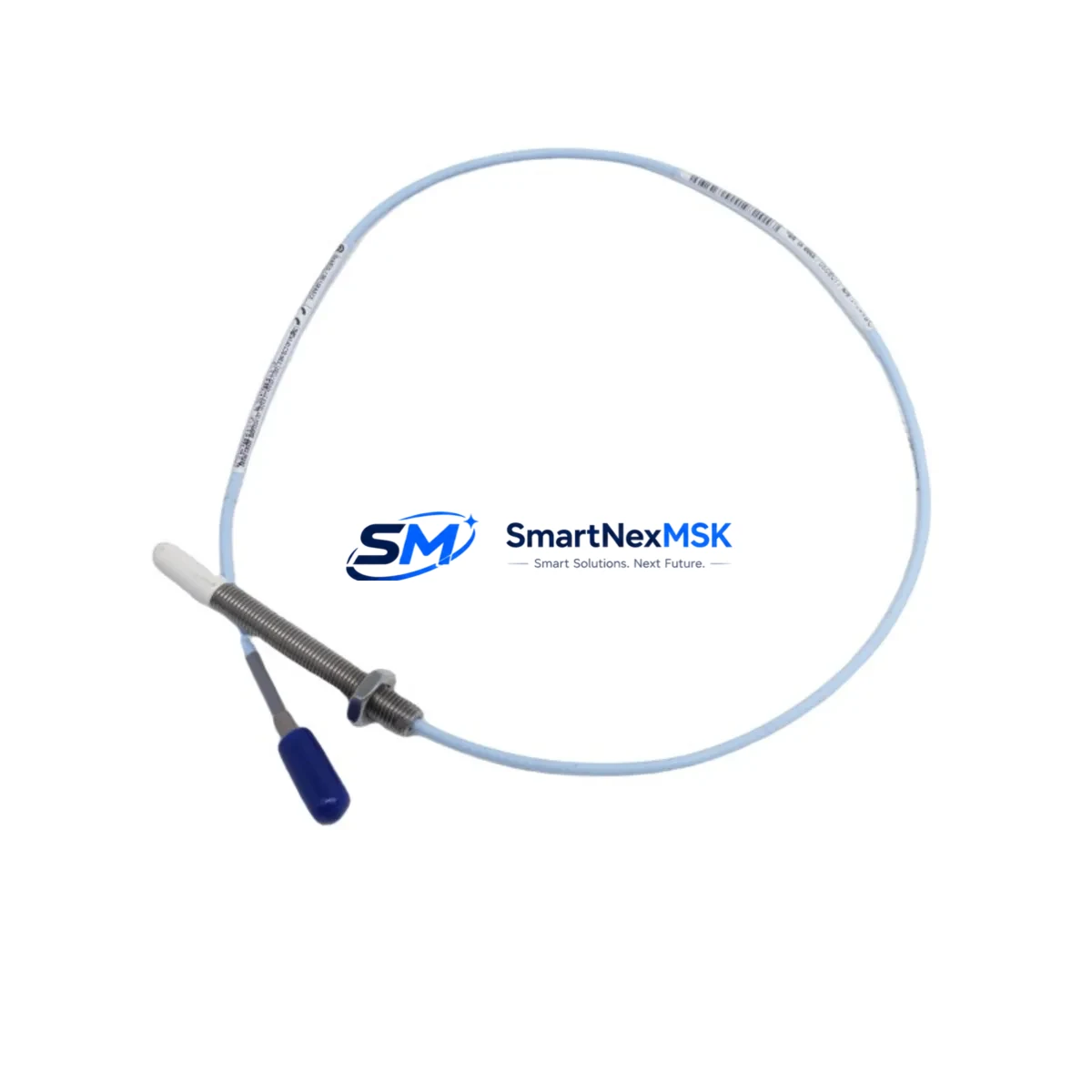

Bently Nevada 330903-00-15-10-02-05/CN 3300 NSv Spare

Bently Nevada 330903-00-15-10-02-05/CN 3300 NSv Maintenance-Ready Spare for Industrial Automation

The Bently Nevada 330903-00-15-10-02-05/CN is an original eddy current proximity probe from the 3300 NSv series, engineered for continuous shaft vibration and position monitoring in rotating machinery. This spare part is a critical component in turbine protection systems, compressor trains, pump monitoring panels, and generator bearing housings where unplanned downtime carries significant operational and financial risk. Sourced as an original Bently Nevada component, this probe is fully compatible with 3300 NSv signal conditioning systems and integrates directly with existing Bently Nevada monitoring racks without recalibration of the full channel.

For maintenance engineers managing aging turbomachinery or planning scheduled overhauls, having a verified replacement probe on the shelf eliminates the most common cause of extended downtime: waiting on parts. This unit ships after full electrical continuity and sensitivity verification, with a 12-month warranty covering manufacturing defects. Whether you are executing a planned turnaround, responding to a proximity probe alarm, or building a critical spare inventory for a remote site, the 330903-00-15-10-02-05/CN provides a direct, drop-in replacement path with no system modification required.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330903-00-15-10-02-05/CN proximity probe triggers a high-vibration alarm or fails a routine calibration check, the replacement scope should extend beyond the probe itself. A thorough site inspection should include the paired 3300 NSv Proximitor® Sensor (typically mounted in the junction box or monitor rack), which conditions the probe signal and is subject to the same environmental stresses. The 330130 extension cable connecting the probe to the Proximitor should be inspected for jacket damage, connector corrosion, and continuity, as intermittent cable faults are frequently misdiagnosed as probe failures.

At the rack level, verify the 3300/20 Radial Vibration Monitor or equivalent 3300 XL monitor card for correct gap voltage reading (typically –10 VDC ±0.5 V at mid-gap). If the monitor card shows erratic readings after probe replacement, inspect the 3300/15 Power Supply module for output stability, as a degraded –24 VDC rail will affect all proximity channels in the rack simultaneously. For systems using a 3500 Series rack, confirm that the I/O module firmware is compatible with the NSv probe sensitivity curve before commissioning the replacement.

In control cabinet inspections, check the terminal blocks and DIN rail assemblies at the field junction box for loose terminations, moisture ingress, and corrosion on the signal and shield conductors. Signal integrity issues at the terminal level can introduce noise that mimics mechanical vibration. Where signal isolation is required between the proximity system and the DCS historian, a galvanic signal isolator (4–20 mA or voltage output type) should be verified for correct scaling. For plants running Bently Nevada System 1 software, confirm that the probe replacement is logged in the asset database and that the gap voltage baseline is updated to reflect the new probe’s installed position.

Procurement engineers building a critical spare inventory for turbomachinery sites should consider stocking the 330903-00-15-10-02-05/CN alongside the 330180-51-05 extension cable, a spare 3300 NSv Proximitor, and at minimum one spare 3300/20 monitor card per train. For older installations approaching end-of-life, sourcing a 3500/42M Proximitor I/O module as a migration path spare is advisable to support future platform upgrades without full system redesign.

Site Replacement Workflow

Step 1 – Pre-replacement verification: Confirm the replacement SKU 330903-00-15-10-02-05/CN matches the installed probe’s part number label, cable length (5 m), and connector type. Cross-reference with the machine train’s vibration monitoring datasheet to confirm target gap and sensitivity requirements.

Step 2 – Safe isolation: Coordinate with operations to place the affected machine train in a safe state. Do not remove the probe under live process conditions. Isolate the Proximitor power supply at the rack and verify zero voltage at the probe connector before disconnection.

Step 3 – Mechanical removal: Using the correct spanner for the M10 × 1 probe body, back out the probe while counting turns to record the installed gap depth. Note the locknut position for reference during reinstallation.

Step 4 – Installation and gap setting: Thread the new 330903-00-15-10-02-05/CN probe to the recorded depth. Reconnect the extension cable and restore Proximitor power. Measure the gap voltage at the monitor card — target –10 VDC ±0.5 V for standard 3300 NSv systems. Adjust probe depth in 0.25 mm increments until the gap voltage is within specification, then secure the locknut.

Step 5 – Functional verification: With the machine at rest, confirm the gap voltage is stable and within the linear range. Perform a slow-roll check if possible to verify the vibration channel is reading correctly before returning the train to service. Update the maintenance management system (CMMS) with the replacement date, new probe serial number, and as-found/as-left gap voltage values.

This workflow minimizes downtime by eliminating trial-and-error gap setting and ensures the replacement probe is commissioned to the same functional standard as the original installation.

Spare Parts Support FAQ

Q: Is the 330903-00-15-10-02-05/CN a direct replacement for older 330903 series probes with different suffix codes?
A: The suffix codes define cable length, connector type, and temperature rating. The -00-15-10-02-05/CN variant specifies a 5 m cable with standard connectors. Probes with different cable length suffixes (e.g., -03 for 3 m) are not direct drop-in replacements without adjusting the extension cable length to maintain the total system cable length required by the Proximitor. Always verify the full part number before ordering.

Q: How is the probe tested before shipment?
A: Each unit undergoes electrical continuity testing, insulation resistance measurement between the coil and cable shield, and a sensitivity check against a reference target to confirm the output voltage falls within the 3300 NSv specification. A test report is available upon request.

Q: What is the warranty coverage and process?
A: The 330903-00-15-10-02-05/CN carries a 12-month warranty from the date of shipment, covering manufacturing defects and electrical failure under normal operating conditions. Warranty claims require the failed unit to be returned for inspection. Replacement units are dispatched within 5 business days of claim approval.

Q: Can this probe be used in hazardous area (Ex) installations?
A: The standard 330903-00-15-10-02-05/CN is not ATEX or IECEx certified for use in Zone 1 or Zone 2 hazardous areas. For Ex-rated installations, Bently Nevada offers dedicated intrinsically safe probe variants. Contact our technical team to confirm the correct part number for your hazardous area classification before ordering.
