Bently Nevada 330903-00-16-05-02-00 Spare 3300 NSv

Bently Nevada 330903-00-16-05-02-00 Maintenance-Ready Spare for 3300 NSv Automation

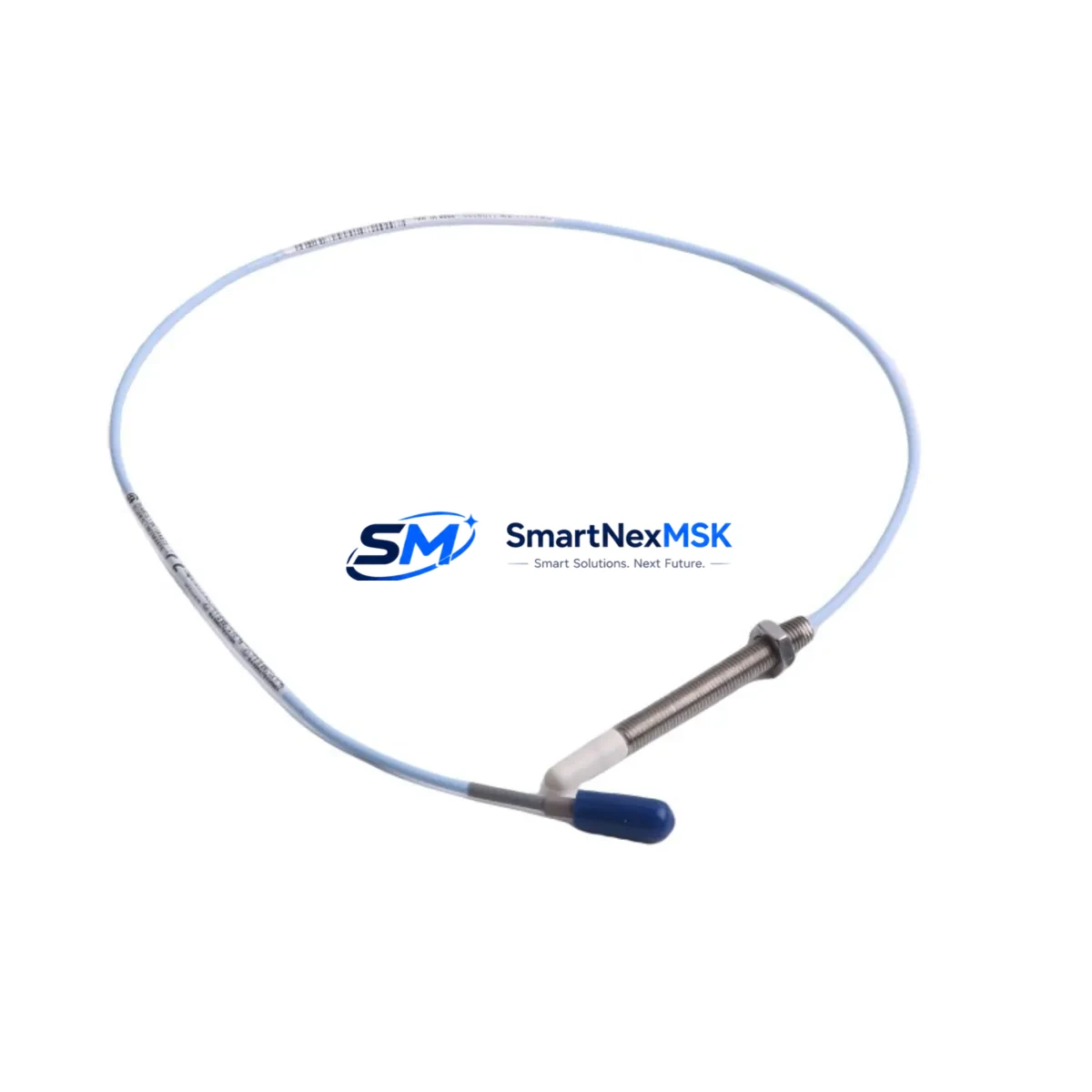

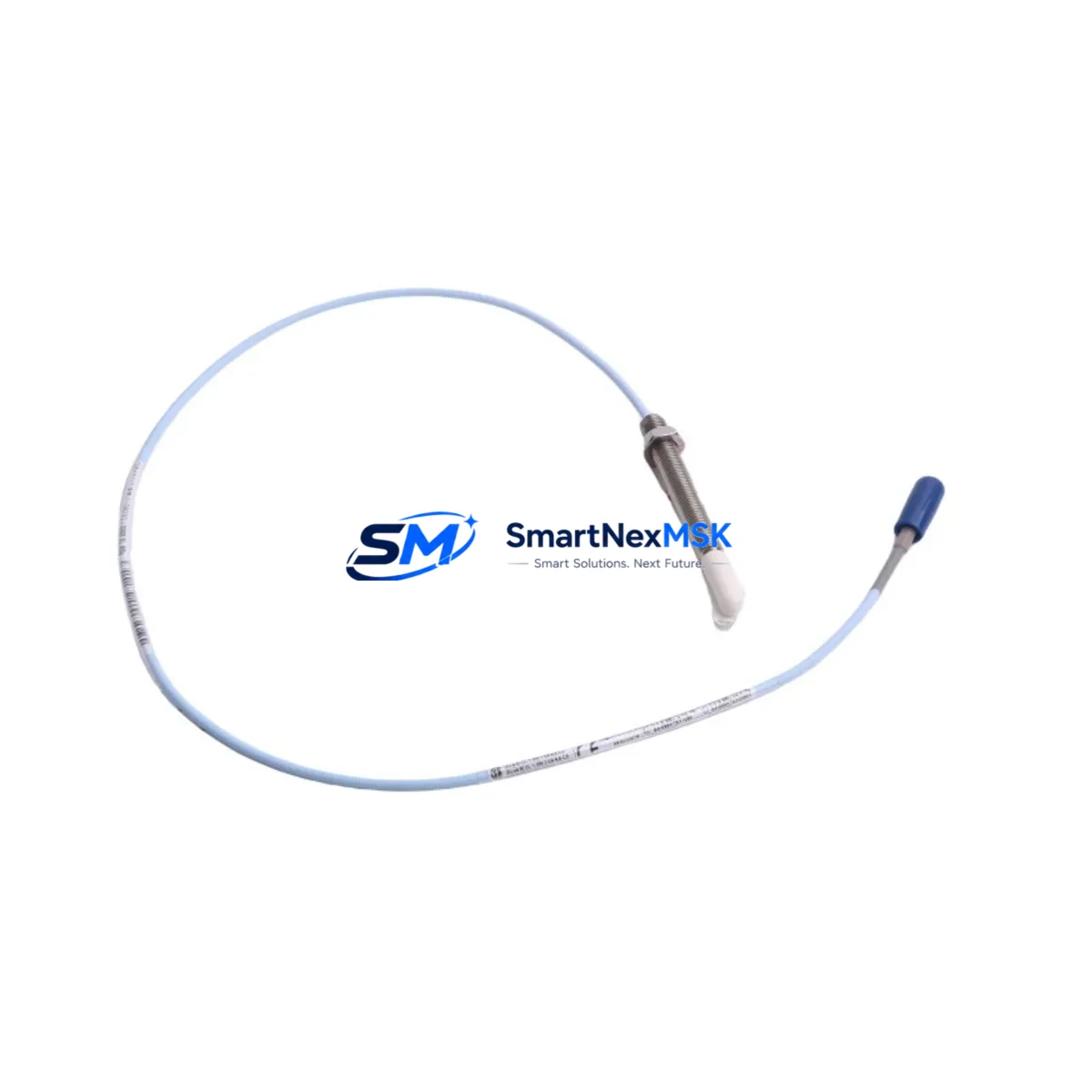

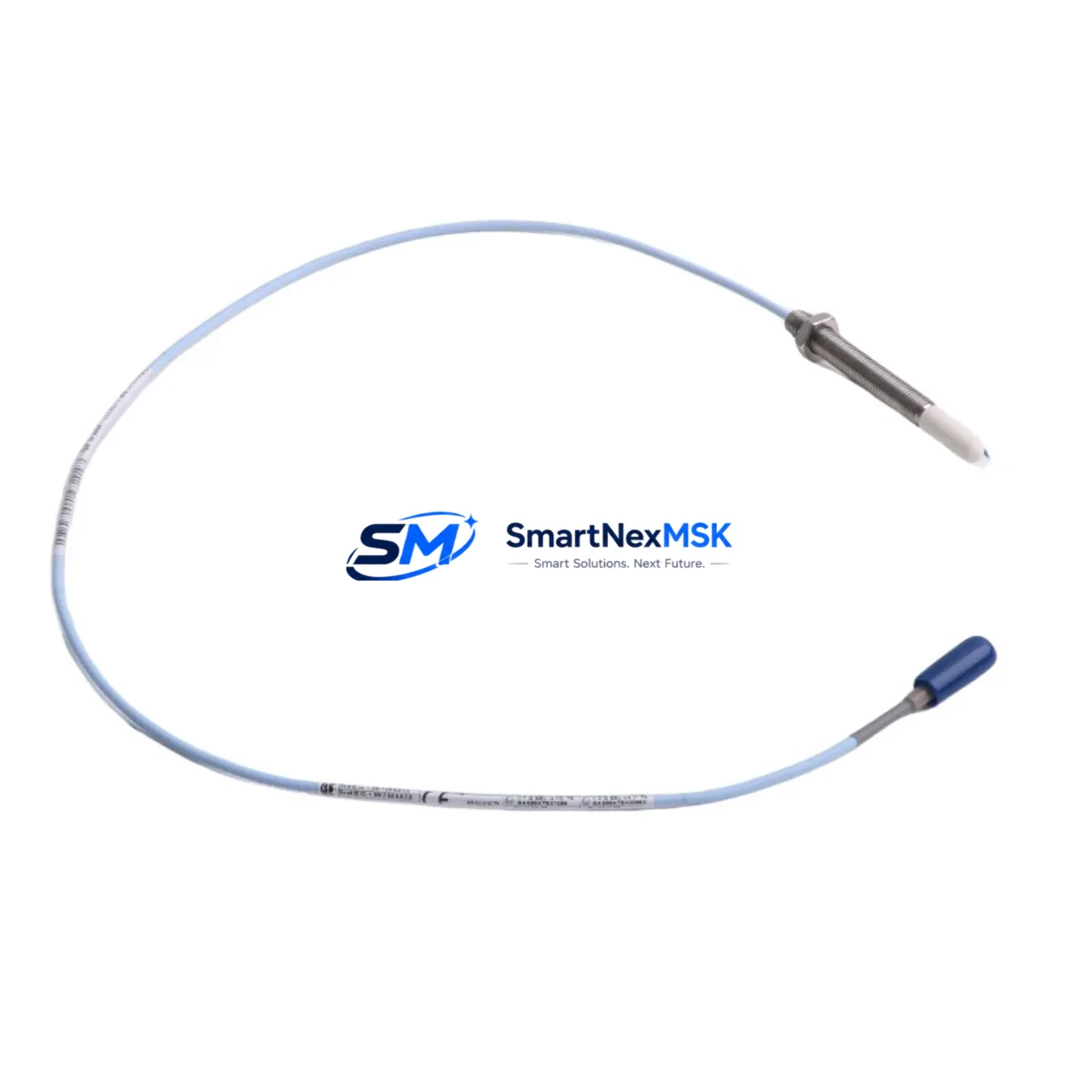

The Bently Nevada 330903-00-16-05-02-00 is an original eddy-current proximity probe engineered for the 3300 NSv series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. For maintenance engineers managing turbines, compressors, pumps, and gearboxes, this probe is a critical front-line sensor whose failure directly triggers unplanned shutdowns and costly downtime events. Stocking a verified original spare of the 330903-00-16-05-02-00 is a fundamental element of any responsible predictive maintenance (PdM) or reliability-centered maintenance (RCM) program.

This listing supplies the 330903-00-16-05-02-00 as a genuine, tested industrial spare — not a substitute or compatible aftermarket unit. Each unit is inspected prior to shipment, packaged to OEM standards, and backed by a 12-month warranty covering manufacturing defects and functional performance. Fast worldwide dispatch ensures that your facility can restore continuous monitoring capability with minimal delay.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330903-00-16-05-02-00 proximity probe is flagged during routine point inspection or condition monitoring review, experienced maintenance engineers know that the probe itself is rarely the only component requiring attention. A disciplined replacement workflow should encompass the entire signal chain and associated cabinet infrastructure to prevent repeat failures and ensure measurement integrity after the probe is restored.

Begin by inspecting the 3300 NSv Proximitor® sensor module (e.g., 330180-X1-05) that conditions the probe signal — a degraded Proximitor can mask true shaft displacement readings even with a new probe installed. Verify the extension cable (typically a 330130-series armored cable) for continuity, insulation resistance, and connector integrity; cable damage is a leading cause of probe replacement failures. Check the 3500/40M or 3500/42M monitor module in the 3500 rack for any latched alerts or configuration drift that may have contributed to the probe fault.

Within the control cabinet, inspect terminal blocks and DIN rail assemblies for corrosion, loose terminations, and thermal cycling damage — particularly on the signal common and -24 VDC supply lines feeding the Proximitor. Verify the 24 VDC power supply module output voltage and ripple; an out-of-tolerance supply degrades probe gap voltage and introduces measurement noise. If the system includes a 3500/20 rack power supply, confirm its output stability under load.

For facilities running dual-redundant monitoring, also inspect the 3500/22M transient data interface and any associated keyphasor® probe (e.g., 330980-series) to confirm phase reference integrity. Where signal isolation is required between the 3300 NSv loop and the DCS or historian, verify the signal isolator or barrier (such as a Bently Nevada 3300/20 or equivalent Zener barrier) for correct range and calibration. Finally, review the junction box and field wiring conduit for moisture ingress — a common root cause of probe degradation in outdoor or high-humidity rotating equipment installations.

Proactive spare stocking should include at minimum: one replacement 330903-00-16-05-02-00 probe, one matched extension cable, and one Proximitor module per critical machine train. This three-component kit approach eliminates the most common sources of repeat callouts and supports rapid swap-out during planned outage windows.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the affected machine train per your site LOTO procedure. Confirm the 3500 monitor channel is in bypass or the machine is safely de-energized before approaching the probe mounting location.

Step 2 — Gap Voltage Verification: Before removing the old probe, record the existing gap voltage (typically –10 VDC ±0.5 V for a correctly gapped 3300 NSv probe at nominal air gap). This baseline confirms whether the fault is probe-related or driven by shaft/bracket displacement.

Step 3 — Probe Removal: Disconnect the extension cable at the junction box. Unthread the 330903-00-16-05-02-00 from its mounting bracket using the correct spanner. Inspect the probe tip for physical damage, contamination, or oil fouling that may indicate a broader lubrication or seal issue.

Step 4 — New Probe Installation: Install the replacement 330903-00-16-05-02-00 and set the air gap per the OEM specification (typically 1.0–1.5 mm for standard steel targets). Reconnect the extension cable and verify connector seating and locking.

Step 5 — Recommissioning: Re-energize the Proximitor and confirm gap voltage is within the –10 VDC ±0.5 V window. Clear any latched alarms in the 3500 monitor. Perform a slow-roll vibration check before returning the machine to full-speed operation. Document the replacement in your CMMS with the new probe serial number and gap voltage reading.

This structured workflow minimizes re-work, ensures measurement traceability, and supports audit-ready maintenance records — critical for facilities operating under API 670 or ISO 13373 machinery protection standards.

Spare Parts Support FAQ

Q1: Is the 330903-00-16-05-02-00 compatible with both the 3300 NSv and older 3300 XL monitor systems?
The 330903-00-16-05-02-00 is designed and calibrated for the 3300 NSv Proximitor system. While the physical connector may be similar to some 3300 XL configurations, the sensitivity curve and gap voltage characteristics are optimized for NSv-series drivers. Always verify monitor compatibility with your system documentation or contact our technical team before cross-series substitution.

Q2: What pre-shipment testing is performed on each unit?
Every 330903-00-16-05-02-00 supplied through SMARTNEXMSK undergoes functional verification including gap voltage output check, insulation resistance test, and connector integrity inspection. Units are shipped in ESD-safe packaging with a test record. The 12-month warranty covers any functional defect identified after installation under normal operating conditions.

Q3: How should I manage long-term spare inventory for this probe?
For critical machine trains, we recommend maintaining a minimum of one probe per monitored shaft position as a hot spare, stored in a climate-controlled environment away from strong magnetic fields. Probes should be inspected annually for connector corrosion and cable jacket integrity even in storage. For facilities with 10+ monitored positions, a consignment or scheduled replenishment agreement can reduce procurement lead time to zero.

Q4: What is the lead time and can you support emergency orders?
Standard orders ship within 1–3 business days. Emergency same-day dispatch is available for confirmed in-stock units — contact sales@smartnexmsk.com or call +86 18259474341 to confirm availability and arrange priority shipping. We maintain buffer stock of high-demand 3300 NSv series probes specifically to support unplanned outage recovery scenarios.
