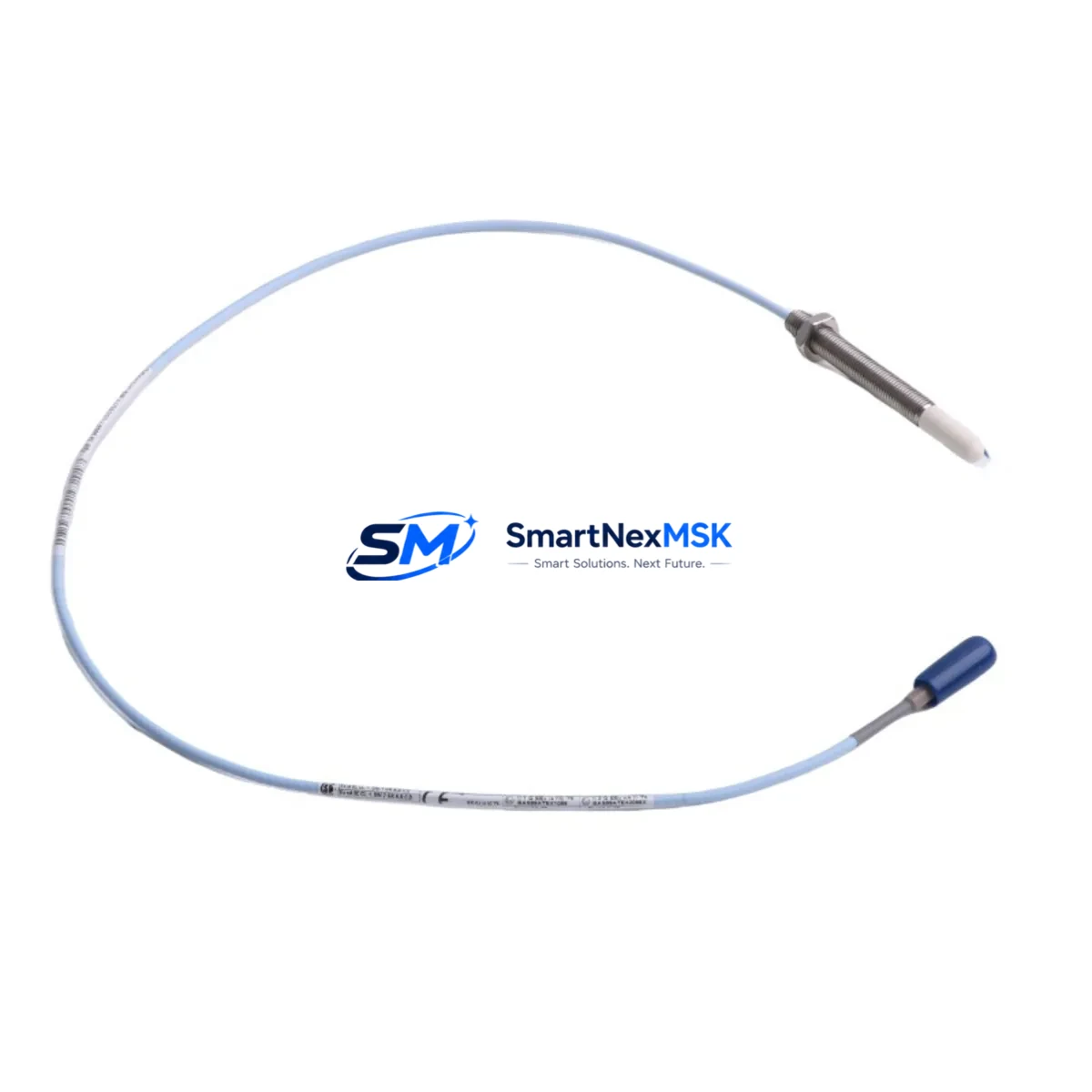

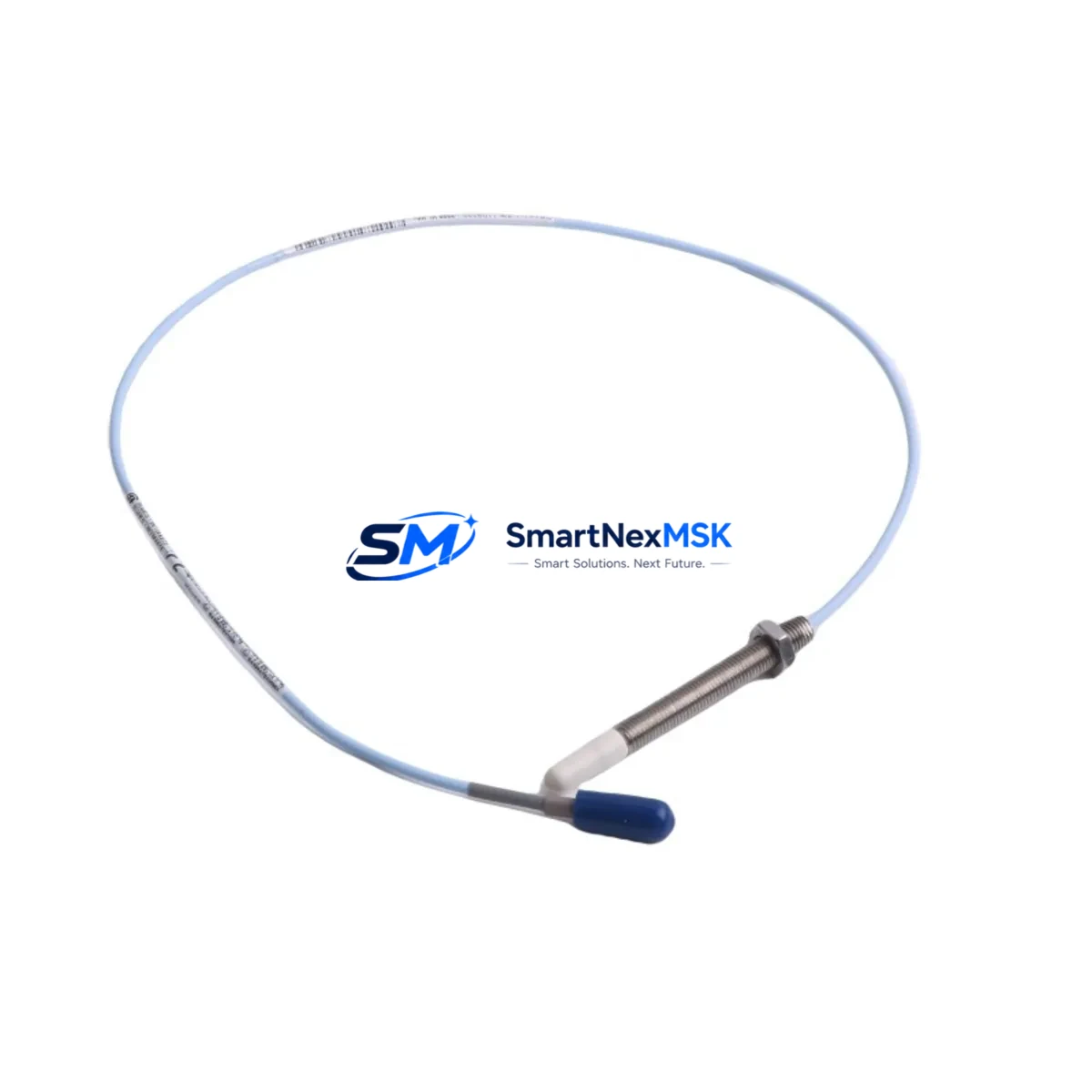

Bently Nevada 330903-00-18-10-02-05/CN Safety Proximity Probe

Bently Nevada 330903-00-18-10-02-05/CN Safety-Enhanced Proximity Probe for Harsh Industrial Sites

The Bently Nevada 330903-00-18-10-02-05/CN is an 18mm eddy current proximity probe from the industry-proven 3300 NSv Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-load rotating machinery, heavy interference zones, and hazardous area control cabinets, this probe delivers the signal integrity and mechanical durability that critical interlock loops and machinery protection systems demand.

In continuous production facilities — including petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical processing lines, and port crane systems — unplanned machinery shutdowns caused by sensor failure or signal drift can result in catastrophic equipment damage, safety incidents, and significant financial loss. The 330903-00-18-10-02-05/CN is purpose-built to eliminate these risks by providing stable, high-resolution proximity measurement even under severe electromagnetic interference, mechanical vibration, thermal cycling, and power supply fluctuation.

Its SIL-rated design integrates seamlessly into functional safety architectures, supporting IEC 61511 and IEC 61508 compliant machinery protection strategies. Whether deployed in a turbine bearing monitoring loop, compressor shaft displacement circuit, or pump seal gap detection system, this probe maintains measurement accuracy and loop availability under conditions that would compromise lesser sensors.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 330903-00-18-10-02-05/CN within a machinery protection cabinet requires a coordinated approach to signal conditioning, power quality, and communication integrity. In a typical turbine or compressor protection panel, this probe is paired with the Bently Nevada 3300 XL Proximitor Sensor (driver/conditioner module) to convert raw eddy current signals into calibrated voltage outputs suitable for the Bently Nevada 3500/40M Proximitor Monitor or the 3500/42M Proximitor/Seismic Monitor. These monitor cards reside in the 3500 Rack, which provides the centralized machinery protection backbone for the entire rotating equipment train.

To protect the signal chain from power-induced noise and transient surges — a common cause of false trips and module maloperation in heavy industrial sites — the rack power supply should be supported by a Bently Nevada 3500/15 Power Supply Module with redundant input capability. Upstream, a dedicated 24 VDC industrial UPS or Phoenix Contact QUINT Power supply ensures clean, regulated power delivery even during grid disturbances, preventing the voltage fluctuations that can cause proximity signal drift or spurious alarm activation.

For installations in hazardous classified areas (Zone 1 / Zone 2 or Division 1 / Division 2), the probe circuit must be routed through a certified Bently Nevada Zener Barrier or an MTL Instruments galvanic isolator to maintain intrinsic safety integrity. These barriers also provide a secondary layer of surge protection, shielding the 3500 monitor inputs from field-side voltage spikes caused by lightning strikes or motor switching transients.

Communication from the 3500 rack to the plant DCS or safety PLC — such as a Rockwell Automation ControlLogix L7x or Emerson DeltaV SIS safety controller — is typically handled via Modbus RTU/TCP or 4–20 mA hardwired trip outputs, ensuring that vibration alarm and danger setpoints are reliably transmitted to the emergency shutdown (ESD) logic solver without communication latency or protocol conversion errors. Grounding discipline across the entire probe-driver-monitor-DCS chain is critical; a dedicated instrument earth bus bar and cable shield termination kit should be installed to prevent ground loop interference from corrupting the proximity signal.

Critical Industrial Safety Applications

The Bently Nevada 330903-00-18-10-02-05/CN is deployed across the full spectrum of heavy industrial and process-critical environments where rotating machinery reliability is non-negotiable.

In petrochemical and refinery operations, it monitors shaft radial vibration and axial position on centrifugal compressors, reactor feed pumps, and crude distillation column overhead compressors — providing the early warning data needed to prevent bearing failures that could trigger uncontrolled hydrocarbon releases or fire events.

In power generation facilities — including coal-fired, gas turbine, and nuclear auxiliary systems — this probe is installed on turbine journal bearings and generator shaft extensions, feeding real-time displacement data to the 3500 protection system to enable automatic turbine trip before catastrophic rotor contact occurs.

In mining and mineral processing operations, where continuous crusher, mill, and conveyor drive availability is essential to production throughput, the 330903-00-18-10-02-05/CN provides reliable shaft monitoring in high-dust, high-vibration environments where IP67 sealing and robust cable construction are prerequisites for sensor survival.

In water and wastewater treatment plants, it monitors large vertical turbine pumps and blower shafts in wet, chemically aggressive environments, ensuring that critical pumping infrastructure remains operational without unplanned maintenance interventions.

In metallurgical and steel production facilities, where rolling mill drives, blast furnace blowers, and continuous caster pinch roll drives operate under extreme thermal and mechanical stress, this probe’s wide operating temperature range and EMI-hardened design ensure measurement integrity even in the presence of high-current bus bars and induction furnace interference fields.

In port and bulk material handling systems, it is used on ship unloader slewing ring drives and stacker-reclaimer travel drives, where outdoor exposure, salt-laden air, and high-cycle duty demand sensors with proven environmental resilience.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330903-00-18-10-02-05/CN?
All units supplied by SMARTNEXMSK carry a 12-month full functional warranty from the date of shipment. If the probe fails to meet its specified sensitivity, linearity, or environmental performance within the warranty period under normal operating conditions, we will provide a replacement unit or full refund. Warranty claims are processed within 5 business days of fault confirmation.

Q2: What pre-shipment testing is performed on each unit?
Every 330903-00-18-10-02-05/CN undergoes a comprehensive pre-dispatch inspection including: electrical continuity verification, coil impedance measurement, sensitivity calibration check against Bently Nevada reference standards, cable insulation resistance test, and connector integrity inspection. A test report is available upon request for quality-critical procurement processes.

Q3: Is this probe compatible with existing Bently Nevada 3300 and 3500 system installations?
Yes. The 330903-00-18-10-02-05/CN is a direct form-fit-function replacement for standard 3300 NSv Series 18mm probes used with Bently Nevada 3300 XL Proximitor drivers and 3500 Series monitors. No recalibration of the monitor system is required when replacing a like-for-like probe, provided the gap voltage is re-verified after installation per Bently Nevada commissioning procedures.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
SMARTNEXMSK maintains dedicated stock of the 330903-00-18-10-02-05/CN and related 3300 NSv Series components to support planned maintenance, emergency replacement, and annual shutdown programs. We offer blanket order arrangements and priority allocation for customers with recurring demand, ensuring that critical spare parts are available without lead-time risk to your production schedule.
