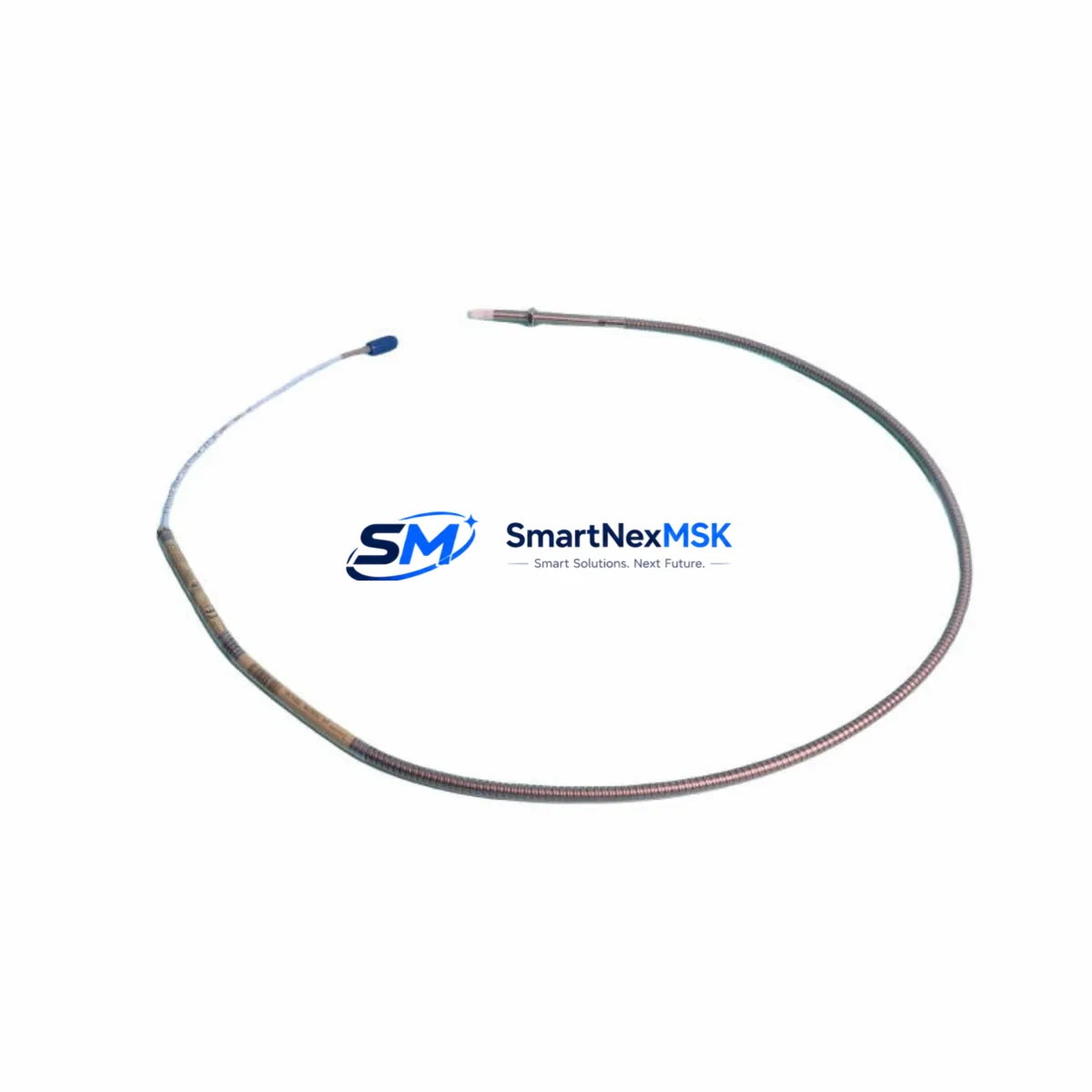

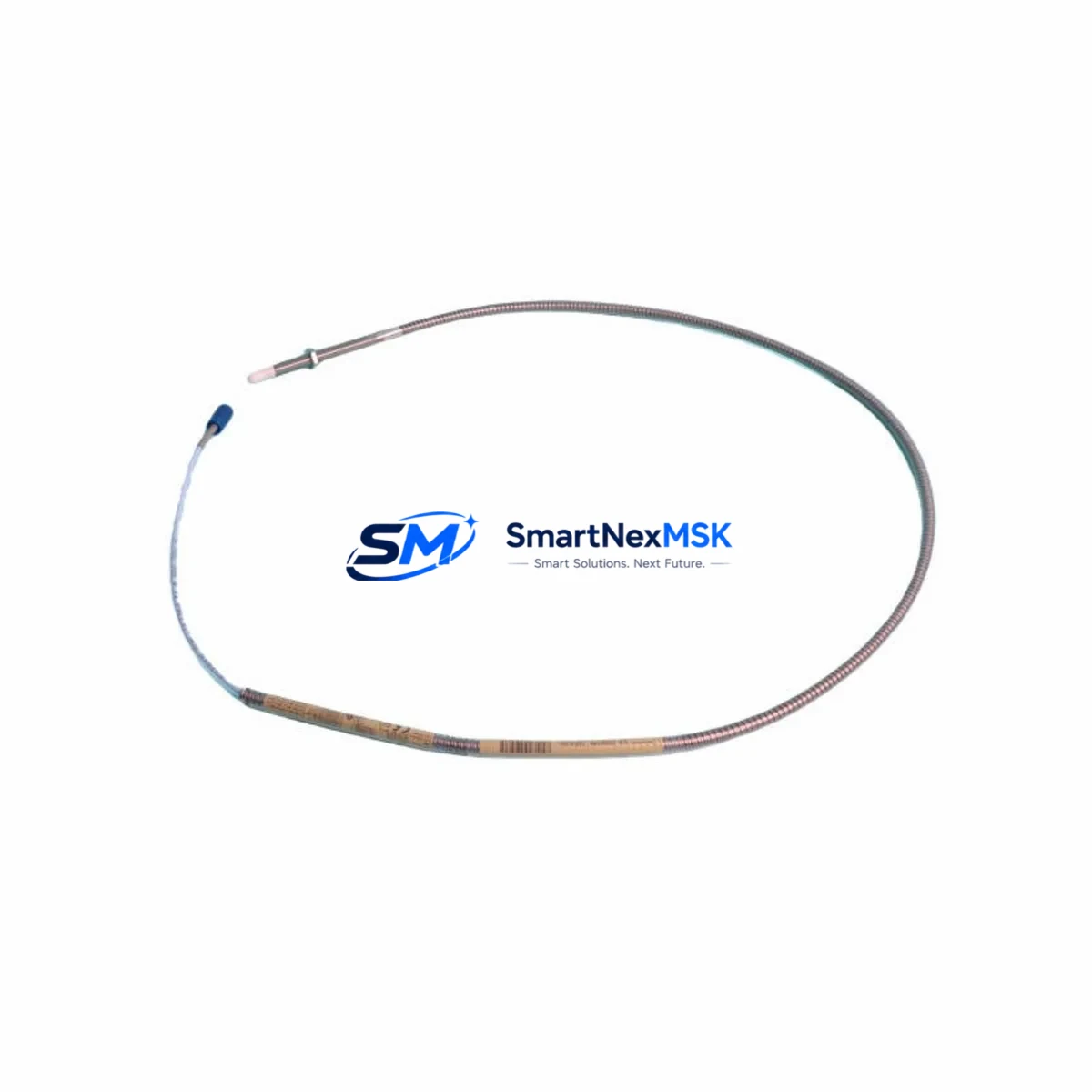

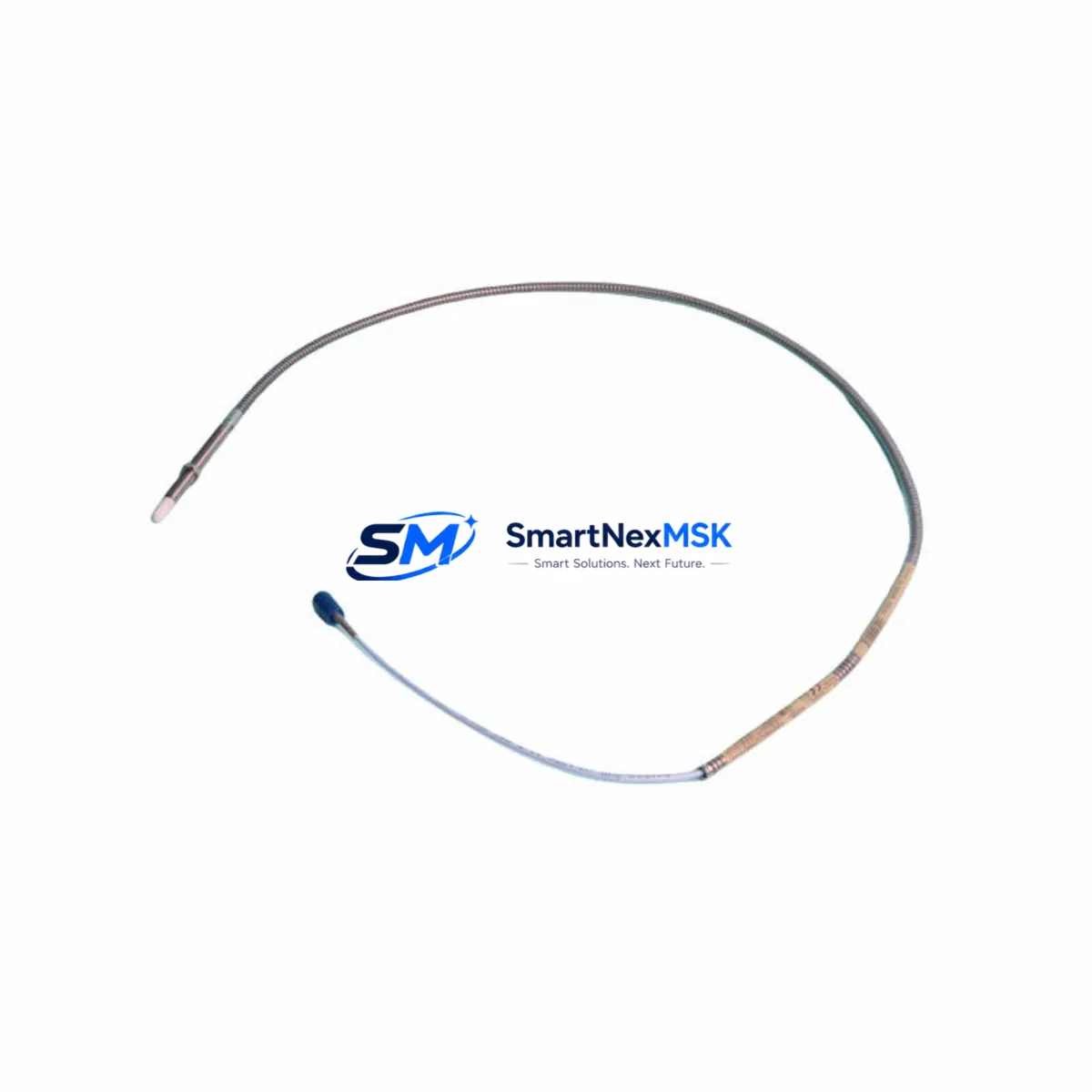

For maintenance engineers managing rotating machinery protection systems, unplanned downtime caused by a failed proximity transducer is one of the most disruptive events in a plant environment. The Bently Nevada 330903-00-20-05-01-00 is an original proximity transducer designed for the 3300 XL Series vibration monitoring platform — a system widely deployed in turbines, compressors, pumps, and other critical rotating assets across oil & gas, power generation, petrochemical, and heavy manufacturing facilities.

Stocking this SKU as a maintenance-ready spare is a fundamental risk-reduction strategy. When a transducer fails during operation, the monitoring channel goes offline, leaving the asset unprotected and potentially triggering a forced shutdown. Having a verified, tested replacement on the shelf means the maintenance team can restore full vibration monitoring coverage within hours rather than days — avoiding extended outages, emergency freight costs, and the safety risks associated with running unmonitored rotating equipment.

This unit ships after full functional verification and is backed by a 12-month warranty. Each unit is inspected for connector integrity, cable sheath condition, and tip geometry before dispatch. Long-term supply continuity is supported for facilities managing aging 3300 XL installations where OEM availability may be constrained.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330903-00-20-05-01-00 transducer in the field, a disciplined maintenance engineer will not stop at the transducer alone. The 3300 XL proximity system is a three-component measurement chain — probe, extension cable, and Proximitor® sensor — and a fault in any one element will produce the same symptom: loss of gap voltage or erratic vibration signal. Before closing out the work order, verify the condition of the 3300 XL 8mm Proximitor® Sensor (typically mounted in the junction box or monitor rack) and the extension cable assembly connecting the probe to the Proximitor. Both are subject to insulation degradation, connector corrosion, and mechanical fatigue in high-vibration environments.

At the monitor rack level, inspect the associated 3300/16 or 3300/20 monitor module for alarm setpoint integrity and channel configuration. It is common practice during a transducer replacement to simultaneously verify the 3300 XL I/O module terminal connections and confirm that the Keyphasor® transducer — if used for phase reference on the same shaft — is also within gap voltage specification. A degraded Keyphasor signal will corrupt phase-referenced vibration data even after the radial transducer is replaced.

For facilities running the System 1® condition monitoring platform, confirm that the replacement transducer’s gap voltage is correctly re-entered into the software configuration after installation. Failure to update the static gap value will result in false alarm conditions or suppressed trip thresholds. If the control cabinet also houses a 3500 Series rack for overspeed or thrust protection, use the transducer replacement event as an opportunity to inspect the 3500/42M position monitor and associated wiring for signs of moisture ingress or terminal oxidation.

Procurement engineers building a spare parts inventory for a 3300 XL-equipped facility should consider stocking the 330130-080-00-05 extension cable, a spare 3300 XL Proximitor® Sensor, and at minimum one additional 330903-series probe in the appropriate length configuration for each critical machine train. For facilities with multiple identical machines, a standardized bill of materials covering the full transducer chain — probe, cable, and Proximitor — reduces mean time to repair and simplifies technician training.

Site Replacement Workflow

Replacing the 330903-00-20-05-01-00 in a live plant environment requires coordination between the maintenance team and the control room. The standard workflow begins with notifying the DCS or safety system operator that the affected vibration channel will be temporarily bypassed. The monitor channel should be placed in bypass mode via the 3300 XL monitor front panel or System 1® software before disconnecting the transducer, to prevent a spurious trip signal from propagating to the emergency shutdown system.

With the channel bypassed, disconnect the extension cable from the Proximitor® Sensor junction box. Remove the probe from the bearing housing using the appropriate spanner, taking care not to damage the probe tip or the threaded boss. Install the replacement 330903-00-20-05-01-00 to the manufacturer’s specified gap — typically 2.0 mm (approximately -10.4 Vdc gap voltage for steel targets) — and reconnect the extension cable. Restore power to the Proximitor and verify gap voltage at the monitor before removing the channel bypass.

This replacement procedure is compatible with all 3300 XL monitor configurations and does not require firmware changes or recalibration of the monitor module, provided the replacement probe is the same SKU and the gap is set correctly. Facilities transitioning from older 7200 Series or 3300 Series (non-XL) transducers should verify connector and sensitivity compatibility before installation, as the XL series uses a revised sensitivity specification of 7.87 V/mm.

Maintaining a documented replacement log — including gap voltage readings before and after, technician name, and date — supports long-term reliability trending and satisfies audit requirements for API 670-compliant machinery protection systems.

Spare Parts Support FAQ

Q1: Is the 330903-00-20-05-01-00 a direct replacement for older 330903-series probes?
Yes. The 330903-00-20-05-01-00 is backward-compatible with all 3300 XL 8mm Proximitor® Sensor configurations. If you are replacing an older 330903-series probe with a different suffix, verify the probe length and cable length encoding in the part number before ordering to ensure dimensional compatibility with your bearing housing installation.

Q2: How is the unit tested before shipment?
Each unit undergoes functional verification including gap voltage output check, cable continuity test, and connector integrity inspection prior to dispatch. Units that do not meet specification are quarantined and not shipped. A test report is available upon request for critical applications.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, electrical failure under normal operating conditions, and connector integrity. It does not cover damage resulting from incorrect installation gap, mechanical impact, chemical exposure, or operation outside the rated temperature range. Warranty claims are processed with photographic documentation of the installation and failure mode.

Q4: Can you support long-term supply for facilities with multiple 3300 XL systems?
Yes. We support blanket order arrangements and scheduled delivery programs for facilities requiring ongoing supply of 330903-series transducers and associated 3300 XL components. Contact our technical sales team to discuss inventory reservation, lead time commitments, and multi-SKU spare parts packages tailored to your maintenance schedule.
