Bently Nevada 330903-00-20-05-02-00 Safety Proximity Probe

Bently Nevada 330903-00-20-05-02-00 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

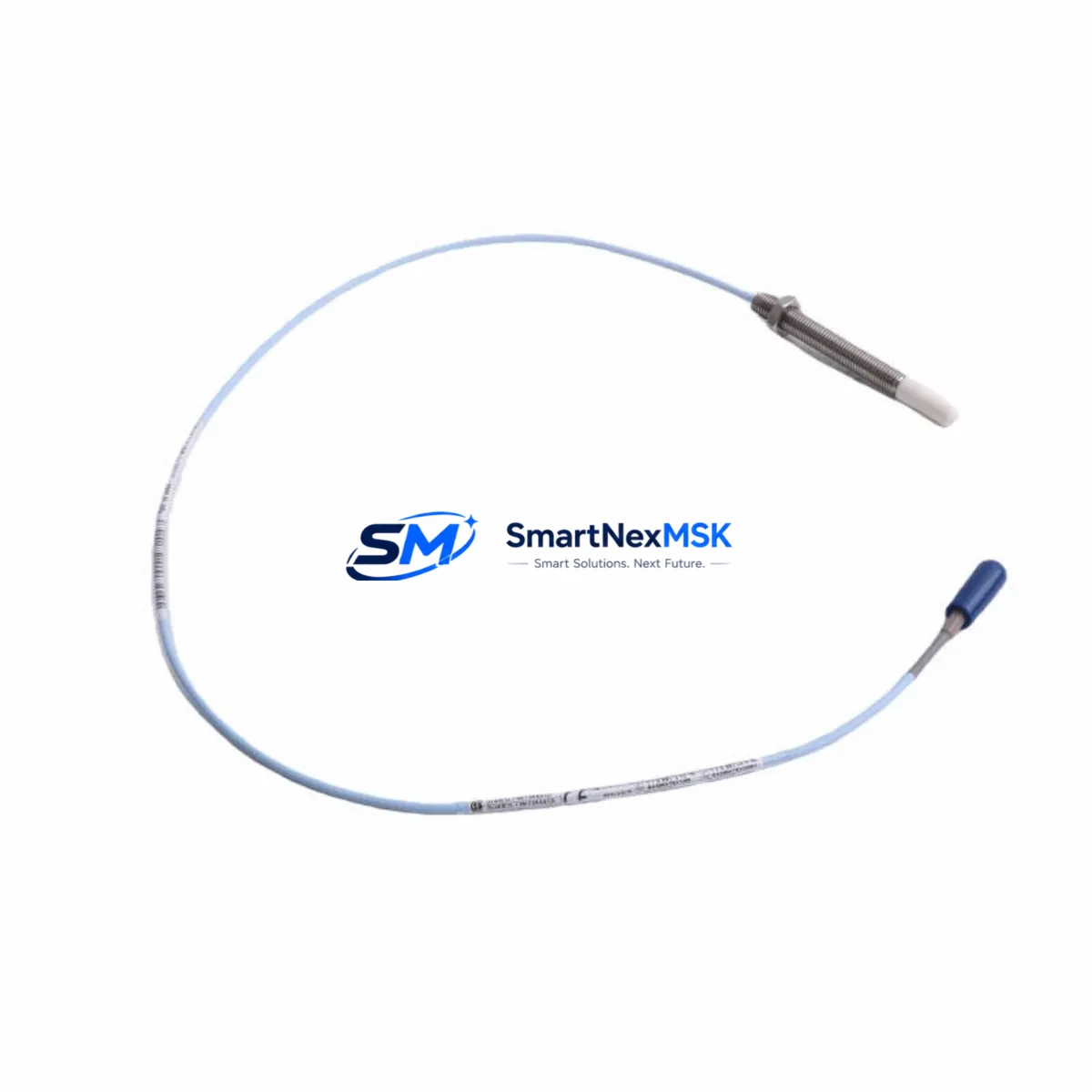

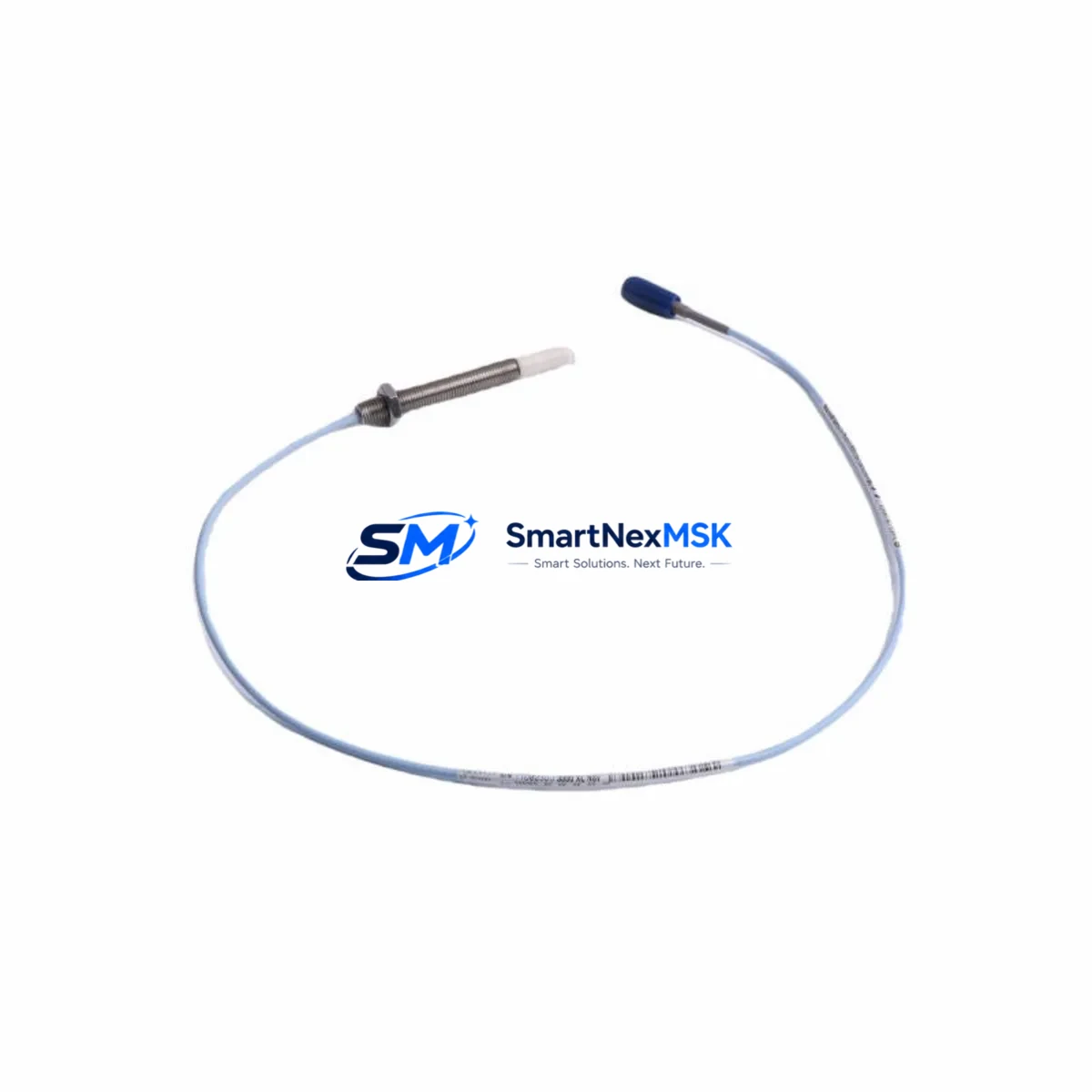

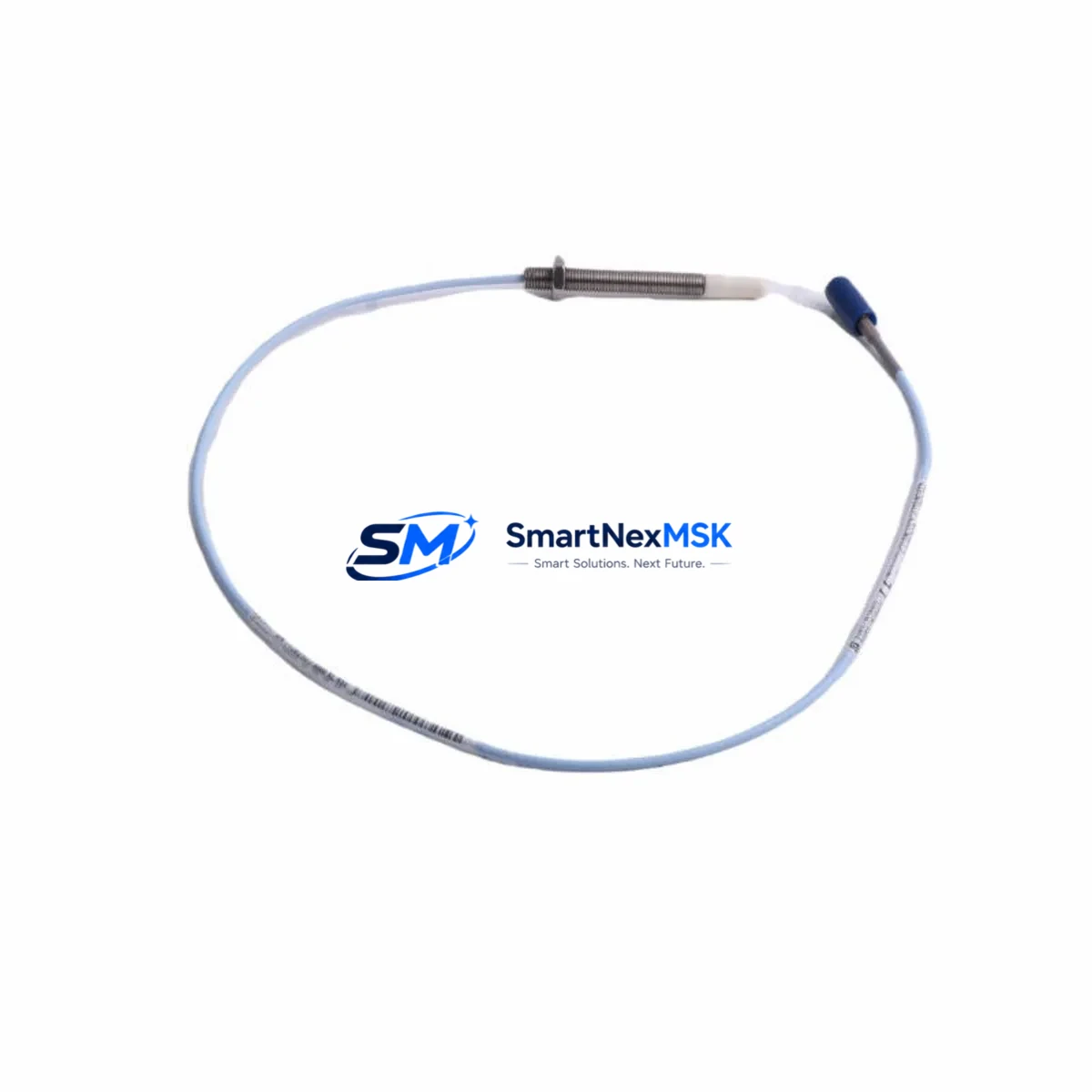

The Bently Nevada 330903-00-20-05-02-00 is an 8mm eddy-current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed as a core component of the Bently Nevada 3300 XL Proximity System, this probe delivers high-resolution, non-contact shaft displacement measurement with the signal integrity and mechanical robustness required for rotating machinery protection in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port cranes, and continuous-process manufacturing lines.

In high-stakes control architectures where a single measurement failure can trigger unplanned shutdowns, cascade trips, or safety interlock activations, the 330903-00-20-05-02-00 provides the stable, low-noise output that protection systems depend on. Its ruggedized stainless-steel housing and hermetically sealed tip resist moisture ingress, chemical exposure, and mechanical vibration — conditions that routinely degrade lesser sensors and introduce dangerous signal drift into turbine overspeed protection loops, compressor surge detection circuits, and pump bearing monitoring channels.

Every unit shipped by SMARTNEXMSK undergoes pre-delivery functional verification including gap voltage linearity checks, insulation resistance testing, and output signal validation against Bently Nevada factory specifications. This ensures that replacement probes installed during planned maintenance windows or emergency shutdowns perform identically to original equipment — eliminating the commissioning risk that comes with untested aftermarket alternatives.

Safety Reliability Table

Control Cabinet Protection Strategy

The 330903-00-20-05-02-00 probe does not operate in isolation — it is the sensing front-end of a layered machinery protection architecture. In a properly configured control cabinet, the probe connects to a Bently Nevada 330180-X1-05 3300 XL 8mm Driver, which conditions the raw eddy-current signal into a calibrated DC voltage output. That output feeds directly into a Bently Nevada 3500/42M Proximitor I/O Module housed in the 3500 Machinery Protection Rack, where dual-channel voting logic compares shaft displacement against alarm and danger setpoints.

To protect the signal path from the high-frequency electrical noise generated by variable frequency drives, large motor starters, and arc furnace switching transients common in heavy industrial environments, the coaxial cable assembly should be routed through dedicated conduit separated from power wiring, with the shield grounded at a single point at the monitor rack. Where additional surge protection is required — particularly in outdoor substations or lightning-prone regions — the Bently Nevada 990-05-70-02-00 Proximitor Sensor or equivalent barrier modules can be inserted between the driver and the I/O card to clamp transient overvoltages before they reach sensitive monitor circuitry.

In safety instrumented systems (SIS) designed to IEC 61511, the proximity probe channel is often paired with a Bently Nevada 3500/22M Transient Data Interface to provide continuous waveform capture alongside the protection voting logic. This dual-function architecture — protection plus condition monitoring — allows maintenance teams to distinguish between genuine mechanical faults and electrical interference events, reducing nuisance trips that cost production time without improving safety. The 3500/15 Power Supply Module with redundant input capability ensures that a single AC supply failure does not interrupt the protection system, while the 3500/05 System Rack backplane maintains communication integrity across all I/O modules even during partial rack maintenance.

For installations requiring intrinsic safety certification in Zone 1 or Zone 2 hazardous areas — such as offshore platforms, gas compression stations, or chemical reactor buildings — the probe system must be paired with approved Zener barriers or galvanic isolators. The Bently Nevada 3300 XL system is designed to interface with standard IS barriers, and SMARTNEXMSK can advise on compatible barrier models based on your area classification and cable parameters. Additionally, the Bently Nevada 330130-080-00-00 Extension Cable maintains the system’s calibrated sensitivity across the full probe-driver gap, ensuring that field-length adjustments do not introduce measurement offset errors that could mask developing bearing faults.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the 330903-00-20-05-02-00 is deployed on centrifugal compressors, steam turbine-driven pumps, and reactor agitator shafts where continuous shaft position monitoring is a process safety requirement under API 670. A bearing failure on a high-pressure compressor without adequate vibration monitoring can result in seal loss, hydrocarbon release, and fire — making the reliability of every probe in the protection loop a direct safety-of-life concern.

In power generation — including coal-fired, gas turbine, and hydroelectric facilities — the probe monitors rotor eccentricity and journal bearing oil film thickness on turbine-generator sets. Abnormal shaft displacement detected early allows operators to reduce load and schedule controlled maintenance rather than experiencing a catastrophic trip that damages turbine blades, generator windings, or exciter components.

In mining and mineral processing, large ball mills, SAG mills, and crusher drives operate under extreme mechanical loading with high levels of structural vibration. The ruggedized stainless-steel tip and wide operating temperature range of the 330903-00-20-05-02-00 make it well-suited for these environments, where probe replacement frequency is high and supply chain reliability is critical to maintaining production continuity.

In water and wastewater treatment, high-speed centrifugal pumps and blower units in aeration systems benefit from proximity-based bearing monitoring to prevent unexpected failures that could interrupt treatment processes and create environmental compliance violations. The probe’s DC-to-10 kHz frequency response captures both slow shaft runout and high-frequency bearing defect signatures in a single measurement channel.

In metallurgical and steel mill applications, continuous casting machines, rolling mill drives, and induction furnace cooling pumps operate in environments with intense electromagnetic interference from high-current bus bars and induction heating equipment. The shielded coaxial cable design of the 330903-00-20-05-02-00 provides meaningful rejection of common-mode interference, preserving signal quality in conditions where unshielded sensors would produce unreliable outputs.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330903-00-20-05-02-00?
The 12-month warranty covers manufacturing defects, premature component failure under normal operating conditions, and any deviation from published Bently Nevada specifications confirmed by pre-shipment testing. If a unit fails within the warranty period under normal service conditions, SMARTNEXMSK will provide a replacement unit at no additional cost. Warranty claims are processed within 5 business days of receiving the returned item.

Q2: What pre-shipment testing is performed on each probe?
Every 330903-00-20-05-02-00 unit undergoes gap voltage linearity verification across the full 0.25–2.54 mm measurement range, insulation resistance testing between the cable shield and center conductor, and visual inspection of the probe tip, cable jacket, and connector. Units that do not meet Bently Nevada factory output specifications are quarantined and not shipped. A test record is available upon request for critical safety applications.

Q3: Is the 330903-00-20-05-02-00 compatible with existing 3300 XL system installations?
Yes. The 330903-00-20-05-02-00 is a direct replacement for existing 8mm probes in the Bently Nevada 3300 XL system. It is compatible with the 330180 series drivers and the full range of 3500 series I/O modules including the 3500/42M and 3500/42E Proximitor I/O cards. No recalibration of the driver or monitor is required when replacing a like-for-like probe, provided the extension cable length and target material remain unchanged.

Q4: Can SMARTNEXMSK support long-term supply for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains standing inventory of the 330903-00-20-05-02-00 and related 3300 XL system components to support planned maintenance schedules, emergency replacements, and multi-site procurement programs. We can provide volume pricing, reserved stock agreements, and advance shipment notifications to ensure your maintenance team always has critical spares available without carrying excessive on-site inventory. Contact our team to discuss a supply arrangement tailored to your facility’s maintenance cycle.
