Bently Nevada 330903-00-21-05-02-CN Safety Proximity Transducer

Bently Nevada 330903-00-21-05-02-CN Safety Proximity Transducer: Reliable Control for Harsh Industrial Sites

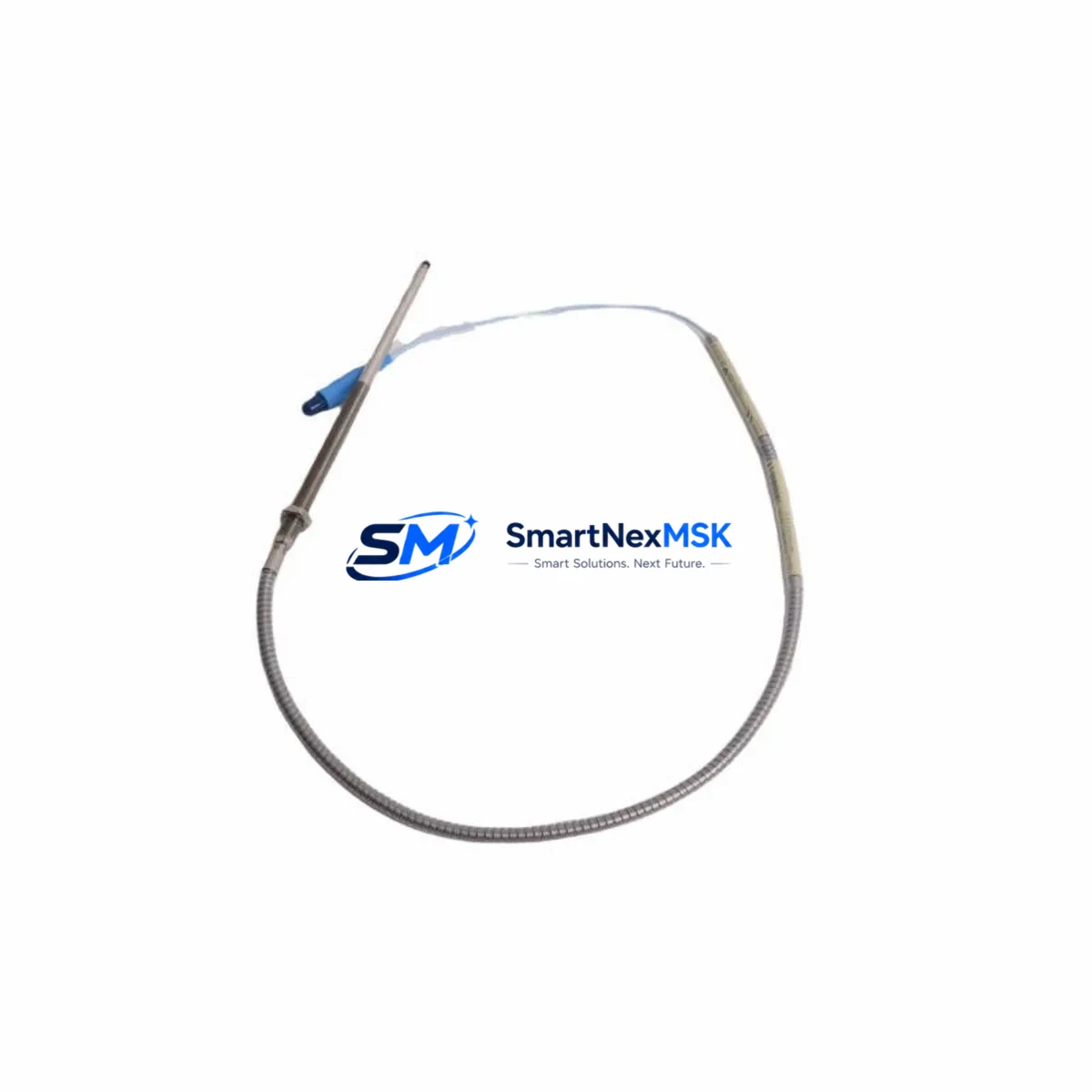

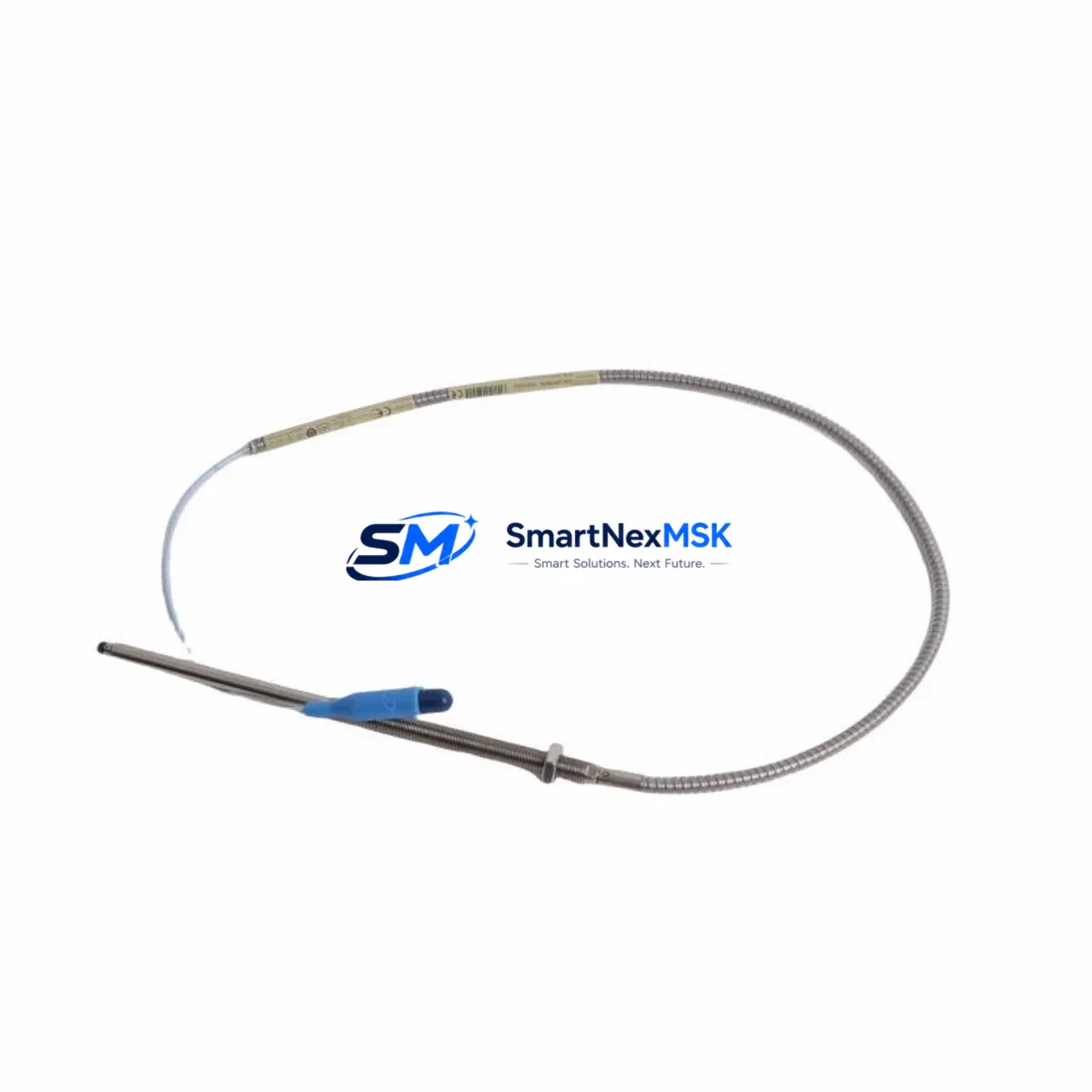

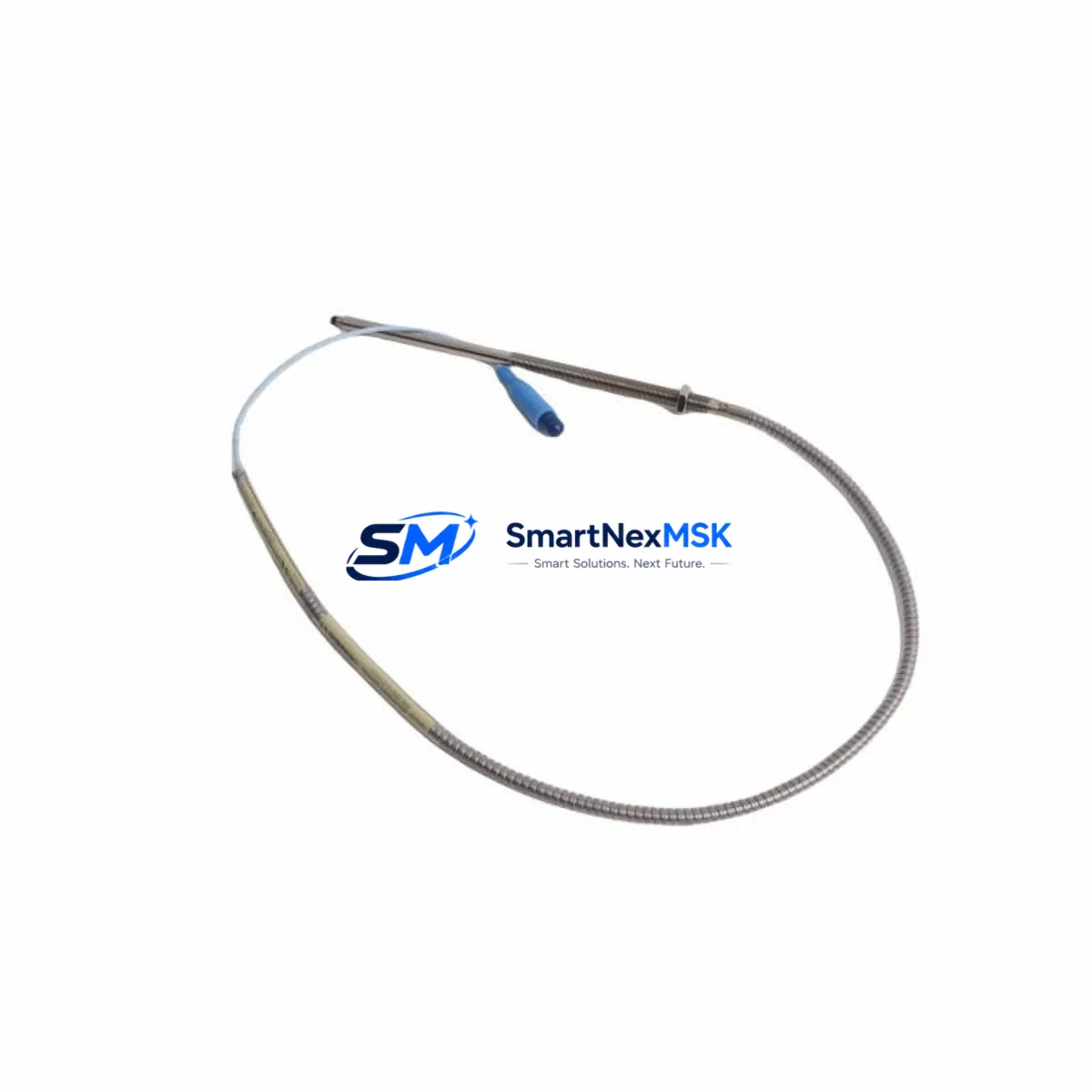

The Bently Nevada 330903-00-21-05-02-CN is an 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to API 670 standards, this transducer delivers consistent, drift-free output signals that form the backbone of machinery protection systems in petrochemical plants, power generation facilities, mining operations, metallurgical complexes, water treatment stations, and continuous manufacturing lines.

In high-load, high-interference production environments — where control interruption, signal drift, power fluctuation, or module misoperation can trigger unplanned shutdowns or catastrophic equipment failure — the 330903-00-21-05-02-CN provides the measurement accuracy and environmental resilience that safety engineers and reliability teams depend on. Its non-contact sensing principle eliminates mechanical wear, ensuring long-term stability in rotating machinery monitoring without signal degradation over time.

This transducer is fully compatible with the Bently Nevada 3300 XL proximitor system, including the 330180-91-05 extension cable and the 330130-045-00-00 proximitor sensor, forming a complete eddy-current measurement chain. When integrated with the 3500/42M proximitor I/O module and the 3500/22M transient data interface, it enables real-time shaft vibration, axial position, and differential expansion monitoring — all critical parameters in turbine and compressor protection loops.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection architecture built around the 330903-00-21-05-02-CN requires careful integration of complementary components throughout the control cabinet and field wiring infrastructure. The transducer signal is routed through a 330180-91-05 extension cable to the 330130-045-00-00 proximitor, which conditions the raw eddy-current signal into a calibrated voltage output suitable for the Bently Nevada 3500/42M proximitor I/O module.

Within the 3500 rack, the 3500/20 rack interface module manages system communication and configuration, while the 3500/15 power supply module provides regulated, redundant DC power to all monitoring cards — eliminating power fluctuation as a source of false trips or missed alarms. For hazardous area installations, the 3500/32 4-channel relay module executes safety interlock actions based on vibration alarm thresholds, directly protecting rotating equipment from overspeed, high vibration, or axial displacement exceedances.

In facilities where communication integrity is paramount, the 3500/92 communication gateway module bridges the Bently Nevada rack to Modbus, Profibus, or OPC-DA/UA networks, ensuring that vibration data reaches the DCS or SCADA layer without latency or packet loss. Surge protection devices installed at the field junction box — such as DIN-rail mounted transient voltage suppressors — further shield the 330903-00-21-05-02-CN signal path from lightning-induced surges and ground loop interference common in outdoor compressor stations and substation environments.

For facilities managing multiple measurement points, the 3500/40M Proximitor/Seismic monitor can be deployed alongside the 3500/42M to expand channel capacity without increasing rack footprint, maintaining a compact, high-density protection panel that meets IEC 61511 functional safety requirements for SIL-rated interlock loops.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In catalytic cracking units, compressor trains, and pump stations, the 330903-00-21-05-02-CN continuously monitors shaft radial vibration and axial position on critical rotating machinery. Its IP67 rating and high EMI resistance ensure reliable signal output even in environments saturated with hydrocarbon vapors, high-frequency inverter noise, and aggressive chemical atmospheres. Early detection of rotor imbalance, bearing wear, or misalignment prevents unplanned shutdowns that can cost hundreds of thousands of dollars per hour in lost production.

Power Generation: Steam turbines and gas turbines in power plants operate at extreme speeds and temperatures. The 3300 XL proximity transducer system — anchored by the 330903-00-21-05-02-CN — provides the sub-millisecond response time required to detect shaft displacement anomalies before they escalate to blade rub or bearing failure. Integration with the plant’s DCS via the 3500/92 gateway ensures that vibration alarms are immediately visible to control room operators.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject proximity transducers to severe mechanical shock, dust ingress, and wide temperature swings. The ruggedized construction of the 330903-00-21-05-02-CN — with its IP67-rated integral cable and robust probe tip — maintains measurement accuracy in these conditions, supporting predictive maintenance programs that reduce unplanned downtime in continuous ore processing circuits.

Metallurgy & Steel Production: In rolling mills and continuous casting lines, precise axial position monitoring of drive shafts and roll assemblies is essential for product quality and equipment safety. The 330903-00-21-05-02-CN delivers the linear range and sensitivity required for these applications, operating reliably in the high-temperature, high-vibration, and electromagnetically noisy environment of a steel plant.

Water & Wastewater Treatment: Large centrifugal pumps and blowers in water treatment facilities require continuous vibration monitoring to prevent catastrophic bearing failures that could disrupt municipal water supply. The non-contact sensing principle of the 3300 XL transducer eliminates the maintenance burden associated with contact-type sensors, providing years of reliable service in humid, chemically aggressive pump rooms.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330903-00-21-05-02-CN?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the transducer fails to meet its specified sensitivity, linearity, or frequency response within the warranty period, we will provide a replacement unit or full refund. Warranty claims are processed within 5 business days upon receipt of the returned item.

Q2: What pre-shipment testing is performed on each unit?
Every 330903-00-21-05-02-CN unit undergoes functional verification prior to dispatch, including output sensitivity check, cable continuity and insulation resistance test, and visual inspection for connector and probe tip integrity. Units are shipped with individual test records available upon request, ensuring full traceability from our warehouse to your control cabinet.

Q3: Is this transducer compatible with existing Bently Nevada 3300 and 3500 series systems?
Yes. The 330903-00-21-05-02-CN is fully compatible with the Bently Nevada 3300 XL proximitor system and integrates directly with 3500-series monitoring racks. It uses the standard coaxial interface compatible with 330180-series extension cables and 330130-series proximitors. No additional adapters or signal conditioners are required for standard installations.

Q4: Can you guarantee long-term supply and replacement support for this part?
Yes. We maintain dedicated stock of the 330903-00-21-05-02-CN and its associated 3300 XL series components to support both planned maintenance schedules and emergency replacement needs. Our procurement network ensures consistent availability even for discontinued or hard-to-source Bently Nevada part numbers, with typical lead times of 3–7 business days for in-stock items and expedited options available for critical shutdowns.
