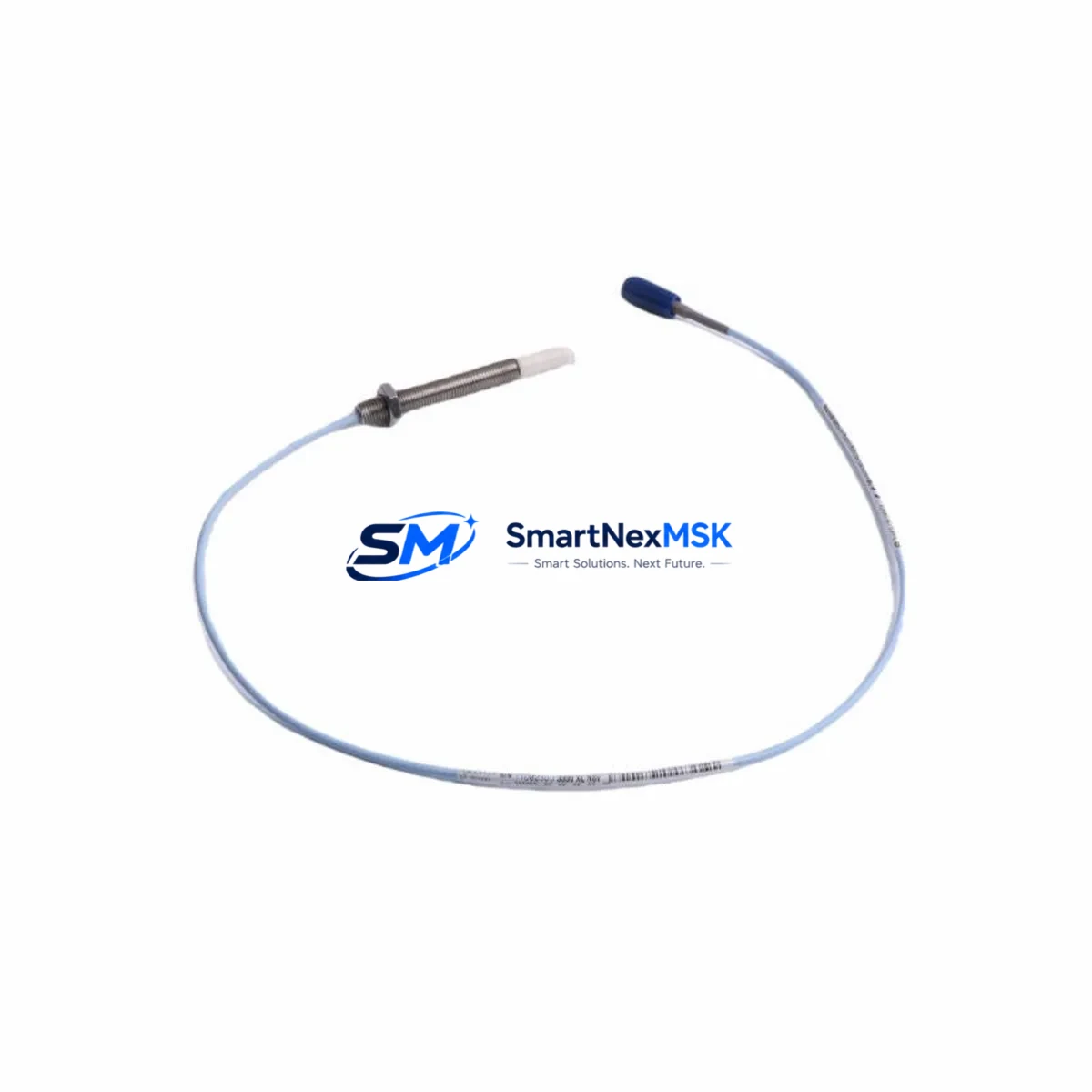

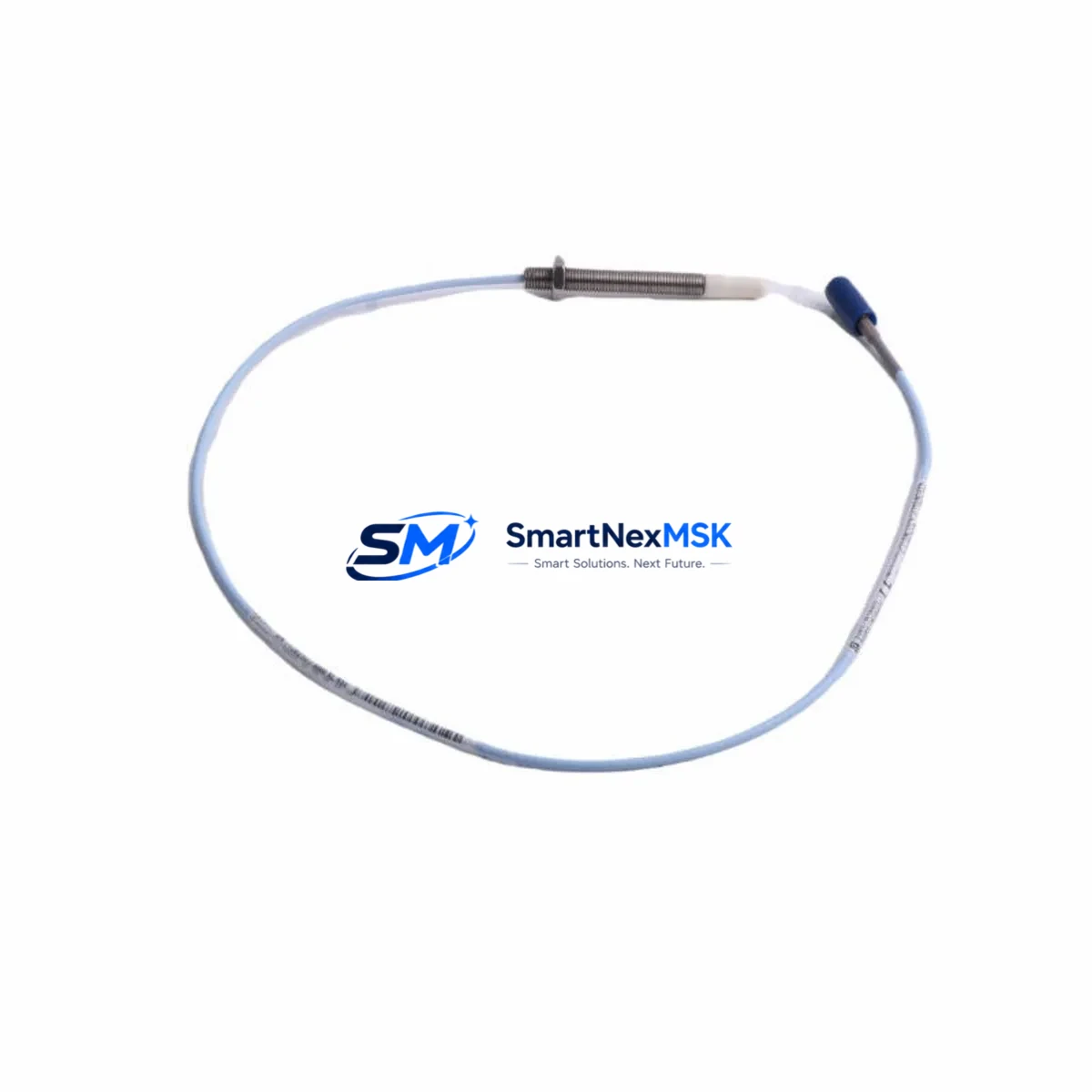

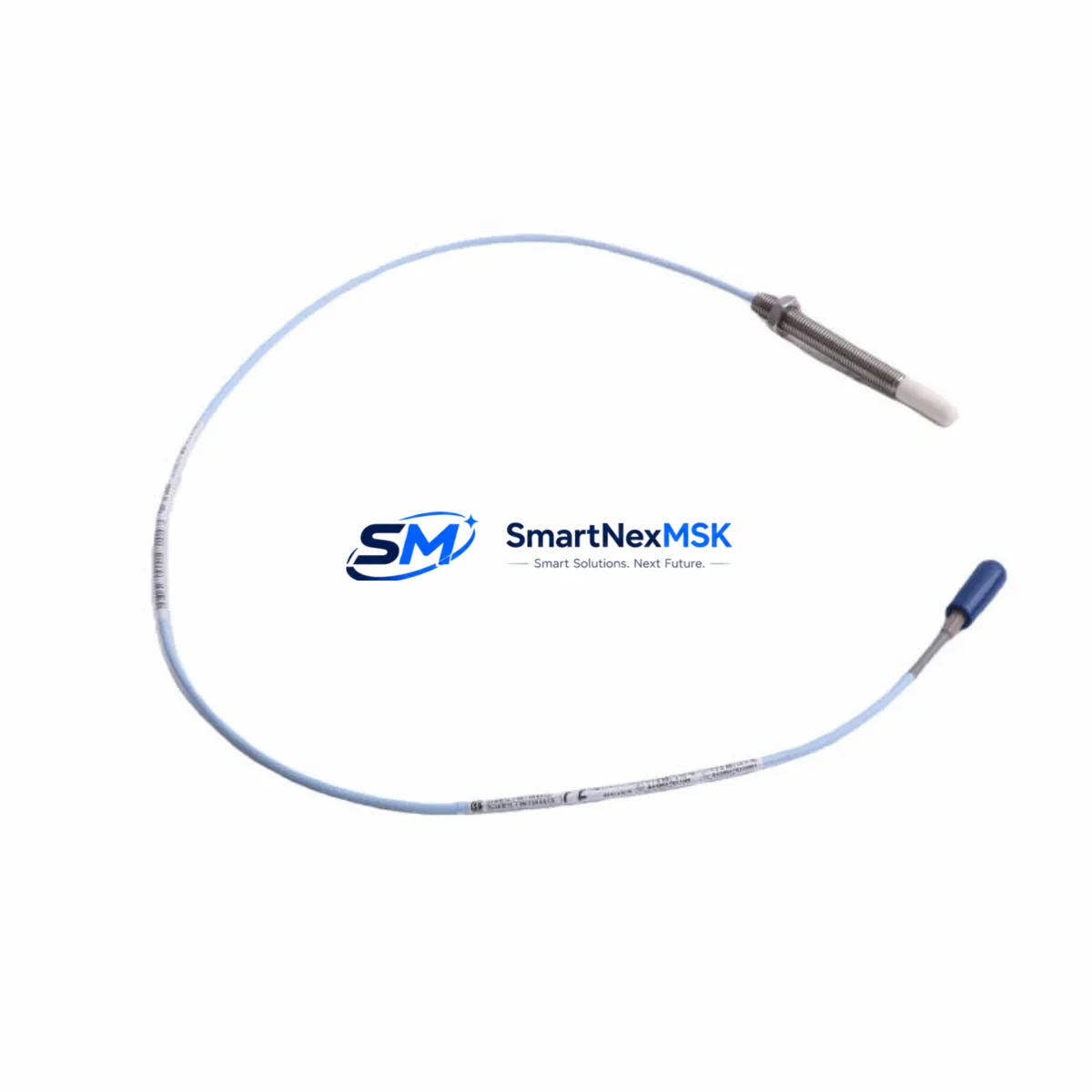

The Bently Nevada 330903-00-22-10-02-05 is an original 3300 XL Series 5mm proximity probe designed for continuous shaft vibration and position monitoring in rotating machinery. As a critical sensing element in turbine, compressor, pump, and motor protection systems, this probe is a front-line component in any predictive maintenance and condition monitoring program. Sourced as a genuine original spare, this unit is tested, verified, and ready for immediate field deployment — minimizing unplanned downtime and supporting rapid restoration of machinery protection coverage.

For maintenance engineers managing aging turbomachinery or DCS-integrated protection systems, having a verified replacement of the 330903-00-22-10-02-05 on the shelf is not optional — it is a core element of any responsible spare parts strategy. The 3300 XL proximity probe system is widely deployed across oil and gas, power generation, petrochemical, and heavy industrial facilities, and its continued availability directly impacts plant uptime and API 670 compliance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330903-00-22-10-02-05 proximity probe in the field, a thorough inspection of the surrounding measurement chain is essential to ensure system integrity and prevent repeat failures. Maintenance engineers should begin by verifying the condition of the associated 3300 XL Proximitor® sensor (typically a 330180 or 330130 series driver), as probe and driver are a matched pair — a degraded driver will produce erroneous gap voltage readings even with a new probe installed.

The extension cable connecting the probe to the Proximitor® sensor should be inspected for insulation damage, connector corrosion, and continuity. In high-vibration environments, cable fatigue at the probe connector is a common failure mode that is often overlooked during a probe-only replacement. Confirm that the armored extension cable assembly (such as the 330130-045-00-00 or equivalent) is within specification before closing the work order.

At the monitor level, verify that the 3500/40M or 3500/42M vibration monitor card is reading the correct gap voltage (typically -10.0 VDC ±0.5 VDC at the calibrated gap) after probe installation. If the monitor is part of a 3500 Rack system, also inspect the 3500/20 rack power supply module and the 3500/92 communication gateway for firmware currency and alarm setpoint integrity.

For facilities running integrated DCS or safety systems, confirm that the 4–20 mA output from the Proximitor® sensor is correctly received at the DCS I/O card or the safety PLC input module. Signal isolators or barriers (such as a Pepperl+Fuchs KFD2-series or equivalent) in the signal path should be tested for output accuracy. Terminal blocks and field junction boxes in the measurement loop should be inspected for loose terminations, moisture ingress, and corrosion — particularly in outdoor or high-humidity installations.

Where the 3300 XL system feeds into a plant historian or condition monitoring platform, verify that the tag configuration, engineering units, and alarm thresholds are correctly mapped after the replacement. This is especially important in facilities where the 330903-00-22-10-02-05 probe is used for both vibration and axial position measurement on the same shaft, as incorrect gap calibration can trigger spurious trips or mask real machinery faults.

Procurement engineers should note that the 330903-00-22-10-02-05 is a long-lifecycle component with a stable supply chain through authorized distributors. Maintaining a minimum of two units per critical machine train in the on-site spare parts inventory is recommended, particularly for facilities where lead times from OEM channels exceed 4–6 weeks. SMARTNEXMSK maintains stock of this probe and related 3300 XL components, with standard lead times of 3–7 business days and express options available for emergency shutdowns.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement probe SKU (330903-00-22-10-02-05) matches the installed probe by checking the label on the existing probe body and the system documentation. Verify cable length and connector type are identical.

Step 2 — Safe isolation: Follow site LOTO (Lockout/Tagout) procedures. Notify the control room to place the associated monitor channel in bypass mode to prevent spurious trips during probe removal.

Step 3 — Probe removal and inspection: Remove the existing probe and inspect the probe tip for wear, pitting, or contamination. Inspect the probe mounting boss for thread condition and cleanliness. Clean the shaft target area and verify surface finish is within specification.

Step 4 — New probe installation: Install the 330903-00-22-10-02-05 to the correct gap (typically 1.0 mm / 40 mil for 5mm probes, per calibration curve). Use a non-metallic gap-setting tool. Torque the locknut to specification and secure the cable routing to prevent vibration-induced fatigue.

Step 5 — System verification: With the machine at rest, verify gap voltage at the Proximitor® sensor output. Compare against the calibration curve for the 330903-00-22-10-02-05 / 3300 XL driver pair. Confirm the monitor channel is reading correctly before removing the bypass.

Step 6 — Return to service: Remove bypass, confirm alarm and trip setpoints are active, and document the replacement in the maintenance management system (CMMS). Update the spare parts inventory record.
