Bently Nevada 330903-00-23-10-02-05 Safety Proximity Transducer

Bently Nevada 330903-00-23-10-02-05 Safety-Enhanced Proximity Transducer for Harsh Industrial Sites

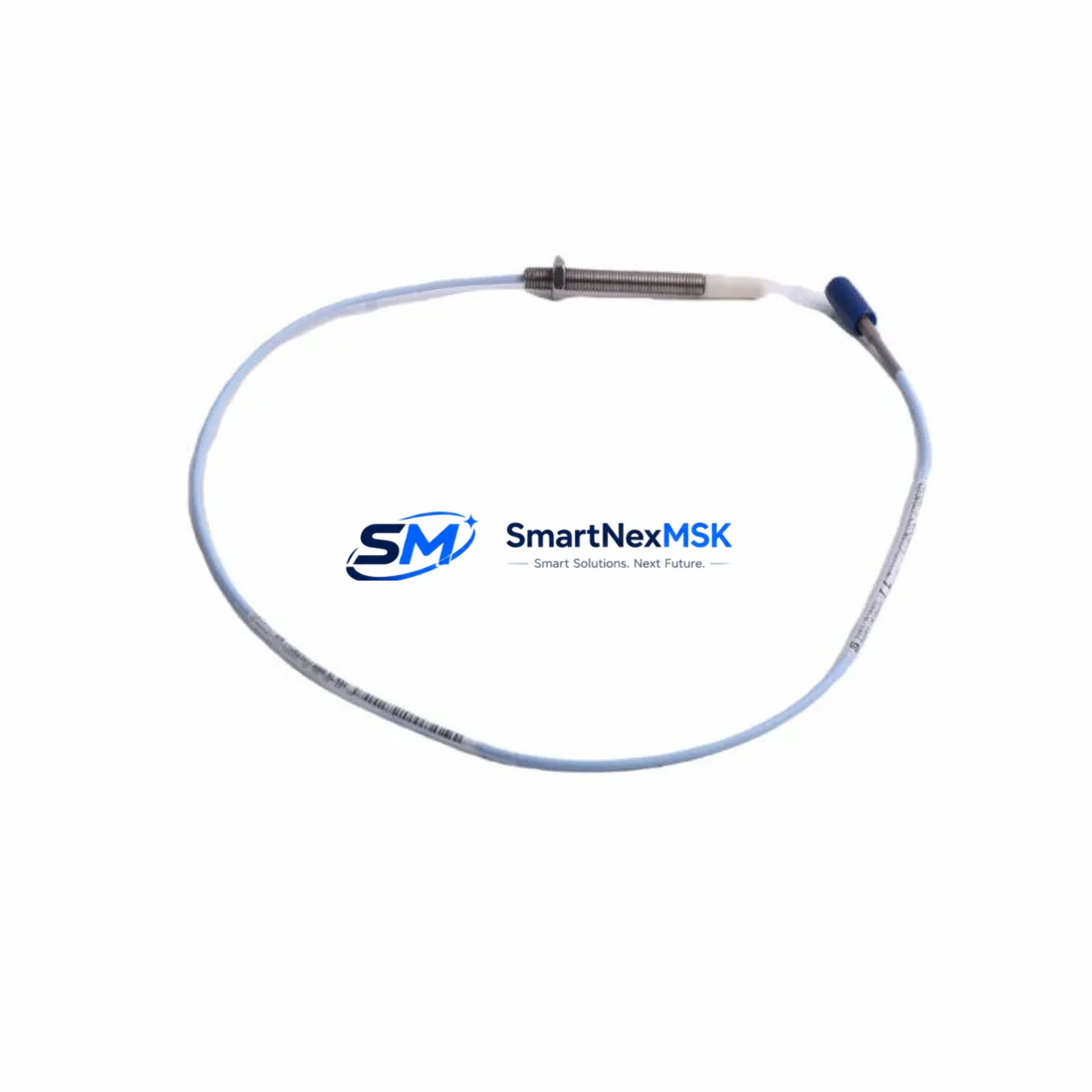

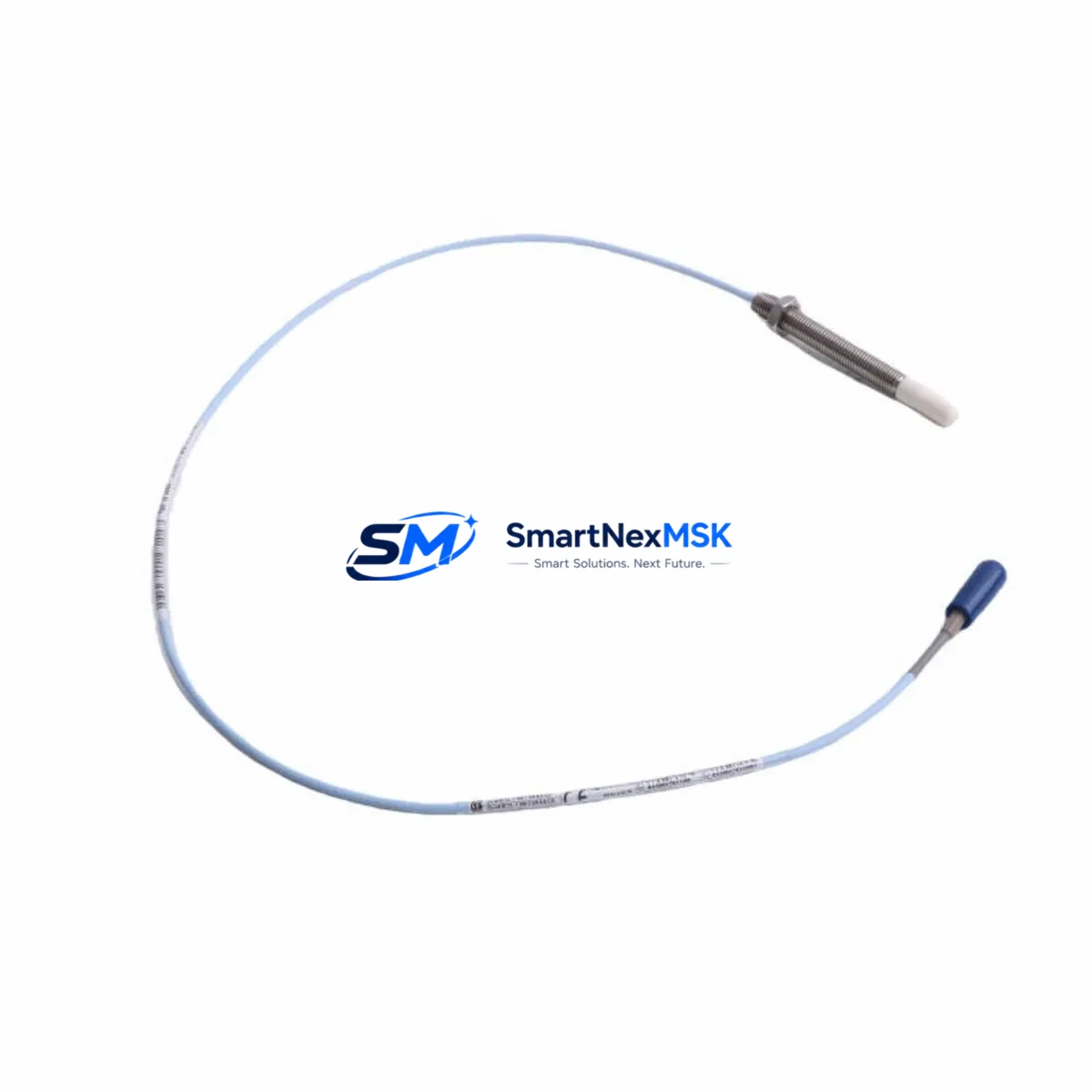

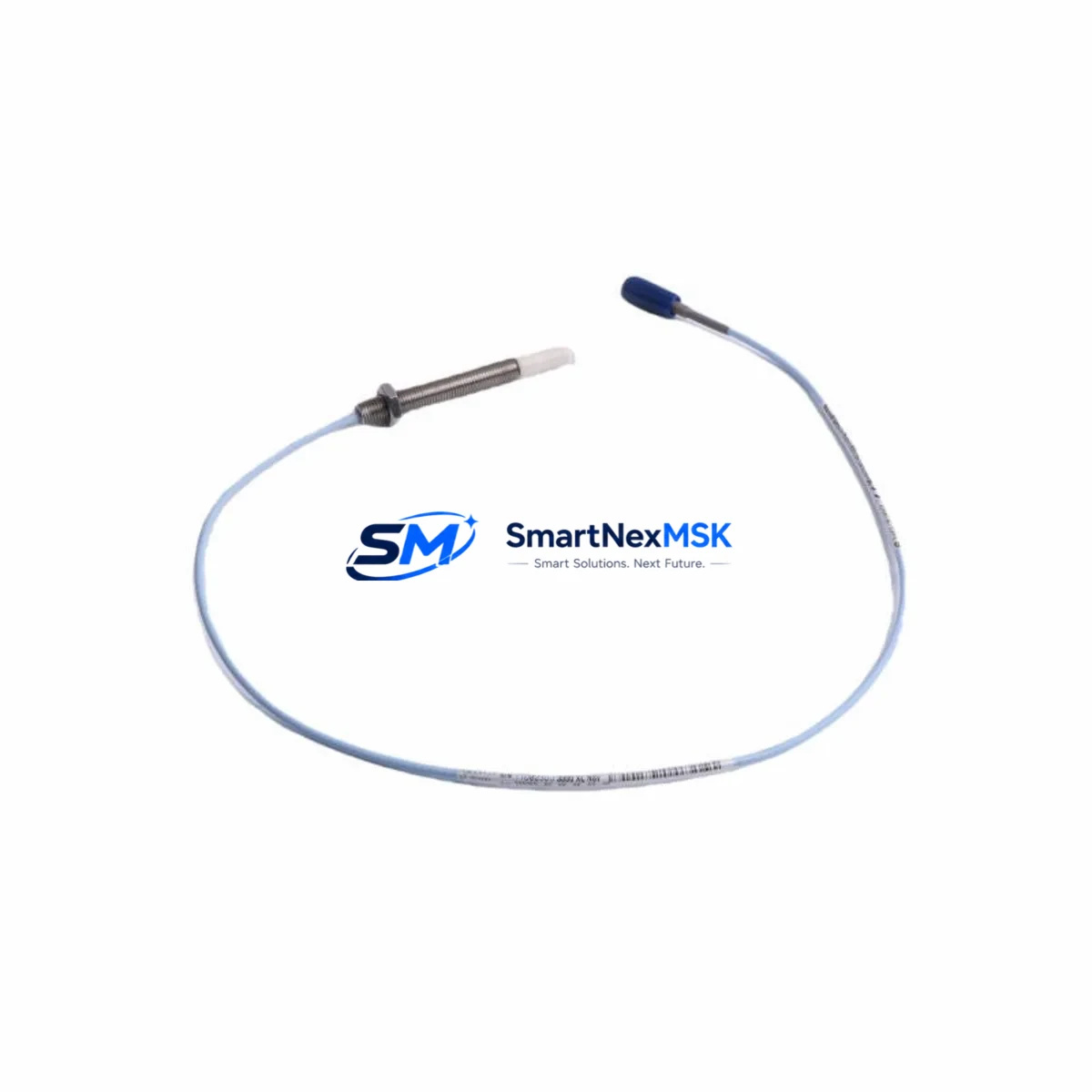

The Bently Nevada 330903-00-23-10-02-05 is an 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-temperature, high-vibration, and electromagnetically noisy conditions, this transducer is a cornerstone component in rotating machinery protection systems across petrochemical plants, power generation facilities, mining operations, metallurgical mills, and water treatment infrastructure.

In critical control loops where shaft displacement, radial vibration, or axial position must be measured with zero tolerance for error, the 330903-00-23-10-02-05 delivers consistent, drift-free signal output. Its ruggedized construction resists signal degradation caused by electrical interference, ground loops, and cable-induced noise — common failure vectors in heavy industrial control cabinets. When integrated with a Bently Nevada 3300 XL Extension Cable and a compatible 3300 XL Proximitor Sensor (such as the 330180-X1-05 or 330130-040-00-00), the system forms a complete, calibrated measurement chain that meets API 670 machinery protection standards.

Safety Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring begins at the sensor level, but true machinery protection depends on a fully coordinated system architecture. The 330903-00-23-10-02-05 transducer is typically deployed alongside a Bently Nevada 3300 XL Proximitor Sensor (330180 series), which conditions the raw eddy-current signal into a clean DC output suitable for direct input to a Bently Nevada 3500 Series Machinery Protection System rack. Within that rack, modules such as the 3500/42M Proximitor/Seismic Monitor or the 3500/22M Transient Data Interface process the transducer signal in real time, triggering alarms or safety shutdowns when vibration thresholds are exceeded.

To protect the signal path from power-line transients and surge events — particularly in substations and motor control centers — the installation should include a Bently Nevada I/O Module with surge-protected terminal blocks and a dedicated -24 VDC regulated power supply with redundant feed capability. Grounding discipline is equally critical: improper grounding between the 3300 XL Extension Cable and the Proximitor driver can introduce common-mode noise that mimics real vibration, leading to nuisance trips or, worse, masking genuine fault conditions.

In high-interference environments such as variable-frequency drive (VFD) motor rooms or arc furnace bays, additional shielding of the 3300 XL coaxial cable assembly and physical separation from power conductors are recommended. Pairing the proximity system with a Bently Nevada 3500/20 Rack Interface Module enables seamless integration with DCS platforms including Emerson DeltaV or Honeywell Experion PKS via Modbus or FOUNDATION Fieldbus, ensuring that vibration data feeds directly into the plant’s safety instrumented system (SIS) logic.

Critical Industrial Safety Applications

The Bently Nevada 330903-00-23-10-02-05 proximity transducer is deployed across a wide spectrum of safety-critical rotating machinery applications:

Petrochemical & Refinery: Installed on centrifugal compressors, reactor feed pumps, and steam turbine trains where continuous shaft monitoring is mandated by IEC 61511 functional safety requirements. Any undetected radial vibration excursion in these machines can result in catastrophic seal failure, hydrocarbon release, or fire — making a calibrated, interference-resistant proximity system non-negotiable.

Power Generation: Used on gas turbine generator sets and boiler feed pumps in combined-cycle power plants. The transducer’s wide frequency response (DC to 10 kHz) captures both slow-roll runout and high-frequency sub-synchronous instability, enabling early detection of rotor rubs, oil whirl, and bearing degradation before they escalate to forced outages.

Mining & Mineral Processing: Applied to SAG mill pinion drives, slurry pump motors, and conveyor head pulleys operating in dusty, high-humidity environments. The IP67-rated probe body and high-temperature tolerance ensure measurement integrity even when ambient conditions fluctuate dramatically between shifts.

Metallurgy & Steel: Monitors rolling mill main drives and continuous casting machine rollers where thermal expansion and mechanical shock are constant. The transducer’s robust eddy-current principle is immune to the optical obscuration and acoustic interference that would compromise alternative sensing technologies in these environments.

Water & Wastewater Treatment: Protects large vertical turbine pumps and blower trains in municipal water infrastructure. Unplanned downtime in these facilities directly impacts public health, making the reliability and 12-month warranty coverage of the 330903-00-23-10-02-05 a key procurement consideration for plant engineers.

Port & Bulk Material Handling: Deployed on ship unloader slewing drives and stacker-reclaimer travel motors where intermittent high-load cycles and outdoor exposure demand sensors with proven environmental resilience and long mean-time-between-failure (MTBF) ratings.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330903-00-23-10-02-05?
The 12-month warranty covers all manufacturing defects, calibration failures, and functional non-conformance under normal operating conditions. If the unit fails to meet Bently Nevada 3300 XL performance specifications within the warranty period, SMARTNEXMSK will arrange replacement or full refund. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q2: How is each unit tested before shipment?
Every 330903-00-23-10-02-05 transducer undergoes pre-shipment functional verification including gap-versus-output linearity check, insulation resistance test, and visual inspection of the probe tip, cable jacket, and connector. Units sourced as surplus-new are additionally bench-tested against OEM sensitivity specifications (7.87 V/mm ±0.5%) before dispatch.

Q3: Is this transducer compatible with existing Bently Nevada 3300 and 3500 system installations?
Yes. The 330903-00-23-10-02-05 is fully compatible with the Bently Nevada 3300 XL Proximitor driver family and integrates directly with 3500 Series monitor racks without requiring recalibration of the existing system, provided the extension cable length and target material match the original system design parameters. Always verify the gap voltage at commissioning.

Q4: Can SMARTNEXMSK guarantee long-term supply and replacement support?
Yes. SMARTNEXMSK maintains dedicated inventory of Bently Nevada 3300 XL series components, including proximity transducers, extension cables, and Proximitor sensors, to support both planned maintenance schedules and emergency replacement requirements. Expedited shipping is available for critical plant shutdowns, and our technical team can assist with cross-reference verification for legacy installations.
