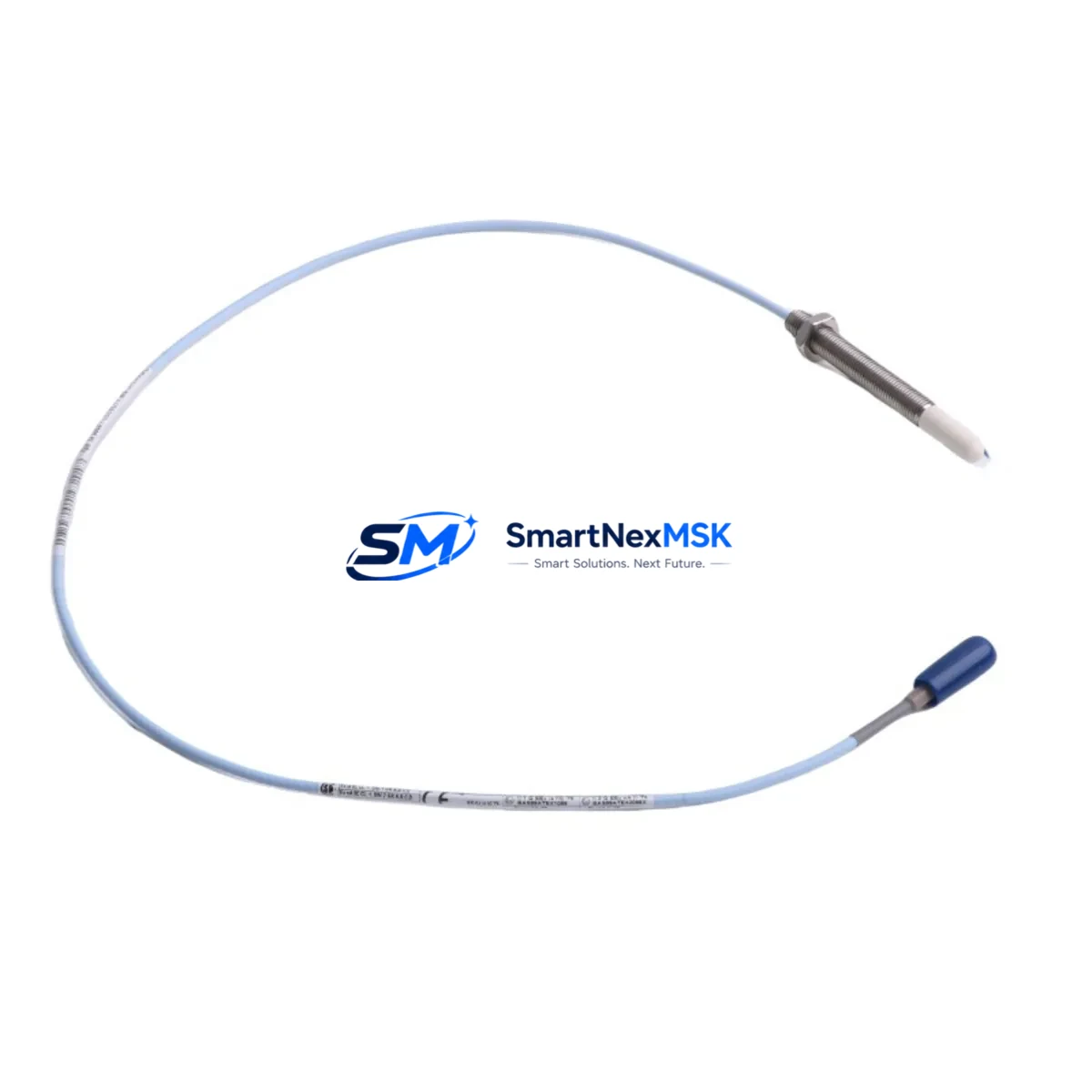

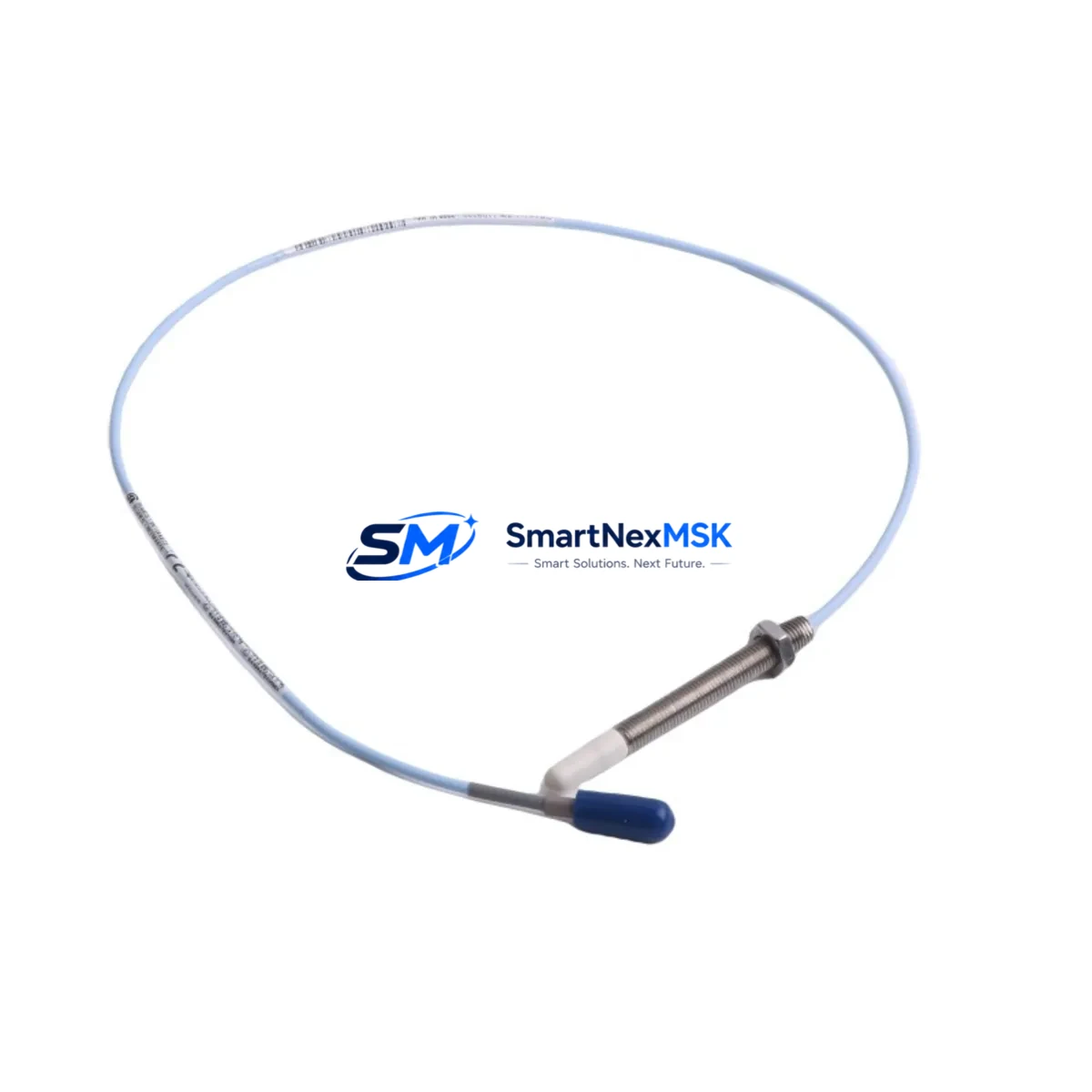

The Bently Nevada 330903-00-24-05-02-00 is a 24-inch extension cable proximity probe assembly designed for direct retrofit and drop-in replacement within the Bently Nevada 3300 NSv Series vibration monitoring platform. This unit is engineered to maintain full signal compatibility with existing 3300 NSv rack-mounted monitors, making it the preferred choice for maintenance engineers managing aging turbomachinery protection systems, compressor trains, and rotating equipment installations where minimizing downtime is critical.

Whether you are replacing a failed probe in an active monitoring loop, upgrading a legacy 3300 XL system to the 3300 NSv architecture, or restoring a mothballed production line, the 330903-00-24-05-02-00 delivers verified electrical and mechanical compatibility without requiring reprogramming of the host monitor or recalibration of the full channel. Its 5-meter (standard) cable configuration and 5mm tip diameter conform to the original Bently Nevada installation envelope, allowing technicians to reuse existing conduit runs, junction boxes, and terminal block wiring.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330903-00-24-05-02-00 into an existing control architecture begins with a thorough pre-installation audit. Technicians should first confirm that the installed Proximitor® Sensor — typically a 3300 NSv Proximitor mounted in the field junction box — is functioning within its specified bias voltage range. If the Proximitor is also degraded, it should be replaced concurrently using the appropriate 330180-91-00 or 330130-080-01-00 Proximitor assembly to avoid a repeat outage.

For installations where the 3300 NSv monitor cards are housed in a 3300 NSv Rack, verify that the rack backplane connectors are free of corrosion and that the I/O module seating is secure. In multi-channel racks, each channel’s probe, extension cable, and Proximitor must be treated as a matched system — mixing cable lengths or probe sensitivities across a single Proximitor will introduce measurement error. The 330903-00-24-05-02-00 is factory-matched for use with 24-inch extension cables; if your existing installation uses a different cable length such as the 330130-045-01-00 (45-inch) or 330130-080-01-00 (80-inch) variant, the full probe-cable-Proximitor set must be replaced as a matched assembly.

Where the plant’s DCS — such as a Honeywell Experion PKS, Emerson DeltaV, or ABB System 800xA — receives vibration data from the 3300 NSv rack via a 4–20 mA analog output or a Modbus RTU/TCP gateway, no changes to the DCS I/O configuration are required provided the replacement probe restores the channel to its original calibrated output. However, if the channel had been previously bypassed or placed in alert-inhibit mode within the machinery protection system, the DCS operator must re-enable the channel and verify that the vibration trend historian resumes logging correctly after commissioning.

For plants upgrading from the older 3300 XL platform to the 3300 NSv architecture, the 330903-00-24-05-02-00 is compatible with the new NSv Proximitor when used with the correct target material calibration. Engineers should also plan for updates to the System 1 Evolution or System 1 Optimizer software configuration, ensuring that the channel tag, engineering units, full-scale range, and alarm setpoints are correctly migrated from the legacy database. HMI screens built on Wonderware InTouch or GE iFIX that display shaft vibration trends should be reviewed to confirm that tag references remain valid after the channel reconfiguration.

Additional components commonly required during a 3300 NSv retrofit include the 3300 NSv Power Supply module, barrier isolators for IS-rated installations, the 3300 NSv I/O module for relay output wiring, and the Bently Nevada 3300 NSv System Monitor for overall rack health supervision. Programming cables such as the 135489-01 are needed if firmware updates to the monitor are required during the upgrade window.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured hot-swap or planned-outage strategy. Where the machinery protection system permits, the affected channel should be placed in bypass mode within the 3300 NSv monitor prior to probe removal, preventing a spurious trip signal from propagating to the emergency shutdown system or DCS interlock logic. This bypass must be formally authorized under the plant’s Management of Change (MOC) procedure and time-limited to the duration of the replacement activity.

Before removing the existing probe, technicians should document the current gap voltage reading, the OK relay status, and the vibration amplitude and phase readings from the System 1 historian. These baseline values serve as the acceptance criteria for the replacement unit. Once the 330903-00-24-05-02-00 is installed and the gap is set to the target value of -10.0 VDC (±0.5 V), the channel should be brought out of bypass and the OK relay status confirmed before the bypass authorization is closed out.

For critical machinery where even a brief monitoring gap is unacceptable, a temporary portable vibration analyzer can be connected to the Proximitor output terminals to maintain continuous monitoring during the swap. This approach preserves the original program logic in the 3300 NSv monitor, protects the DCS interlock configuration, and ensures that the field control continuity is maintained throughout the replacement procedure. All commissioning results — gap voltage, OK status, vibration baseline — should be recorded in the plant’s maintenance management system (CMMS) and attached to the work order for traceability.

Retrofit Support FAQ

Q1: Is the 330903-00-24-05-02-00 a direct drop-in replacement for my existing 3300 NSv proximity probe?
Yes, provided your existing installation uses a 24-inch extension cable and a 5mm probe tip. The 330903-00-24-05-02-00 is factory-configured to match the original Bently Nevada 3300 NSv system specifications. If your installation uses a different cable length, the full probe-cable-Proximitor assembly must be replaced as a matched set to maintain calibration accuracy.

Q2: What commissioning checks are required after installation?
After mechanical installation, set the probe gap to achieve a bias voltage of -10.0 VDC ±0.5 V at the Proximitor output. Confirm the OK relay on the 3300 NSv monitor is energized, verify that the vibration amplitude reading is within the expected baseline range, and check that the DCS historian is receiving and logging the channel data correctly. Document all readings before closing the bypass authorization.

Q3: Can this probe be used with the older 3300 XL monitor?
The 330903-00-24-05-02-00 is primarily specified for the 3300 NSv Proximitor. Use with a 3300 XL system requires verification of the Proximitor sensitivity and target material calibration. We recommend consulting the Bently Nevada TN-13 technical note and confirming compatibility with your specific XL monitor revision before installation.

Q4: What warranty coverage is provided?
All units are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing including bias voltage verification and OK relay confirmation. In the event of a warranty claim, our technical team will coordinate replacement shipment and provide commissioning support documentation to minimize your downtime.
