Bently Nevada 330903-00-24-10-01-00 8mm Proximity Transducer

Bently Nevada 330903-00-24-10-01-00: Safety-Enhanced 8mm Proximity Transducer for Harsh Industrial Sites

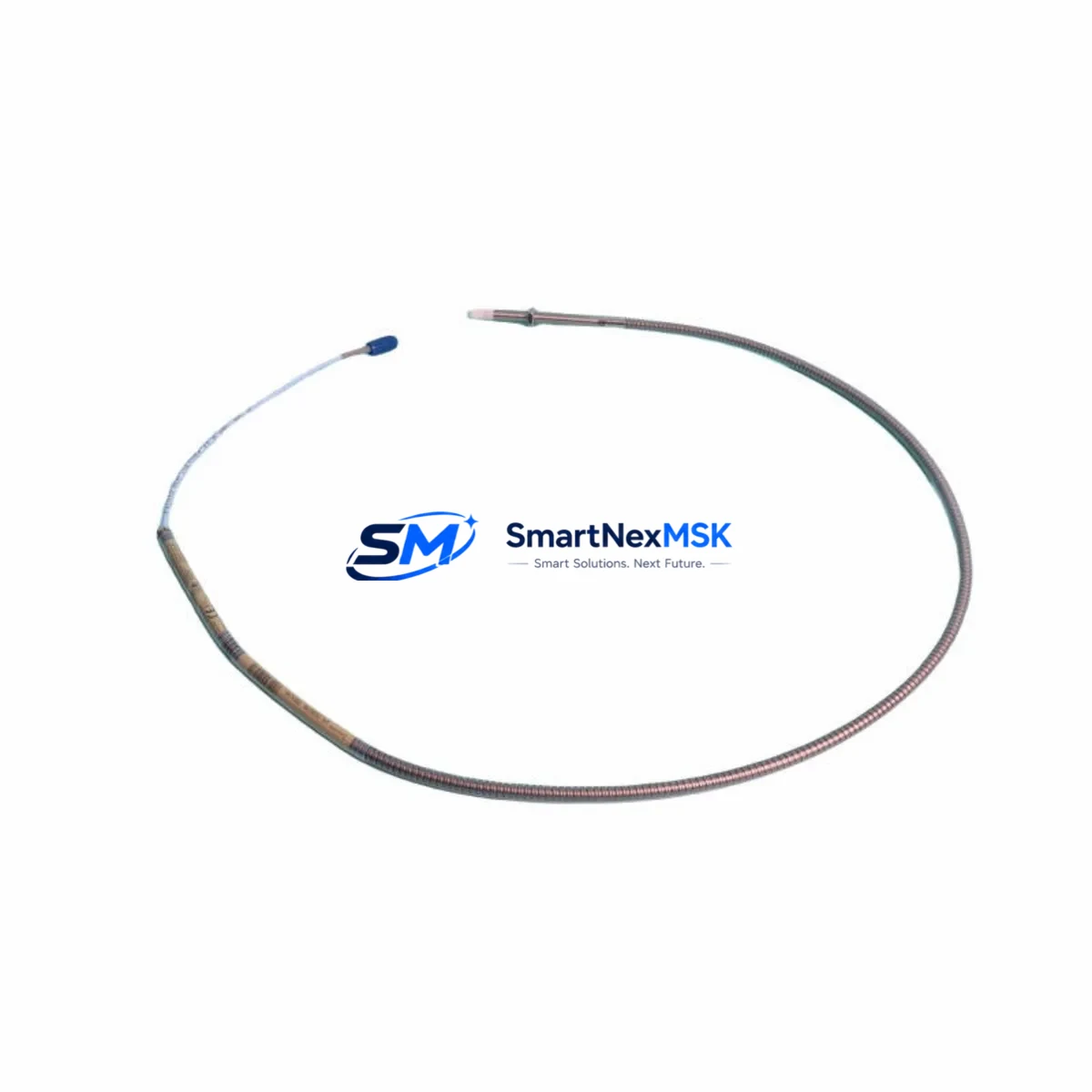

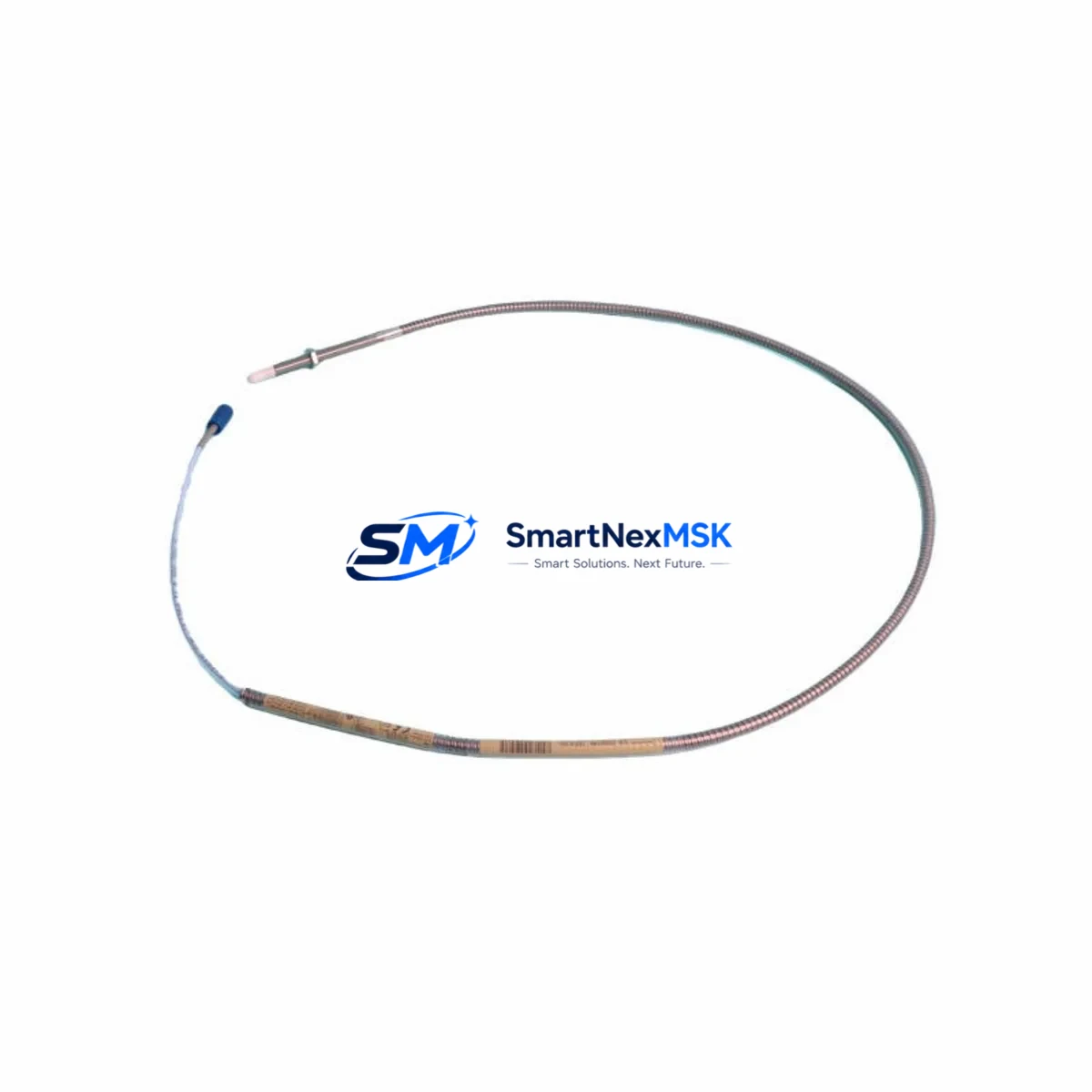

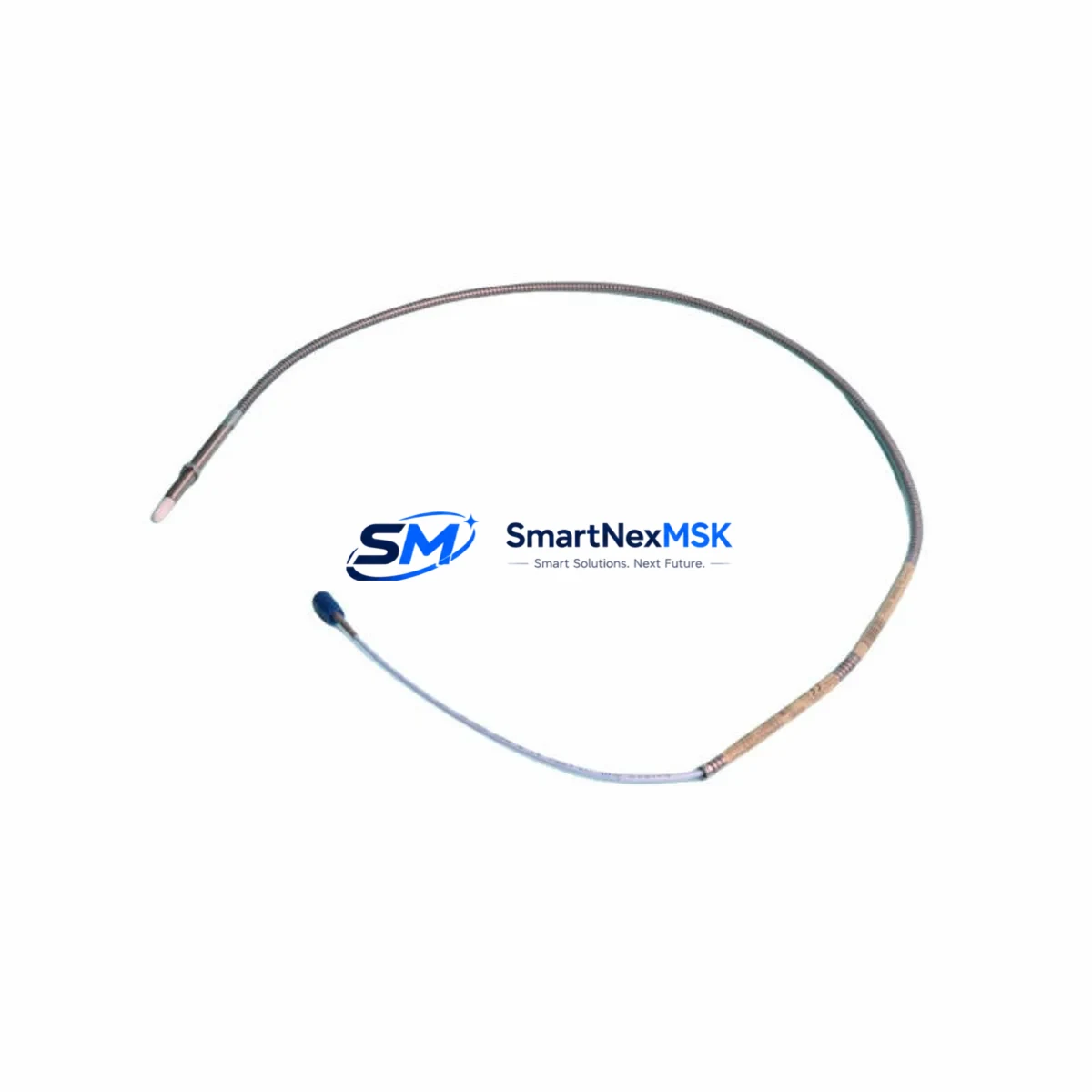

The Bently Nevada 330903-00-24-10-01-00 is a precision 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered to deliver continuous, reliable shaft vibration and position monitoring in the most demanding industrial environments. Designed for integration into critical machinery protection systems, this transducer plays a central role in safeguarding rotating equipment across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port cranes, and continuous manufacturing lines.

In high-stakes industrial control cabinets where uptime is non-negotiable, the 330903-00-24-10-01-00 provides the signal integrity and mechanical robustness required to prevent catastrophic equipment failure. Its eddy-current sensing principle ensures non-contact measurement, eliminating mechanical wear and reducing the risk of sensor-induced downtime. When paired with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-91-00 or 330130-080-01-00 series), the system delivers a calibrated, low-noise output signal that feeds directly into the 3500 Series Machinery Protection System rack — a platform trusted globally for real-time vibration alarming and trip logic in critical rotating machinery.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330903-00-24-10-01-00 transducer is never deployed in isolation. It operates as part of a tightly integrated measurement chain that begins at the shaft surface and terminates at the safety logic solver. The transducer connects via a matched extension cable — typically the Bently Nevada 330130-080-01-00 or 330130-045-01-00 armored extension cable — to a dedicated 3300 XL Proximitor (e.g., 330180-91-00), which conditions the raw eddy-current signal into a calibrated DC voltage proportional to gap distance.

This conditioned signal feeds into a Bently Nevada 3500/42M Proximitor Monitor card housed within the 3500 Series rack. The rack’s backplane distributes power and communication across multiple monitor cards, including velocity monitors (3500/46M), temperature monitors (3500/60), and the 3500/22M transient data interface — all coordinated by the 3500/01 Rack Interface Module. Surge protection at the cabinet entry point, such as a dedicated Bently Nevada I/O module with transient suppression, guards against voltage spikes from nearby variable frequency drives, motor starters, or lightning-induced surges on field cable runs.

For facilities operating under IEC 61511 or API 670 safety standards, the proximity measurement loop formed by the 330903-00-24-10-01-00 and its associated Proximitor is a critical input to the Safety Instrumented System (SIS). Any signal drift, open-circuit fault, or connector degradation in this loop can trigger a spurious trip or, worse, a missed trip on a failing bearing or rotor rub event. This is why pre-shipment functional testing, proper torque on the probe connector, and periodic loop calibration checks are non-negotiable in safety-critical installations.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In compressor trains and turbine-driven pumps, the 330903-00-24-10-01-00 monitors radial shaft displacement on journal bearings. Continuous vibration data feeds the emergency shutdown (ESD) system, enabling automatic trip before bearing failure propagates to seal damage or process gas release — a critical safeguard in hydrocarbon-rich atmospheres.

Power Generation: Steam and gas turbines operating at 3,000–3,600 RPM demand sub-micron measurement accuracy. This transducer, installed at the turbine bearing pedestals, provides the real-time eccentricity and vibration data required by the turbine control system to maintain rotor stability during load transients, startup, and coast-down sequences.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments saturated with dust, moisture, and mechanical shock. The IP67-rated construction and shielded cable of the 330903-00-24-10-01-00 resist ingress and EMI from nearby high-power drives, ensuring uninterrupted vibration monitoring even during blasting cycles or conveyor surge events.

Water & Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in water treatment facilities require continuous shaft monitoring to detect impeller imbalance or bearing wear before a pump failure disrupts treatment capacity. The non-contact eddy-current principle eliminates sensor wear in wet, chemically aggressive environments.

Metallurgy & Steel Mills: Rolling mill drives, continuous casters, and induction furnace cooling pumps operate under extreme thermal and electromagnetic stress. The 330903-00-24-10-01-00’s wide operating temperature range and EMI-hardened design maintain measurement integrity in the presence of high-current bus bars and induction heating fields.

Port & Heavy Lifting Equipment: Crane hoist motors and gearboxes in port terminals are subject to shock loads and variable duty cycles. Proximity transducers installed on the motor shaft provide early warning of gear mesh anomalies and bearing defects, reducing unplanned maintenance during peak cargo operations.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330903-00-24-10-01-00?
The 12-month warranty covers all manufacturing defects, functional failures, and signal output deviations from Bently Nevada factory specifications. If the unit fails under normal operating conditions within the warranty period, we provide a replacement or full refund. The warranty period begins from the date of confirmed delivery.

Q2: How is the unit tested before shipment?
Every 330903-00-24-10-01-00 unit undergoes a full pre-shipment inspection that includes visual examination of the probe tip, connector, and cable jacket; continuity and insulation resistance testing; and functional signal output verification using a calibrated Proximitor driver. Only units that pass all checks are released for shipment.

Q3: Is this transducer compatible with existing 3300 and 3500 Series installations?
Yes. The 330903-00-24-10-01-00 is fully compatible with the Bently Nevada 3300 XL Proximitor sensor family and integrates directly with 3500 Series monitor cards, including the 3500/42M Proximitor Monitor. It is also backward-compatible with legacy 3300 Series monitors, making it a reliable drop-in replacement for aging sensors in existing machinery protection systems.

Q4: Can long-term supply be guaranteed for critical spare parts programs?
We maintain dedicated stock of the 330903-00-24-10-01-00 and related 3300 XL Series components to support planned maintenance schedules, emergency replacements, and multi-unit spare parts programs. For facilities requiring guaranteed availability under a service agreement, please contact our sales team to discuss reserved stock arrangements and lead-time commitments.
