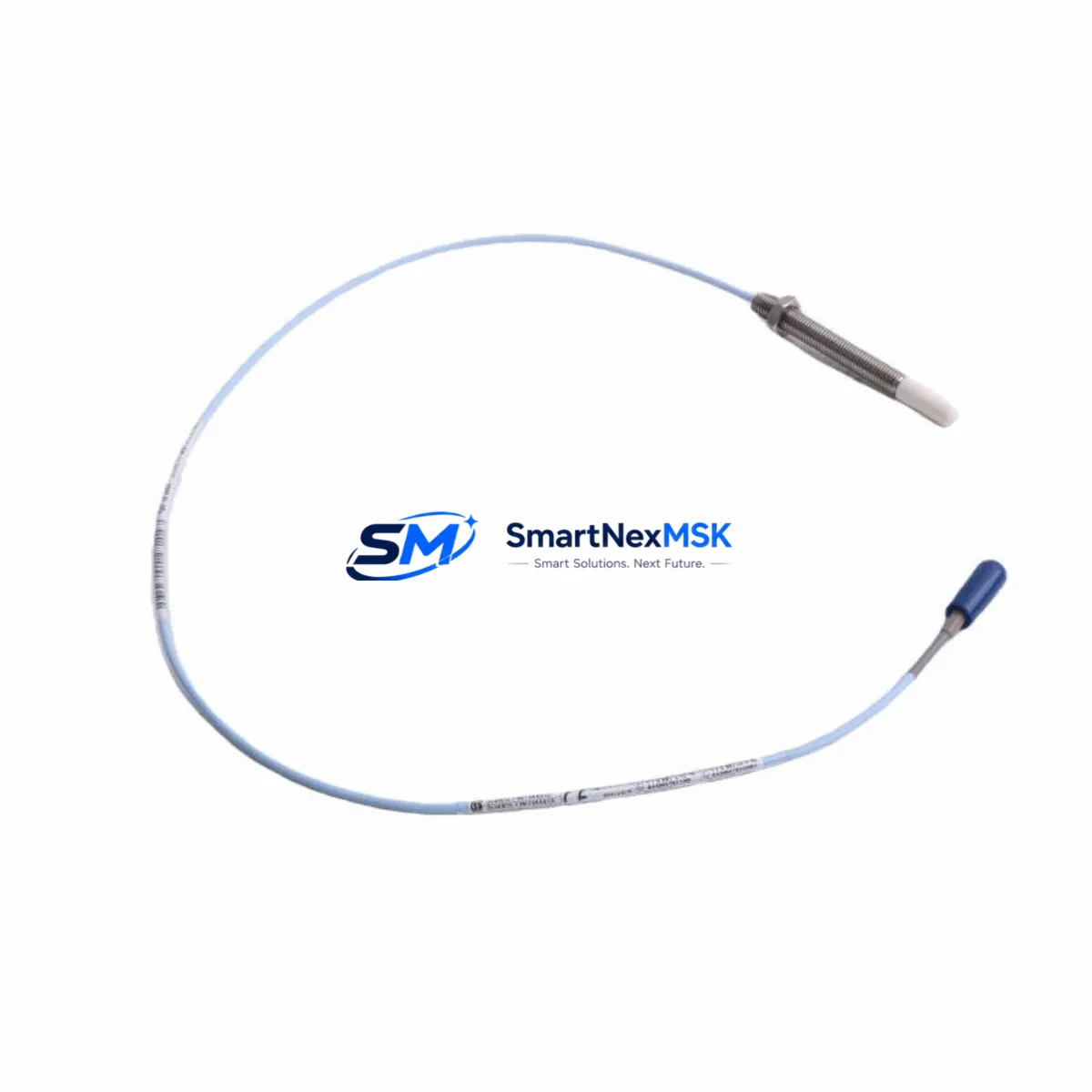

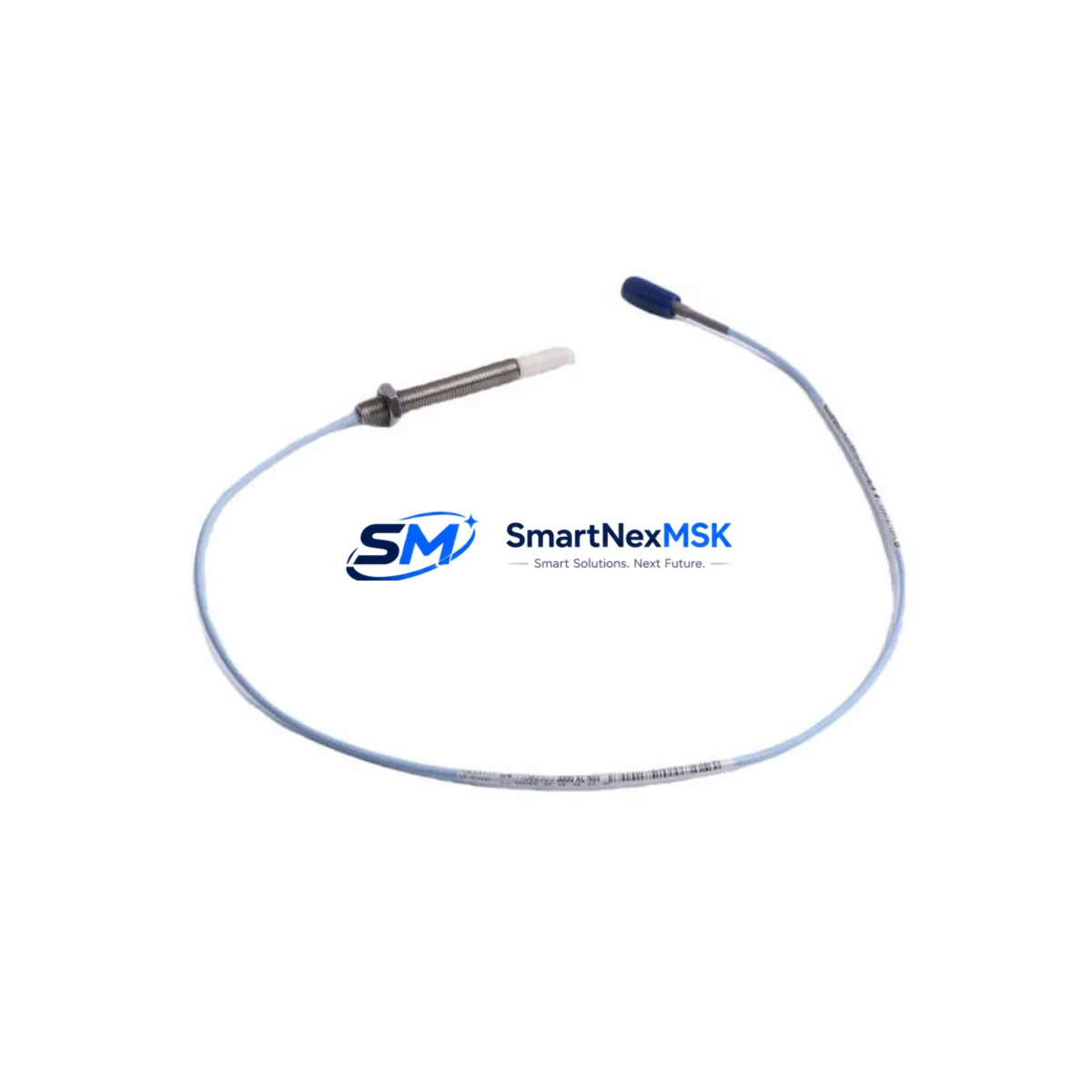

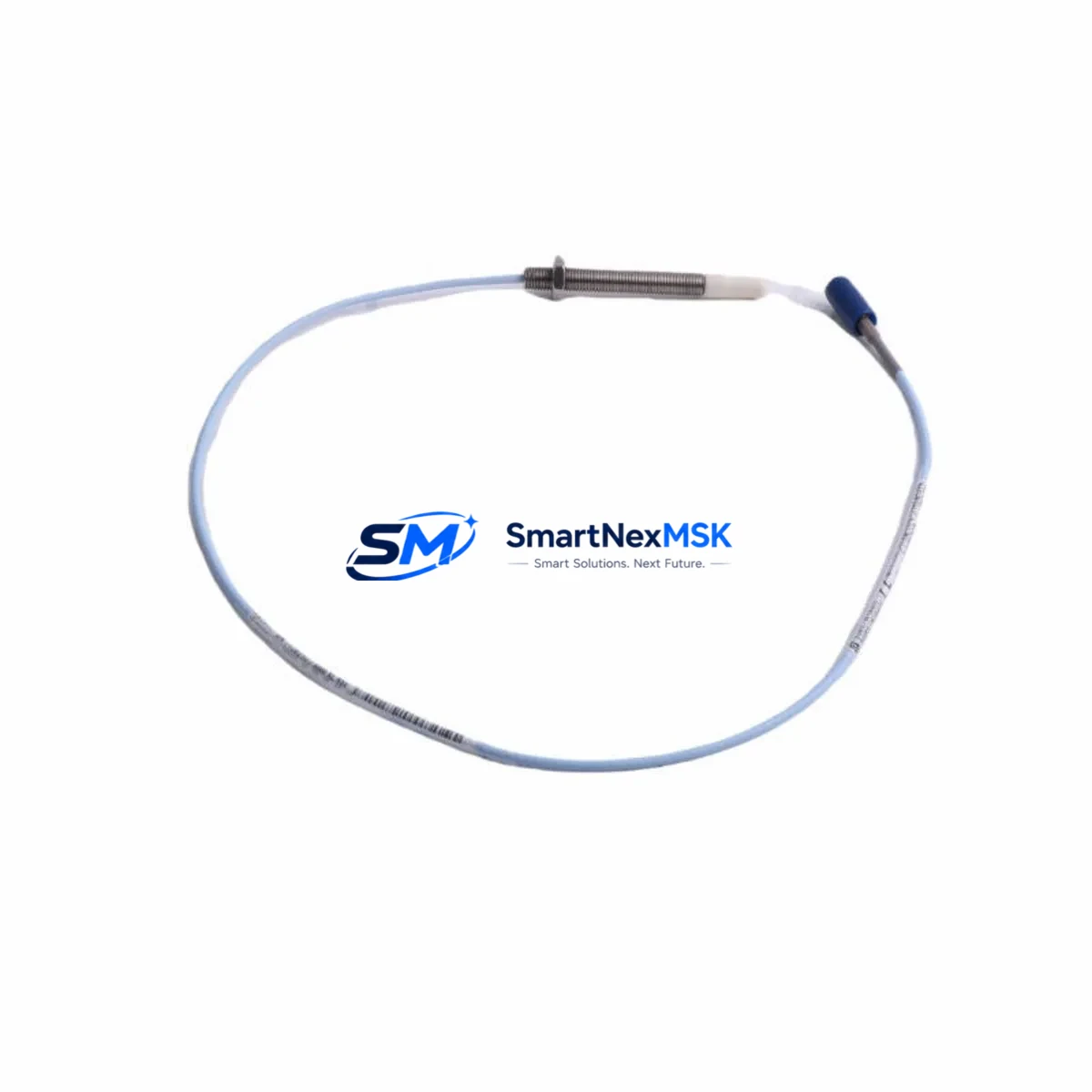

Bently Nevada 330903-00-25-05-02-00 Safety-Enhanced Proximity Probe

Bently Nevada 330903-00-25-05-02-00 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

The Bently Nevada 330903-00-25-05-02-00 is a ruggedized 8mm eddy-current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series monitoring system, this probe delivers exceptional signal integrity, electromagnetic interference rejection, and long-term mechanical durability — making it the preferred choice for rotating machinery protection in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port cranes, and continuous manufacturing lines.

Designed to operate reliably in high-temperature, high-vibration, and chemically aggressive surroundings, the 330903-00-25-05-02-00 features a 5-metre integral cable assembly with reinforced shielding that minimises signal drift even in environments with strong electromagnetic fields generated by large motors, variable frequency drives, and high-current bus bars. Its stainless-steel housing and hermetically sealed tip resist oil mist, coolant splash, and corrosive process gases — conditions that routinely degrade standard sensors and trigger unplanned shutdowns.

In critical interlock and safety instrumented system (SIS) loops, signal reliability is non-negotiable. The 330903-00-25-05-02-00 pairs directly with the Bently Nevada 3300 XL 8mm Extension Cable (330130-045-00-00) and the 3300 XL Proximitor® Sensor (330180-X1-05) to form a complete, factory-matched probe-cable-driver chain. This matched assembly eliminates impedance mismatches that can introduce measurement error, ensuring that the Bently Nevada 3500/42M Proximitor®/Seismic Monitor receives clean, calibrated signals for accurate shaft vibration and eccentricity readings. When integrated with the Bently Nevada 3500 Rack and its associated I/O modules, the system supports both API 670 machinery protection and continuous condition monitoring without additional signal conditioning hardware.

Surge and transient protection is equally critical in heavy industrial control cabinets. The probe’s shielded cable assembly, when routed alongside the Bently Nevada 330130 Series Extension Cables and terminated at properly grounded junction boxes, significantly reduces the risk of surge-induced module mis-operation. For installations near high-power switchgear or frequency converters, pairing the probe system with dedicated signal isolators and surge protection devices on the Proximitor® input lines further safeguards the monitoring chain against transient overvoltage events that could corrupt vibration data or trigger spurious trips.

Power supply stability directly affects probe system accuracy. The 330903-00-25-05-02-00 operates on a regulated −24 VDC supply, typically sourced from a Bently Nevada 3500/15 Power Supply Module or an equivalent redundant DC power distribution unit. Voltage ripple or dropout events on this supply rail can cause the Proximitor® output to drift, producing false alarm conditions in the 3500/42M monitor or downstream DCS historian. Specifying a high-quality, low-ripple power supply with adequate hold-up time is therefore an integral part of any reliable proximity probe installation.

For facilities operating under IEC 61511 functional safety requirements or API 670 machinery protection standards, the 330903-00-25-05-02-00 supports periodic proof-test procedures without removing the probe from service, provided the associated monitor — such as the Bently Nevada 3500/42M or the 3500/40M Proximitor®/Seismic Monitor — is configured for online bypass and test modes. This capability is essential in continuous-process industries where taking a machine offline for sensor verification is operationally impractical.

Every unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification, including gap voltage linearity checks across the full measurement range and insulation resistance testing of the cable assembly. Stock is maintained to support urgent spare-parts requirements, and all units are covered by a 12-month warranty against manufacturing defects. Fast international dispatch is available to support planned maintenance windows and emergency replacement scenarios worldwide.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection architecture built around the 330903-00-25-05-02-00 extends well beyond the probe itself. In a typical heavy-industry control cabinet, the probe signal is routed through a Bently Nevada 330130-045-00-00 Extension Cable to a 3300 XL Proximitor® Sensor (330180-X1-05) mounted in a DIN-rail or panel-mount enclosure close to the machine. The conditioned −24 VDC output then feeds into a Bently Nevada 3500/42M Proximitor®/Seismic Monitor housed in a 3500 Rack, where it is processed alongside signals from complementary sensors such as Bently Nevada 330500 Series velocity transducers for bearing housing vibration and 330750 Series temperature sensors for bearing metal temperature monitoring.

To protect the entire monitoring chain from power-line disturbances, the rack is typically powered by a Bently Nevada 3500/15 Power Supply Module with redundant feed capability. Upstream of the power supply, a dedicated 24 VDC UPS module or battery-backed power conditioner ensures that voltage sags caused by large motor starts or grid switching events do not interrupt the monitoring system during the most safety-critical moments of machine operation. Surge protection devices rated for the signal and power lines further reduce the risk of transient damage to the 3500/42M input cards.

For installations in classified hazardous areas (Zone 1 or Zone 2), the probe system is deployed with Zener barrier or galvanic isolator assemblies between the safe-area rack and the field-mounted Proximitor® sensor, maintaining intrinsic safety compliance while preserving signal fidelity. Communication between the 3500 Rack and the plant DCS or safety PLC is typically handled via Modbus RTU or Bently Nevada System 1® software over a dedicated Ethernet segment, isolated from the process control network to prevent cybersecurity-related communication anomalies from affecting machinery protection decisions.

Critical Industrial Safety Applications

The 330903-00-25-05-02-00 is deployed across a wide spectrum of high-consequence industrial applications. In petrochemical and refinery environments, it monitors shaft radial vibration and axial position on centrifugal compressors, pumps, and turbines that operate continuously under high process pressures, where an undetected rotor rub or bearing failure can escalate to a catastrophic release. In power generation facilities — including gas turbine, steam turbine, and hydro plants — the probe provides the primary vibration signal used by the turbine protection system to initiate an emergency trip before mechanical damage propagates to the generator or gearbox.

In mining and mineral processing operations, where large ball mills, SAG mills, and slurry pumps run in dusty, high-vibration environments around the clock, the ruggedised stainless-steel housing and IP67 rating of the 330903-00-25-05-02-00 ensure reliable operation without frequent sensor replacement. Water and wastewater treatment plants rely on the probe to protect high-speed blowers and centrifugal pumps that must maintain continuous operation to meet environmental discharge standards. In metallurgical facilities — blast furnaces, rolling mills, and continuous casters — the probe’s high-temperature tolerance allows installation close to process heat sources where conventional sensors would fail prematurely. Port and bulk-handling crane drives and conveyor systems similarly benefit from the probe’s ability to detect early-stage bearing deterioration before a mechanical failure halts material flow and triggers costly demurrage penalties.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330903-00-25-05-02-00?
The warranty covers all manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. If the unit fails to meet its published gap voltage linearity specification or exhibits cable insulation breakdown within the warranty period, SMARTNEXMSK will arrange replacement or repair at no additional cost. Warranty claims are processed promptly to minimise impact on your maintenance schedule.

Q2: What pre-shipment testing is performed before dispatch?
Every 330903-00-25-05-02-00 unit undergoes a gap voltage linearity verification across the full 0.25 mm to 2.26 mm measurement range and a cable insulation resistance test before shipment. Units that do not meet Bently Nevada’s published specifications are quarantined and not dispatched. Test records are available upon request for quality-assurance documentation purposes.

Q3: Is the 330903-00-25-05-02-00 compatible with existing 3300 XL and 3500 Series infrastructure?
Yes. The 330903-00-25-05-02-00 is a factory-standard component of the Bently Nevada 3300 XL 8mm Proximity Transducer System and is fully compatible with all 3300 XL Extension Cables (330130 Series), 3300 XL Proximitor® Sensors (330180 Series), and the 3500 Series rack monitors including the 3500/42M and 3500/40M. No additional adapters or recalibration are required when replacing a like-for-like unit in an existing installation.

Q4: Can long-term supply continuity be guaranteed for critical spare-parts programmes?
SMARTNEXMSK maintains standing inventory of the 330903-00-25-05-02-00 to support both planned maintenance programmes and emergency replacement requirements. For facilities that operate critical-spare strategies under API 686 or equivalent standards, we can discuss framework supply agreements to ensure stock availability aligned with your planned outage schedule. Contact our technical sales team to discuss volume and lead-time requirements.
